Introduction
Thank you for choosing the Raybee Heavy Duty Clothes Rack. This manual provides essential information for the safe and efficient assembly, operation, maintenance, and troubleshooting of your new clothing rack. Please read these instructions carefully before use and retain them for future reference.
This freestanding clothes rack features a robust steel structure, offering a high capacity of up to 1150 lbs. It includes 4 rods and 6 shelves, designed for tool-free assembly and adjustable configurations to suit various spaces and storage needs.
Setup and Assembly
The Raybee Heavy Duty Clothes Rack is designed for easy, tool-free assembly, typically taking less than 15 minutes. Follow these steps for proper installation:
- Unpack Components: Carefully remove all parts from the packaging and verify against the included parts list.
- Identify Poles and Shelves: Distinguish between the different pole lengths and shelf sizes.
- Attach Plastic Clips: Secure the plastic clips to the desired height on the vertical poles. Ensure the clips are correctly oriented and snap firmly into the grooves on the poles. The wider end of the clip should face upwards.
- Install Shelves: Slide the shelves down over the poles until they rest securely on the plastic clips. Apply even pressure to ensure the shelf is level and fully seated.
- Connect Poles (if applicable): For taller sections, connect pole segments using the internal connectors. Ensure they are fully inserted and stable.
- Install Hanging Rods: Attach the hanging rods between the vertical poles at your preferred height, resting them on plastic clips similar to the shelves.
- Adjust Configuration: The rack can be assembled in either an L-shape for corners or a straight-lined shape for larger spaces. Adjust shelves and rods as needed to accommodate long or short clothing items.
For a visual guide, please refer to the installation video:
Operating Instructions
Your Raybee Heavy Duty Clothes Rack offers versatile storage solutions for various items. Here's how to maximize its utility:
- Weight Distribution: While the rack has a high capacity (up to 1150 lbs total), distribute weight evenly across shelves and hanging rods. Each single hanging rod supports up to 77 lbs, and the longest hanger supports up to 132 lbs. Each shelf can hold up to 88 lbs.
- Adjustable Storage: Utilize the adjustable and detachable shelves and hanging rods to create customized storage zones. You can easily move clips to change shelf heights or remove components entirely to accommodate taller items or create open spaces.
- Multifunctionality: This rack is suitable for clothes, accessories, shoes, and other items. The multiple tiers and hanging options help organize your belongings efficiently.
- Placement: The L-shaped configuration is ideal for small spaces, corners, apartments, bedrooms, or dorms. The straight-lined shape is best for larger areas like cloakrooms or open closets.

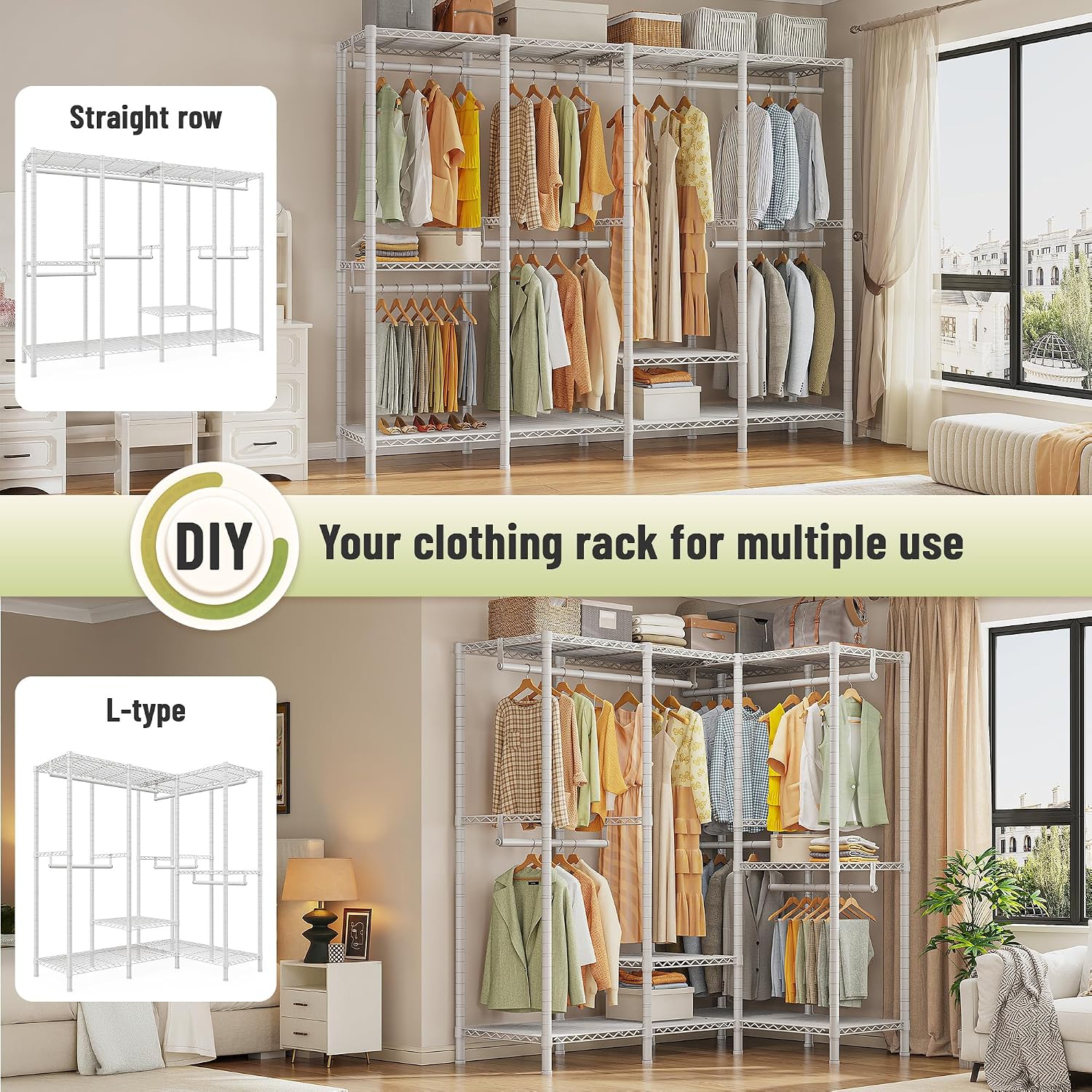

See the rack in various configurations:
Maintenance
To ensure the longevity and optimal performance of your Raybee Heavy Duty Clothes Rack, follow these simple maintenance guidelines:
- Cleaning: Wipe down the metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Regular Inspection: Periodically check all connections, especially the plastic clips holding the shelves and rods. Ensure they remain securely fastened.
- Weight Management: Do not exceed the stated weight capacities for individual rods (77 lbs), the longest hanger (132 lbs), or shelves (88 lbs), and the total rack capacity (1150 lbs). Overloading can lead to structural instability.
- Relocation: If moving the rack, especially when loaded, empty it first to prevent strain on the structure and potential damage.
Troubleshooting
If you encounter any issues with your Raybee Heavy Duty Clothes Rack, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Rack feels unstable or wobbly. | Uneven floor surface; loose connections; uneven weight distribution. | Ensure the rack is on a level surface. Check that all plastic clips are fully engaged and shelves are seated correctly. Redistribute items to balance the load. |
| Shelves or rods are slipping. | Plastic clips not properly installed or damaged; excessive weight. | Verify that plastic clips are snapped securely into the pole grooves. Reduce the weight on the affected shelf or rod. If clips are damaged, contact customer support for replacements. |
| Difficulty during assembly. | Incorrect orientation of parts; clips not fully engaged. | Refer to the assembly instructions and video. Ensure plastic clips are oriented correctly (wider end up) and fully snap into place before sliding shelves down. |
If the problem persists or is not listed here, please contact Raybee customer support for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Raybee |
| Model Number | CD-GC-4D5H-193 |
| Color | White |
| Material | Metal |
| Product Dimensions (D x W x H) | 18"D x 76"W x 77"H |
| Item Weight | 66 pounds |
| Maximum Weight Recommendation (Total) | 1150 pounds |
| Number of Shelves | 6 |
| Number of Hanging Rods | 4 |
| Installation Type | Free Standing |
| Assembly Time | Less than 15 minutes (tool-free) |
| Additional Features | Easy to Install, Extra Height, Portable, Removable, With Adjustable Shelves |
Warranty and Support
For information regarding product warranty, returns, or to purchase replacement parts, please contact Raybee customer support directly. You can typically find contact information on the packaging or through the seller's store page on the platform where you purchased the product.
