RESTMO High Pressure Hose Nozzle Sprayer Instruction Manual

1. Product Overview

The RESTMO High Pressure Hose Nozzle Sprayer is designed for various outdoor watering and cleaning tasks. It features a durable metal construction, adjustable spray patterns, and convenient thumb flow control.

Figure 1: RESTMO High Pressure Hose Nozzle Sprayer

Key Components

Figure 2: Labeled diagram showing the Pure Brass Head, Rubber Anti-Slip Dial, Thumb Flow Controller, Ergonomics TPU Handle, 3/4" Leak-free Hose Thread, and Replacement Rubber Seal Gaskets.

• Pure Brass Head: Provides durability and precise spray.
• Rubber Anti-Slip Dial: Allows for easy adjustment of spray patterns.
• Thumb Flow Controller: Enables convenient water flow adjustment and shut-off.
• Ergonomics TPU Handle: Designed for comfortable grip and reduced hand fatigue.
• 3/4" Leak-free Hose Thread: Ensures a secure connection to standard garden hoses.
• Replacement Rubber Seal Gaskets: Included for maintaining a watertight seal.

2. Setup and Installation

Follow these steps to properly connect your RESTMO hose nozzle to a standard garden hose:

1. Ensure your garden hose has a standard 3/4" thread.
2. Check that a rubber seal gasket is properly seated inside the nozzle's hose thread connection. This helps prevent leaks.
3. Screw the nozzle onto the end of your garden hose by turning it clockwise until it is hand-tight. Do not overtighten.
4. Turn on the water supply to the hose and check for any leaks at the connection point. If a leak occurs, tighten slightly or ensure the gasket is correctly positioned.

Figure 3: Securely attaching the nozzle to a standard garden hose.

3. Operating Instructions

3.1 Adjusting Spray Patterns

The RESTMO nozzle offers 4 distinct spray patterns. To change the spray pattern, rotate the rubber anti-slip dial at the head of the sprayer. Turn the dial until you achieve the desired pattern:

• Jet: A powerful, concentrated stream for cleaning tough dirt or reaching distant areas.
• Mist: A fine, gentle spray ideal for watering delicate plants and seedlings.
• Cone: A wider, conical spray suitable for general watering and rinsing.
• Full: A robust, full-coverage spray for quick watering or filling buckets.

Figure 4: Rotate the sprayer head dial to select one of the 4 available water patterns.

3.2 Controlling Water Flow

The nozzle features a thumb flow controller for easy adjustment of water pressure and for turning the water on and off.

1. To turn the water on, push the thumb control forward.
2. To increase water flow and pressure, continue pushing the thumb control forward towards the 'MAX' position.
3. To decrease water flow and pressure, pull the thumb control backward.
4. To turn the water off, pull the thumb control all the way back to the 'OFF' position.

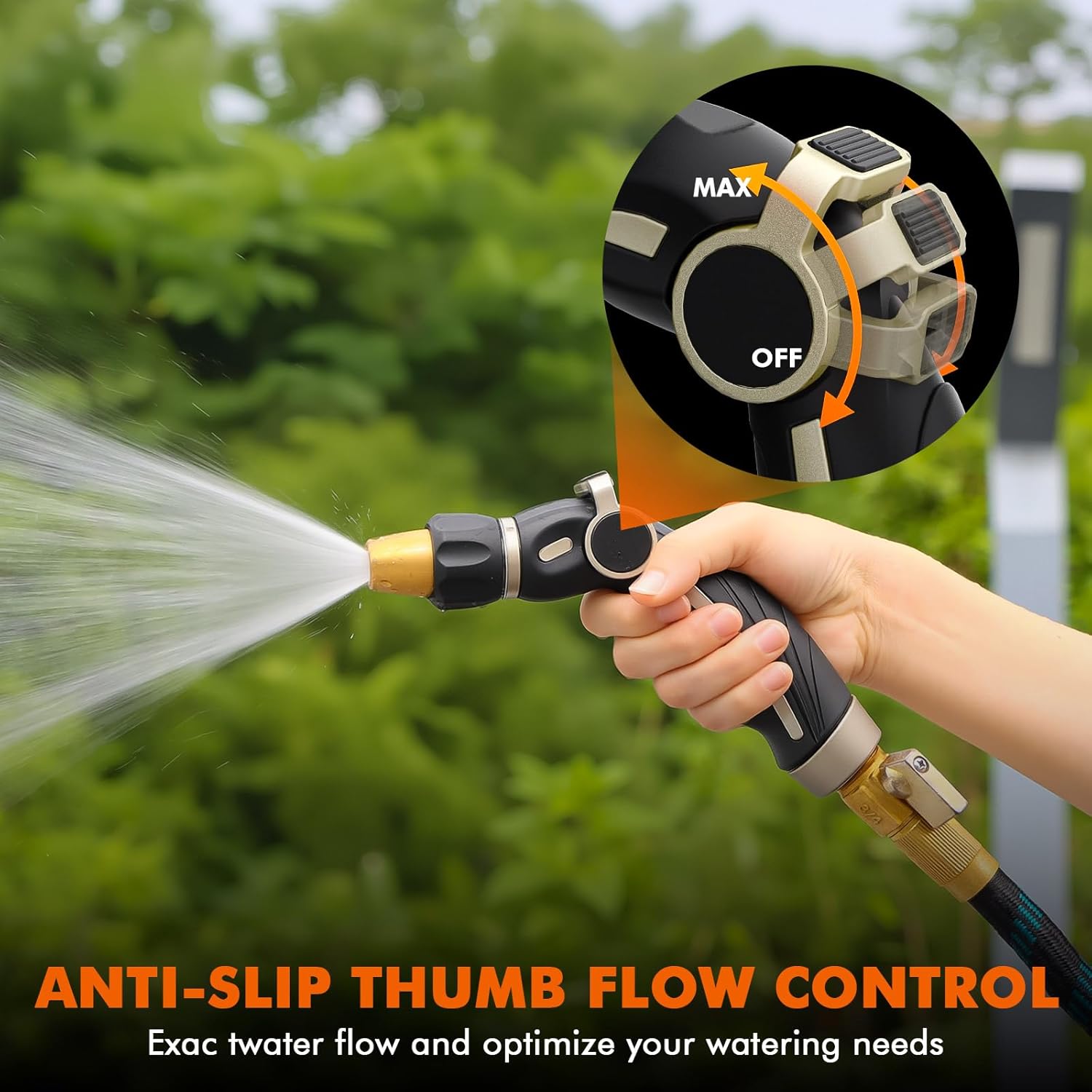

Figure 5: The anti-slip thumb flow control allows for precise adjustment of water flow.

3.3 Usage Examples

The versatile spray patterns and high-pressure capability make this nozzle suitable for various applications:

• Car Washing: Use the cone or jet pattern for effective cleaning of vehicles.
• Garden Cleaning: The powerful jet spray can assist in cleaning patios, driveways, and outdoor floors.
• Lawn and Plant Watering: The mist and cone patterns provide gentle and efficient watering for lawns, plants, and flower beds.

Figure 6: Examples of high-pressure jet use for cleaning various surfaces.

4. Maintenance

Proper maintenance will extend the life of your RESTMO hose nozzle:

• Cleaning: After each use, rinse the nozzle with clean water to remove any dirt or debris, especially from the spray head.
• Storage: Store the nozzle in a dry, shaded area when not in use. Protect it from freezing temperatures, which can damage internal components.
• Gasket Inspection: Periodically inspect the rubber seal gasket for wear or damage. Replace if necessary using the provided spare gaskets to maintain a leak-free connection.

5. Troubleshooting

If you encounter issues with your hose nozzle, refer to the following common problems and solutions:

• Water Leakage at Hose Connection:
  • Ensure the nozzle is securely tightened to the hose.
  • Check if the rubber seal gasket is present and properly seated within the nozzle's connector. Replace the gasket if it is worn or damaged.
• Weak or Inconsistent Spray:
  • Verify that the water supply to the hose is fully open.
  • Check for any blockages in the nozzle head. Clean any visible debris.
  • Ensure the thumb flow controller is pushed fully forward to the 'MAX' position for maximum pressure.
• Difficulty Adjusting Spray Patterns:
  • Rinse the nozzle head to remove any grit or mineral deposits that might be hindering rotation.

6. Specifications

7. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Restmo website. Keep your purchase receipt for warranty claims.
