1. Introduction
Thank you for choosing the CASARIA Eloise 3-Drawer Bedside Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
The Eloise bedside table is designed to offer practical storage and a stylish addition to your bedroom or living space. Its compact design and three smooth-running drawers make it suitable for various uses.
Image 1.1: Assembled CASARIA Eloise Bedside Table with three drawers.
2. Safety Information
To ensure safe use and prevent injury or damage, please observe the following safety guidelines:
- Read All Instructions: Familiarize yourself with all assembly steps before starting.
- Keep Small Parts Away: Small components and hardware can be a choking hazard for children. Keep them out of reach.
- Stable Surface: Assemble the unit on a clean, flat, and stable surface to prevent scratching or damage.
- Weight Limits: Do not exceed the maximum load capacities: 25 kg for the top shelf and 5 kg per drawer. Overloading can cause instability and damage.
- Wall Mounting: For enhanced stability and to prevent tipping, it is highly recommended to secure the bedside table to a wall using the provided anti-tip strap. This is especially important in households with children or pets.
- Proper Tools: Use appropriate tools for assembly as specified in the instructions. Do not overtighten screws.

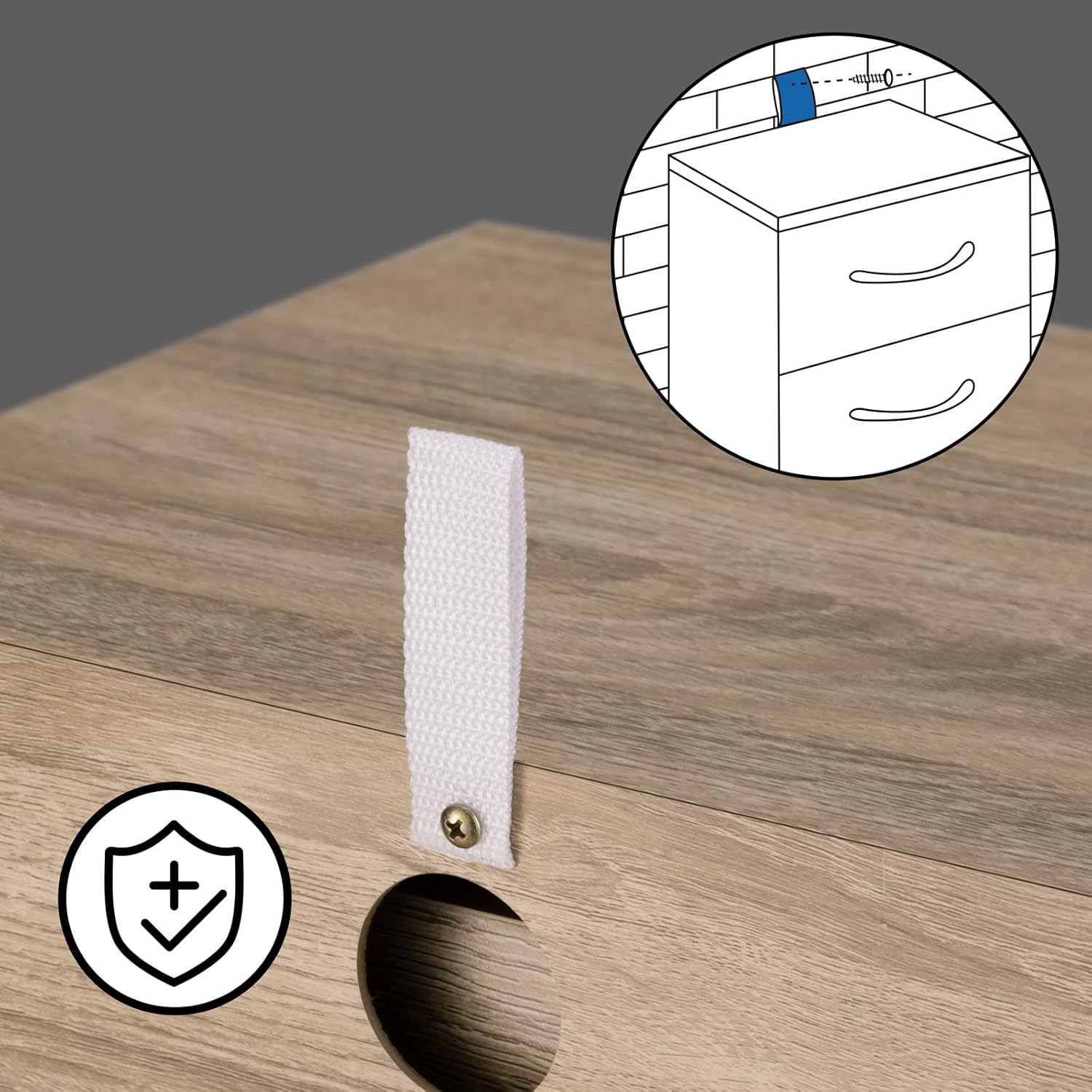

Image 2.1: Illustration of the wall mounting strap for anti-tip safety.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.
- Top Panel
- Bottom Panel
- Side Panels (2)
- Drawer Fronts (3)
- Drawer Sides (6 pairs)
- Drawer Backs (3)
- Drawer Bottoms (3)
- Back Panel
- Drawer Slides (6 pairs)
- Handles (3)
- Hardware Pack (screws, dowels, cam locks, etc.)
- Wall Mounting Strap and Hardware
- Assembly Instructions
4. Setup and Assembly
Follow these steps carefully to assemble your CASARIA Eloise Bedside Table. It is recommended to have two people for assembly.
- Prepare Workspace: Clear a spacious area and lay out all components on a soft, clean surface to prevent scratches.
- Attach Drawer Slides to Side Panels: Secure the inner drawer slides to the designated holes on the side panels using the provided screws. Ensure they are correctly oriented.
- Assemble Drawers: For each of the three drawers, connect the drawer sides to the drawer front and back using dowels and cam locks. Slide the drawer bottom into the grooves. Attach the handles to the drawer fronts.
- Install Outer Drawer Slides: Attach the outer drawer slides to the assembled drawer boxes.
- Construct Main Frame: Connect the side panels to the bottom panel using dowels and cam locks. Then, attach the top panel. Ensure all connections are secure.
- Insert Drawers: Carefully slide the assembled drawers into the main frame, aligning the inner and outer drawer slides.
- Attach Back Panel: Secure the back panel to the rear of the unit using small nails or screws.
- Wall Mounting (Recommended): Attach the wall mounting strap to the top rear of the bedside table using the provided screw. Secure the other end of the strap to a wall stud or use appropriate wall anchors (not always included, depending on wall type). This step is crucial for stability and safety.
Image 4.1: Product dimensions and key features including weight capacity and wall mounting.
5. Operating and Features
The CASARIA Eloise Bedside Table offers several functional features:
- Three Drawers: Each drawer provides 5 liters of storage capacity, ideal for books, personal items, or electronics. The smooth-running slides ensure easy opening and closing.
- Cable Grommet: The top drawer features an integrated cable grommet, allowing you to charge your smartphone or other devices discreetly inside the drawer, preventing cable clutter on the top surface.
- Optional Drawer Lighting: Some models may include an automatic LED light in the top drawer, activated by a distance sensor when the drawer is opened. This feature provides convenient illumination in low-light conditions.
- Sturdy Top Surface: The top surface can support up to 25 kg, suitable for a bedside lamp, alarm clock, or decorative items.
Image 5.1: Detail of the cable grommet for device charging within the drawer.
Image 5.2: Interior view of an open drawer, demonstrating storage capacity.
6. Maintenance
Proper care will extend the life and appearance of your bedside table:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
- Spills: Clean up spills immediately to prevent staining or moisture damage.
- Hardware Check: Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary to maintain stability.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the finish.
7. Troubleshooting
If you encounter any issues with your bedside table, refer to the following common solutions:
- Table is Wobbly:
- Ensure all screws and cam locks are fully tightened.
- Verify the unit is on a flat, even surface. Adjust floor protectors if necessary.
- Drawers Do Not Slide Smoothly:
- Check that the drawer slides are correctly aligned and securely attached to both the drawer box and the main frame.
- Ensure no objects are obstructing the drawer's path.
- Verify that the drawer boxes are assembled squarely.
- Missing or Damaged Parts:
- Carefully re-check all packaging materials.
- Contact CASARIA customer service with your product model and a description of the missing/damaged part.
8. Specifications
| Brand | CASARIA |
| Model | Eloise |
| Product Dimensions (H x W x D) | 54 x 39 x 28 cm |
| Material | 100% MDF (Engineered Wood) |
| Item Weight | 23 kg |
| Load Capacity (Top Shelf) | 25 kg |
| Load Capacity (Per Drawer) | 5 kg |
| Volume (Per Drawer) | 5 L |
| Drawer Dimensions (W x D x H) | 32 x 23.7 x 9 cm |
| Special Features | 3 Drawers, Cable Grommet, Optional Drawer Lighting, Wall Mounting Strap |
9. Warranty and Support
For warranty information, technical support, or to report missing/damaged parts, please contact CASARIA customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.
Please have your product model (Eloise 3-Drawer Bedside Table) and proof of purchase ready when contacting support.
