BALDERIA Leif 3-in-1 Electric Fireplace 36-inch Instruction Manual

1. Introduction

Thank you for purchasing the BALDERIA Leif 3-in-1 Electric Fireplace. This manual provides important information for the safe installation, operation, and maintenance of your electric fireplace. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, read all instructions before using this appliance.

• Ensure the power supply voltage matches the rating label on the appliance.
• Do not operate the fireplace with a damaged cord or plug.
• Keep combustible materials at least 1 meter (3 feet) away from the front of the fireplace.
• Do not insert foreign objects into any ventilation or exhaust opening.
• This appliance is for indoor use only.
• Unplug the fireplace before cleaning or maintenance.
• The fireplace is equipped with overheat protection. If it overheats, it will automatically shut off. Unplug the unit, wait 10 minutes, and plug it back in.
• This product does not produce soot or dangerous carbon monoxide, making it safe for homes with children and pets.

3. Package Contents

Verify that all components are present:

• BALDERIA Leif Electric Fireplace Unit
• Remote Control
• Mounting Hardware (for wall mount/built-in options)
• Instruction Manual (this document)

4. Setup and Installation

The BALDERIA Leif Electric Fireplace offers three installation options: freestanding (on the floor), wall-mounted, or built-in.

4.1. Freestanding Installation

For freestanding use, simply place the fireplace on a stable, level surface. Ensure adequate clearance from walls and other objects for proper ventilation.

Image: Freestanding installation of the BALDERIA Leif Electric Fireplace on a cabinet.

4.2. Wall-Mounted Installation

To wall-mount the fireplace, use the provided mounting hardware. Select a suitable wall location, ensuring it can support the weight of the unit and is away from curtains or other flammable materials. Follow the detailed instructions included in the assembly guide for secure mounting.

Image: Wall-mounted installation of the BALDERIA Leif Electric Fireplace.

4.3. Built-in Installation

For a built-in installation, prepare an opening in your wall or furniture that matches the dimensions of the fireplace. Ensure proper ventilation and access to a power outlet. Refer to the detailed assembly instructions for precise measurements and installation steps.

Image: Built-in installation of the BALDERIA Leif Electric Fireplace.

5. Operating Instructions

The fireplace can be operated using the control panel on the unit or the included remote control.

5.1. Control Panel and Remote Control Overview

Image: Control panel and remote control functions.

1. Digital Display: Shows temperature, timer settings, and other indicators.
2. Flame Color: Adjusts the color of the flame effect.
3. ON/OFF: Powers the unit on or off.
4. Temperature: Adjusts the desired room temperature.
5. Heating Switch: Activates or deactivates the heating function.
6. Weekly Timer: Sets a timer for weekly operation.
7. Timer: Sets a general timer for automatic shut-off.
8. Flame Brightness: Adjusts the intensity of the flame effect.

5.2. Power On/Off

Press the ON/OFF button (3) on the control panel or remote control to turn the fireplace on or off.

5.3. Adjusting Flame Effect

The fireplace features a realistic 3D flame effect with multiple color and intensity options.

• Flame Color: Press the Flame Color button (2) to cycle through 9 different flame color scenarios.


Image: Nine available flame color effects.

• Flame Brightness: Press the Flame Brightness button (8) to adjust the intensity of the flame effect through 5 levels.


Image: Five adjustable flame intensity levels.

5.4. Heating Function

The heating function can be used independently of the flame effect. It offers two power settings: 1000W and 2000W.

• Activate Heating: Press the Heating Switch button (5) to turn the heater on. Press again to cycle through power settings (1000W / 2000W / Off).
• Set Temperature: Use the Temperature button (4) to set your desired room temperature. The built-in thermostat will automatically regulate the heating to maintain the set temperature.

5.5. Timer Functions

• General Timer: Press the Timer button (7) to set an automatic shut-off timer for a specific duration.
• Weekly Timer: Press the Weekly Timer button (6) to program the fireplace to turn on and off at specific times throughout the week. Refer to the detailed assembly guide for advanced weekly timer programming.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric fireplace.

• Cleaning: Always unplug the unit before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or sprays.
• Ventilation: Ensure that the air inlets and outlets are kept clear of dust and debris. Use a vacuum cleaner with a brush attachment to gently clean these areas.
• Storage: If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location.

7. Troubleshooting

8. Specifications

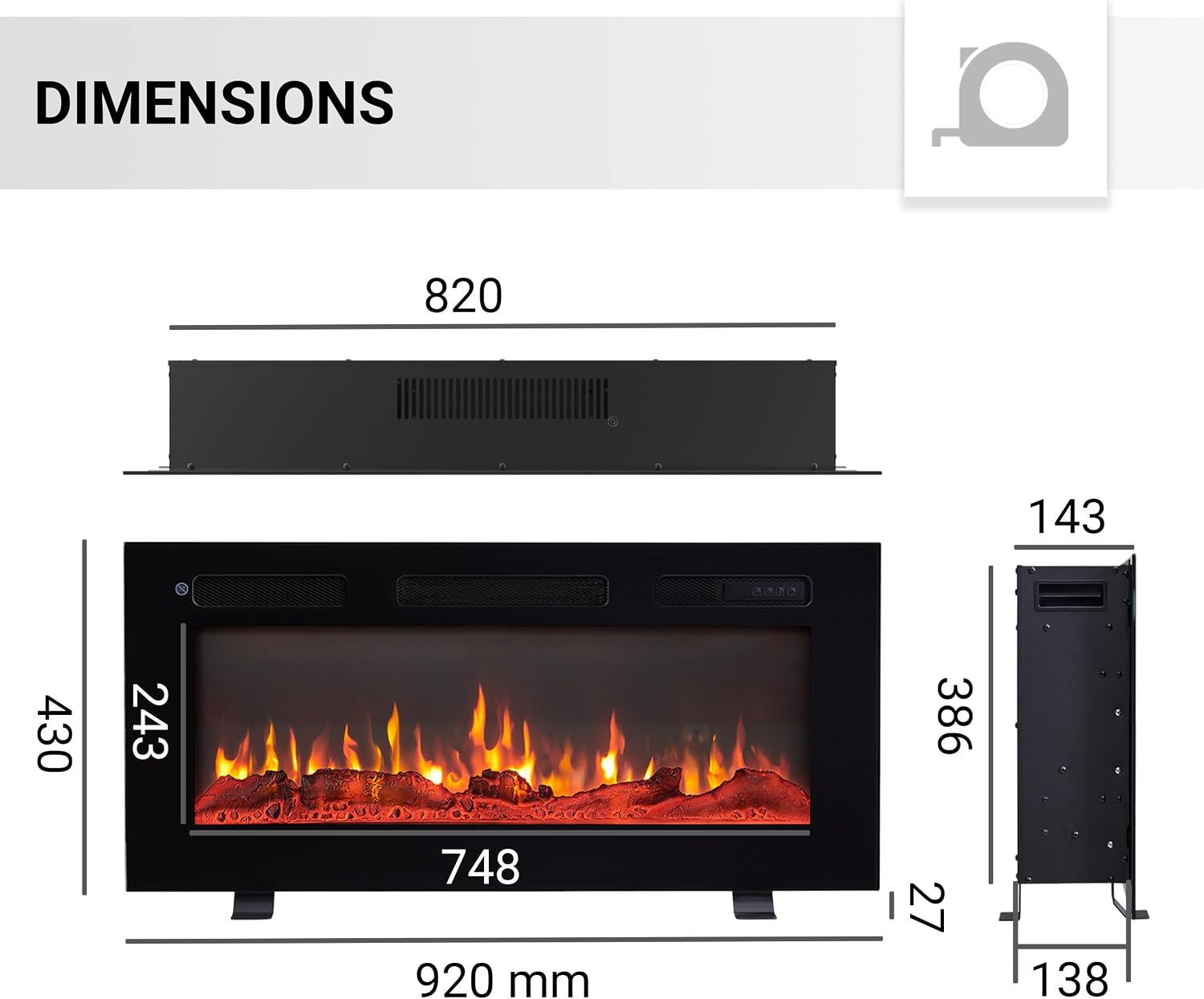

Image: Dimensions of the BALDERIA Leif Electric Fireplace (36-inch model).

9. Warranty Information

This BALDERIA product comes with a limited warranty. Please refer to the warranty card included in your package or contact customer support for details regarding warranty coverage and terms. Keep your proof of purchase for warranty claims.

10. Customer Support

If you have any questions, require assistance, or need to report an issue with your BALDERIA Leif Electric Fireplace, please contact our customer support team. Contact information can typically be found on our official website or on the packaging materials.

For more information, visit the official BALDERIA website: www.balderia.com
