FMS 1:24 Smasher RC Vehicle CVD AXLE Set A (C3063) Instruction Manual

1. Introduction

This instruction manual provides essential information for the installation, maintenance, and general use of the FMS 1:24 Smasher RC Vehicle CVD AXLE Set A (Part Number C3063). This set is designed as a direct replacement or upgrade component for the FMS 1:24 Smasher remote control vehicle. Proper installation and maintenance ensure optimal performance and longevity of your RC model.

An illustration of the FMS 1:24 Smasher RC truck, highlighting the overall chassis and suspension components where the CVD axle set would be installed.

2. Product Components

The FMS 1:24 Smasher CVD AXLE Set A (C3063) includes the following parts:

• CVD Shafts
• Axle Stubs
• Cross Pins
• Retaining Screws

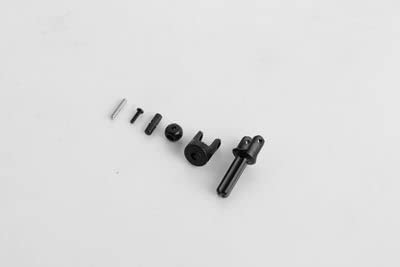

This image displays the individual parts typically included in the CVD AXLE Set A, which consists of the CVD shaft, axle stub, cross pin, and retaining screw.

3. Installation Instructions

Follow these general steps for installing the CVD AXLE Set A. Specific disassembly and reassembly procedures may vary slightly based on your vehicle's current configuration. Always refer to your vehicle's primary manual for detailed chassis disassembly instructions.

1. Prepare the Vehicle: Ensure the RC vehicle is powered off and the battery is disconnected. Place the vehicle on a stable, clean surface.
2. Remove Wheels: Carefully remove the wheels from the axle assembly you intend to replace.
3. Disassemble Axle Housing: Depending on your Smasher model, you may need to partially disassemble the axle housing or suspension components to access the existing axle shafts.
4. Remove Old Axle: Extract the old or damaged axle shafts from the differential and portal housing. Note the orientation of all components during removal.
5. Install New CVD Axle: Insert the new CVD axle shafts into the differential and through the portal housing. Ensure the cross pin is correctly seated in the axle stub and the CVD joint is properly aligned.
6. Secure Components: Reassemble any removed axle housing or suspension components. Ensure all screws are tightened securely but do not overtighten to avoid stripping threads.
7. Reattach Wheels: Mount the wheels back onto the axle stubs and secure them.
8. Final Check: Manually rotate the wheels to ensure smooth operation and check for any binding or unusual resistance.

Note: Use appropriate tools for disassembly and assembly to prevent damage to the parts or vehicle.

4. Maintenance

Regular maintenance of your CVD AXLE Set A will extend its lifespan and maintain performance:

• Inspection: Periodically inspect the CVD axles for signs of wear, bending, or damage, especially after heavy use.
• Cleaning: Keep the axles free from dirt, dust, and debris. A soft brush and compressed air can be used for cleaning. Avoid harsh chemicals.
• Lubrication: Apply a small amount of appropriate RC-grade grease or lubricant to the CVD joints to ensure smooth operation and reduce wear.
• Fastener Check: Ensure all screws and pins holding the axle components are tight.

5. Troubleshooting

If you encounter issues with your CVD AXLE Set A, consider the following:

• Binding/Sticking: Check for debris in the CVD joints, insufficient lubrication, or incorrect assembly. Ensure all parts move freely.
• Excessive Play: Verify that all retaining pins and screws are securely fastened. Worn out bearings or bushings in the axle housing can also cause play.
• Breakage: While CVD axles are durable, extreme impacts or excessive stress can cause breakage. Inspect for cracks or fractures and replace damaged components immediately.
• Unusual Noise: Grinding or clicking noises often indicate a lack of lubrication, debris, or damaged components within the axle or differential.

6. Specifications

7. Related Parts and Compatibility

The CVD AXLE Set A (C3063) is part of a larger ecosystem of spare parts for the FMS 1:24 Smasher RC vehicle. Below are excerpts from the general spare parts list for reference:

The first page of the comprehensive spare parts list for the FMS 1:24 Smasher RC vehicle, detailing various components and their part numbers.

The second page of the comprehensive spare parts list for the FMS 1:24 Smasher RC vehicle, detailing additional components and their part numbers.

8. Warranty and Support

For any questions, concerns, or support regarding your FMS 1:24 Smasher RC Vehicle CVD AXLE Set A (C3063), please contact the seller or the FMS customer support team. Refer to your purchase documentation for specific warranty details and contact information.

Note: The manufacturer recommends contacting the seller for assistance with any issues, especially if the product breaks due to rigorous use.
