1. Introduction
This manual provides essential information for the safe and efficient use of your OnePlus Ace Pro 10T 5G smartphone. Please read this guide thoroughly before operating your device to ensure optimal performance and longevity. Keep this manual for future reference.
2. Safety Information
- Do not expose the device to extreme temperatures, direct sunlight, or high humidity.
- Use only manufacturer-approved chargers and accessories.
- Avoid dropping or subjecting the device to severe impact.
- Do not attempt to disassemble or repair the device yourself. Refer to authorized service personnel.
- Observe all local laws and regulations regarding mobile phone use, especially while driving.
3. Package Contents
Verify that your package contains the following items:
- OnePlus Ace Pro 10T 5G Smartphone
- Power Adapter (150W SuperVOOC)
- USB Type-C Cable
- SIM Ejector Tool
- Quick Start Guide and Safety Information
Note: Specific contents may vary by region.
4. Device Overview
Familiarize yourself with the physical components of your OnePlus Ace Pro 10T 5G.

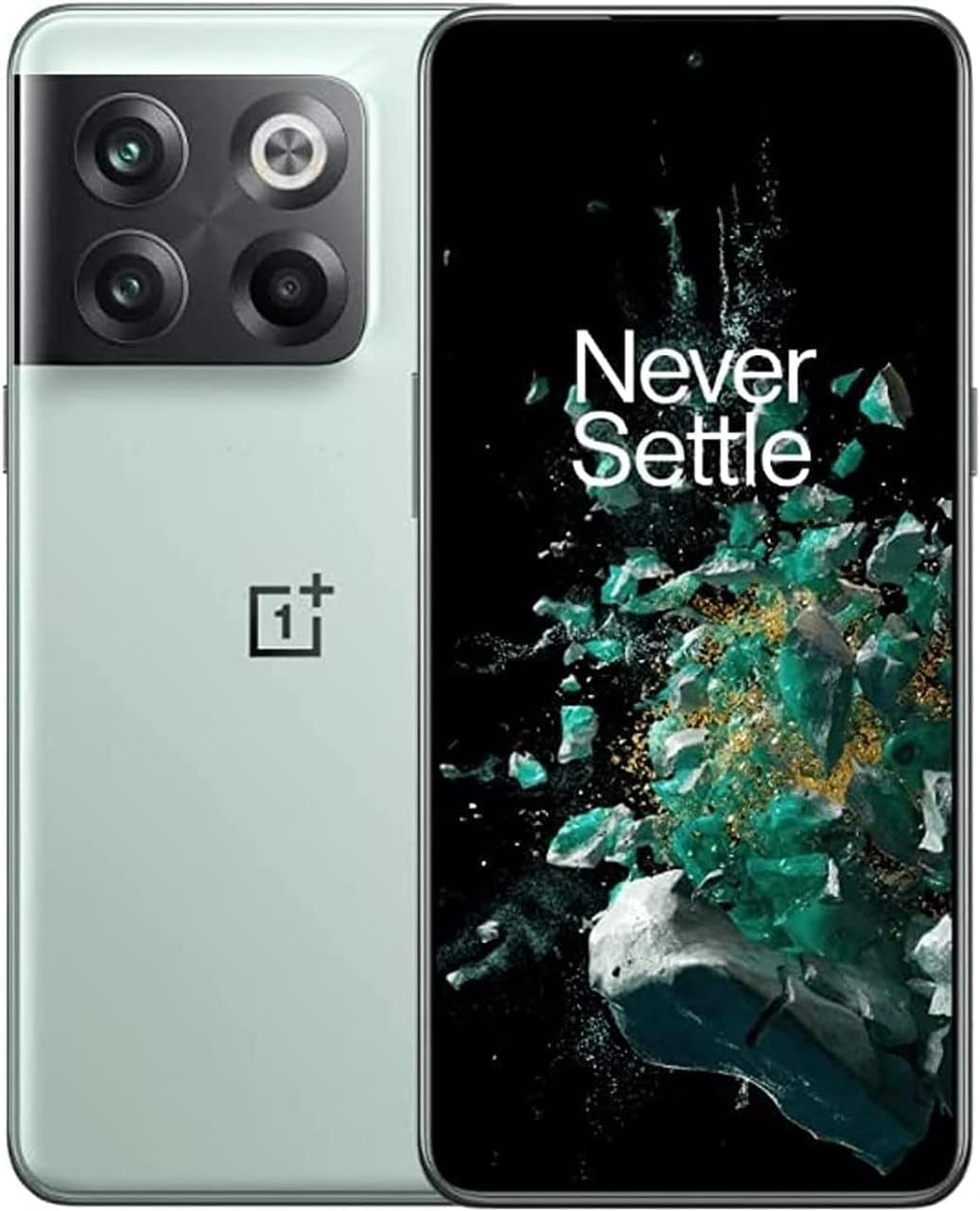

Figure 4.1: Front and Rear View of OnePlus Ace Pro 10T 5G
This image displays the front and back of the OnePlus Ace Pro 10T 5G smartphone. The front shows the display with a 'Never Settle' wallpaper. The back highlights the camera module with three lenses and the OnePlus logo, all on a green-colored device body.
- Front: 6.7-inch display, front camera, earpiece.
- Rear: Triple camera system, LED flash, OnePlus logo.
- Sides: Power button, volume buttons, SIM card tray, USB Type-C port, speakers.
5. Setup
5.1. Inserting the SIM Card
- Locate the SIM card tray on the side of your device.
- Insert the SIM ejector tool into the small hole next to the tray and press firmly until the tray pops out.
- Place your Nano-SIM card(s) into the tray with the gold contacts facing down. This device supports Dual SIM.
- Carefully push the tray back into the slot until it clicks into place.
5.2. Initial Power On and Setup
- Press and hold the Power button until the OnePlus logo appears.
- Follow the on-screen instructions to select your language, connect to Wi-Fi, and set up your Google account.
- Complete the initial setup process, including setting up security features like fingerprint or face unlock.
5.3. Important Network Compatibility Note for USA Buyers
This smartphone is designed for GSM networks and is not compatible with CDMA networks. This includes, but is not limited to, Verizon, Sprint, and US Cellular. Before purchasing or attempting to use this device in the USA, please verify compatibility with your network provider for 3G or 4G/LTE services.
6. Operating Your Device
6.1. Basic Functions
- Power On/Off: Press and hold the Power button. Select "Power off" or "Restart" from the menu.
- Volume Control: Use the Volume Up and Volume Down buttons on the side of the device.
- Touchscreen Navigation: Tap to select, swipe to scroll, pinch to zoom.
- Operating System: The device runs Color OS / Oxygen OS 12.1, based on Android 12. Regular software updates are recommended for optimal performance and security.
6.2. Camera Usage
Your OnePlus Ace Pro 10T 5G features a versatile camera system:
- Rear Cameras: 50MP main sensor, 8MP ultra-wide, and 2MP macro lens.
- Front Camera: 16MP for selfies and video calls.
- Open the Camera app from your home screen or app drawer. Select modes like Photo, Video, Portrait, or Night. Tap the shutter button to capture images or start/stop video recording.
6.3. Charging Your Device
The device is equipped with a 4800mAh battery and supports 150W SuperVOOC fast charging.
- Connect the USB Type-C cable to the charging port on your phone.
- Connect the other end of the cable to the provided 150W SuperVOOC power adapter.
- Plug the power adapter into a wall outlet.
Important: For optimal charging speed and safety, always use the original OnePlus 150W SuperVOOC power adapter and USB cable.
7. Maintenance
- Cleaning: Use a soft, lint-free cloth to clean the screen and body. Avoid abrasive materials or harsh chemicals.
- Software Updates: Regularly check for and install system updates to ensure your device has the latest features, security patches, and performance improvements.
- Battery Care: Avoid fully discharging the battery frequently. For long-term storage, charge the device to about 50% and power it off.
8. Troubleshooting
| Problem | Solution |
|---|---|
| Device does not turn on | Ensure the battery is charged. Connect to the charger for at least 15 minutes, then try powering on. |
| Apps are crashing or freezing | Restart the device. Clear the cache of the problematic app. Ensure all apps are updated. |
| Poor network signal | Check SIM card insertion. Move to an area with better coverage. Verify network compatibility (refer to Section 5.3). |
| Battery drains quickly | Reduce screen brightness. Close unused apps. Disable unnecessary background processes or location services. |
| Device is unresponsive | Perform a force restart by holding the Power button for approximately 10-15 seconds. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | PGP110 |
| Display | 6.7-inch 120Hz 2.5D Fluid AMOLED FHD+ (1080 x 2412 pixels) |
| Processor | Qualcomm Snapdragon 8+ Gen 1 (3.2 GHz) |
| GPU | Adreno 730 |
| RAM | 12 GB |
| Internal Storage | 256 GB UFS3.1 |
| Rear Camera | 50MP (main) + 8MP (ultra-wide) + 2MP (macro) |
| Front Camera | 16MP |
| Battery | 4800 mAh, 150W SuperVOOC Fast Charging |
| Operating System | Color OS / Oxygen OS 12.1 (based on Android 12) |
| Cellular Technology | 5G (GSM Only, Dual SIM) |
| Wireless Connectivity | Wi-Fi, Bluetooth |
| Dimensions (L x W x H) | 6.7 x 3 x 0.4 inches |
| Weight | 1.56 pounds |
10. Warranty and Support
Your OnePlus Ace Pro 10T 5G is covered by a limited manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official OnePlus website.
For technical support, service, or further inquiries, please contact OnePlus customer service through their official website or support channels. Ensure you have your device's model number (PGP110) and serial number ready when contacting support.
