1. Important Safety Information
Please read all instructions carefully before using your KLARSTEIN Vinamour 38 Uno Wine Cellar. Retain this manual for future reference. Improper use may result in damage to the appliance or personal injury.
- Ensure the appliance is properly grounded.
- Do not store explosive substances in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- This appliance is intended for household use only.
- Unplug the appliance before cleaning or performing maintenance.
2. Product Overview
The KLARSTEIN Vinamour 38 Uno is a single-zone refrigerated wine cellar designed to store up to 38 bottles of wine at optimal temperatures. It features a stainless steel frame, double-walled panoramic glass with UV protection, and a touch control panel for precise temperature management.
Image 2.1: Front view of the KLARSTEIN Vinamour 38 Uno Wine Cellar, showcasing its elegant design, touch control panel, and capacity for 38 bottles. Key features like low vibration and quiet operation are also indicated.
- Capacity: Stores up to 38 standard wine bottles.
- Temperature Range: Adjustable from 5°C to 18°C (41°F to 64°F).
- UV Protection: Double-walled panoramic glass protects wine from harmful UV rays.
- Activated Carbon Filters: Helps maintain optimal air quality inside the cellar.
- Vibration-Free Storage: Compressor cooling system designed for minimal vibration.
- Quiet Operation: Operates at approximately 41 dB.
- Removable Shelves: High-quality wooden shelves for flexible storage.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the wine cellar for any shipping damage. Report any damage to your retailer immediately. Keep packaging materials for future transport if needed.
3.2 Placement
This wine cellar is designed for freestanding installation. Choose a location that is:
- Away from direct sunlight and heat sources (e.g., stoves, heaters, radiators).
- On a flat, stable surface to minimize vibrations.
- Well-ventilated, allowing at least 10 cm (4 inches) of space around the back and sides for proper air circulation.
- Suitable for indoor or outdoor covered areas, protected from extreme weather.
Image 3.1: Illustration of the wine cellar's dimensions (39.5 x 57 x 83.5 cm) and an example of suitable placement within a living space, emphasizing the freestanding nature.
3.3 Leveling
Adjust the leveling feet at the bottom of the appliance to ensure it is perfectly level. This is crucial for proper operation and to minimize noise and vibration.
3.4 Initial Cleaning
Before first use, clean the interior of the wine cellar with a damp cloth and a mild detergent. Wipe dry thoroughly. Allow the appliance to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3.5 Power Connection
Plug the wine cellar into a dedicated, properly grounded electrical outlet. Do not use extension cords or adapter plugs.
4. Operating Instructions
4.1 Control Panel
The wine cellar features an intuitive touch-sensitive control panel located on the top front of the unit. The LCD display shows the current internal temperature.
Image 4.1: Close-up of the touch control panel with temperature adjustment buttons and LCD display. Also shows the UV-protected glass, adjustable wooden shelves, and interior LED lighting.
4.2 Setting the Temperature
Use the UP and DOWN arrows on the touch panel to adjust the desired temperature. The temperature can be set between 5°C and 18°C. The display will flash while setting and then show the actual internal temperature once set.
- Red Wines: Typically 12-18°C (54-64°F)
- White Wines: Typically 8-12°C (46-54°F)
- Sparkling Wines/Prosecco: Typically 5-8°C (41-46°F)
4.3 Interior Lighting
Press the LIGHT button on the control panel to turn the interior LED lighting on or off. This allows you to showcase your collection without opening the door.
4.4 Loading Bottles
Arrange bottles on the wooden shelves. Ensure bottles are not touching the back wall or each other to allow for proper air circulation. The shelves are removable to accommodate larger bottles if necessary.

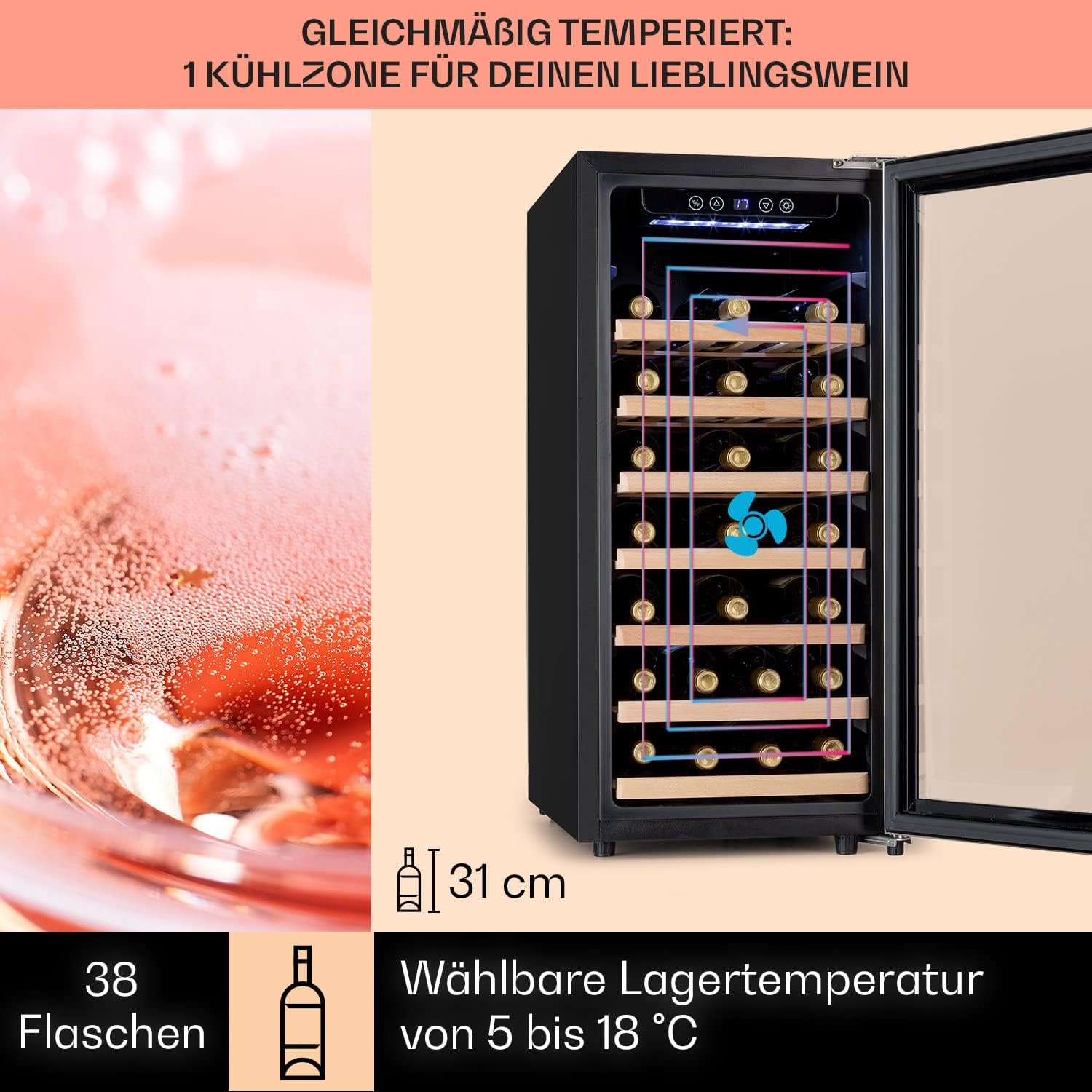

Image 4.2: Interior view of the wine cellar showing bottles on wooden shelves and an illustration of the internal airflow for consistent temperature distribution.
5. Maintenance and Care
5.1 Cleaning the Interior
Unplug the appliance before cleaning. Use a soft cloth dampened with a mild detergent solution to clean the interior surfaces and shelves. Do not use abrasive cleaners or solvents. Rinse with clean water and dry thoroughly.
5.2 Cleaning the Exterior
Clean the exterior surfaces with a soft cloth and a mild detergent. For the glass door, use a glass cleaner. Avoid getting water into the control panel area.
5.3 Activated Carbon Filter
The wine cellar is equipped with activated carbon filters to maintain air quality. These filters should be replaced periodically, typically every 6-12 months, depending on usage and environment. Refer to the manufacturer's website or contact support for replacement filters.
5.4 Defrosting
The wine cellar features an automatic defrost function. Any frost that forms on the evaporator will melt and drain into a tray at the back of the unit, where it evaporates. If excessive frost builds up, manually defrost the unit by unplugging it and leaving the door ajar until the frost melts. Do not use sharp objects to remove frost.
5.5 Power Interruption / Extended Absence
In case of a power outage, the wine cellar will retain its temperature settings. For extended absences, consider unplugging the unit, cleaning it, and leaving the door slightly ajar to prevent odors and mold growth.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Wine cellar does not operate. | Not plugged in; circuit breaker tripped; power switch off. | Ensure plug is secure; check circuit breaker; turn power switch on. |
| Temperature is not cold enough. | Door not closed properly; excessive door opening; warm ambient temperature; ventilation blocked; temperature setting too high. | Ensure door is sealed; reduce door openings; move to cooler location; clear obstructions; lower temperature setting. |
| Excessive vibration. | Appliance not level. | Adjust leveling feet. |
| Noise level is high. | Normal compressor operation; appliance not level; objects touching the unit. | Some noise is normal; adjust leveling feet; ensure nothing is touching the unit. The unit operates at approximately 41 dB. |
Image 6.1: Visual representation of the wine cellar's low noise level (41 dB) and vibration-free operation, comparing it to common household sounds.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | Vinamour 38 Uno |
| Brand | KLARSTEIN |
| Capacity | 94 Liters (approx. 38 standard bottles) |
| Configuration | Single Zone |
| Temperature Range | 5 - 18°C (41 - 64°F) |
| Cooling Method | Compressor |
| Noise Level | 41 dB |
| Dimensions (L x W x H) | 39.5 x 57 x 83.5 cm |
| Weight | 30 kg |
| Number of Shelves | 7 (wooden, removable) |
| UV Protection | Yes (double-walled panoramic glass) |
| Activated Carbon Filter | Yes |
| Installation Type | Freestanding |
| Energy Efficiency Class | F |
| Annual Energy Consumption | 98 kWh/annum |
Image 7.1: EU Energy Label for the KLARSTEIN Vinamour 38 Uno, showing energy efficiency class F, 98 kWh/annum consumption, 38 bottle capacity, and 41 dB noise level. For more details, visit the EPREL database.
Image 7.2: Detailed product data sheet for the KLARSTEIN Vinamour 38 Uno, providing comprehensive technical specifications and compliance information.
8. Warranty and Customer Support
KLARSTEIN products are manufactured with quality and reliability in mind. This appliance comes with a minimum manufacturer's warranty of 24 months from the date of purchase.
For warranty claims, technical support, or replacement parts, please contact KLARSTEIN customer service. You can typically find contact information on the KLARSTEIN official website or through your retailer.
Please have your model number (Vinamour 38 Uno) and proof of purchase ready when contacting support.
9. Disposal Information
Do not dispose of this appliance with household waste. This product contains refrigerants and other materials that require special handling. Please contact your local authority for information regarding the proper disposal and recycling of electrical and electronic equipment.
