Kelvinator KTTW14D Twin Tub Washing Machine with Dryer User Manual

1. Introduction

Thank you for choosing the Kelvinator KTTW14D Twin Tub Washing Machine with Dryer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions carefully before using the washing machine and retain them for future reference.

This appliance is designed for household use only. It combines a washing tub and a spin-dry tub, offering convenience for your laundry needs.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.
• Do not operate any appliance with a damaged cord or plug, or if it has been dropped or damaged in any manner.
• Keep the area around the appliance clear of flammable materials.
• Do not allow children to play on or in the appliance. Close supervision is necessary when the appliance is used near children.
• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
• Do not reach into the appliance if the tub is moving.
• Always unplug the appliance from the power supply before cleaning or performing any maintenance.
• Ensure the power supply voltage matches the rating label on the appliance.
• Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances.

3. Product Overview

The Kelvinator KTTW14D is a top-loading twin tub washing machine designed for efficient washing and spin-drying. Below is an illustration of the main components.

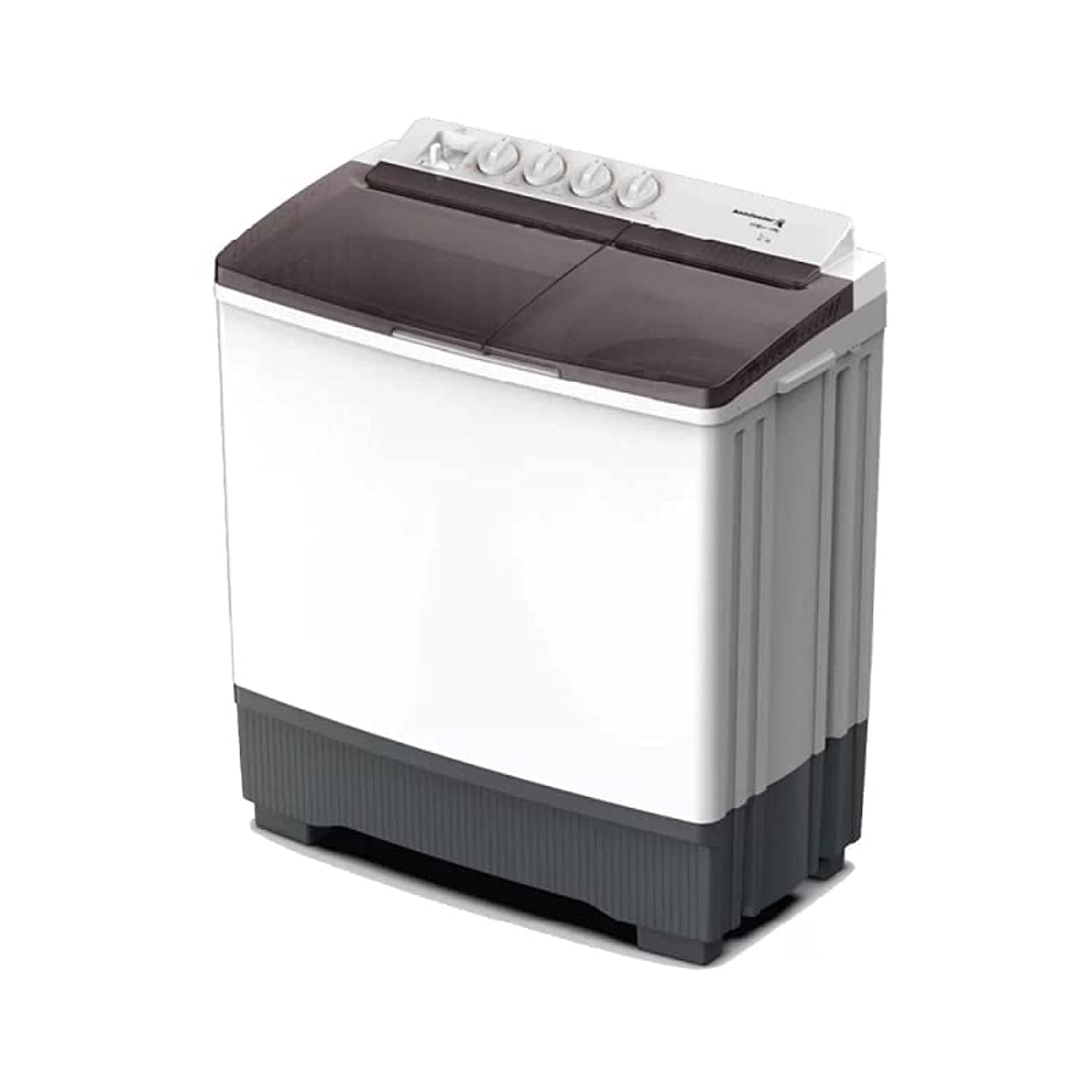

Image: Front view of the Kelvinator KTTW14D Twin Tub Washing Machine, showing the wash tub on the left and the spin tub on the right, with control panel at the top.

Main Components:

• Wash Tub: For washing and rinsing clothes.
• Spin Tub: For spin-drying clothes.
• Control Panel: Dials for wash timer, wash program, drain selector, and spin timer.
• Water Inlet: Connection point for the water supply hose.
• Drain Hose: For discharging water.
• Lid (Wash Tub): Covers the wash tub.
• Lid (Spin Tub): Covers the spin tub.

4. Setup and Installation

4.1 Unpacking

• Carefully remove all packaging materials.
• Check for any damage during transit. If damaged, do not operate and contact customer service.
• Ensure all accessories are present.

4.2 Placement

• Place the washing machine on a firm, level surface to minimize vibration and noise during operation.
• Ensure there is adequate ventilation around the appliance.
• Avoid direct sunlight or placing near heat sources.
• Do not install in areas where the temperature may drop below freezing.

4.3 Water Connection

• Connect the water inlet hose to a cold water tap.
• Ensure the connection is secure to prevent leaks.

4.4 Drainage

• Position the drain hose to allow for proper water discharge. The drain hose should be placed lower than the bottom of the machine to ensure gravity drainage.
• Ensure the drain hose is not kinked or blocked.

4.5 Power Connection

• Plug the power cord into a grounded electrical outlet.
• Ensure the outlet voltage matches the appliance's requirements (220 Volts).

5. Operating Instructions

5.1 Washing

1. Load Clothes: Open the wash tub lid and place clothes loosely into the tub. Do not overload (maximum 14 kg).
2. Add Water: Fill the wash tub with water to the desired level. You can use the water inlet hose or manually add water.
3. Add Detergent: Add the appropriate amount of detergent according to the detergent manufacturer's instructions and water level.
4. Select Wash Program: Turn the 'Wash Program' dial to select the desired wash cycle (e.g., Gentle, Normal, Strong).
5. Set Wash Timer: Turn the 'Wash Timer' dial to set the desired washing time (e.g., 5-15 minutes).
6. Start Washing: The machine will begin the wash cycle.

5.2 Rinsing

1. Drain Water: After the wash cycle, set the 'Drain Selector' to 'Drain' to empty the wash tub.
2. Transfer Clothes: Move the washed clothes from the wash tub to the spin tub.
3. Fill with Water: Fill the wash tub with clean water for rinsing.
4. Rinse: You can either perform a deep rinse in the wash tub or a spray rinse in the spin tub. For deep rinse, repeat steps 5.1.3 to 5.1.5 with clean water and no detergent. For spray rinse, place clothes in the spin tub, close the lid, and run the spin cycle while adding water through the water inlet.

5.3 Spin-Drying

The 'Dryer' function on this twin tub machine refers to a spin-dry process, which removes excess water from clothes through high-speed rotation, significantly reducing drying time. It is not a heated tumble dryer.

1. Load Spin Tub: Place rinsed clothes evenly into the spin tub. Do not overload. Ensure clothes are balanced to prevent excessive vibration.
2. Close Lid: Close the inner safety cover and the outer spin tub lid securely.
3. Set Spin Timer: Turn the 'Spin Timer' dial to the desired spin time (e.g., 1-5 minutes).
4. Start Spin: The machine will begin the spin cycle. The spin tub will stop automatically when the timer finishes or if the lid is opened during operation.
5. Remove Clothes: Once the spin cycle is complete, carefully remove the clothes.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

6.1 Cleaning the Lint Filter

• The lint filter collects lint and debris during washing. Clean it regularly (after every 2-3 washes) to maintain washing efficiency.
• Remove the lint filter from the wash tub.
• Rinse it under running water to remove accumulated lint.
• Reinstall the filter securely.

6.2 Cleaning the Tubs

• After each use, wipe the inside of both tubs with a clean, damp cloth to remove any detergent residue or moisture.
• For deeper cleaning, run an empty wash cycle with warm water and a cup of white vinegar occasionally.
• Leave the lids open for a while after use to allow the tubs to air dry and prevent mildew.

6.3 Exterior Cleaning

• Wipe the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic finish.

7. Troubleshooting

Before calling for service, please check the following common issues and solutions:

8. Specifications

9. Warranty and Support

Your Kelvinator KTTW14D Twin Tub Washing Machine comes with a 2-year warranty from the date of purchase, covering manufacturing defects under normal household use.

For installation services, technical support, or warranty claims, please contact the Kelvinator service centers:

• Riyadh: +966 -11- 4094006 Ext – 113
• Jeddah: +966- 12- 6577714
• Dammam: +966-13- 8343691
• Qassim: +966 581044198
• Abha: +966 593322785

Please have your model number (KTTW14D) and proof of purchase ready when contacting support.
