1. Introduction
The Einhell GC-EC 7520 T electric telescopic pole pruner is designed for efficient and safe pruning of high branches from the ground. This powerful 750W tool features an 18 cm cutting length and a maximum chain speed of 11 m/s, making it suitable for various pruning tasks. Its telescopic aluminum handle allows for optimal reach, and the ergonomic design includes a rubberized grip for comfortable use. Key features include tool-free chain tensioning and an automatic chain lubrication system with a visible oil reservoir for easy level checks. A cable strain relief device ensures safe handling, and a protective guide bar cover is included for secure storage.
2. Safety Instructions
Always prioritize safety when operating power tools. Read and understand all instructions before use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Wear Personal Protective Equipment: Always wear safety glasses, hearing protection, gloves, and a helmet with a face shield. Sturdy footwear and long trousers are also recommended.
- Inspect the Tool: Before each use, check the pole pruner for any damage, loose parts, or worn components. Ensure the chain is sharp and correctly tensioned.
- Check Oil Level: Verify that the chain oil reservoir is adequately filled to ensure proper lubrication during operation.
- Power Cord Safety: Keep the power cord away from the cutting area. Avoid operating the tool in wet conditions or near water. Use a residual current device (RCD) for added protection.
- Maintain a Secure Stance: Always maintain proper footing and balance. Do not overreach.
- Clear Work Area: Ensure the work area is free of bystanders, children, and pets. Remove any obstacles that could interfere with operation.
- Avoid Contact with Electrical Lines: Never operate the pole pruner near overhead power lines.
- Proper Handling: Hold the tool firmly with both hands. Do not operate the tool with one hand.
3. Setup
3.1. Chain and Guide Bar Assembly
The chain and guide bar are designed for easy, tool-free installation and tensioning. Refer to the diagram for proper placement.

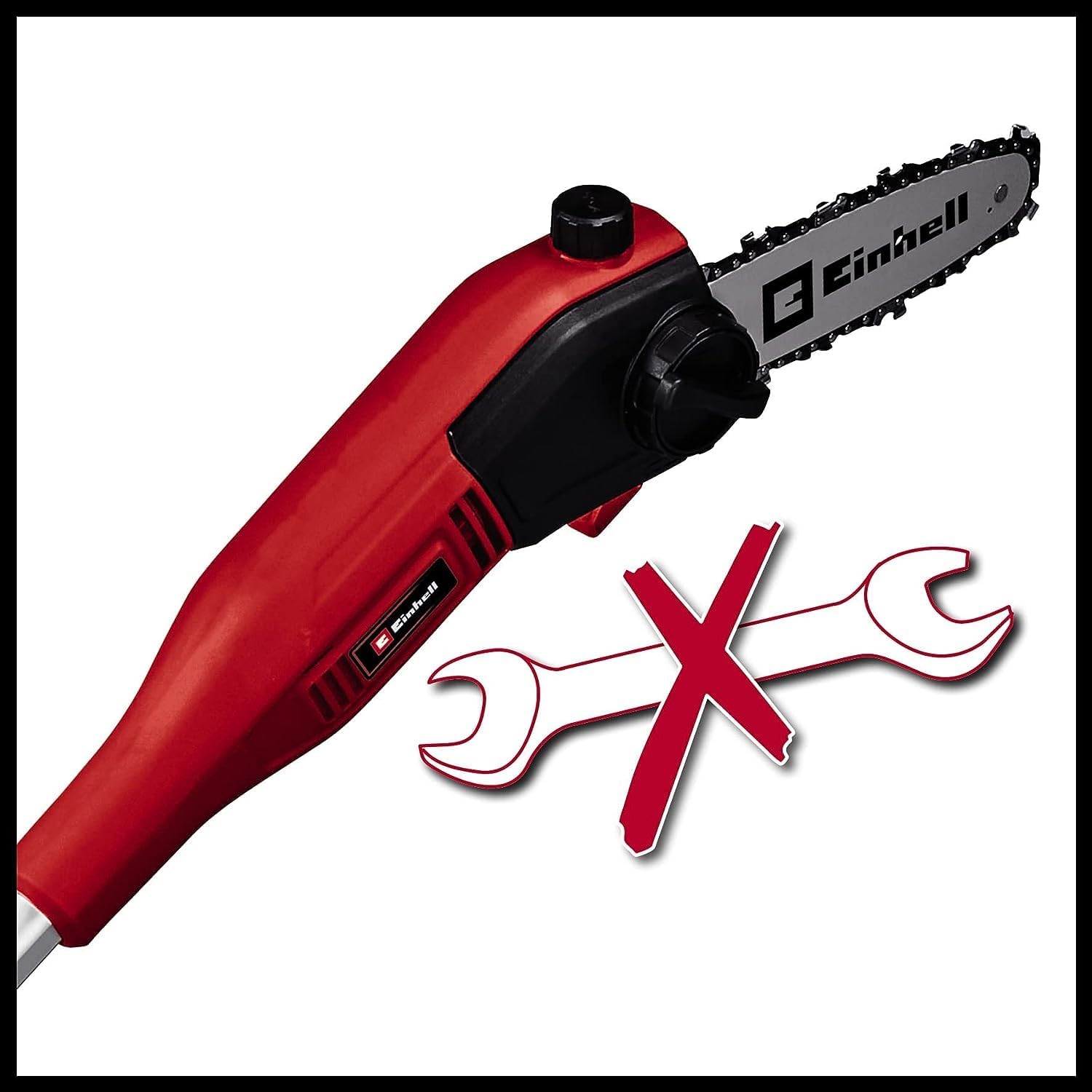

Figure 3.1: The pole pruner features a tool-free mechanism for easy chain tensioning and assembly, indicated by the crossed-out wrench icon.
3.2. Filling the Chain Oil Reservoir
The pole pruner features an automatic chain lubrication system. Ensure the oil reservoir is filled with appropriate chain lubricant before each use.
- Locate the oil reservoir cap on the motor unit.
- Unscrew the cap and carefully fill the reservoir with high-quality chain lubricant.
- Monitor the oil level through the sight glass to prevent running dry.
- Securely replace the cap.
Figure 3.2: Illustration of filling the chain oil reservoir. The automatic lubrication system requires regular oil checks via the sight glass.
3.3. Attaching the Shoulder Strap
The adjustable shoulder strap provides comfort and better weight distribution during operation.
- Attach the strap hooks to the designated points on the pole pruner.
- Adjust the strap length to a comfortable position that allows for balanced handling of the tool.
Figure 3.3: The adjustable shoulder strap, designed for enhanced user comfort and balanced tool operation.
4. Operating Instructions
4.1. Extending the Telescopic Pole
The aluminum telescopic handle allows for adjustable reach to access high branches.
- Loosen the locking mechanism on the telescopic pole.
- Extend the pole to the desired length, up to 2.57 meters.
- Securely tighten the locking mechanism to prevent the pole from retracting during use.

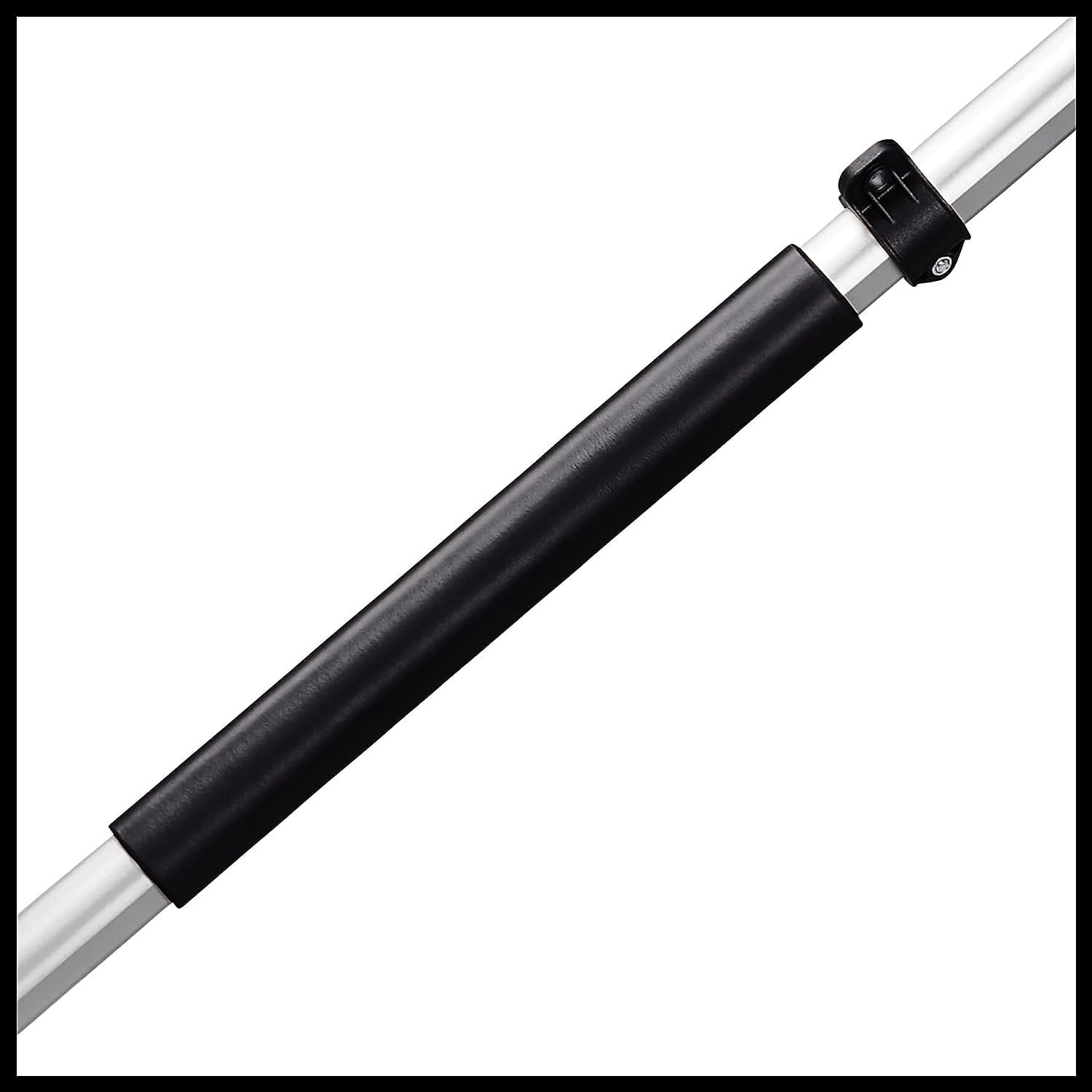

Figure 4.1: Detail of the telescopic pole adjustment mechanism, allowing for variable reach.
4.2. Adjusting the Motor Head Angle
The motor unit can be tilted by 30 degrees for optimal cutting of very high branches.
- Locate the angle adjustment mechanism on the motor head.
- Adjust the head to the desired 30-degree angle for improved access and cutting efficiency.
- Ensure the mechanism is locked in place before operation.
Figure 4.2: The motor head tilted at a 30-degree angle, facilitating optimal cutting of high branches.
4.3. Pruning Technique
Always maintain a firm grip on the tool, utilizing the Softgrip surfaces for comfort and control. Ensure the cable strain relief device is properly engaged to prevent accidental disconnection.
Figure 4.3: A user demonstrating the proper technique for pruning high branches with the Einhell pole pruner, wearing appropriate safety gear.
5. Maintenance
5.1. Chain Tensioning
Regularly check and adjust chain tension. The GC-EC 7520 T features a tool-free chain tensioning system for convenience.
- Ensure the tool is disconnected from the power supply.
- Turn the tensioning knob or lever until the chain is snug against the guide bar but can still be pulled freely by hand.
- Avoid over-tightening, as this can cause premature wear.
5.2. Chain Lubrication
The automatic lubrication system ensures the chain is continuously oiled during operation. Always check the oil level before and during extended use.
- Refer to Section 3.2 for instructions on filling the oil reservoir.
- The large sight glass allows for quick visual inspection of the oil level.
5.3. Cleaning and Storage
After each use, clean the pole pruner to remove sawdust, sap, and debris. Store the tool safely.
- Disconnect the tool from the power supply.
- Use a brush or cloth to clean the guide bar, chain, and motor housing.
- Apply the included guide bar protection for clean and safe storage.
Figure 5.1: The protective guide bar cover, essential for safe storage and transport of the pole pruner.
6. Troubleshooting
This section addresses common issues you might encounter with your Einhell pole pruner.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chain not cutting effectively or jamming | Dull chain, incorrect chain tension, insufficient oil, cutting soft/flexible branches. | Sharpen or replace chain. Adjust chain tension (see Section 5.1). Fill oil reservoir (see Section 3.2). Ensure the branch is rigid enough to support the pruner during cutting. |
| Chain derails from guide bar | Incorrect chain tension, worn guide bar, improper cutting angle, cutting flexible branches. | Adjust chain tension (see Section 5.1). Inspect guide bar for wear and replace if necessary. Ensure the pruner is placed firmly on the branch before cutting. |
| Motor stops or does not start | No power supply, thermal overload, damaged cable. | Check power connection and circuit breaker. Allow motor to cool down if overloaded. Inspect power cable for damage; replace if necessary. |
| Oil leakage | Overfilled reservoir, loose cap, seal damage. | Ensure reservoir is not overfilled. Tighten oil cap. If leakage persists, contact customer support. |
7. Technical Specifications
Below are the key technical specifications for the Einhell GC-EC 7520 T Electric Telescopic Pole Pruner.
| Feature | Specification |
|---|---|
| Model Number | 4501240 |
| Power Input | 750 W |
| Voltage | 240 Volts |
| Cutting Length | 18 cm |
| Guide Bar Length | 20 cm |
| Max. Chain Speed | 11 m/s |
| Oil Tank Capacity | 100 ml (approx.) |
| Adjustable Angle | 30 Degrees |
| Telescopic Pole Length | Up to 2.57 m |
| Weight | 3.6 Kilograms |
| Product Dimensions (L x W x H) | 177.4 x 18.8 x 10.2 cm |
| Blade Material | Alloy Steel |
| Handle Material | Synthetic |
| Included Components | Electric pole pruner, guide bar protection, shoulder strap |
| Certifications | CE |
Figure 7.1: Icon representing the 20 cm sword length of the pole pruner.
Figure 7.2: Icon representing the maximum chain speed of 11 meters per second.
Figure 7.3: Icon highlighting the durable long-life metal gear system.
8. Warranty and Support
8.1. Warranty Information
This Einhell product comes with a 1-year availability of spare parts. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Einhell website.
8.2. Customer Support
For technical assistance, spare parts, or any questions regarding your Einhell GC-EC 7520 T pole pruner, please contact Einhell customer support. Contact details can typically be found on the official Einhell website or in your product packaging.
