WLIVE ACJ014 39-inch Lift Top Coffee Table User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your WLIVE ACJ014 39-inch Lift Top Coffee Table. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.

Safety Information

For your safety, please observe the following guidelines:

Ensure all parts are correctly assembled and tightened before use.
Do not exceed the maximum weight capacities: 11 lbs for the lift top, 44 lbs for the hidden compartment, and 110 lbs for the open shelf.
Use the coffee table on a stable, level surface to prevent tipping.
Keep fingers clear of the lift mechanism when raising or lowering the tabletop.
Avoid placing hot items directly on the surface without protective coasters.

Package Contents

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

WLIVE Coffee Table with Lift Top in raised position, showing a laptop and coffee mug on top, and items stored in the hidden compartment. — Figure 1: WLIVE ACJ014 Lift Top Coffee Table. This image provides an overview of the assembled product, highlighting its lift-top functionality and hidden storage.

A detailed list of parts and hardware is typically included in the physical instruction manual. Refer to the assembly video for a visual guide to parts identification.

Setup and Assembly

Assembly typically takes approximately 30 minutes. It is recommended to have a powered screwdriver for efficiency, though a manual screwdriver is provided.

Prepare the Base: Attach the side panels to the bottom shelf using the provided screws and dowels. Ensure the larger holes on part 9 (bottom shelf) face upwards.
Construct the Frame: Secure the vertical support pieces to the assembled base.
Install the Hidden Compartment Walls: Insert the inner walls of the hidden compartment.
Attach Lift Mechanism: Carefully remove the screw nuts from the lift mechanisms (parts D and E). Attach the mechanisms to the underside of the tabletop (part 1) using screws. Reinstall the screw nuts after securing the mechanisms.
Connect Tabletop to Base: Align the lift mechanisms with the pre-drilled holes in the main table frame and secure them with screws. Fully tighten all screws once all components are in place.
Final Touches: Insert the plastic caps (part F) into any visible screw holes for a finished appearance.

Video 1: WLIVE Coffee Table Assembly Instruction Video. This video provides a step-by-step visual guide for assembling the coffee table.

Operating Instructions

The WLIVE ACJ014 coffee table features a lift-top design and integrated storage.

Lift Top Function: To raise the tabletop, gently pull it upwards from the front edge. The stable lift mechanism will assist in raising it smoothly. To lower, gently push the tabletop down until it rests in its original position. The mechanism is designed for soft-close operation.
Hidden Compartment: The area beneath the lift top provides a hidden storage compartment. This is ideal for storing items such as laptops, books, remote controls, or other small accessories.
Open Storage Shelf: The lower shelf offers additional open storage space for decorative items, magazines, or other belongings.

WLIVE Coffee Table in a living room setting, with the lift top raised and a laptop on it. The hidden compartment is visible. — Figure 3: Versatile Use. The coffee table adapts to various needs, functioning as a traditional coffee table or a raised surface for work or meals.

Maintenance

To maintain the appearance and longevity of your coffee table:

Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. The desktop is waterproof and scratch-resistant, but prompt cleaning of spills is recommended.
Hardware: Periodically check all screws and connections to ensure they remain tight. Tighten as necessary.
Protection: Use coasters under drinks and placemats under hot dishes to prevent marks and damage.

Close-up of the WLIVE coffee table surface showing water droplets and a hand wiping it, illustrating its easy-to-clean and waterproof features. — Figure 4: Easy Maintenance. The table's surface is designed to be waterproof and easy to clean, resisting scratches from daily use.

Troubleshooting

Problem	Possible Cause	Solution
Tabletop is wobbly or unstable.	Loose screws or uneven assembly.	Check and tighten all assembly screws. Ensure the table is on a level surface.
Lift mechanism is stiff or difficult to operate.	Mechanism may need lubrication or is misaligned.	Apply a small amount of silicone-based lubricant to the moving parts of the mechanism. Ensure no obstructions are present.
Parts do not fit during assembly.	Incorrect orientation of parts or manufacturing defect.	Double-check the instruction manual and assembly video for correct part orientation. If issues persist, contact customer support.

Specifications

Brand: WLIVE
Model Number: ACJ014
Product Dimensions (D x W x H): 38.6"D x 18.9"W x 18.3"H
Material Type: Engineered Wood (MDF Board)
Color: Rustic Brown
Maximum Weight Recommendation: 198 Pounds (Overall)
Lift Top Weight Capacity: 11 lbs
Hidden Compartment Weight Capacity: 44 lbs
Open Shelf Weight Capacity: 110 lbs
Features: Lift-top design, hidden storage compartment, open lower shelf, waterproof and scratch-resistant desktop.

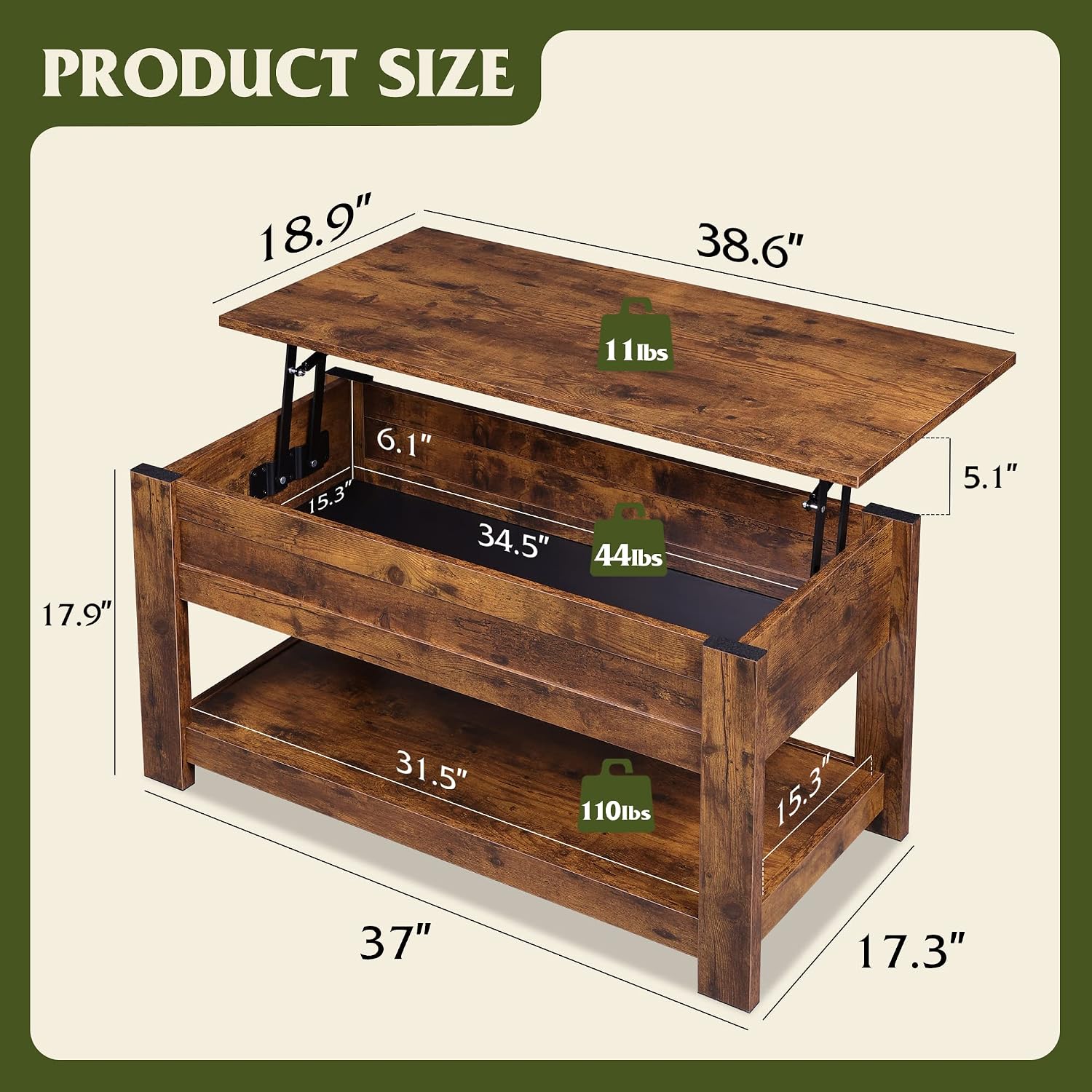

Diagram showing the dimensions of the WLIVE coffee table, including length, width, and height, as well as capacities for the lift top and hidden compartment. — Figure 5: Product Dimensions and Capacities. A visual representation of the table's measurements and weight limits for different sections.

Warranty and Support

For any questions, missing parts, or concerns regarding your WLIVE coffee table, please contact WLIVE customer service. Refer to your purchase documentation for specific warranty details.

Contact Information: Please refer to the contact details provided with your product packaging or on the official WLIVE website.

WLIVE ACJ014
