1. Product Overview
This document provides essential information for the SRJTEK 2.5D Touch Screen Digitizer Replacement. This high-quality screen is designed to replace faulty touch screens in compatible devices, addressing issues such as unresponsive touch, broken glass, or partial touch functionality.
The replacement screen has undergone strict quality control testing to ensure optimal performance upon installation.
2. Compatibility
This touch screen replacement is compatible with the following models:
- TEYES CC2
- TEYES CC2L
- KHX-1093
- KHX-9055B
- HLX-1819-V1
- HLX-90023
Important: Please verify your device's model number carefully before ordering to ensure compatibility.
3. Package Contents
The package includes the following items:
- 1x Touch Screen with Digitizer Assembly
- 1x Set of Special Disassembly Tools
Image: The 9-inch touch screen replacement, showing its dimensions (228mm x 130mm), IC (GT911), connector (6PIN), and the accompanying set of disassembly tools.
4. Installation Guide
The installation of a touch screen digitizer requires precision and care. Please review the following guidelines:
- Fragility Warning: The screen is made of glass and is very fragile. Handle the package and the screen with extreme care during unpacking and installation to prevent damage to the screen or its integrated circuit (IC).
- Installation Steps: Detailed installation steps are provided within the product box as a reference.
- Professional Assistance: For optimal results and to avoid potential damage, it is highly recommended to refer to an installation tutorial video or seek assistance from a professional installer, especially if you lack experience in screen replacement.

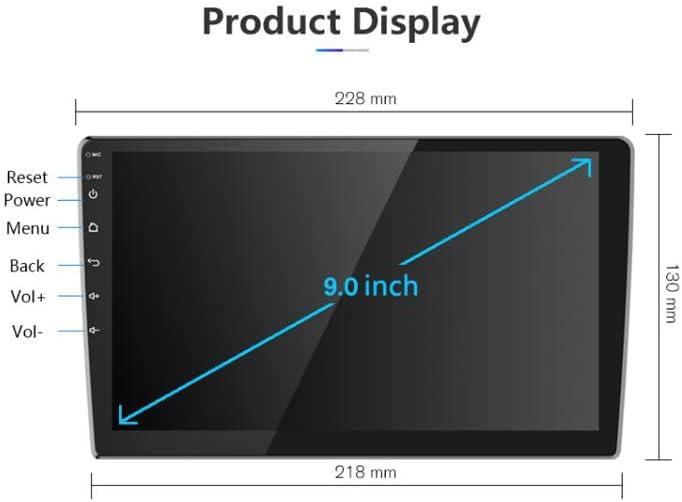

Image: A 9-inch touch screen display, illustrating its dimensions (228mm x 130mm) and the typical layout of control buttons (Reset, Power, Menu, Back, Vol+, Vol-).
5. Specifications
Key specifications for the SRJTEK 2.5D Touch Screen Replacement:
- Type: 2.5D Touch Screen Digitizer
- IC: GT911
- Connector: 6PIN
- Available Sizes: 9-inch and 10.2-inch
Dimensions:
- 9-inch Screen: Approximately 228mm x 130mm
- 10.2-inch Screen: Approximately 252mm x 147mm
Image: A side-by-side comparison of the 9-inch (228mm x 130mm) and 10.2-inch (252mm x 147mm) touch screen replacements, highlighting their respective dimensions.
Image: Detailed view of both the 9-inch and 10.2-inch touch screens, showing their dimensions, IC (GT911), and 6PIN connector type.
6. Troubleshooting
If you encounter issues after installation, consider the following:
- Non-functional Screen: If the screen does not work properly after installation, it may have been damaged during transportation or the installation process.
- Contact Support: In such cases, please contact our customer service team immediately for assistance.
7. Warranty and Support
SRJTEK provides the following warranty and support:
- Warranty Period: A 6-month warranty is provided for the product.
- Exchange Policy: A new screen can be exchanged if the product does not function normally, provided there is no man-made or physical damage.
- Customer Service: For any issues regarding your order, product installation, or quality concerns, please contact our customer service team. We aim to provide assistance within 24 hours.
