1. Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your BINNIFA Play 6D Sound Bar. Please read this manual thoroughly before using the product to ensure proper function and to maximize your audio experience. Keep this manual for future reference.
Image 1.1: The BINNIFA Play 6D Sound Bar, a sleek, silver-colored audio device designed to enhance television sound.
2. Safety Information
- Do not expose the sound bar to rain, moisture, or extreme temperatures.
- Ensure proper ventilation around the unit to prevent overheating.
- Do not open the casing; refer all servicing to qualified personnel.
- Use only the provided power adapter.
- Keep the sound bar away from strong magnetic fields.
3. Package Contents
Verify that all items are present in the package:
- BINNIFA Play 6D Sound Bar
- Remote Control
- AC Power Adapter
- Optical Cable
- Wall Mounting Kits
4. Product Overview
4.1 Front and Top View
Image 4.1: Front view of the sound bar, featuring a silver grille and a subtle BINNIFA logo on the left.
4.2 Rear Panel Connections
The rear panel of the sound bar provides various input ports for connecting to your television and other audio sources.
Image 4.2: Close-up of the rear panel showing input ports: Coaxial (COX), Optical (OPT), HDMI ARC, USB, AUX, and DC IN.
5. Setup
5.1 Placement Options
The BINNIFA Play 6D Sound Bar offers flexible placement options:
- Tabletop Placement: Place the sound bar on a flat, stable surface directly in front of your television. Ensure it does not obstruct the TV's remote sensor.
- Wall Mounting: Use the included wall mounting kits to attach the sound bar to a wall below your television. Refer to the wall mounting template for precise drilling locations.
Image 5.1: The sound bar positioned on a media console beneath a television, demonstrating tabletop placement.
Image 5.2: The sound bar mounted on a wall directly below a television, illustrating wall-mount installation.
5.2 Connecting to Your TV or Audio Source
The sound bar supports multiple connection types. Choose the method that best suits your television or audio device.
Image 5.3: A diagram illustrating the available connection methods: HDMI ARC, USB Media, and Bluetooth.
- HDMI ARC Connection (Recommended):
- Connect one end of an HDMI cable (not included) to the HDMI ARC port on your TV.
- Connect the other end to the HDMI ARC port on the sound bar.
- Ensure your TV's HDMI ARC function is enabled in its settings.
- Optical Connection:
- Connect the included optical cable to the OPT port on the sound bar.
- Connect the other end to the optical digital audio output port on your TV.
- Set your TV's audio output to 'Optical' or 'PCM'.
- AUX Connection:
- Connect a 3.5mm audio cable (not included) to the AUX port on the sound bar.
- Connect the other end to the headphone jack or AUX output on your TV or audio device.
- USB Connection:
- Insert a USB flash drive containing audio files into the USB port on the sound bar.
- The sound bar will automatically switch to USB mode and begin playback.
- Coaxial Connection:
- Connect a coaxial cable (not included) to the COX port on the sound bar.
- Connect the other end to the coaxial digital audio output port on your TV.
5.3 Power Connection
Connect the AC power adapter to the DC IN port on the sound bar, then plug the adapter into a wall outlet.
6. Operating Instructions
6.1 Power On/Off
Press the Power button on the remote control or on the sound bar to turn the unit on or off.
6.2 Input Selection
Press the Input button on the remote control to cycle through the available input sources: HDMI ARC, Optical, AUX, USB, and Bluetooth.
6.3 Bluetooth Pairing
To connect a Bluetooth device:
- Turn on the sound bar and select Bluetooth mode using the Input button. The indicator light will flash.
- Enable Bluetooth on your mobile device (smartphone, tablet, etc.).
- Search for available devices and select "BINNIFA Play 6D" from the list.
- Once paired, the indicator light on the sound bar will stop flashing and remain solid.
Image 6.1: A smartphone displaying music playback, wirelessly connected to the sound bar via Bluetooth, illustrating simple connectivity.
6.4 Sound Modes
The sound bar features three optimized sound modes:
- Music Mode: Ideal for pop music, providing balanced audio.
- Movie Mode: Enhances movie and TV show audio with heavy bass for an immersive experience.
- News Mode: Optimizes vocal clarity for news broadcasts and talk shows.
Press the corresponding button on the remote control to switch between modes.
6.5 Volume Control
Use the Volume Up (+) and Volume Down (-) buttons on the remote control or on the sound bar to adjust the volume level.
7. Maintenance
To ensure the longevity and performance of your sound bar:
- Cleaning: Wipe the surface of the sound bar with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Storage: If storing the unit for an extended period, disconnect it from power and store it in a cool, dry place.
- Ventilation: Ensure that the vents are not blocked to prevent overheating.
8. Troubleshooting
If you encounter issues with your BINNIFA Play 6D Sound Bar, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from the sound bar. |
|
|
| Bluetooth device cannot pair. |
|
|
| Remote control not working. |
|
|
9. Specifications
Detailed technical specifications for the BINNIFA Play 6D Sound Bar:
- Model: Play 6D
- Brand: BINNIFA
- Product Dimensions: 32.3"D x 2.36"W x 2.36"H (82cm x 6cm x 6cm)
- Item Weight: 4.19 Pounds (1.9 kg)
- Speaker Type: Soundbar
- Mounting Type: Wall Mount, Tabletop
- Connectivity Technology: Auxiliary, Bluetooth, Coaxial, HDMI ARC, Optical, USB
- Wireless Communication Technology: Bluetooth 5.0
- Bluetooth Range: Up to 10 Meters (33 feet)
- Speaker Maximum Output Power: 30 Watts
- Frequency Response: 60 Hz
- Signal-to-Noise Ratio: 75 dB
- Power Source: Corded Electric (AC adapter)
- Control Method: Remote Control
- Color: Silver
- UPC: 791200396207

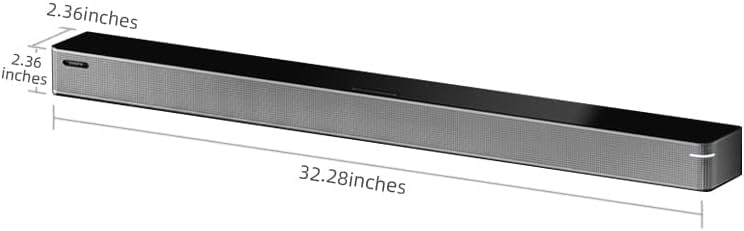

Image 9.1: Diagram illustrating the dimensions of the sound bar: approximately 32.28 inches long, 2.36 inches deep, and 2.36 inches high.
10. Warranty and Support
BINNIFA products are designed for reliability and performance. For warranty information or technical support, please refer to the warranty card included with your product or visit the official BINNIFA website. Keep your purchase receipt as proof of purchase for warranty claims.
