1. Introduction
Thank you for choosing the LOVMOR 2-Tier Pull-Out Cabinet Organizer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new cabinet organizer. Please read these instructions thoroughly before beginning installation and retain this manual for future reference.
2. Product Overview
2.1 Components
The LOVMOR 2-Tier Pull-Out Cabinet Organizer includes all necessary parts for assembly and installation. Refer to the packing list image below to ensure all components are present.
Image: Packing list for the LOVMOR 2-Tier Pull-Out Cabinet Organizer.
- Two (2) Wire Baskets (Upper and Lower)
- Four (4) Vertical Support Brackets
- Six (6) Full-Extension Slide Rails (three pairs)
- Mounting Screws
- Mounting Template
- Owner's Manual
2.2 Key Features
- Material: Constructed from durable metal for long-lasting use.
- 2-Tier Design: Maximizes vertical storage space within cabinets.
- Full Extension Ball Bearing System: Ensures smooth and quiet operation, allowing full access to items at the back of the organizer.
- Independent Operation: Both upper and lower baskets can be pulled out independently.
- Adjustable Height: Both upper and lower shelves offer 2 height adjustment options to accommodate various item sizes.
- Rust Resistant: Designed to withstand kitchen and pantry environments.
Image: The organizer demonstrating smooth, noiseless, and sturdy functionality when installed in a cabinet.
Image: Diagram showing independent basket movement and full extension slides.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | LOVMOR |
| Model Name | Individual Pull Out Cabinet Organizer |
| Product Dimensions | 14"W x 21"D x 13.8"H (approximate, as per size detail image) |
| Material | Metal |
| Color | 2 Tier (designation) |
| Special Feature | Rust Resistant |
| Number of Shelves | 2 |
| Assembly Required | Yes |
| Item Weight | 17.96 pounds |
| UPC | 768633992443 |

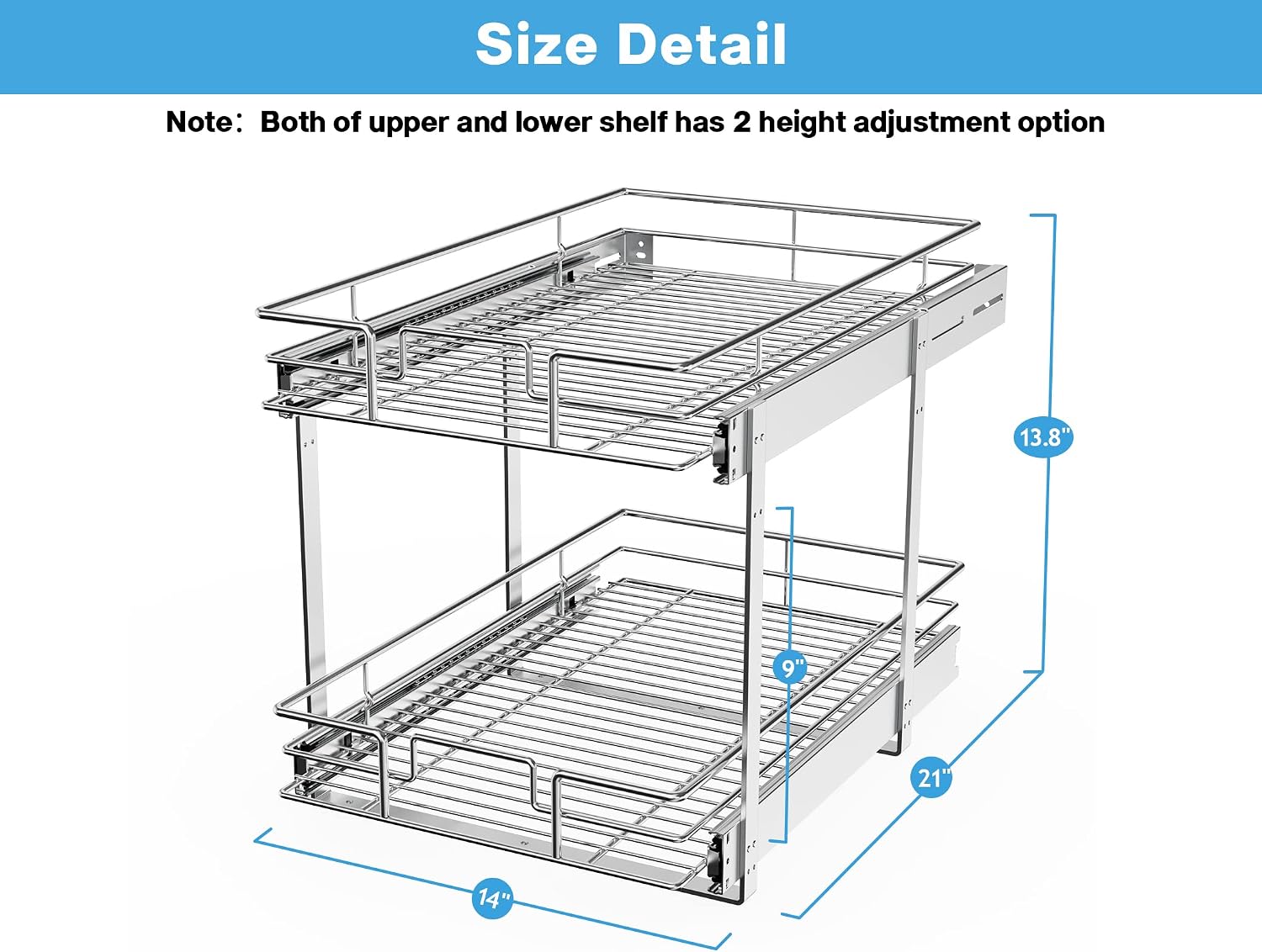

Image: Product dimensions and height adjustment options.
4. Installation Guide
4.1 Before Installation
Before beginning installation, ensure your cabinet meets the minimum size requirements for the 14"W x 21"D organizer. Measure the interior width, depth, and height of your cabinet.
Image: Guide for measuring cabinet size for installation.
4.2 Required Tools (Not Included)
- Phillips head screwdriver
- Drill (optional, for pilot holes)
- Pencil
- Measuring tape
4.3 Installation Steps
Follow these steps to install your LOVMOR Pull-Out Cabinet Organizer:
- Prepare the Cabinet: Clear out the cabinet where the organizer will be installed. Ensure the cabinet floor is clean and dry.
- Attach Slide Rails to Organizer: The slide rails are pre-attached to the baskets. Ensure they are securely fastened.
- Position the Mounting Template: Use the provided mounting template to mark the screw hole locations on the cabinet floor. Position the template at the desired depth, ensuring enough clearance for the organizer to slide out fully and for cabinet doors to close.
- Mark Screw Holes: Using a pencil, mark the exact locations for the screws through the template.
- Install the Base Frame: Align the base frame of the organizer with the marked screw holes. Secure the base frame to the cabinet floor using the provided screws. It is recommended to drill pilot holes if your cabinet material is prone to splitting.
- Insert Baskets: Slide the upper and lower baskets onto their respective slide rails until they click into place.
- Test Operation: Gently pull out and push in both baskets to ensure smooth and unobstructed movement.
Image: Fully assembled LOVMOR 2-Tier Pull-Out Cabinet Organizer.
5. Operation
5.1 Using Your Organizer
To access items, simply pull the desired basket forward. The full-extension ball bearing slides allow the baskets to extend completely out of the cabinet, providing easy access to all contents. The upper and lower baskets operate independently.
5.2 Adjusting Shelf Height
The upper and lower shelves offer two height adjustment options. To adjust, carefully lift the basket from its current position on the vertical supports and reposition it into the alternative set of slots. Ensure both sides are securely seated at the same height.
6. Maintenance
6.1 Care and Cleaning
To maintain the appearance and functionality of your organizer, wipe it with a damp cloth as needed. Avoid using abrasive cleaners or harsh chemicals, as these may damage the finish. Ensure the organizer is dry after cleaning to prevent water spots.
7. Troubleshooting
7.1 Common Issues
- Organizer does not slide smoothly:
- Check if the slide rails are clean and free of debris.
- Ensure the organizer is installed level and square within the cabinet. Uneven installation can cause friction.
- Verify that the mounting screws are tight and the base frame is securely fastened.
- Baskets are difficult to pull out or push in:
- Ensure the baskets are not overloaded beyond their capacity.
- Check for any obstructions inside the cabinet or along the slide path.
- Confirm that the baskets are correctly seated on the slide rails.
- Organizer feels unstable:
- Re-check all mounting screws to ensure they are fully tightened.
- Verify that the vertical support brackets are properly connected to the base frame and baskets.
8. Warranty and Support
8.1 Customer Support
For any questions, concerns, or assistance with your LOVMOR 2-Tier Pull-Out Cabinet Organizer, please contact LOVMOR customer service. Refer to the contact information provided in the Owner's Manual included with your product or visit the official LOVMOR website for support.
Contact Information (as per included manual):
Customer Service: 503-309-3599 (Mon-Fri 9:00am-5:00pm PST)
Email: lovmor@outlook.com
Address: 3900 Breakridge Blvd, Suite 200, Duluth, GA, 30096
