VIVOSUN 10-inch Cordless Chainsaw (Model HCS002) User Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VIVOSUN 10-inch Cordless Chainsaw (Model HCS002). Please read all instructions carefully before use and retain this manual for future reference.

Image: The VIVOSUN 10-inch Cordless Chainsaw, showing its compact design and green and black color scheme.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this product.

General Safety

• Read all instructions before operating the chainsaw.
• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, hearing protection, and sturdy footwear.
• Keep children and bystanders at a safe distance (at least 50 feet/15 meters) from the work area.
• Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
• Inspect the chainsaw for damage before each use. Do not use if damaged.

Electrical Safety

• Use only the charger supplied by the manufacturer.
• Do not charge batteries in damp or wet locations.
• Unplug the charger from the power source when not in use or before cleaning.
• Do not abuse the cord. Never carry the charger by the cord or yank it to disconnect from a receptacle.

Chainsaw Specific Safety

• Dual Safety Switches: To prevent accidental starting, the safety lock and trigger must be pressed simultaneously to start the saw.
• Always hold the chainsaw firmly with both hands when operating.
• Ensure the chain is properly tensioned before each use.
• Be aware of kickback. Avoid the guide bar tip contacting any object.
• Do not overreach. Maintain proper footing and balance at all times.
• Remove the battery when not in use, before cleaning, or when changing accessories.

Image: Close-up of the chainsaw handle highlighting the dual safety switches, which must be pressed simultaneously to operate the tool.

Product Components

Familiarize yourself with the parts of your VIVOSUN 10-inch Cordless Chainsaw.

Image: Diagram illustrating the main components of the chainsaw, including the removable battery, soft rubber covered handle, chain brake for kickback protection, 75ml oil tank, auto-chain lubrication system, and stainless steel blade.

• Removable Battery: 20V/2000mAh Lithium-ion battery.
• Soft Rubber Covered Handle: Provides an anti-slip grip for comfortable use.
• Chain Brake: For kickback protection.
• 75ml Oil Tank: For automatic chain lubrication.
• Stainless Steel Blade: Durable 10-inch blade.
• Copper Wire Motor: Provides efficient power.
• Dual Safety Switches: Prevents accidental starting.

Setup and Assembly

Charging the Battery

The chainsaw comes with two 20V rechargeable 2000mAh Lithium-ion batteries and a fast charger. Ensure batteries are fully charged before first use.

• Connect the charger to a standard power outlet (100-240V~50/60Hz).
• Insert the battery into the charger.
• The LED indicators on the battery will display the real-time battery power. A full charge typically takes 4 hours.
• Remove the battery once fully charged.

Image: The VIVOSUN 20V Lithium-ion batteries and charger, illustrating the charging process and LED indicators.

Installing the Battery

• Ensure the chainsaw is turned off and the safety lock is engaged.
• Align the battery with the battery slot on the chainsaw handle.
• Slide the battery into place until it clicks securely.
• To remove, press the battery release button and slide the battery out.

Adding Chain Oil

This chainsaw features an automatic oiler. It is crucial to fill the oil tank before each use to ensure proper chain lubrication and extend the life of the chain and bar.

• Locate the oil tank cap (75ml capacity).
• Unscrew the cap and carefully pour appropriate chain lubricant into the tank. Do not overfill.
• Securely replace the oil tank cap.

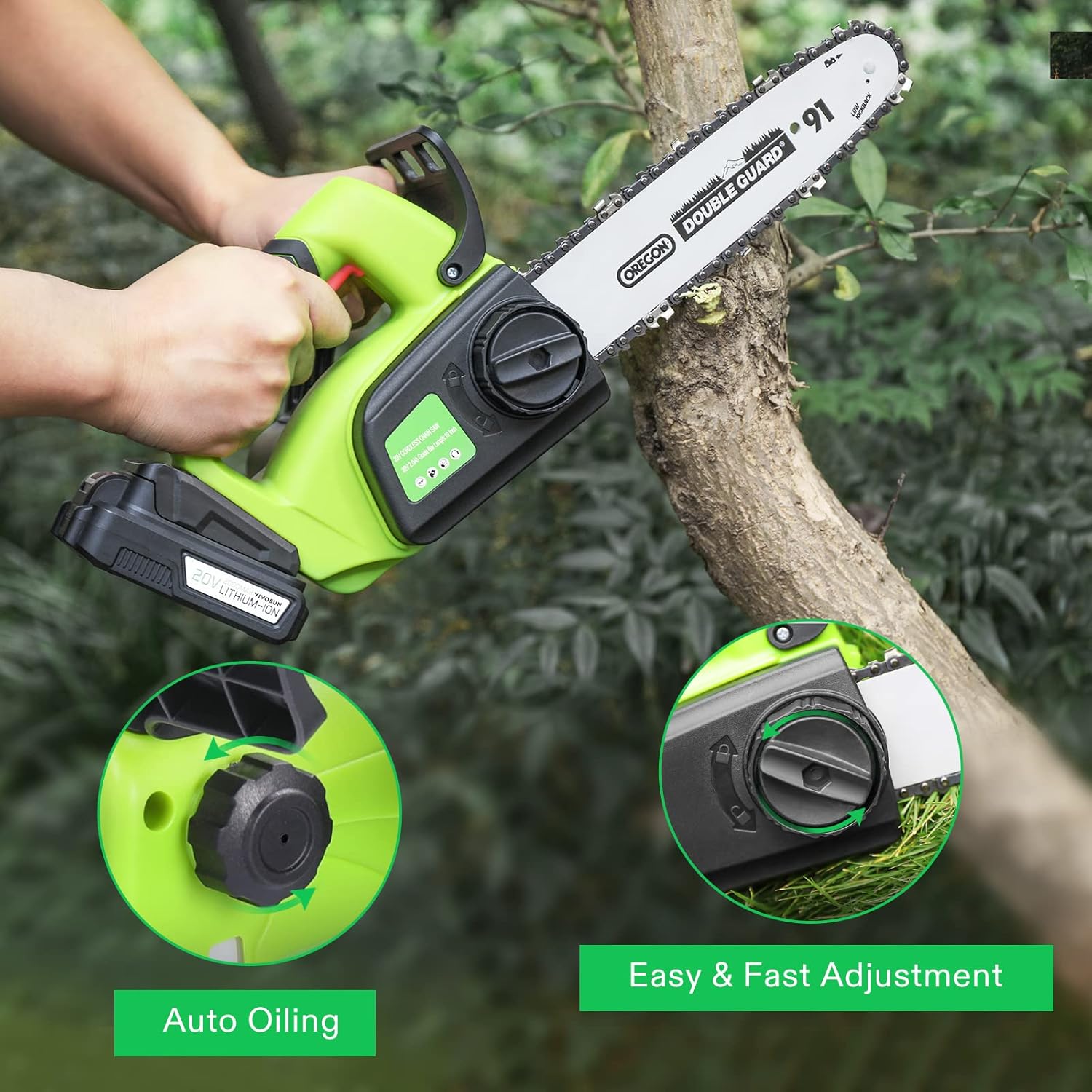

Image: Close-up showing the oil tank cap for auto-oiling and the tool-free chain tensioning knob.

Chain Tensioning

The chainsaw features tool-free chain tensioning for quick and easy adjustments.

• Ensure the battery is removed for safety.
• Turn the chain tensioning knob to adjust the chain. The chain should be snug against the guide bar but still able to be pulled freely by hand.
• Refer to the diagram for proper tensioning.

Operating Instructions

Starting the Chainsaw

• Ensure the battery is fully charged and properly installed.
• Hold the chainsaw firmly with both hands.
• Press the safety lock button and simultaneously squeeze the trigger to start the chainsaw.
• Release the safety lock button once the saw is running.

Cutting Techniques

• Always maintain a firm grip and balanced stance.
• Allow the chainsaw to reach full speed before beginning a cut.
• Do not force the saw; let the blade do the work.
• Be mindful of kickback, especially when cutting with the tip of the guide bar.
• For branches, cut from the top down to avoid pinching the blade.
• For larger logs, make an undercut first to prevent splitting.

Automatic Oiler Function

The chainsaw's 75ml oil tank provides automatic chain lubrication during operation. Regularly check the oil level and refill as needed to ensure smooth performance and prevent wear.

Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw.

Cleaning

• Always remove the battery before cleaning.
• Use a brush or compressed air to remove sawdust and debris from the chain, guide bar, and motor housing.
• Wipe down the exterior with a damp cloth. Do not use harsh chemicals.

Chain Sharpening and Replacement

• A sharp chain is essential for safe and efficient cutting. Sharpen the chain regularly or replace it when dull or damaged.
• Refer to a qualified service technician for chain sharpening or replacement if you are unsure.

Storage

• Store the chainsaw in a dry, secure location out of reach of children.
• Remove the battery before storing for extended periods.
• Ensure the chain is covered with the blade guard.

Troubleshooting

This section addresses common issues you might encounter with your chainsaw.

Technical Specifications

Image: Visual representation of the chainsaw's dimensions and key specifications.

Warranty and Support

For warranty information or technical support, please contact VIVOSUN customer service. Keep your purchase receipt as proof of purchase.

Visit the official VIVOSUN website for the most up-to-date warranty details and contact information: VIVOSUN Store
