1. Introduction and Overview
The SVS Prime Wireless Pro Powered Speaker System delivers high-fidelity audio with versatile connectivity options. Designed for immersive sound, this 2-channel active/passive stereo speaker array features a powerful 200-watt amplifier (50 watts x 4) and a 24-bit/192kHz DAC for ultra high-resolution audio streaming.
Key features include:
- Precision-tuned electronic crossover for powerful dynamics, deep bass, and stunning clarity.
- Wireless Hi-Res audio streaming via WiFi, Apple Airplay 2, and Chromecast.
- Bluetooth with aptX for high-quality wireless audio.
- Ample connectivity options: HDMI (ARC/eARC), Line Level (RCA), Optical, 3.5mm AUX, and Ethernet inputs.
- Subwoofer output for enhanced bass.
- Control via smartphone/desktop app, front panel, and IR remote.

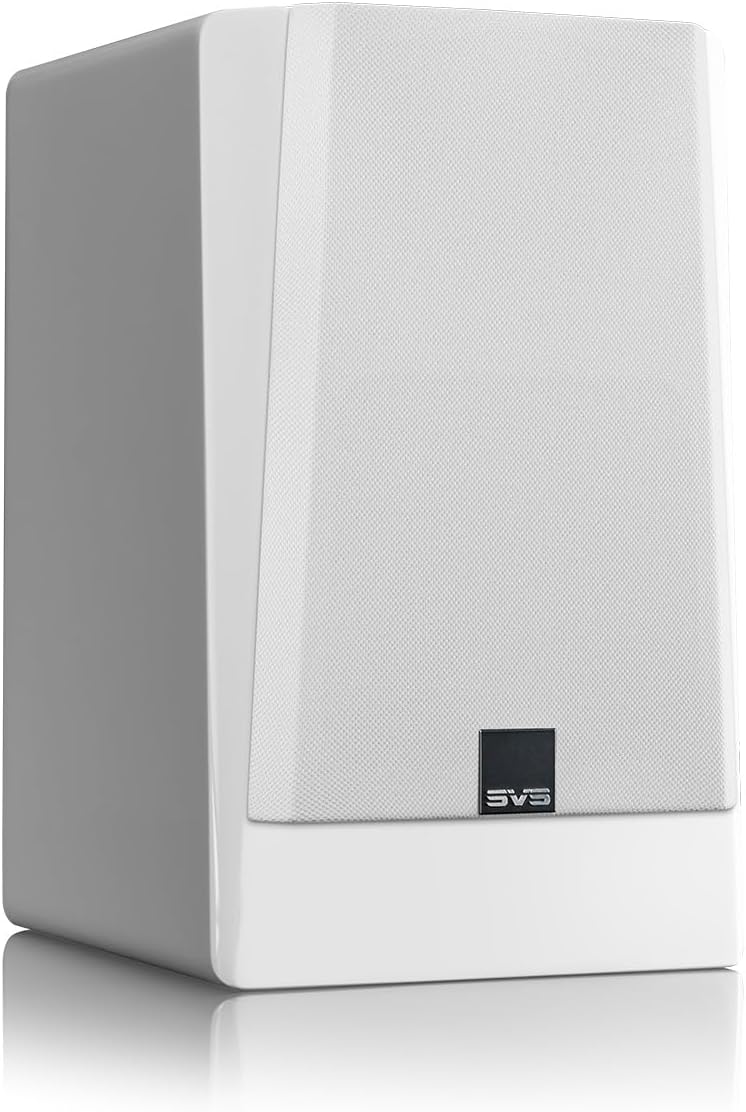

Figure 1: SVS Prime Wireless Pro Powered Speaker System (Piano Gloss White).
2. What's in the Box
Your SVS Prime Wireless Pro Powered Speaker System package includes the following components:
- SVS Prime Wireless Pro Powered Speaker Pair (one active, one passive)
- Power Cable
- Inter-speaker cable (USB-C)
- Remote Control with batteries
- Quick Start Guide
- Warranty Information
Figure 2: Included components with the SVS Prime Wireless Pro system.
3. Setup
Follow these steps to set up your SVS Prime Wireless Pro speakers:
- Placement: Position the active (primary) speaker and passive (secondary) speaker in your desired stereo configuration. Ensure adequate space for optimal sound dispersion.
- Connect Speakers: Use the supplied USB-C inter-speaker cable to connect the primary and secondary speakers. This cable ensures proper compatibility and performance.
- Power Connection: Connect the power cable to the primary speaker and then to a wall outlet.
- Download App: Download the SVS app (or compatible control app like DTS Play-Fi) on your smartphone or desktop device.
- Network Setup: Follow the in-app instructions to connect your speakers to your Wi-Fi network. This enables streaming features like Airplay 2 and Chromecast.
- Bluetooth Pairing: If using Bluetooth, activate Bluetooth on your device and select the SVS Prime Wireless Pro from the list of available devices.
Figure 3: Rear panel connections for the SVS Prime Wireless Pro speaker.
4. Operating Instructions
The SVS Prime Wireless Pro offers multiple ways to control your audio experience:
- Front Panel Controls: Use the knobs and buttons on the front panel of the primary speaker to adjust volume, select input sources, and manage presets. The data-rich front panel interface provides visual feedback.
- IR Remote: Utilize the included IR remote control for convenient adjustments from a distance.
- Smartphone/Desktop App: The dedicated SVS app provides comprehensive control over all speaker functions, including input selection, volume, EQ settings, and firmware updates.
- Voice Commands: Integrate with compatible voice assistants for hands-free control.
Figure 4: Front panel controls and display.
5. Connectivity
The SVS Prime Wireless Pro offers extensive connectivity options:
- Wireless Streaming:
- Wi-Fi: Stream lossless Hi-Res audio.
- Apple Airplay 2: For iPhones and iOS devices.
- Chromecast: For Android phones and other devices.
- Bluetooth with aptX: For high-quality wireless connection to various devices.
- Wired Inputs:
- HDMI (ARC/eARC): Connect directly to your TV for a superior soundbar replacement or compact home theater system.
- Line Level (RCA): For traditional audio components.
- Optical: For digital audio sources.
- 3.5mm AUX: For portable devices.
- Ethernet: For a stable wired network connection.
- Subwoofer Output: Connect an external subwoofer for deeper, heart-pounding bass.
Figure 5: Wireless streaming options available.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | Prime Wireless Pro |
| Item Model Number | PWPROWHT |
| Brand | SVS |
| Speaker Type | Bookshelf |
| Mounting Type | Floor Standing |
| Speaker Maximum Output Power | 200 Watts (50 watts x 4) |
| Audio Driver Type | Dynamic Driver |
| Woofer Diameter | 5.25 Inches |
| Frequency Response | 42000 Hz |
| Connectivity Technology | Auxiliary, Bluetooth, HDMI, Optical, RCA, Ethernet, Wi-Fi |
| Wireless Communication Technology | Bluetooth, Wi-Fi (Airplay 2, Chromecast) |
| Audio Output Mode | Stereo |
| Surround Sound Channel Configuration | 2.0 |
| Control Method | Voice, Remote, App, Front Panel |
| Product Dimensions | 16"D x 12"W x 19"H |
| Item Weight | 28.9 pounds |
| Color | Piano Gloss White |
| Material | Aluminum |
| Included Components | FEA-optimized cabinet and bracing eliminates resonances |
| Warranty Type | Full |
Figure 6: Speaker dimensions.
7. Maintenance
To ensure the longevity and optimal performance of your SVS Prime Wireless Pro speakers, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe the speaker cabinets. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Grilles: The protective cloth grilles can be carefully removed for cleaning. Use a soft brush or vacuum cleaner with a brush attachment to remove dust. Ensure grilles are securely reattached after cleaning.
- Placement: Avoid placing speakers in direct sunlight, near heat sources, or in areas with high humidity. Ensure proper ventilation around the speakers.
- Connections: Periodically check all cable connections (power, inter-speaker, audio inputs) to ensure they are secure and free from damage.
8. Troubleshooting
If you encounter issues with your SVS Prime Wireless Pro speakers, refer to the following common troubleshooting steps:
- No Power:
- Ensure the power cable is securely connected to both the speaker and a working wall outlet.
- Verify the power outlet is functional by plugging in another device.
- No Sound:
- Check that the correct input source is selected on the speaker (via app, remote, or front panel).
- Increase the volume on both the speaker and your source device.
- Ensure all audio cables are securely connected and undamaged.
- If using wireless, check Wi-Fi/Bluetooth connection status.
- Connectivity Issues (Wi-Fi/Bluetooth):
- Ensure your router is working correctly and within range.
- Restart your router, source device, and the speakers.
- Try re-pairing Bluetooth devices or re-connecting to Wi-Fi via the app.
- Distorted Sound:
- Reduce the volume on both the speaker and your source device.
- Check audio source quality and try a different source.
- Ensure speaker placement is not causing unwanted resonances.
For further assistance, please refer to the full user manual available on the SVS website or contact SVS customer support.
9. Warranty and Support
Your SVS Prime Wireless Pro Powered Speaker System comes with a Full Warranty. For specific terms and conditions, please refer to the warranty documentation included in your package or visit the official SVS website.
For technical support, product inquiries, or service requests, please contact SVS customer support through their official website or the contact information provided in your Quick Start Guide.
