PlusAcc E02-B Battery Base for Echo Dot 5th Gen & 4th Gen - Instruction Manual

Product Overview

The PlusAcc E02-B Battery Base is designed to provide portability for your Echo Dot 5th Generation and Echo Dot 4th Generation devices. This rechargeable charging station allows you to use your Echo Dot without being tethered to a power outlet, offering extended playtime and standby time.

Key Features

• Compatibility: Specifically designed for Echo Dot 5th Gen and Echo Dot 4th Gen. (Note: Echo Dot device is not included.)
• High Capacity Battery: Features a 10000 mAh lithium-ion battery for extended use.
• Extended Playtime: Up to 16 hours of portable playtime (at 50% volume).
• Long Standby Time: Up to 24 hours of standby time.
• Portable Design: Enables easy movement of your Echo Dot between rooms or outdoors.
• Integrated Charging: Seamlessly integrates with your Echo Dot's power adapter for charging.

Image: The PlusAcc battery base with an Echo Dot 5th Gen on a table outdoors, demonstrating portability. This image also illustrates compatibility with Echo Dot 5th Gen and Echo Dot 4th Gen, and explicitly states incompatibility with the original Echo Dot 4th Gen.

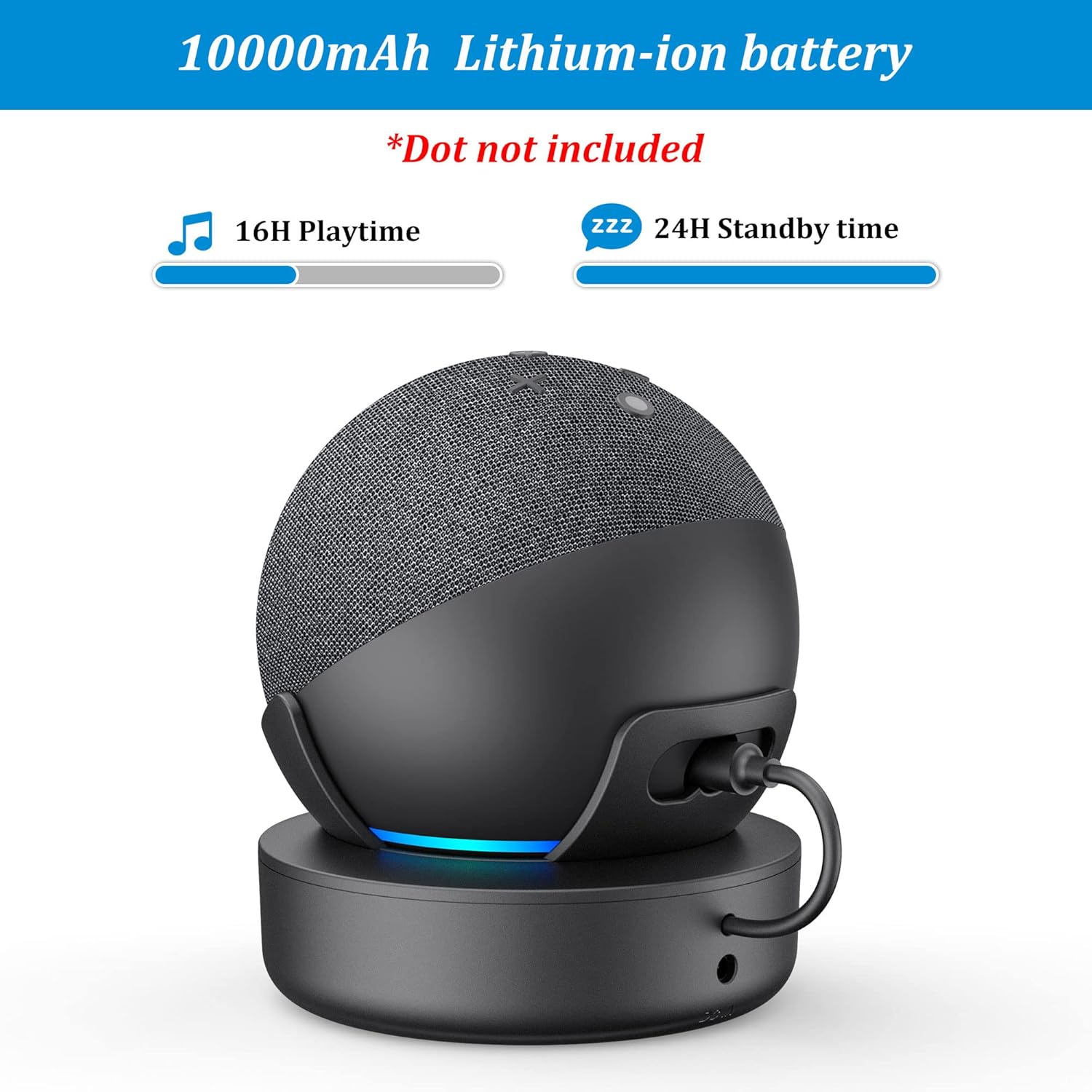

Image: The PlusAcc battery base with an Echo Dot, showcasing its 10000mAh battery capacity, 16 hours of playtime, and 24 hours of standby time.

Package Contents

Please verify that all items listed below are included in your package:

• PlusAcc E02-B Battery Base
• User Manual (this document)

Note: The Echo Dot device and its original power adapter are not included and must be purchased separately.

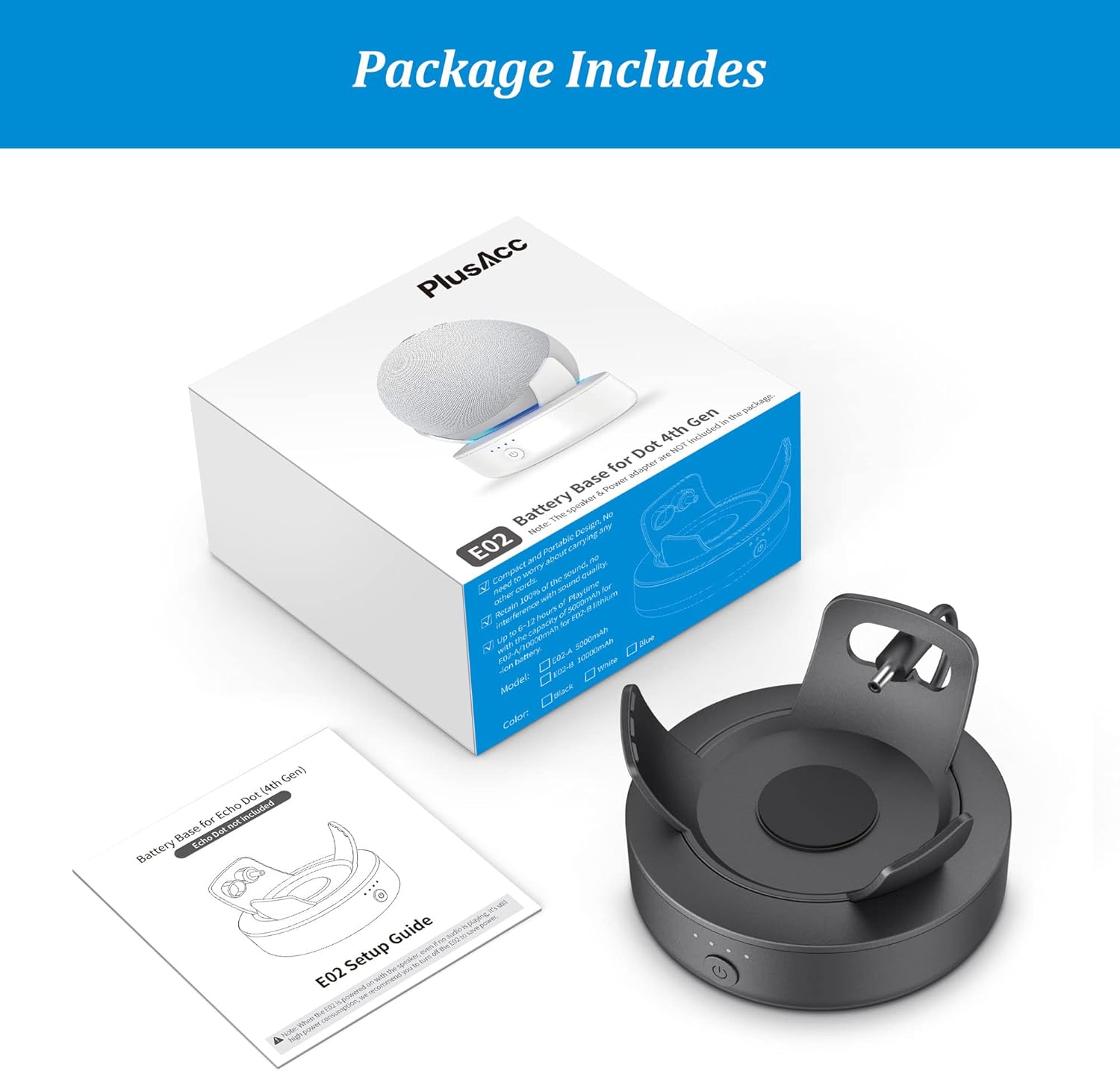

Image: Contents of the package, including the PlusAcc battery base, its retail box, and the setup guide.

Setup Instructions

Attaching Your Echo Dot to the Battery Base

Follow these steps to securely attach your Echo Dot to the PlusAcc battery base:

1. Ensure your Echo Dot is powered off and unplugged from its original power adapter.
2. Align the Echo Dot with the battery base, ensuring the power port on the Echo Dot aligns with the integrated power connector on the base.
3. Gently press the Echo Dot into the battery base. You should hear a "click" sound as the two tabs on the base secure the Echo Dot in place.
4. Double-check that the Echo Dot is firmly seated and the tabs are engaged to prevent accidental dislodgement.
5. Connect the short power cable from the battery base into the power port of the Echo Dot.

Image: Visual guide demonstrating the correct method for installing the Echo Dot into the battery base, emphasizing the need to press the tabs until a click confirms secure positioning. An example of incorrect installation (buckle dislocation) is also shown for clarity.

Operating Instructions

Powering On/Off

• To Power On: Press and hold the power button on the front of the battery base for approximately 3 seconds until the indicator lights illuminate.
• To Power Off: Press and hold the power button for approximately 3 seconds until the indicator lights turn off.

Charging the Battery Base

To charge the battery base, use the original power adapter that came with your Echo Dot. Plug the adapter into the DC IN port on the back of the battery base, then plug the adapter into a wall outlet. The indicator lights will show the charging status.

Battery Indicator Lights

The four LED lights on the front of the battery base indicate the remaining battery charge:

• Four Lights: 75% - 100% charge
• Three Lights: 50% - 75% charge
• Two Lights: 25% - 50% charge
• One Light: 0% - 25% charge (recharge soon)
• Flashing Lights: Indicates charging in progress.

Image: A hand holding the portable Echo Dot and PlusAcc battery base, ready for use on an outdoor wooden deck.

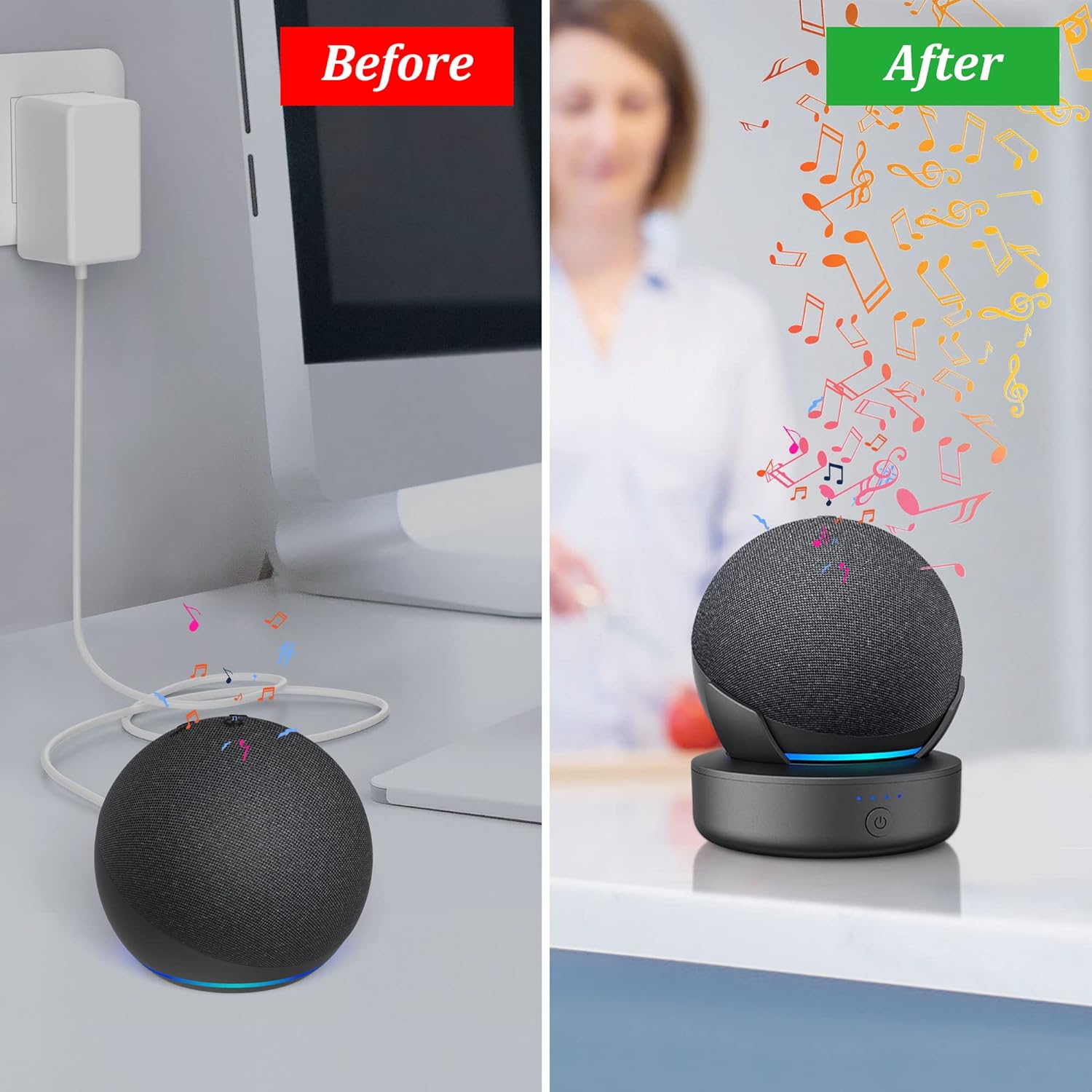

Image: A visual comparison showing an Echo Dot previously tethered by a power cord ('Before') and the same Echo Dot made portable with the PlusAcc battery base ('After'), illustrating freedom from outlets.

Image: Close-up view of the battery base's power button and the four blue LED lights that indicate the current battery level.

Image: Detailed view of the DC IN charging port located on the rear of the PlusAcc battery base.

Maintenance and Care

• Cleaning: Use a soft, dry cloth to clean the surface of the battery base. Avoid using harsh chemicals or abrasive materials.
• Storage: When not in use for extended periods, store the battery base in a cool, dry place. It is recommended to charge the battery to about 50% before long-term storage to preserve battery health.
• Avoid Extreme Temperatures: Do not expose the device to extreme heat or cold, as this can affect battery performance and lifespan.
• Handle with Care: Avoid dropping or subjecting the battery base to strong impacts.

Troubleshooting

• Device not powering on:
  • Ensure the battery base is charged. Check the indicator lights.
  • Confirm the Echo Dot is correctly seated and the internal power cable is connected.
  • Press and hold the power button for 3 seconds to turn on.
• Battery base not charging:
  • Verify that the original Echo Dot power adapter is securely plugged into both the battery base's DC IN port and a working wall outlet.
  • Check if the power adapter itself is functioning correctly.
• Echo Dot not receiving power from the base:
  • Ensure the battery base is powered on.
  • Confirm the small power cable from the base is fully inserted into the Echo Dot's power port.
  • Remove and re-seat the Echo Dot in the base to ensure proper connection.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official PlusAcc website. Keep your purchase receipt for warranty claims.
