Frestec Portable Washing Machine User Manual

1. Product Overview

The Frestec Portable Washing Machine (Model FTC30W) is a compact, top-load appliance designed for small living spaces such as apartments, dorms, and RVs. It features multiple wash programs and water levels to accommodate various laundry needs.

Image 1.1: Front view of the Frestec Portable Washing Machine.

Image 1.2: Overview of the washing machine's compact size and key features, including dimensions (31.25"H x 17.5"W x 18"D), 0.84 cu.ft. capacity, full-automatic operation, quiet operation, LED display, transparent lid, and spin wash & dry function.

2. Safety Instructions

• Read all instructions before using the appliance.
• Ensure the washing machine is placed on a stable, level surface to prevent vibration and movement during operation.
• Do not operate the machine if the power cord or plug is damaged.
• Keep children and pets away from the appliance during operation.
• Only connect to a grounded electrical outlet.
• Do not immerse the appliance in water or other liquids.
• Unplug the machine before cleaning or performing any maintenance.
• Ensure the water inlet and drain hoses are securely connected to prevent leaks.

3. Setup and Installation

3.1 Unpacking

• Carefully remove the washing machine from its packaging.
• Check for any damage during transit. Contact customer support immediately if damage is found.
• Remove all packing materials, including any internal foam or tape.

3.2 Placement

Place the washing machine on a firm, level surface. The appliance is freestanding and portable, equipped with wheels and handles for easy movement. Ensure there is adequate space around the machine for ventilation and access.

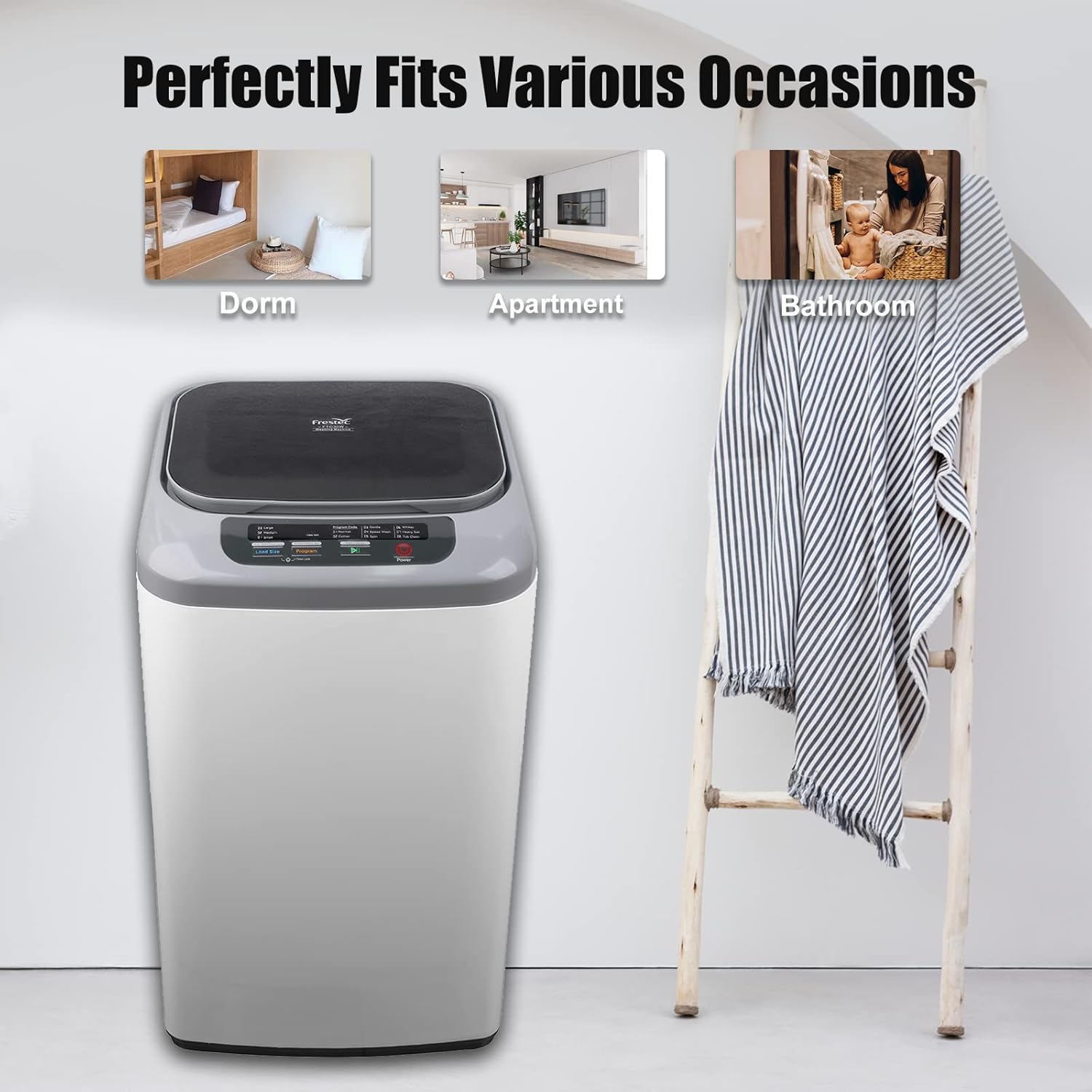

Image 3.1: Examples of suitable placement for the portable washing machine in a dorm, apartment, or bathroom.

3.3 Water Connection

The washing machine requires a cold water supply. Connect the provided high-quality hose to the cold water inlet on the back of the machine and to a compatible faucet. Ensure all connections are tight to prevent leaks.

Image 3.2: Detailed view of the washing machine's components, including the water inlet (labeled 'Only Cold'), two wheels for portability, high-quality hose, built-in lint filter, stainless steel inner tub, and transparent lid.

Image 3.3: Diagram illustrating the main parts of the washing machine, including the top lid, control panel, inner safety lid, bleach dispenser, inner safety lid lock, adjustable leg, cold water inlet, power cord wrap, drain hose, drain outlet, power cord, and rollers.

3.4 Drain Hose Installation

Connect the drain hose to the drain outlet on the machine. Position the other end of the drain hose into a sink or suitable drain. Ensure the hose is secured to prevent it from dislodging during the drain cycle.

3.5 Power Connection

Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the requirements specified on the product label.

4. Operating Instructions

4.1 Control Panel Overview

The control panel features push buttons for program selection, load size, delay start, rinse, and power, along with an LED display.

Image 4.1: Close-up of the control panel showing program codes (Normal, Cotton, Gentle, Speed Wash, Spin, Whites, Heavy Soil, Tub Clean) and load size options (Small, Medium, Large).

Image 4.2: Detailed view of the washing machine's components, including the water inlet (labeled 'Only Cold'), two wheels for portability, high-quality hose, built-in lint filter, stainless steel inner tub, and transparent lid.

4.2 Loading Laundry

• Open the top lid and the inner safety lid.
• Place clothes loosely into the stainless steel inner tub, ensuring not to overload the machine.
• Add detergent to the dispenser. For bleach, use the designated bleach dispenser.
• Close both lids securely.

4.3 Selecting a Wash Program

The machine offers 8 wash programs and 3 water levels:

1. Normal: For everyday laundry.
2. Cotton: Suitable for cotton garments.
3. Gentle: For delicate items.
4. Speed Wash: A quick cycle for lightly soiled items.
5. Spin: For draining water and spinning clothes.
6. Whites: For white fabrics.
7. Heavy Soil: For heavily soiled items.
8. Tub Clean: For cleaning the washing machine tub.

Use the 'Program' button to cycle through the available wash modes. Use the 'Load Size' button to select the appropriate water level (Small, Medium, Large) based on your laundry load.

4.4 Starting a Cycle

• After selecting the program and load size, press the 'Start/Pause' button to begin the wash cycle.
• The machine will automatically fill with cold water, wash, rinse, and spin.
• The transparent lid allows you to monitor the washing process.

4.5 Auto Unbalance Detection (AUD)

The machine is equipped with an Auto Unbalance Detection (AUD) system. If the laundry becomes unbalanced during the spin cycle, the system will attempt to redistribute the load to reduce vibrations and ensure efficient operation.

5. Maintenance

5.1 Cleaning the Lint Filter

The washing machine has a built-in lint filter to collect lint and debris. Regularly clean the lint filter to maintain optimal washing performance and prevent clogging.

• Locate the lint filter inside the tub.
• Remove the filter and clean any accumulated lint under running water.
• Reinsert the clean filter securely.

Image 5.1: The built-in lint filter, which should be regularly cleaned.

5.2 Cleaning the Tub

Use the 'Tub Clean' program periodically to clean the inner tub and prevent odor buildup. You may also wipe down the stainless steel inner tub with a damp cloth after each use.

5.3 Exterior Cleaning

Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.

5.4 Drain Pump Maintenance

The drain pump facilitates easy drainage of dirty water. Ensure the drain hose is clear of obstructions to prevent drainage issues.

6. Troubleshooting

7. Specifications

• Brand: Frestec
• Model: FTC30W
• Product Dimensions: 18"D x 17.5"W x 31.25"H
• Capacity: 0.84 Cubic Feet
• Installation Type: Freestanding
• Special Features: Drain Pump, Portable, Auto Unbalance Detection (AUD)
• Color: White
• Control Console: Push Button
• Access Location: Top Load
• Inner Tub Material: Stainless Steel
• Wash Programs: 8 (Normal, Cotton, Gentle, Speed Wash, Spin, Whites, Heavy Soil, Tub Clean)
• Water Levels: 3 (Small, Medium, Large)

8. Warranty and Support

8.1 Warranty Information

This Frestec Portable Washing Machine comes with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and quality problems. A free replacement guarantee is offered if there is any quality problem within the warranty period.

8.2 Customer Support

For any questions, concerns, or assistance with your product, please contact Frestec customer support. Do not return the product without first contacting support. Our team is available to help resolve any issues you may encounter.

Please refer to your purchase documentation or the Frestec website for specific contact details.
