Braun MultiPractic 3 Food Processor CH3012BK Instruction Manual

Introduction

Thank you for choosing the Braun MultiPractic 3 Food Processor CH3012BK. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions.
• Do not immerse the motor unit in water or other liquids.
• Keep hands and utensils away from moving blades during operation to prevent severe injury.
• Ensure the appliance is switched off and unplugged before assembling, disassembling, or cleaning.
• This appliance is not intended for use by children. Close supervision is necessary when any appliance is used near children.
• Do not use the appliance if the cord, plug, or other parts are damaged. Contact an authorized service center for repair.
• The appliance features a safety interlock system. The blades will not rotate unless the bowl and lid are correctly assembled and locked into place.
• Do not process hot liquids above 80°C (176°F). Allow hot ingredients to cool before processing.

Image: Safety interlock system icon. This icon indicates that the appliance is equipped with a safety interlock system, preventing operation unless all parts are correctly assembled.

Product Overview

The Braun MultiPractic 3 Food Processor CH3012BK is designed for efficient food preparation with its powerful QuadBlade technology and user-friendly features.

Key Features:

• QuadBlade Technology: Equipped with four stainless steel blades for quick and precise chopping and mixing. The blades can be used as a set of two or four, offering versatility and easy cleaning.
• One-Push Control: Simple, ergonomic one-handed operation. Two-speed control (low/high) is achieved by varying the pressure on the top of the motor unit.
  • Speed 1 (Light Pressure): Ideal for soft ingredients or slow pureeing.
  • Speed 2 (Firm Pressure): Suitable for hard ingredients like ice (from household ice trays, approx. 2cm cubes) or for quick processing.
• Compact Design with 500ml Capacity: Space-saving design with a generous 500ml bowl capacity. The plastic bowl is lightweight and easy to handle.
• Mayonnaise Disk: Included for effortless homemade mayonnaise preparation.
• Dedicated Spatula: A specialized spatula is provided to easily remove processed ingredients from the bowl.
• Versatile Temperature Use: Capable of processing both cold and warm ingredients (up to 80°C), expanding your culinary options.

Image: Main unit, mayonnaise disk, and spatula for the Braun MultiPractic 3 Food Processor CH3012BK.

Image: Illustration of the QuadBlade technology with detachable blades for easy cleaning and versatile use.

Image: Ice crushing icon, indicating the appliance's capability to process ice cubes.

Setup

1. Unpack: Carefully remove all parts from the packaging. Retain packaging for future storage or transport.
2. Clean: Before first use, wash all parts that will come into contact with food (bowl, lid, blades, mayonnaise disk, spatula) in warm soapy water. Rinse thoroughly and dry. The main motor unit should only be wiped with a damp cloth.
3. Assemble Blades: Place the desired blade assembly (2 or 4 blades) onto the central shaft inside the bowl. Ensure it is securely seated.
4. Place Bowl: Position the bowl onto the motor unit base, ensuring it clicks into place.
5. Add Ingredients: Place your ingredients into the bowl. Do not exceed the maximum fill line (500ml).
6. Secure Lid: Place the lid onto the bowl and twist clockwise until it locks securely. The appliance will not operate if the lid is not properly secured.
7. Connect Power: Plug the appliance into a suitable power outlet.

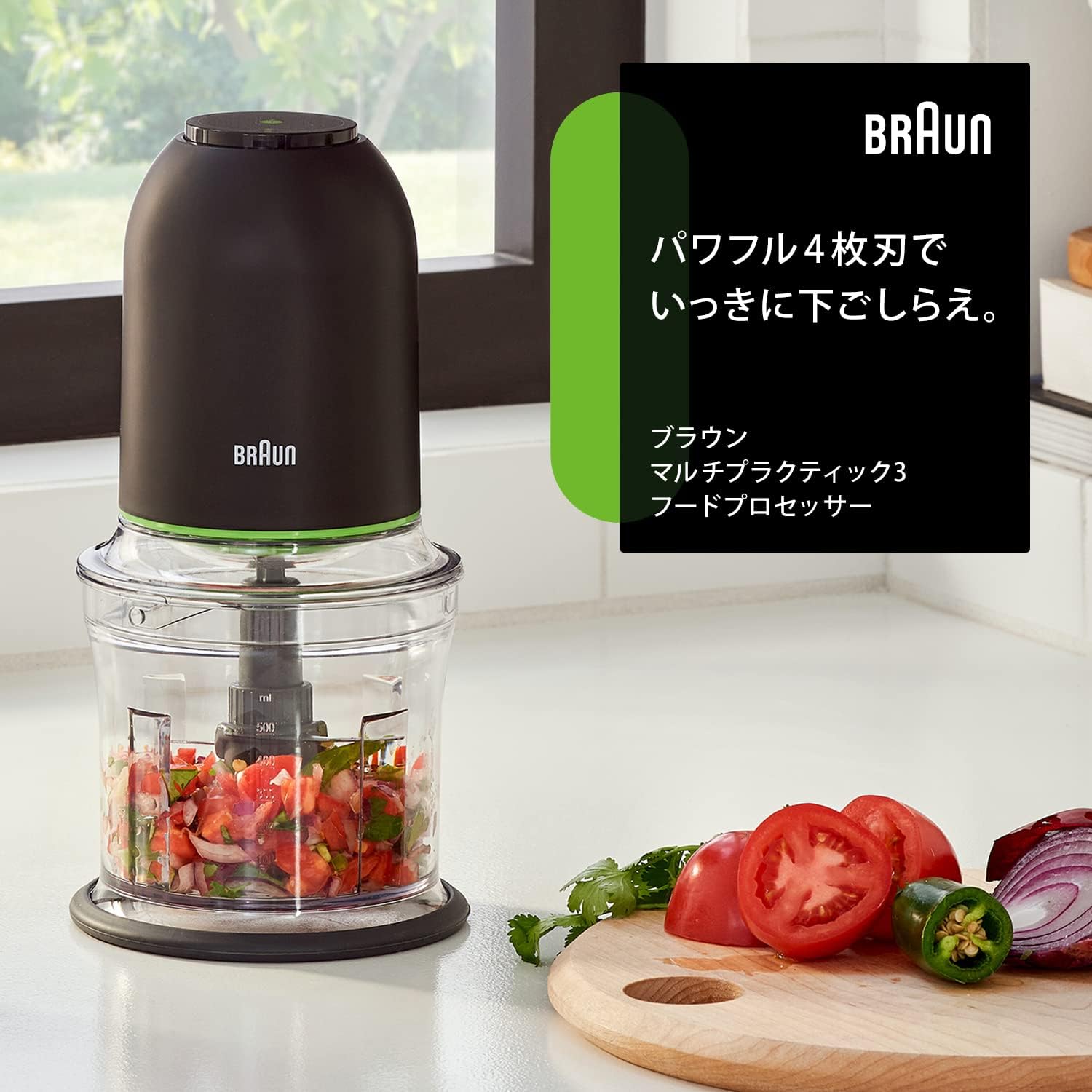

Image: The Braun MultiPractic 3 Food Processor CH3012BK fully assembled with ingredients, ready for operation.

Operating Instructions

1. Start Operation: With the appliance assembled and plugged in, place your hand on top of the motor unit and press down.
2. Speed Control:
   • For low speed (Speed 1), apply light pressure.
   • For high speed (Speed 2), apply firm pressure.
   Adjust pressure as needed for desired consistency.
3. Pulse Function: For coarse chopping or to control consistency, press and release the motor unit in short bursts.
4. Stop Operation: Release pressure from the motor unit to stop the blades.
5. Remove Ingredients: Unplug the appliance. Carefully remove the motor unit, then the lid. Use the provided spatula to scrape ingredients from the bowl.

Using the Mayonnaise Disk:

1. Assemble the mayonnaise disk onto the central shaft in the bowl instead of the blades.
2. Add ingredients for mayonnaise (e.g., egg, mustard, vinegar) to the bowl.
3. Secure the lid.
4. Start the appliance. Slowly pour oil through the opening in the lid while the appliance is running to emulsify the mayonnaise.

Image: Demonstrates the one-push operation and two-speed control by pressing the top of the motor unit.

Image: The mayonnaise disk in operation, showing how oil is slowly added through the lid opening.

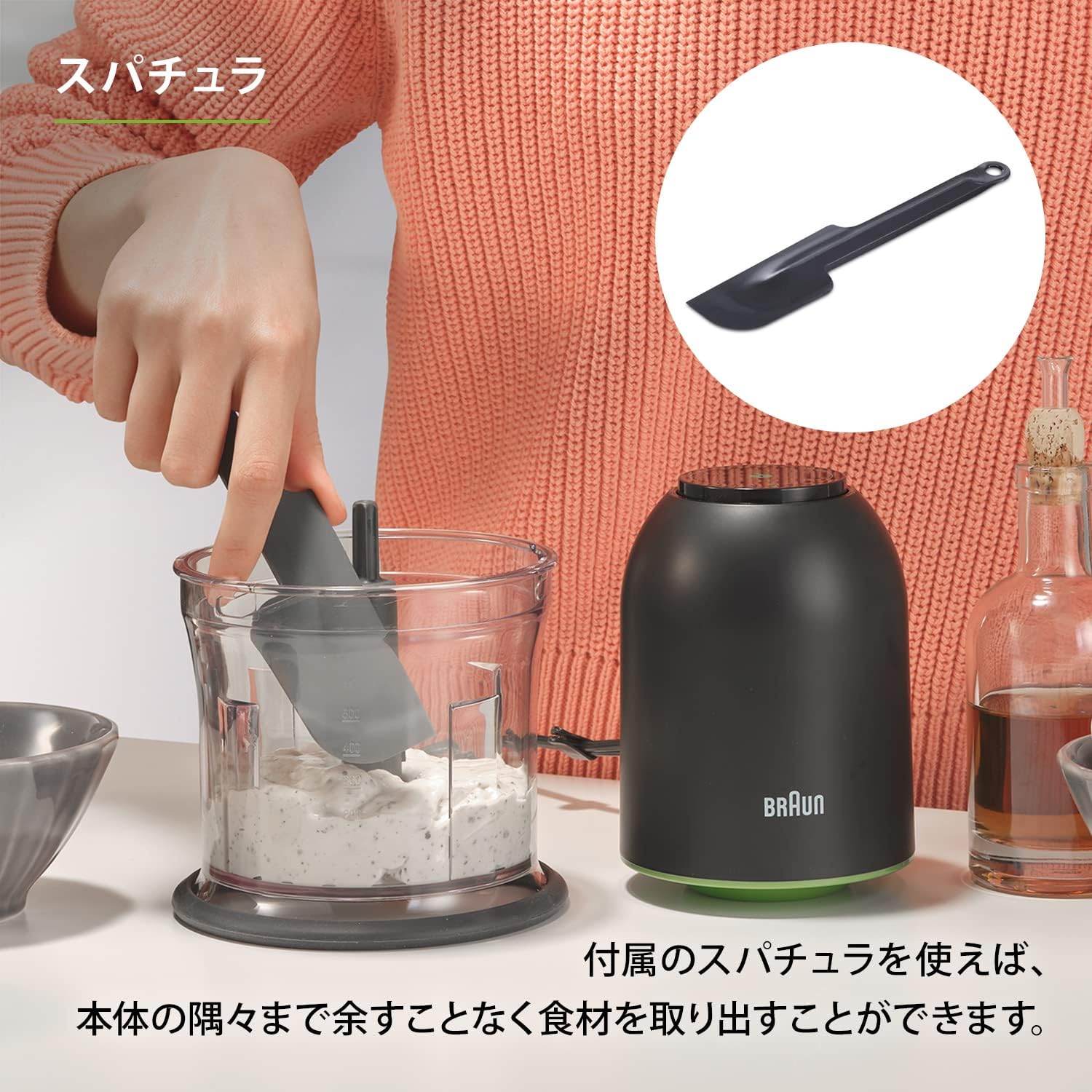

Image: A hand using the dedicated spatula to remove processed ingredients from the bowl.

Care and Maintenance

1. Unplug: Always unplug the appliance before cleaning.
2. Disassemble: Carefully disassemble all removable parts: motor unit, lid, blades, bowl, mayonnaise disk, and spatula.
3. Cleaning Blades: Handle blades with extreme care as they are very sharp. Wash immediately after use to prevent food from drying on them.
4. Dishwasher Safe Parts: The bowl, lid, blades, mayonnaise disk, and spatula are dishwasher safe. Refer to the instruction manual for specific dishwasher settings.
5. Motor Unit Cleaning: Wipe the motor unit with a damp cloth. Do not immerse it in water or any other liquid.
6. Drying: Ensure all parts are thoroughly dry before reassembling or storing.
7. Storage: Store the appliance in a dry place. The power cord can be neatly wrapped around the base of the motor unit for compact storage.

Image: Dishwasher safe parts icon, indicating that certain components can be cleaned in a dishwasher.

Image: Cord storage icon, illustrating how the power cord can be wrapped around the motor unit for tidy storage.

Troubleshooting

Specifications

• Model: CH3012BK
• Brand: Braun
• Bowl Capacity: 0.5 Liters (500ml)
• Product Weight: 1.34 kg
• Blade Material: Stainless Steel
• ASIN: B0BJ88467K
• BPA Free: Yes

Image: BPA free icon, indicating that the product materials are free from Bisphenol A.

Warranty and Support

For warranty information, service, or support, please refer to the warranty card included with your product or visit the official Braun website. Keep your purchase receipt as proof of purchase.

Braun Official Website: www.braunhousehold.com
