FTX RAMRAIDER 1/10 BRUSHLESS MONSTER TRUCK User Manual

Introduction

Welcome to the FTX RAMRAIDER 1/10 Brushless Monster Truck user manual. This guide provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new remote-controlled monster truck. Please read this manual thoroughly before operating the vehicle to ensure optimal performance and longevity.

The FTX RAMRAIDER is designed for exciting off-road bashing, featuring a robust Rokatan chassis platform, a powerful brushless motor, and a 2.4GHz radio system for reliable control.

Safety Information

WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.

• An adult must be present during the operation of the vehicle.
• The product is not waterproof. Avoid contact with water or moisture.
• Always turn the vehicle and transmitter OFF when not in use. Leaving the vehicle on when not in use may damage the battery.
• This vehicle uses a rechargeable battery. Incorrect handling of the battery may cause the battery to puncture, leak battery acid, or result in a potential fire.
• Dispose of batteries in accordance with local laws and regulations.
• Connect the charger per instructions. Incorrect charger connection may result in a short-circuit or other damage.
• Recommended age for operation is 14 years and up.

What's in the Box

Upon opening your FTX RAMRAIDER package, you should find the following components:

• FTX RAMRAIDER 1/10 Brushless Monster Truck (Vehicle)
• 2.4GHz Radio Transmitter (Handset)
• 3S 30C 3500mAH LiPo Battery
• LiPo Charger
• Product Manual (this document)

Image: The FTX RAMRAIDER 1/10 Brushless Monster Truck, showcasing its red and blue livery, aggressive tires, and front LED lights.

Setup

1. Charging the Battery

Before first use, fully charge the included 3S 30C 3500mAH LiPo battery using the provided LiPo charger. Follow the charger's specific instructions for safe charging. Always supervise the battery during charging and disconnect once fully charged.

2. Installing the Battery

Locate the battery compartment on the vehicle. Securely insert the charged LiPo battery into the compartment and connect it to the vehicle's ESC (Electronic Speed Control) power connector. Ensure the connection is firm.

Image: An underside view of the FTX RAMRAIDER chassis, revealing the internal layout including the motor, ESC, and battery tray area. This view helps in understanding battery placement.

3. Transmitter Preparation

Install the required batteries (not specified in product data, assuming standard AA/AAA) into the 2.4GHz radio transmitter. Extend the antenna if applicable. Ensure the transmitter is turned off before proceeding.

4. Binding (if necessary)

Your FTX RAMRAIDER should come pre-bound from the factory. If you experience connection issues, refer to the separate binding instructions (if provided with the transmitter) or consult the manufacturer's website for detailed steps on binding the transmitter to the receiver.

Operating Instructions

1. Powering On

1. First, turn on the 2.4GHz radio transmitter.
2. Next, turn on the power switch on the FTX RAMRAIDER vehicle. You should hear a series of beeps, indicating the ESC is initializing.
3. Wait for the vehicle and transmitter to establish a connection (usually indicated by a solid LED light on both devices).

2. Driving the Vehicle

Use the steering wheel on the transmitter to control the direction of the truck (left/right). Use the trigger to control acceleration (pull back) and braking/reverse (push forward).

Image: The FTX RAMRAIDER Monster Truck in motion on a rough dirt terrain, demonstrating its off-road capability.

3. Driving Tips

• Start slowly to get a feel for the controls.
• Avoid driving in wet conditions as the vehicle is not waterproof.
• Be mindful of obstacles and other people or pets in your driving area.
• Monitor battery life. When the vehicle starts to slow down significantly, it's time to recharge the battery.

4. Powering Off

1. First, turn off the power switch on the FTX RAMRAIDER vehicle.
2. Next, turn off the 2.4GHz radio transmitter.
3. Disconnect the battery from the vehicle to prevent over-discharge.

Maintenance

Regular maintenance will extend the life and performance of your FTX RAMRAIDER.

• Cleaning: After each use, especially after driving in dusty or dirty conditions, clean the vehicle. Use a soft brush or compressed air to remove dirt and debris from the chassis, suspension, and motor area. Do not use water.
• Inspecting Components: Regularly check for loose screws, damaged parts, or worn tires. Tighten any loose fasteners. Replace damaged components promptly.
• Lubrication: Periodically check moving parts like suspension pivots and drive shafts for smooth operation. Apply appropriate RC-specific lubricants if needed, avoiding electrical components.
• Battery Care: Store LiPo batteries in a cool, dry place, ideally in a LiPo safe bag. Do not store fully charged or fully discharged for extended periods. Refer to LiPo battery safety guidelines for proper storage voltage.

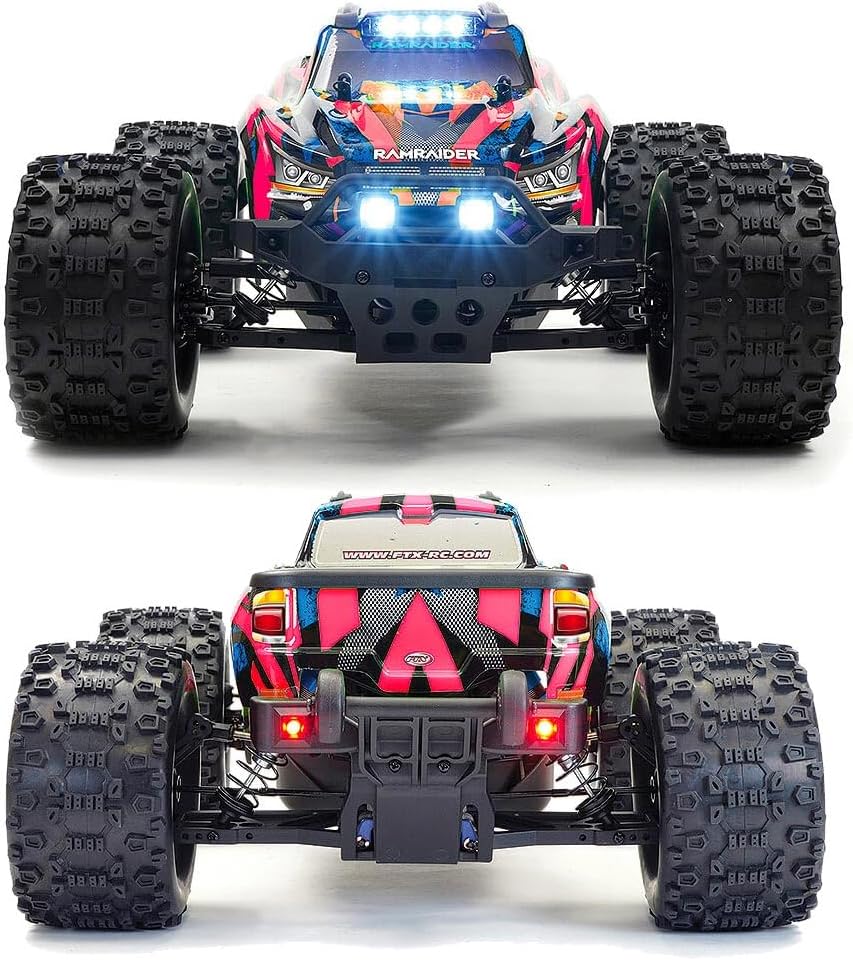

Image: A composite image showing the front and rear profiles of the FTX RAMRAIDER Monster Truck, useful for identifying components during maintenance checks.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical support, or spare parts, please contact your retailer or visit the official FTX website. Keep your proof of purchase for any warranty claims.

Online Resources: For additional support, FAQs, and product updates, please visit: www.ftx-rc.com
