Gorenje BM251S7XG Built-in Microwave Oven with Grill - User Manual

1. Important Safety Instructions

Read all instructions carefully before using the appliance and retain them for future reference. Improper use may result in fire, electric shock, or injury.

• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
• Only qualified service personnel should adjust or repair the oven.
• Liquids or other foods must not be heated in sealed containers since they are liable to explode.
• Never use the oven for drying clothes, paper, or other non-food items.
• Ensure the appliance is properly grounded.
• Always supervise children when the appliance is in use.

2. Product Overview

The Gorenje BM251S7XG is a 25-liter built-in microwave oven featuring touch control, microwave, and grill functions. It is designed for seamless integration into your kitchen cabinetry.

2.1 External View

Figure 2.1: Front view of the Gorenje BM251S7XG built-in microwave oven, showcasing the black glass finish and touch control panel.

2.2 Interior Components

Figure 2.2: Interior view of the microwave oven, showing the stainless steel cavity and the rotating glass plate.

Figure 2.3: Interior view demonstrating the placement of the grill rack on the rotating glass plate for grilling functions.

2.3 Control Panel

The appliance features an electronic touch control panel with a digital display. Key controls include:

• Display: Shows time, power level, and program indicators.
• Power Level Selection: Adjusts microwave power (5 levels).
• Timer/Clock: Sets cooking time and current time.
• Start/Confirm: Initiates cooking or confirms settings.
• Stop/Clear: Stops cooking or clears settings.
• Auto Menu: Accesses pre-programmed cooking functions.

3. Installation

This appliance is designed for built-in installation. Ensure the installation area meets the specified dimensions and ventilation requirements.

3.1 Installation Dimensions

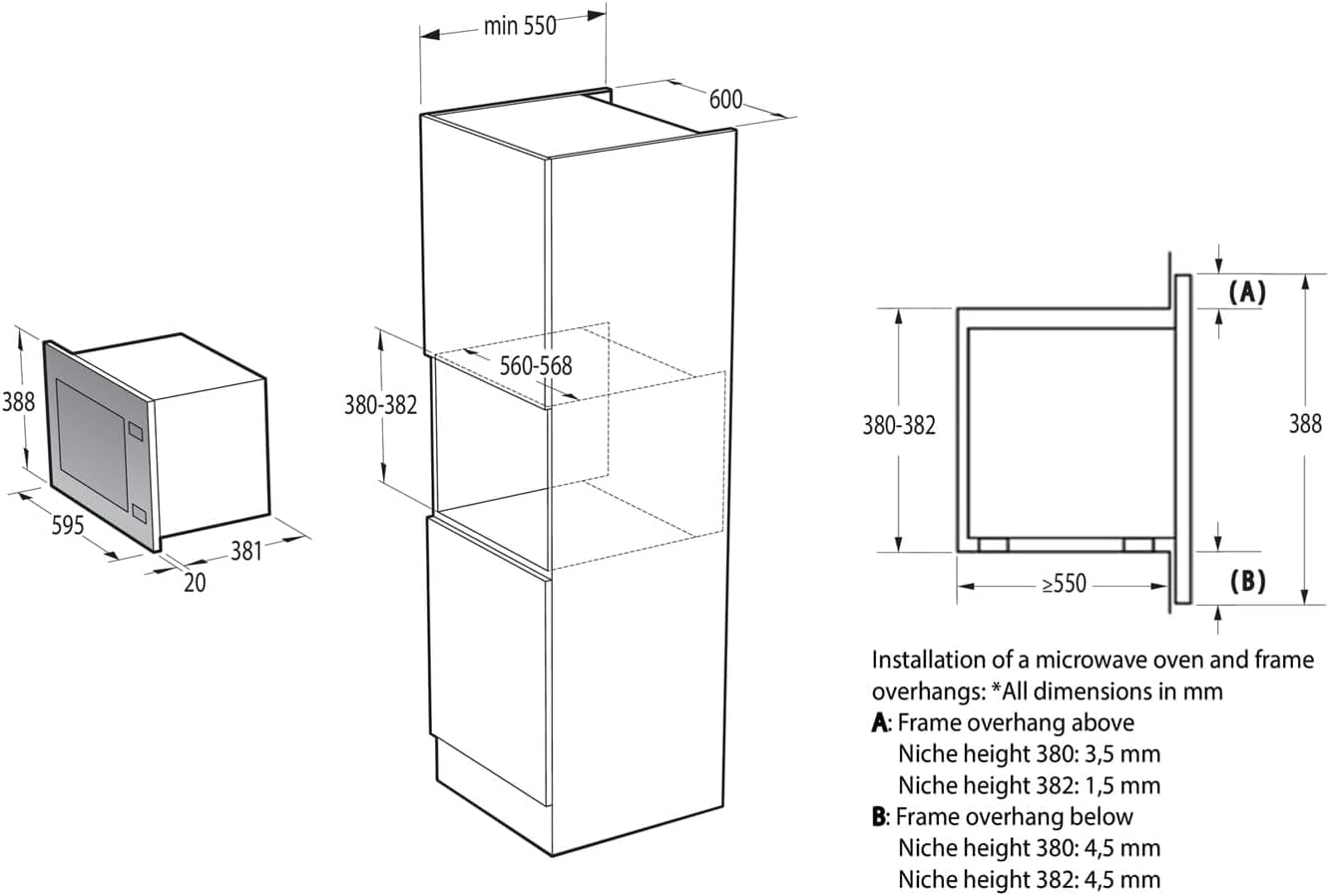

Figure 3.1: Diagram illustrating the required installation dimensions for the Gorenje BM251S7XG built-in microwave oven.

• Appliance Dimensions (W×H×D): 59.5 × 38.8 × 40.1 cm
• Installation Niche Dimensions (W×H×D) (min-max): 56-56.8 × 38-38.2 × 50 cm
• Ensure adequate space for ventilation around the appliance.
• The appliance must be connected to a properly grounded electrical outlet.

3.2 Electrical Connection

The connected load is 1,450 W with a nominal current of fuse at 10 Amps. Consult a qualified electrician if you are unsure about the electrical requirements.

4. Operating Instructions

This section details the basic operation of your Gorenje microwave oven.

4.1 Basic Microwave Cooking

1. Place food in a microwave-safe container on the rotating glass plate.
2. Close the oven door securely.
3. Select the desired power level (5 levels available).
4. Set the cooking time using the timer controls (up to 95 minutes).
5. Press 'Start/Confirm' to begin cooking.

4.2 Grill Function

The grill function is ideal for browning and crisping food. Use the provided grill rack for best results.

1. Place food on the grill rack, which should be placed on the rotating glass plate.
2. Select the grill function.
3. Set the desired grilling time.
4. Press 'Start/Confirm' to begin grilling.

4.3 Combined Heating (Microwave + Grill)

This mode combines microwave cooking with grilling for faster cooking and browning.

• Select the combined heating mode (Microwaves + grill - 1450 Watt).
• Adjust microwave power and set cooking time as needed.
• Press 'Start/Confirm'.

4.4 Auto Menu Functions

The oven includes pre-programmed auto menus for convenience.

• Speed and Auto Defrost: Defrost food by time or weight. Follow on-screen prompts for selection.
• Refer to the full manual for a complete list of AUTO menu options.

4.5 Child Lock

Activate the Child Lock feature to prevent accidental operation by children. Consult the full manual for specific activation and deactivation steps.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your appliance.

5.1 Aqua Clean Function

The Aqua Clean function uses steam to loosen food residues, making cleaning easier.

1. Place a heat-resistant container with water inside the oven.
2. Select the Aqua Clean function (refer to the full manual for specific steps).
3. After the cycle, wipe the interior with a soft cloth.

5.2 General Cleaning

• Oven Interior: Clean with a damp cloth and mild detergent after each use. For stubborn stains, use a microwave-safe cleaner.
• Exterior: Wipe with a soft, damp cloth. Avoid abrasive cleaners.
• Glass Plate and Grill Rack: These can be removed and washed with warm soapy water or in a dishwasher.
• Ensure the oven is unplugged before cleaning.

6. Troubleshooting

Before contacting service, check the following common issues:

If the problem persists after checking these points, please contact customer support.

7. Technical Specifications

8. Warranty and Support

This Gorenje appliance comes with a 5-year warranty. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the official Gorenje website for your region.
