Mitsubishi Fuso NEW Fighter Chrome Navi Window Garnish Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, care, and maintenance of your FDONG Chrome Navi Window Garnish for Mitsubishi Fuso NEW Fighter and Best One Fighter trucks. Please read this manual thoroughly before installation to ensure correct procedure and optimal product longevity.

2. Safety Information and Important Notes

• Professional Installation Recommended: We do not provide support regarding installation. If you are not confident in your ability to install this product, please have it installed by a professional.
• Installation at Your Own Risk: Installation is at your own risk. We are not responsible for any damage that may occur during the installation process.
• Product Inspection: This product is shipped after inspection, so there may be traces of opening. This is normal and does not indicate a used product.
• Overseas Product: Although new, this is an overseas product. Minor scratches or dirt may occur during transportation. Your understanding is appreciated.
• Initial Defect Check: In case of initial defects, we will respond only within 7 days after product arrival. Please check the product's condition and functionality as soon as possible upon receipt.

3. Product Overview

The Chrome Navi Window Garnish is an exterior accessory designed to enhance the aesthetic appeal of your truck's safety window frame. Made from chrome-plated ABS resin, it provides a sleek, polished look. This is an adhesive-type installation product.

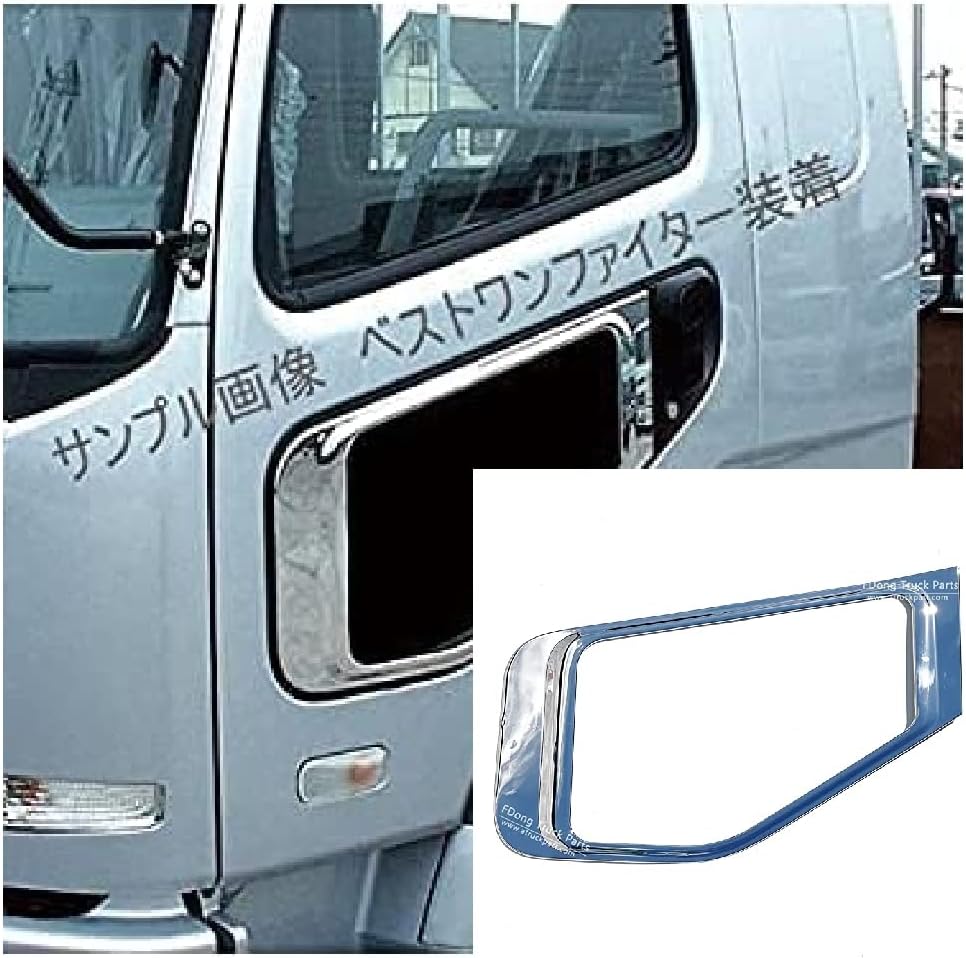

Image 1: The FDONG Chrome Navi Window Garnish shown installed on the safety window frame of a Mitsubishi Fuso truck. The chrome finish adds a decorative element to the vehicle's exterior.

4. Compatible Models

This product is designed for the following Mitsubishi Fuso truck models:

• Best One Fighter: From November 2005 onwards
• NEW Fighter: From April 1998 to October 2005

5. Installation (Setup)

Follow these steps for proper installation of the Navi Window Garnish:

1. Clean the Surface: Thoroughly clean the area on the truck's safety window frame where the garnish will be installed. Use a suitable degreaser to remove any wax, oil, or dirt. Ensure the surface is completely dry before proceeding.
2. Temporary Fitting (Trial Fit): Before removing the adhesive backing, carefully place the garnish on the intended installation area to confirm the fit and alignment. This step is crucial to avoid misalignment after the adhesive is exposed.
3. Remove Adhesive Backing: Once you are satisfied with the fit, carefully peel off the protective film from the adhesive tape on the back of the garnish.
4. Apply the Garnish: Align the garnish precisely with the safety window frame and press it firmly into place. Apply even pressure across the entire surface of the garnish to ensure good adhesion.
5. Curing Time: Avoid washing the truck or exposing the installed garnish to heavy moisture for at least 24-48 hours to allow the adhesive to fully cure.

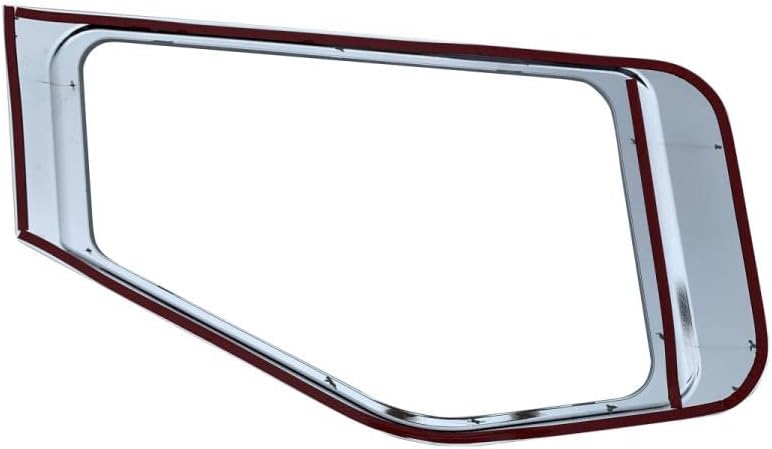

Image 2: The reverse side of the Navi Window Garnish, illustrating the pre-applied adhesive tape along its edges, ready for installation.

6. Operating Instructions

The FDONG Chrome Navi Window Garnish is a static exterior accessory designed for decorative and protective purposes. It does not have any operational functions or moving parts. Once properly installed, no further operational steps are required.

7. Care and Maintenance

To maintain the chrome finish and extend the life of your garnish, follow these care instructions:

• Regular Cleaning: Clean the garnish regularly with a soft cloth and mild automotive soap. Avoid abrasive cleaners or harsh chemicals that can damage the chrome plating.
• Rinse Thoroughly: After cleaning, rinse the garnish thoroughly with clean water to remove all soap residue.
• Dry Immediately: Dry the garnish immediately with a clean, soft towel to prevent water spots and maintain its shine.
• Avoid Scratches: Be careful to avoid scratching the chrome surface. Do not use stiff brushes or abrasive materials for cleaning.

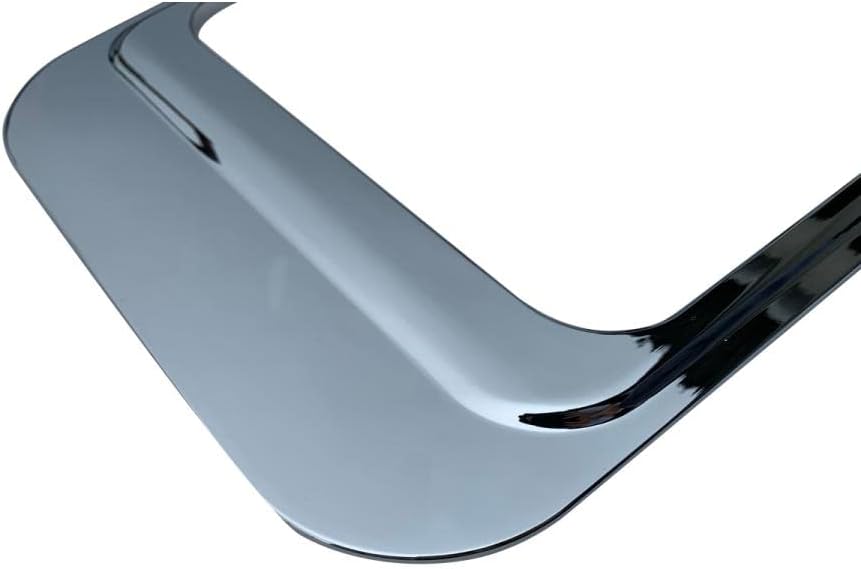

Image 3: A detailed close-up of the chrome-plated ABS resin, highlighting its reflective and smooth surface.

8. Troubleshooting

If you encounter any issues with your Navi Window Garnish, consider the following:

• Garnish Not Sticking: Ensure the installation surface was thoroughly cleaned and degreased before application. The ambient temperature should be suitable for adhesive application (typically above 10°C or 50°F). Apply firm, even pressure during installation.
• Misalignment: If the garnish is misaligned, it may be difficult to correct once the adhesive has set. This highlights the importance of the temporary fitting step. If the adhesive is not fully cured, it might be possible to carefully re-position, but this risks damaging the adhesive or the product.
• Initial Defects: If you believe the product has an initial defect (e.g., manufacturing flaw, significant damage upon arrival), please refer to the Warranty and Support section for instructions on how to proceed within 7 days of receipt.

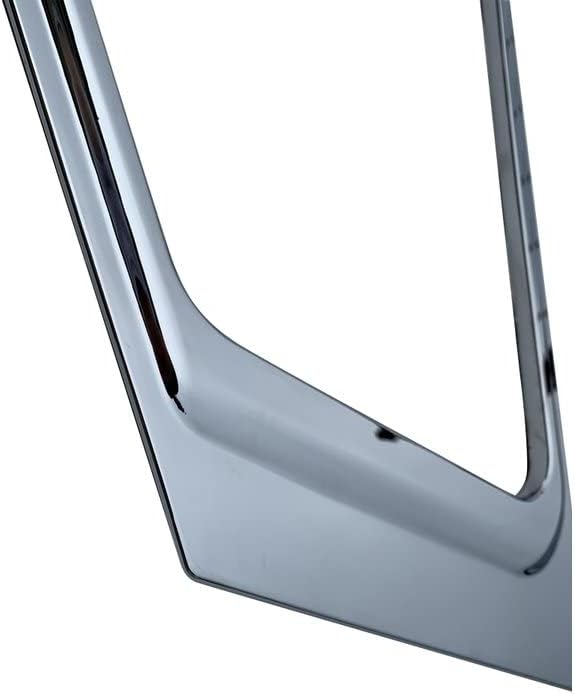

Image 4: A different angle close-up of the chrome garnish, showcasing its contoured shape designed to fit the truck's window frame.

9. Specifications

10. Warranty and Support

FDONG is committed to customer satisfaction. Please review the following information regarding warranty and support:

• Initial Defect Policy: In the unlikely event of an initial defect, we offer a refund or exchange. Please contact us within 7 days of product arrival. We aim to respond promptly within 24 hours to resolve any issues.
• Contact Information: For any inquiries or support requests, please refer to the seller's contact information on the platform where the product was purchased.
