Canglan Technology YDL-983A Auto Glue Dispenser Instruction Manual

1. Introduction

The Canglan Technology YDL-983A is an automatic glue dispenser designed for precise application of various materials, including solder paste, glues, adhesives, grease, sealants, silicones, RTV, cyanoacrylates, anaerobic resins, and UV cure resins. This digital timed air dispenser features both cycle dispensing and time display functions, offering versatility and control for a wide range of applications. This manual provides essential information for the safe and efficient operation of your YDL-983A dispenser.

2. Safety Instructions

• Always connect the unit to a grounded power outlet.
• Ensure the power supply matches the unit's requirements (110V or 220V).
• Operate the dispenser in a well-ventilated area, especially when using volatile materials.
• Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when handling dispensing materials.
• Do not operate the unit with wet hands or in damp conditions.
• Disconnect power before performing any maintenance or cleaning.
• Keep the unit away from children and unauthorized personnel.
• Ensure the air compressor is properly regulated to prevent over-pressurization.

3. Package Contents

Please check the package contents upon receipt. If any items are missing or damaged, contact your supplier immediately.

• YDL-983A Auto Glue Dispenser Main Unit
• Foot Pedal Switch
• Air Hose
• Dispensing Syringe Barrel Stand
• Power Cord
• Accessory Dispensing Kit (syringes, needles, adapters)
• Instruction Manual

4. Product Overview

The YDL-983A dispenser consists of a main control unit, a foot pedal for activation, and a syringe barrel stand for holding dispensing materials. Key controls include power, shot time adjustment, air pressure regulator, and mode selection.

Figure 4.1: Complete setup of the YDL-983A Auto Glue Dispenser, showing the main unit, syringe barrel stand, and foot pedal.

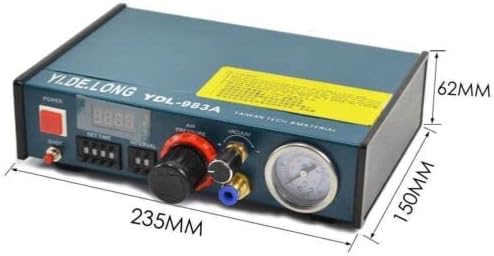

Figure 4.2: Close-up view of the YDL-983A main unit, highlighting its dimensions and control panel layout.

5. Setup

1. Placement: Place the dispenser unit on a stable, level surface.
2. Power Connection: Connect the power cord to the dispenser and then to a suitable 110V or 220V AC power outlet. Ensure the voltage selector (if present) is set correctly.
3. Air Compressor Connection: Connect the air hose from your air compressor (minimum 1.5HP recommended) to the "AIR INPUT" port on the dispenser. Ensure the air compressor is capable of providing 70-100 psi.
4. Foot Pedal Connection: Plug the foot pedal into the designated port on the front panel.
5. Material Loading:
   • Fill a dispensing syringe barrel with the desired material (solder paste, glue, etc.).
   • Attach a suitable dispensing needle or tip to the syringe barrel.
   • Connect the syringe barrel to the air output hose from the dispenser and place it in the syringe barrel stand.

6. Operating Instructions

6.1 Power On/Off

Press the red "POWER" button on the front panel to turn the unit on or off. The LCD display will illuminate when powered on.

6.2 Air Pressure Adjustment

Use the air pressure regulator knob to set the desired output air pressure, which controls the dispensing force. Monitor the pressure gauge to ensure it is within the recommended range of 1-100 psi. Adjust the input air pressure from your compressor as needed.

6.3 Dispensing Modes

The YDL-983A offers two primary dispensing modes: Manual and Timer.

• Manual Mode: In this mode, material is dispensed continuously as long as the foot pedal is pressed. Release the foot pedal to stop dispensing. This mode is suitable for applications requiring variable dispensing volumes.
• Timer Mode: This mode allows for precise, repeatable dispensing volumes by setting a specific dispensing time.
  • Setting Dispensing Time: Use the "SET TIME" controls to adjust the dispensing duration from 0.01 to 99.99 seconds.
  • Setting Cycle Interval: The unit also features a cycle interval setting from 0.1 to 9.9 seconds, allowing for automated, timed pauses between dispensing shots if configured.
  • Operation: Press the foot pedal once to initiate a timed dispense. The unit will dispense for the set duration and then stop automatically.

6.4 Suck-Back Feature

The dispenser incorporates a suck-back feature designed to prevent dripping after each dispense cycle. This feature automatically retracts a small amount of material, ensuring clean and precise application. No user adjustment is typically required for this function.

7. Maintenance

• Cleaning: Regularly clean the exterior of the dispenser with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Syringe and Needle Cleaning: After each use, or when changing materials, thoroughly clean the dispensing syringes, needles, and adapters according to the material manufacturer's recommendations. This prevents clogging and ensures consistent performance.
• Air Filter: Periodically check and clean or replace the air filter (if accessible) to ensure clean air supply to the unit.
• Storage: Store the dispenser in a clean, dry environment when not in use.

8. Troubleshooting

9. Specifications

• Model: YDL-983A
• Input Voltage: 110V / 220V AC (selectable)
• Internal Voltage: 24V DC
• Air Input: 70-100 psi
• Air Output: 1-100 psi
• Timer Mode Dispensing Time: 0.01 - 99.99 seconds
• Timer Mode Cycle Interval: 0.1 - 9.9 seconds
• Manual Mode Dispensing Time: Controlled by foot pedal
• Dimensions (L x W x H): 23.5 cm x 15 cm x 6.2 cm (Main Unit)
• Weight: Approximately 3 kg
• Power Source: Air powered
• Material: Copper (internal components)

10. Warranty Information

The Canglan Technology YDL-983A Auto Glue Dispenser comes with a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance. Please retain your proof of purchase for warranty claims.

11. Contact Information

For technical support, warranty claims, or inquiries regarding your YDL-983A dispenser, please contact Canglan Technology customer service:

• Website: Canglan Technology Store on Amazon
• Email: [Insert Customer Service Email Here]
• Phone: [Insert Customer Service Phone Number Here]

Please have your model number and purchase date ready when contacting support.
