Product Overview
The Realtree RT243 Multi-Function Headlamp is designed to provide versatile and reliable illumination for various outdoor and work activities. Its lightweight design and adjustable elastic straps ensure a comfortable and secure fit for extended use. This headlamp features multiple lighting modes to adapt to different situations, including a powerful spotlight, a wide-angle floodlight, and a red light for night vision preservation. Additionally, a rear flasher enhances safety during low-light conditions.
This image displays the Realtree RT243 Multi-Function Headlamp, showcasing its olive green body, adjustable strap, and the two main light sources: a spotlight and a COB LED floodlight. The Realtree logo is visible on the front.
Key Features
- Multi-Function: Offers a 250 lumen spotlight, 120 lumen COB LED flood light, red COB LED, and a rear flasher.
- Bright Illumination: The 250 lumen spotlight provides a 40-meter beam distance, effectively illuminating surroundings.
- Durable Construction: Water and impact resistant, suitable for various environmental conditions.
- Extended Run Time: Provides up to 5 hours of continuous operation on a single set of batteries.
- Adjustable Fit: Equipped with three adjustable elastic straps for a comfortable and secure fit.
- 45-Degree Pivot: The light head can be angled up to 45 degrees for directional lighting.

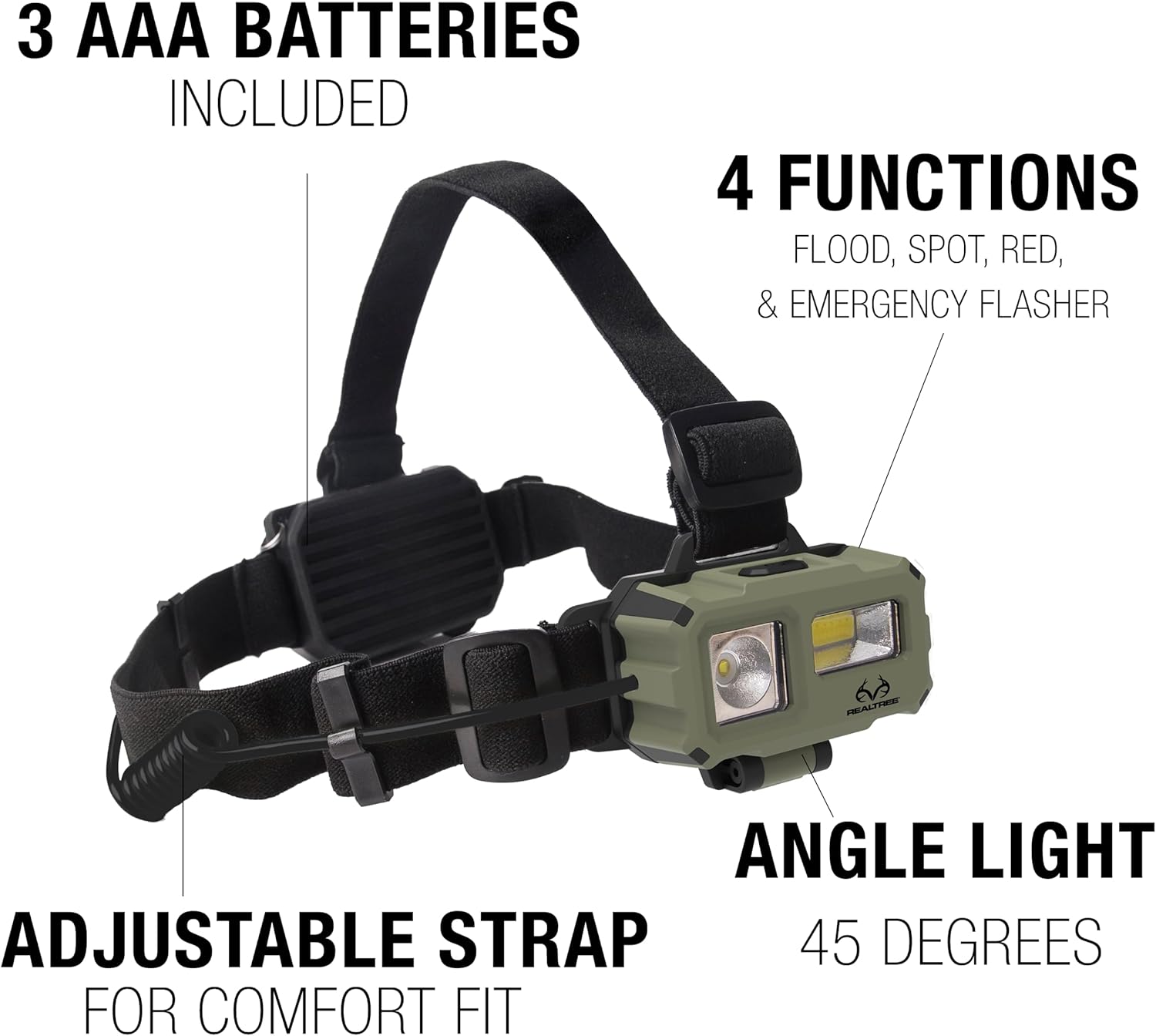

An illustrative diagram of the Realtree headlamp highlighting its key features: 3 AAA batteries included, 4 functions (flood, spot, red, emergency flasher), adjustable strap for comfort fit, and 45-degree angle light pivot.
Setup
Battery Installation
The Realtree RT243 Headlamp is powered by 3 AAA batteries (included). Follow these steps to install or replace the batteries:
- Locate the battery compartment on the rear of the headlamp unit.
- Open the battery compartment cover by gently prying it open or sliding it according to the markings.
- Insert 3 AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the indicators inside the compartment. Incorrect installation can prevent the device from functioning.
- Close the battery compartment cover securely until it clicks into place, ensuring a tight seal to maintain water resistance.
Always use fresh, high-quality alkaline AAA batteries for optimal performance and battery life. Remove batteries if the headlamp will not be used for an extended period to prevent leakage.
Operating Instructions
The RT243 Headlamp features a single power button to cycle through its various lighting modes.
Light Modes
- Spotlight Mode: Press the power button once to activate the 250 lumen spotlight. This mode provides a focused beam for long-distance illumination.
- COB LED Floodlight Mode: Press the power button a second time to switch to the 120 lumen COB LED floodlight. This mode offers a wide, even spread of light, ideal for illuminating a broad area or close-up work.
- Red COB LED Mode: Press the power button a third time to activate the red COB LED. The red light helps preserve night vision and is particularly useful for activities like hunting or stargazing.
- Rear Flasher Mode: Press the power button a fourth time to activate the red rear flasher. This mode enhances visibility from behind, improving safety when jogging or walking in low-light conditions.
- Off: Press the power button a fifth time to turn the headlamp off.
To adjust the angle of the light, gently pivot the headlamp unit up or down. It can be adjusted up to 45 degrees.
A visual representation of the four distinct light modes: Flood Beam, Spot Beam, Low Light Red Beam, and Red Rear Emergency Flasher, showing how each mode illuminates different scenarios.
Usage Examples
A man wearing the Realtree headlamp is shown kneeling by a campfire, demonstrating the headlamp's utility in a camping environment. The bright light illuminates the area in front of him.
A hunter wearing the Realtree headlamp with its red light activated is shown climbing a ladder in a wooded area, highlighting the red COB LED mode for preserving night vision during hunting.
This image shows a man wearing the headlamp while outdoors at night, emphasizing its use for general outdoor activities and illuminating the immediate surroundings.
A woman is shown from behind, jogging on a road at dusk, with the headlamp's red rear flasher active, demonstrating its safety feature for visibility during nighttime activities.
Maintenance
Cleaning
To clean your headlamp, wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or internal components. Ensure the battery compartment is dry before closing it.
Storage
When not in use, store the headlamp in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent corrosion and leakage.
The headlamp is water resistant, but it is not designed for submersion. Avoid prolonged exposure to heavy rain or submersion in water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Headlamp does not turn on. | Batteries are dead or incorrectly installed. | Replace batteries with new AAA batteries, ensuring correct polarity (+/-). |
| Light is dim or flickers. | Low battery power. | Replace batteries. |
| Battery compartment cover does not close securely. | Batteries are not seated correctly or debris is obstructing the seal. | Re-seat batteries. Check for and remove any debris around the seal. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | RT243 |
| Brightness (Spotlight) | 250 Lumens |
| Brightness (Floodlight) | 120 Lumens |
| Light Path Distance | 40 Meters |
| Power Source | 3 x AAA Alkaline Batteries |
| Runtime | Up to 5 hours |
| Material | ABS |
| Color | Black/Green |
| Water Resistance Level | Water Resistant |
| Product Dimensions | 2"D x 1.5"W x 3"H |
| Item Weight | 7.4 ounces (0.21 Kilograms) |
| UPC | 008965007027 |
Warranty and Support
According to the manufacturer's specifications, there is no explicit warranty description provided for the Realtree RT243 Multi-Function Headlamp.
For any product inquiries or support, please refer to the retailer where the product was purchased or visit the official Realtree website for general information.
