1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your ARIEL Hepburn 30 Inch White Bathroom Vanity Base Cabinet. Please read all instructions carefully before beginning installation to ensure proper setup and safe use of the product. Keep this manual for future reference.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in injury or property damage.
- Always use appropriate safety gear, including gloves and eye protection, when handling or installing the vanity cabinet.
- Ensure the vanity is securely mounted to the wall to prevent tipping. Consult a professional if unsure about mounting procedures.
- Do not exceed the weight limit of the cabinet. Refer to specifications for maximum load capacity.
- Keep the area around the vanity clear to prevent tripping hazards during and after installation.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).
3. Package Contents
Verify that all components are present and undamaged before beginning assembly.
- Fully assembled vanity base cabinet (1 unit)
- Matte Black hardware (handles for doors and drawer)
Note: Countertop and sink are NOT included with this vanity base cabinet.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | ARIEL |
| Model Number | HBT-030S-BC-WHT |
| Color | White |
| Product Dimensions | 21.5"D x 30"W x 34.5"H |
| Material | Solid Hardwood & Plywood Construction |
| Door Style | Shaker |
| Number of Doors | 2 (Soft-closing) |
| Number of Drawers | 1 (Full Extension Dovetail, 45-degree open tilt) |
| Hardware Finish | Matte Black |
| Mounting Type | Floor Mount (Built-in Toe Kick) |
| Item Weight | 155 Pounds |
| UPC | 840318332109 |
5. Setup and Installation
The ARIEL Hepburn vanity base cabinet arrives fully assembled. Installation primarily involves placing the countertop and sink (not included) and securing the unit. Professional installation is recommended.
5.1 Visual Overview

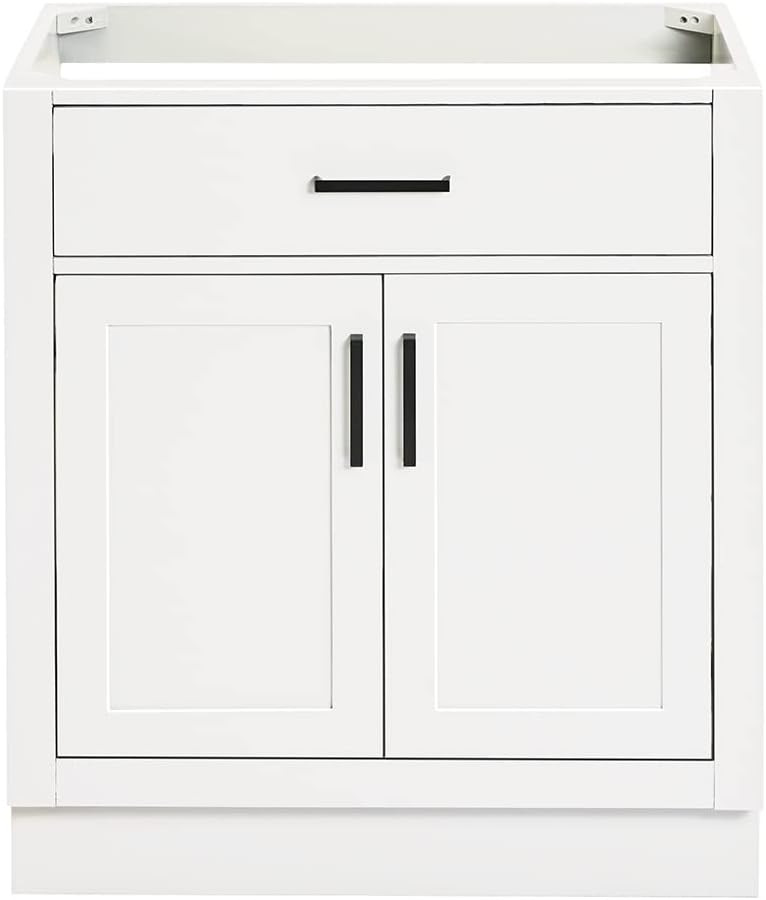

Figure 5.1: Front view of the ARIEL Hepburn 30 inch white bathroom vanity base cabinet.
Figure 5.2: Dimensions of the vanity base cabinet (30 inches wide, 21.5 inches deep, 34.5 inches high).
5.2 Installation Steps (Countertop & Sink)
For detailed visual guidance on installing a vanity, please refer to the official installation video below. The vanity features an open back for easier plumbing installation.
Video 5.1: Official ARIEL "How to install a vanity" guide. This video demonstrates the general process of installing a vanity, including countertop and sink placement.
5.3 Key Features for Installation
Figure 5.3: The vanity's interior with a tilt-out drawer and soft-closing doors, designed for practical storage.
Figure 5.4: An angled view highlighting the accessible storage provided by the open doors and tilt-out drawer.
Figure 5.5: Close-up of the dovetail construction on the 45-degree open tilt drawer, ensuring durability and smooth operation.
6. Operating Instructions
The ARIEL Hepburn vanity is designed for ease of use and durability.
6.1 Soft-Closing Doors and Drawer
The vanity features two soft-closing doors and one soft-closing, 45-degree open tilt dovetail drawer. To operate, simply push the doors or drawer gently to close them. The soft-close mechanism will engage, preventing slamming and ensuring quiet operation.
6.2 Tilt-Out Drawer Functionality
The 45-degree open tilt dovetail drawer provides convenient access to smaller items. Gently pull the drawer front outwards and downwards to open. Push it back into place to engage the soft-close mechanism.
7. Maintenance
Proper care and maintenance will extend the life and appearance of your vanity.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or solvents that may damage the finish.
- Spills: Clean up spills immediately to prevent water damage or staining, especially on the cabinet's finish.
- Hardware: Periodically check and tighten any loose hardware (handles, hinges) to ensure proper function.
- Moisture: Ensure adequate ventilation in the bathroom to prevent excessive moisture buildup, which can affect wood products.
8. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors/Drawer not closing softly | Soft-close mechanism obstructed or misaligned. | Check for obstructions. Adjust hinges or drawer slides if necessary. Consult a professional if the mechanism is damaged. |
| Drawer sticking or difficult to open/close | Drawer slides are dirty, damaged, or misaligned. | Clean drawer slides. Check for bent or damaged slides and replace if needed. Ensure the drawer is properly seated on the slides. |
| Cabinet appears unstable | Not properly secured to the wall or uneven flooring. | Ensure the vanity is securely anchored to wall studs. Use shims under the toe kick if the floor is uneven to stabilize the unit. |
9. Product Overview Video
Explore the features and design of the ARIEL Hepburn Bathroom Vanity Collection.
Video 9.1: ARIEL Hepburn Bathroom Vanity Collection overview, showcasing various sizes and features.
10. Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official ARIEL website. Keep your proof of purchase for warranty claims.
Manufacturer: Atlas International Inc.
Contact: Refer to product packaging or manufacturer's website for current contact information.
