wanan Stroller Wagon for 2 Kids Instruction Manual

1. Introduction

Thank you for choosing the wanan Stroller Wagon. This versatile wagon is designed to comfortably transport two children, featuring high seats with 5-point harnesses for enhanced safety and an adjustable canopy for protection from the elements. Its foldable design ensures easy storage and portability, making it ideal for various outdoor activities such as trips to the park, beach, camping, or even grocery shopping. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

2. Safety Information

Your child's safety is paramount. Adhere to all safety guidelines to prevent injury.

• Age and Weight Limit: This stroller wagon is designed for children over 6 months of age. The maximum weight capacity is 110 pounds (approximately 50 kg). Do not exceed this limit.
• Harness System: Always secure children with the integrated 5-point safety harnesses when they are seated in the wagon. Ensure straps are snug but comfortable.
• Braking System: Always engage the one-step foot brake when the wagon is stationary to prevent accidental movement. Ensure the brake is fully engaged before placing or removing children.
• Supervision: Never leave children unattended in the stroller wagon. Constant adult supervision is required.
• Folding/Unfolding: Keep children clear of the wagon during folding and unfolding operations to avoid pinching or injury.
• Terrain: While designed for various terrains, exercise caution on uneven or sloped surfaces. Do not use on stairs or escalators.
• Overloading: Do not hang heavy bags on the handle or overload the wagon, as this can cause instability and tip over.
• Maintenance: Regularly inspect the wagon for loose parts, damaged components, or worn fabric. Discontinue use if any damage is found and contact customer support.

3. Product Overview and Components

The wanan Stroller Wagon is equipped with several features for comfort, convenience, and safety.

Figure 3.1: Overall view of the wanan Stroller Wagon, showcasing its design for two children with an extended canopy.

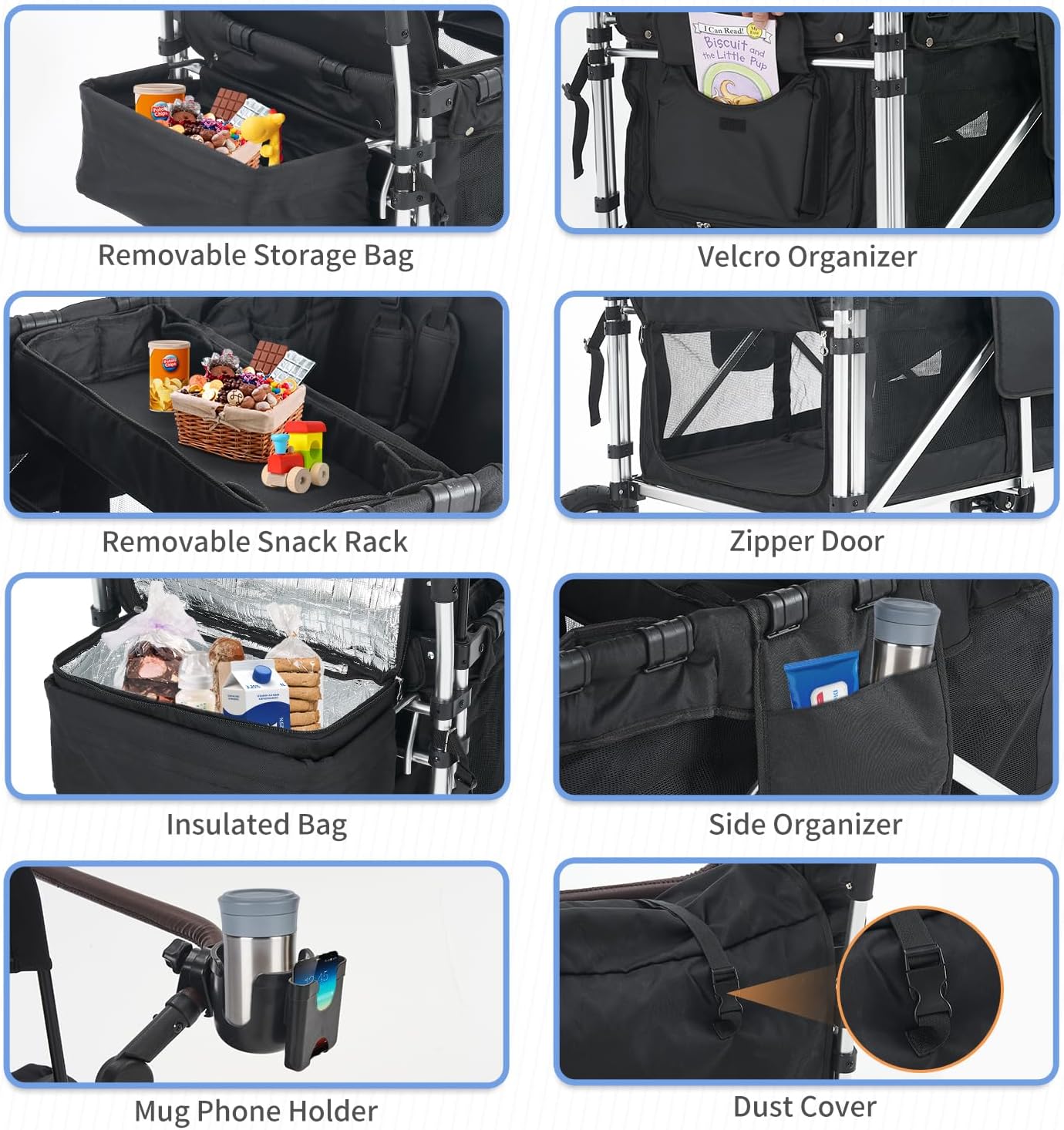

Figure 3.2: Detailed view of the various storage options, including a removable storage bag, removable snack rack, insulated bag, side organizer, and mug/phone holder.

Figure 3.3: Key product details highlighting the waterproof fabric, one-step footbrake, secure five-point seat belt, and breathable mesh for ventilation.

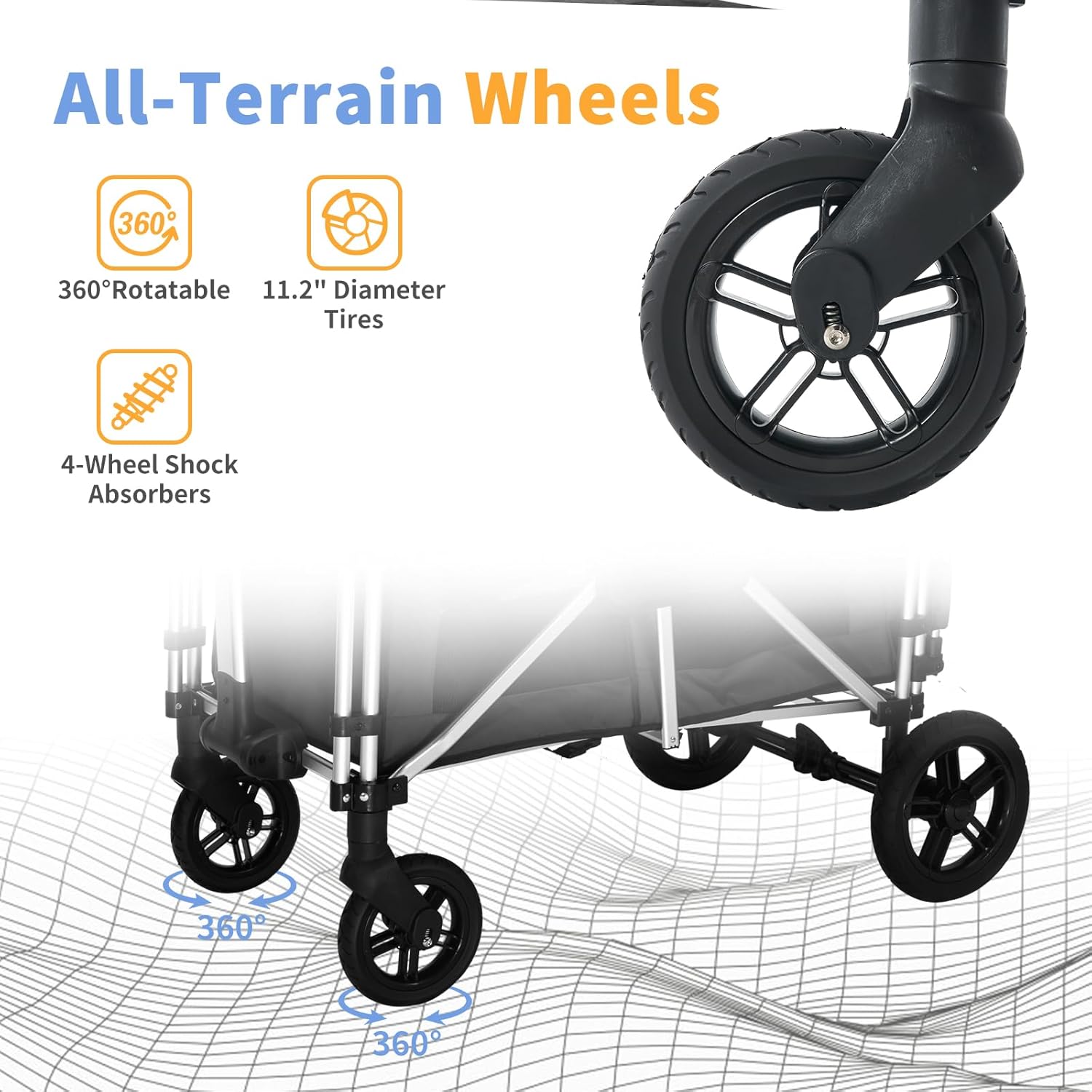

Figure 3.4: Illustration of the all-terrain wheels, featuring 360-degree rotation, 11.2-inch diameter tires, and 4-wheel shock absorbers for smooth navigation.

Key Components:

• High Seats: Designed for a spacious and elevated view for children.
• 5-Point Harnesses: Two sets of harnesses for securing each child safely.
• Adjustable and Removable Canopy: Provides multi-faceted shade and UV protection. Features breathable mesh.
• Adjustable Push and Pull Bar: Offers 10 adjustable angles for comfortable pushing or pulling by users of different heights.
• One-Step Foot Brake: Located on the rear wheels for quick and responsive braking.
• All-Terrain Wheels: Rear 11-inch wheels with 360-degree rotatable front wheels for flexible steering. Equipped with shock absorbers.
• Storage Pockets: Multiple pockets on the back side for additional storage.
• Removable Storage Bag: For larger items.
• Removable Snack Rack: Convenient for children's snacks and small toys.
• Insulated Bag: For keeping beverages or food cool.
• Side Organizer: For tissues, cups, and other small essentials.
• Mug/Phone Holder: Attaches to the handle for parent's convenience.
• Dust Cover: For protection when stored.

4. Setup and Assembly

The wanan Stroller Wagon is designed for easy setup. It comes largely pre-assembled, requiring minimal steps to prepare for use.

Unfolding the Wagon:

1. Place the folded wagon on a flat, stable surface.
2. Locate the central pull tag (similar to a pack-n-play mechanism) inside the wagon. Pull this tag upwards firmly to extend the wagon frame.
3. Push down on the base of the wagon until it locks into place, ensuring the frame is fully expanded and stable.
4. Attach the seats if they are not already installed. Ensure they are securely fastened.
5. Insert the canopy support rods into their designated slots on the wagon frame.
6. Extend the canopy over the support rods and secure it.
7. Adjust the push/pull bar to your desired height and angle.

Figure 4.1: Visual guide for the multi-angle adjustable handle and the three-step process for folding the wagon for storage.

5. Operating Instructions

Familiarize yourself with the wagon's operational features for optimal use.

Pushing and Pulling:

• The wagon features a 10-position adjustable push bar and a retractable multi-angle pull bar. Adjust these to a comfortable height and angle for easy maneuverability.
• For pushing, ensure the push bar is extended and locked. For pulling, extend the pull bar.

Braking:

• The wagon is equipped with a single-step foot brake located near the rear wheels.
• To engage the brake, press down firmly on the brake pedal until it clicks into place.
• To release the brake, lift the pedal upwards. Always ensure the brake is fully engaged when the wagon is stationary.

Steering:

• The front wheels are 360-degree rotatable, allowing for flexible steering and easy navigation in tight spaces.
• The rear 11-inch wheels provide stability and smooth rolling.

Canopy Adjustment:

• The canopy can be adjusted to provide optimal shade. Simply slide it along the support rods to position it as needed.
• To remove the canopy, detach it from the support rods and then remove the rods from the frame.

Figure 5.1: The removable UV protection canopy provides shade and features breathable mesh for comfort.

Folding for Storage:

The wagon features a convenient pull-to-fold design for compact storage.

1. Ensure children and all belongings are removed from the wagon.
2. Remove the canopy and any attached accessories (e.g., snack tray, cup holder).
3. Locate the pull tag in the center of the wagon's base. Pull it upwards firmly.
4. As you pull, the wagon frame will begin to collapse inwards. Continue to guide the frame until it is fully folded.
5. Secure the folded wagon with any integrated latches or straps to prevent it from unfolding.
6. The folded size is approximately 18"D x 26"W x 37"H, making it suitable for car trunks.

6. Maintenance

Proper maintenance will extend the life of your stroller wagon.

• Cleaning: The wagon is made of linen cloth, which is resistant to dirt and easy to clean. For general cleaning, wipe down fabric surfaces with a damp cloth and mild soap. Allow to air dry completely. Do not use harsh chemicals or abrasive cleaners.
• Frame Cleaning: Wipe the aluminum frame with a damp cloth. Dry thoroughly to prevent rust.
• Wheel Maintenance: Periodically check wheels for debris and clear any obstructions. Ensure wheels rotate freely.
• Storage: When not in use, store the wagon in a dry, cool place, away from direct sunlight and extreme temperatures. Use the provided dust cover for added protection.
• Inspection: Regularly inspect all moving parts, fasteners, and fabric for wear, tear, or damage. Ensure all screws and bolts are tight.

7. Troubleshooting

If you encounter issues with your stroller wagon, refer to the following common problems and solutions.

If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact wanan customer support for assistance.

8. Specifications

Detailed specifications for the wanan Stroller Wagon.

Figure 8.1: Product dimensions in both unfolded and folded states.

9. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact wanan customer service directly. Keep your purchase receipt as proof of purchase.

Contact Information: Please refer to the seller's information on your purchase platform or the official wanan website for the most current contact details.
