Silver Crest Multifunctional Digital Touch Air Fryer CYSC-18 User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not immerse the appliance, cord, or plug in water or other liquids to prevent electric shock.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use accessories not recommended by the appliance manufacturer, as this may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use the appliance for other than intended use.
• The appliance is equipped with an auto-shutoff feature for safety.
• Ensure proper ventilation around the air fryer during operation.

2. Product Overview

The Silver Crest Digital Touch Air Fryer CYSC-18 is designed for healthier cooking with less oil. It features a digital touch control panel and a 6-liter capacity.

Components

• Main Unit
• Removable Frying Basket
• Digital Touch Control Panel
• Handle
• Air Outlet Vent
• Power Cord

Figure 2.1: Front view of the Silver Crest Air Fryer with the frying basket containing food.

Figure 2.2: Close-up of the digital touch control panel with various cooking presets.

3. Setup and First Use

1. Unpacking: Carefully remove all packaging materials and promotional labels from the air fryer.
2. Cleaning: Wipe the exterior of the appliance with a damp cloth. Wash the frying basket and any removable accessories with hot, soapy water. Rinse thoroughly and dry completely.
3. Placement: Place the air fryer on a stable, heat-resistant surface, ensuring adequate space (at least 10 cm) around the appliance for proper air circulation. Do not place it directly against a wall or under cabinets.
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. Initial Run (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) to burn off any manufacturing residues. A slight odor may be present, which is normal.

4. Operating Instructions

General Operation

1. Prepare Food: Place your ingredients into the frying basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the frying basket back into the main unit until it clicks into place.
3. Power On: Press the power button (ⓘ) on the digital touch panel to turn on the appliance.
4. Set Temperature and Time:
   • Use the temperature control buttons (↑ / ↓) to adjust the desired cooking temperature.
   • Use the timer control buttons (↑ / ↓) to set the cooking time.
5. Start Cooking: Press the start/pause button to begin the cooking cycle. The appliance will automatically preheat if necessary.
6. Shaking/Turning Food: For some recipes, it is recommended to shake or turn the food halfway through the cooking time. Pull out the basket, shake/turn, and reinsert. The air fryer will resume cooking automatically.
7. Completion: The air fryer will beep when the cooking time is complete and automatically shut off. Carefully pull out the basket and remove the cooked food.

Using Preset Functions

The air fryer includes several preset cooking functions for common foods. Refer to the control panel for specific icons (e.g., fries, chicken, shrimp, cake).

1. After placing food in the basket and powering on, press the preset button (often indicated by a menu icon or specific food icons) to cycle through the available options.
2. Once the desired preset is selected, the air fryer will automatically set the optimal temperature and time.
3. Press the start button to begin cooking. You can manually adjust the time or temperature even after selecting a preset if needed.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Frying Basket: The frying basket is dishwasher safe. Alternatively, wash it with hot, soapy water and a non-abrasive sponge. For stubborn food residues, soak the basket in warm water for about 10 minutes before cleaning.
3. Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent. Avoid abrasive cleaners or metal scouring pads.
4. Heating Element: Gently clean the heating element with a soft brush to remove any food particles. Do not use water or liquid cleaners directly on the heating element.
5. Exterior: Wipe the exterior with a damp cloth. Do not use harsh chemicals or abrasive materials.
6. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

6. Troubleshooting

7. Specifications

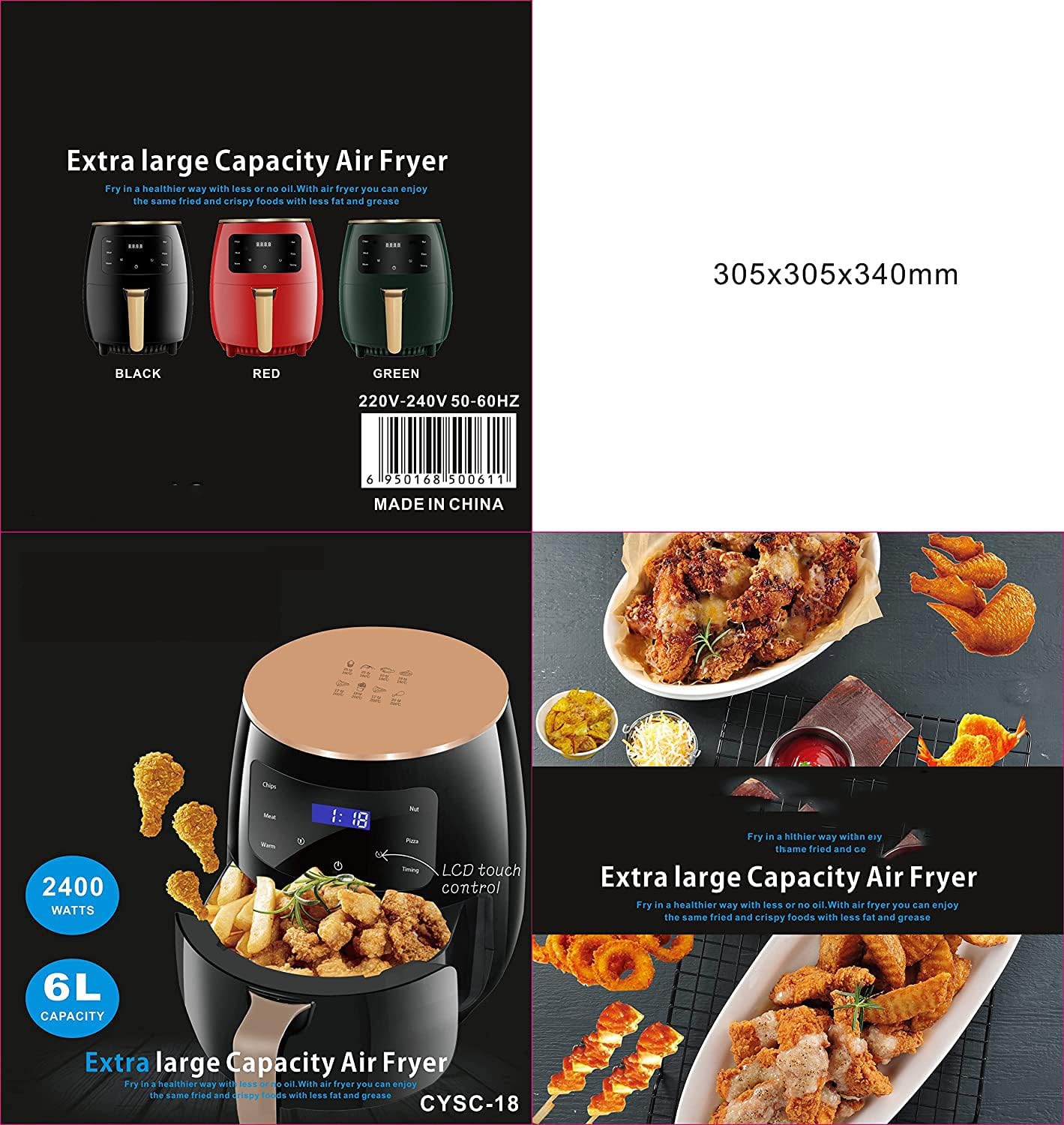

Figure 7.1: Visual representation of product dimensions and key specifications.

8. Warranty and Support

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, service, or warranty claims, please contact the retailer or the manufacturer's customer service department using the contact information provided at the time of purchase.
