Topcon RL-HV2S Leveling Dual Grade Laser Kit Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of the Topcon RL-HV2S Leveling Dual Grade Laser Kit. The RL-HV2S is a versatile laser level designed for horizontal, vertical, and dual slope applications in construction and surveying. It features fast self-leveling and an extensive operating range.

2. Safety Information

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

The Topcon RL-HV2S is a Class 1 laser product with a 2.4mW output. Observe the following safety precautions:

• Do not stare directly into the laser beam.
• Do not intentionally direct the laser beam at people or animals.
• Ensure the laser is operated in a secure environment to prevent accidental exposure.
• Keep the device out of reach of children.
• Use only specified batteries and power sources.

3. Package Contents

The Topcon RL-HV2S Leveling Dual Grade Laser Kit typically includes the following components:

• Topcon RL-HV2S Laser Level Unit
• LS-80X Laser Receiver
• Receiver Holder
• NiMH Battery Pack
• Battery Charger
• Hard Carrying Case
• User Manual (this document)

Image 3.1: The Topcon RL-HV2S Laser Level Kit, including the main laser unit, the LS-80X receiver, and the protective carrying case.

Image 3.2: The Topcon RL-HV2S laser level and LS-80X receiver securely stored within their custom-fit carrying case.

4. Product Overview

4.1. RL-HV2S Laser Level Unit

The main laser unit is designed for robust performance in various conditions. It features a control panel for mode selection and slope adjustments, a rotating laser head, and a sturdy housing with integrated handles.

Image 4.1: Front view of the RL-HV2S laser level, highlighting the control panel with its display, buttons for X/Y axis adjustment, menu, and power.

Image 4.2: An angled view of the RL-HV2S laser level, showing its compact design and protective casing.

Image 4.3: Side view of the RL-HV2S laser level, illustrating its robust construction and integrated handles.

4.2. LS-80X Laser Receiver

The LS-80X receiver detects the laser beam emitted by the RL-HV2S, providing visual and audible indications for precise grade matching. It attaches to a grade rod using the included holder.

Image 4.4: The LS-80X laser receiver, shown with its mounting bracket, used to detect the laser beam.

Image 4.5: An angled view of the LS-80X receiver, displaying its display screen and control buttons.

5. Setup

5.1. Battery Installation and Charging

The RL-HV2S operates on a NiMH battery pack. Ensure the battery is fully charged before first use.

1. Locate the battery compartment on the laser unit.
2. Insert the NiMH battery pack, ensuring correct polarity.
3. Close the battery compartment securely.
4. Connect the charger to the unit and a power outlet to charge the battery. The charging indicator will show the status.

5.2. Mounting the Laser Unit

The RL-HV2S can be mounted on a tripod or placed on a stable surface.

• For tripod mounting, use the 5/8-inch thread on the base of the unit.
• Ensure the tripod is stable and level before placing the laser.
• For vertical applications, the unit can be placed on its side using the integrated feet.

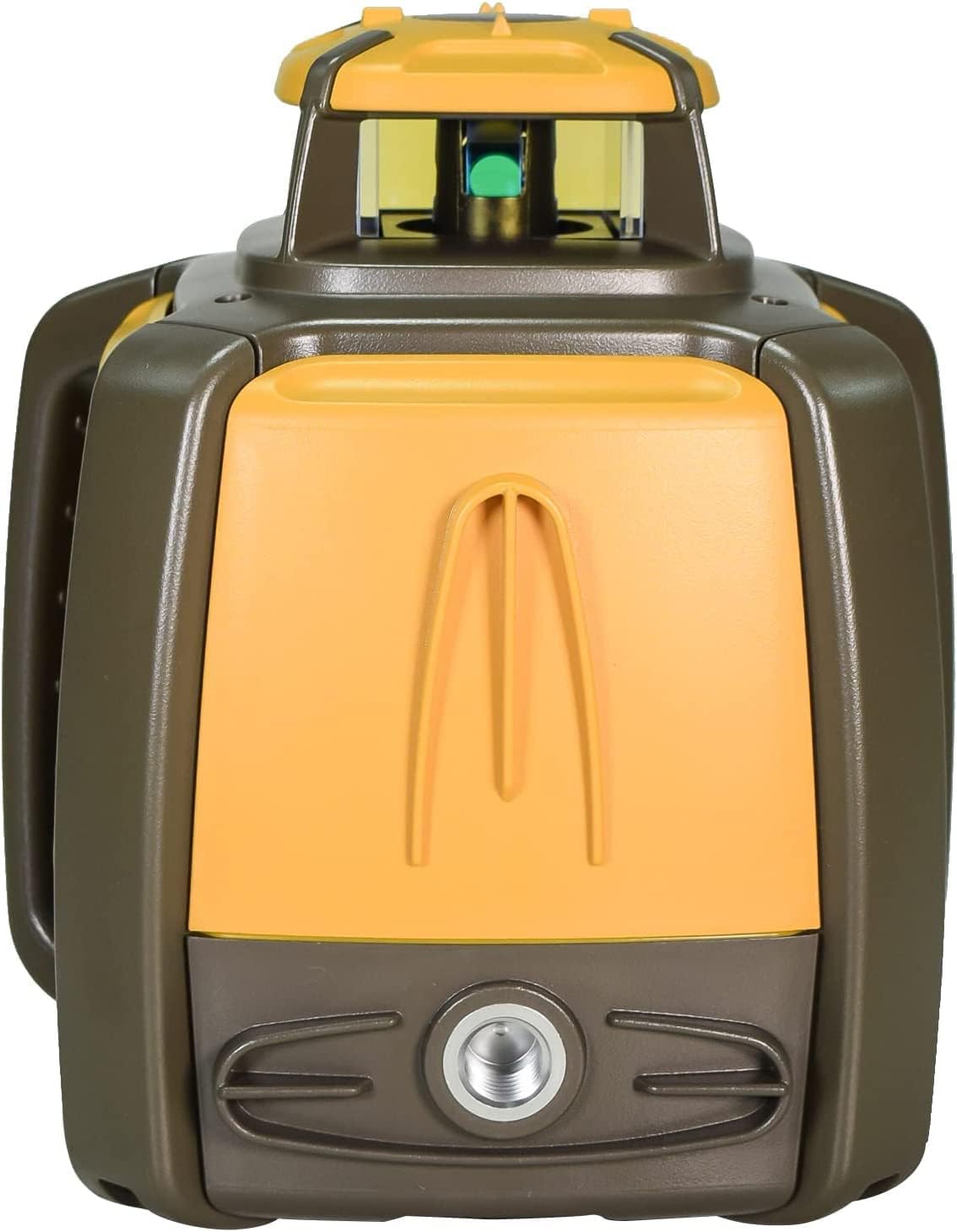

Image 5.1: Rear view of the RL-HV2S, illustrating the battery compartment access and the threaded mount for tripod attachment.

6. Operating Instructions

The RL-HV2S offers multiple operating modes for various leveling and grading tasks.

6.1. Power On/Off and Self-Leveling

1. Press the green power button to turn the unit on.
2. The unit will automatically begin self-leveling. Wait for the laser beam to stabilize.
3. If the unit is outside its self-leveling range, an alarm may sound, and the laser will stop rotating. Adjust the unit's position until it can self-level.
4. Press the green power button again to turn the unit off.

6.2. Horizontal Applications

For horizontal leveling, place the unit on a stable surface or tripod. The laser will project a 360-degree horizontal plane.

6.3. Vertical Applications

For vertical alignment, place the unit on its side. The laser will project a vertical plane. Use the LS-80X receiver to detect the vertical line.

6.4. Single and Dual Slope Applications

The RL-HV2S allows for setting slopes up to ±5% in the X and Y axes.

1. Press the 'MENU' button to access slope settings.
2. Use the arrow buttons to select the X or Y axis for slope adjustment.
3. Adjust the slope percentage using the '+' and '-' buttons. The display will show the current slope.
4. Press 'ENT' to confirm the setting.

6.5. Using the LS-80X Receiver

The LS-80X receiver extends the working range and improves accuracy, especially outdoors or in bright conditions.

1. Attach the LS-80X to a grade rod using the holder.
2. Turn on the receiver.
3. Move the receiver up or down the grade rod until the center indicator is displayed, indicating the laser plane.
4. The receiver provides audible tones to assist in finding the beam center.

7. Maintenance

7.1. Cleaning

• Wipe the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Keep the laser emission window clean and free of dust or debris.

7.2. Storage

• Store the RL-HV2S in its protective carrying case when not in use.
• Store in a dry environment, away from extreme temperatures.
• If storing for extended periods, remove the battery pack.

8. Troubleshooting

• Laser not turning on: Check battery charge and ensure it is correctly installed.
• Laser not self-leveling: Ensure the unit is placed on a relatively level surface. If the tilt is too great, adjust its position.
• Laser beam not visible: Ensure the unit is powered on. In bright conditions or over long distances, use the LS-80X receiver.
• Inaccurate readings: Verify the unit is properly calibrated. Refer to the full service manual for calibration procedures or contact support.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Topcon website or contact your authorized Topcon dealer. Keep your purchase receipt as proof of purchase.
