1. Introduction
Thank you for choosing the Admiral 588L Convertible Upright Freezer/Refrigerator. This appliance is designed to provide reliable and efficient cooling or freezing for your food and beverages. Its versatile design allows it to function as either a freezer or a refrigerator, adapting to your storage needs. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
2. Safety Information
Your safety and the safety of others are paramount. Please read and follow all safety instructions carefully to prevent injury or damage.
- Electrical Safety: Ensure the appliance is connected to a properly grounded 220V power outlet. Do not use extension cords or adapters.
- Ventilation: Maintain adequate space around the appliance for proper air circulation to prevent overheating.
- Flammable Materials: Do not store explosive substances or flammable materials inside or near the appliance.
- Children Safety: Supervise children to ensure they do not play with the appliance. Keep packaging materials out of reach of children.
- Servicing: Do not attempt to repair or modify the appliance yourself. Contact qualified service personnel for any repairs.
- Disposal: Dispose of the appliance according to local regulations for refrigerants and insulation materials.
3. Setup
3.1 Unpacking
Carefully remove all packaging materials, including tape and protective films. Inspect the appliance for any shipping damage. Report any damage to your retailer immediately.
3.2 Placement
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., ovens, radiators). Ensure there is at least 10 cm (4 inches) of space around the back and sides of the appliance for proper ventilation. The appliance should be placed on a firm, level surface to prevent vibrations and ensure efficient operation.
3.3 Leveling
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This helps prevent noise and ensures the door seals properly.
3.4 Initial Cleaning
Before first use, clean the interior and exterior of the appliance with a soft cloth and a mild detergent solution. Rinse with clean water and dry thoroughly.
3.5 Power Connection
Plug the appliance into a dedicated 220V, 50/60Hz grounded electrical outlet. Allow the appliance to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.

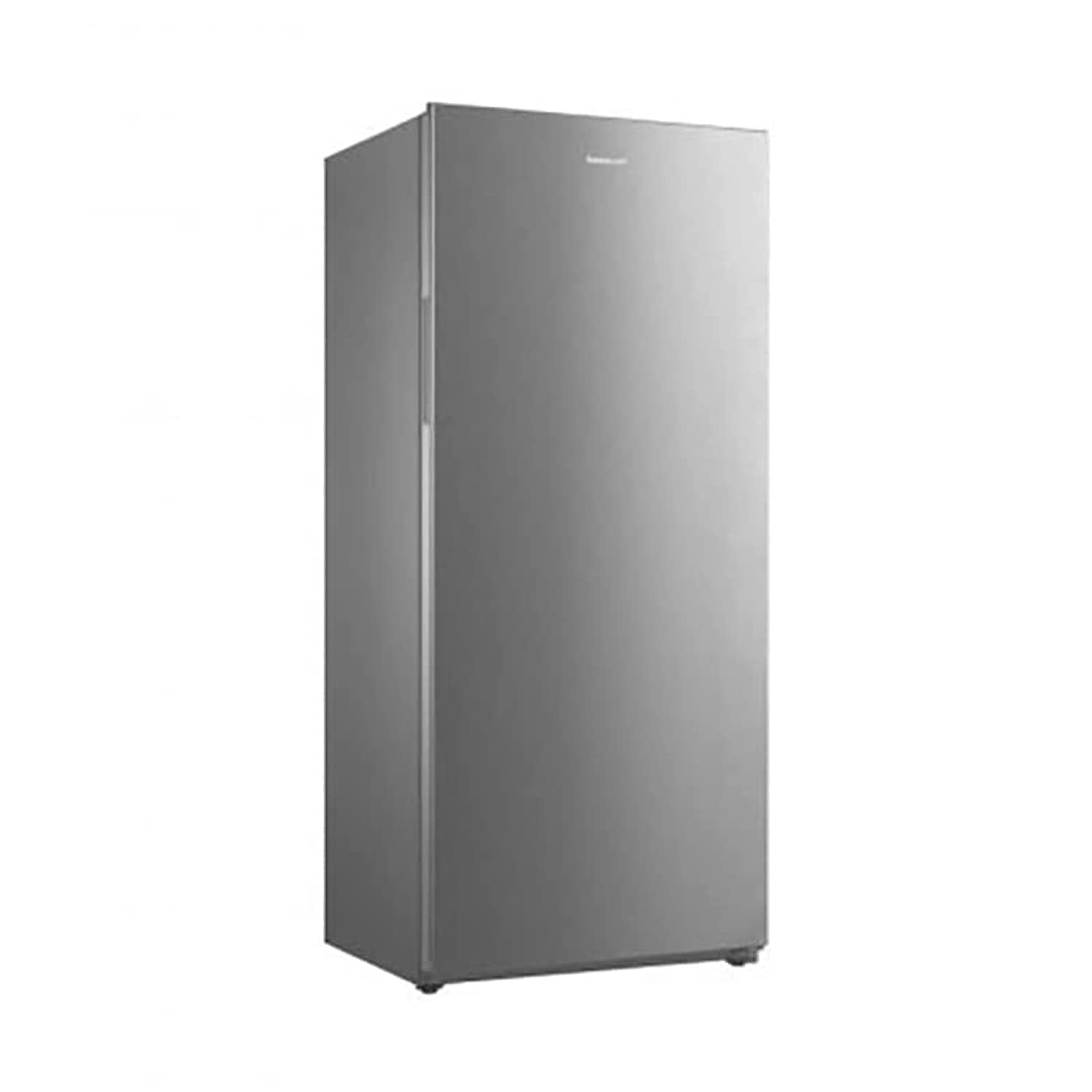

Figure 1: Front view of the Admiral 588L Convertible Upright Freezer/Refrigerator. This image shows the sleek silver finish and the freestanding design of the appliance.
4. Operating Instructions
4.1 Temperature Control
The appliance features an adjustable temperature control system. Locate the control panel, typically inside the unit or on the door. Use the controls to set your desired temperature. For freezing, set to a lower temperature (e.g., -18°C to -24°C). For refrigeration, set to a higher temperature (e.g., 2°C to 8°C).
4.2 Fast Cooling Function
To rapidly cool or freeze newly added items, activate the Fast Cooling function. This feature temporarily lowers the temperature quickly. Refer to the control panel for specific instructions on activating and deactivating this mode. It is recommended to use this function for a limited time to save energy.
4.3 Converting Between Freezer and Refrigerator Modes
This versatile appliance can be switched between freezer and refrigerator modes. Consult the control panel or specific instructions provided with your unit for the exact procedure. Typically, this involves selecting the desired mode (Freezer or Refrigerator) and adjusting the temperature accordingly. Allow several hours for the appliance to reach the new set temperature after conversion.
4.4 LED Lighting
The interior of the appliance is equipped with energy-efficient LED lighting, which illuminates when the door is opened. If the LED light is not functioning, please contact customer support.
4.5 Food Storage Tips
- Store food in sealed containers to prevent odor transfer and maintain freshness.
- Avoid overloading the shelves to allow for proper air circulation.
- For optimal energy efficiency, minimize door openings and close the door promptly.
5. Maintenance
5.1 Cleaning the Interior
Regularly clean the interior with a solution of mild detergent and warm water. Avoid abrasive cleaners or sharp objects that could damage surfaces. Remove shelves and drawers for thorough cleaning. Dry completely before returning food items.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent. For the silver finish, use a non-abrasive cleaner specifically designed for stainless steel or similar surfaces, if applicable. Do not spray water directly onto the appliance.
5.3 Door Seal Maintenance
Inspect the door seals regularly for cracks or damage. Clean them with warm water and a mild detergent to ensure a tight seal, which is crucial for energy efficiency. A damaged seal should be replaced by a qualified technician.
5.4 Defrosting
While this model features efficient cooling, if ice buildup occurs in freezer mode, manual defrosting may be required. Turn off the appliance, remove all food, and allow the ice to melt naturally. Do not use sharp objects to remove ice. Once defrosted, clean and dry the interior before restarting.
6. Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance not cooling | No power; temperature setting too high; door not closed properly; poor ventilation. | Check power supply; adjust temperature; ensure door is sealed; clear obstructions around unit. |
| Unusual noise | Appliance not level; items inside vibrating; compressor noise (normal). | Level the appliance; rearrange items; normal compressor operation may produce a hum. |
| Water on floor | Drainage hole blocked; excessive humidity. | Clear drainage hole; ensure proper ventilation. |
| LED light not working | Light bulb faulty; electrical issue. | Contact customer support for replacement or service. |
7. Specifications
Below are the technical specifications for your Admiral Convertible Upright Freezer/Refrigerator:
| Feature | Specification |
|---|---|
| Brand | Admiral |
| Model Name | Convertible Upright Freezer/Refrigerator |
| Capacity | 588 Liters (approx. 21 Cubic Feet) |
| Product Dimensions (D x W x H) | 83.2 cm x 73.5 cm x 195 cm |
| Color | Silver |
| Item Weight | 95 kg |
| Door Orientation | Right |
| Voltage | 220 Volts |
| Installation Type | Freestanding |
| Number of Shelves | 4 |
| Special Features | Fast Cooling, LED Lighting, Convertible Freezer/Refrigerator |
8. Warranty and Support
8.1 Warranty Information
This Admiral appliance comes with a two-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, improper installation, or unauthorized repairs.
8.2 Customer Support
For installation services, technical assistance, or warranty claims, please contact Admiral customer support at the following numbers:
- Riyadh: +966-11-4094006 (Extension 113)
- Jeddah: +966-12-6577714
- Dammam: +966-13-8343691
- Qassim: +966-581044198
- Abha: +966-593322785
Our support team is available to assist you with any questions or concerns regarding your appliance.
