UNITECH MS836 1D Laser Handheld Barcode Scanner User Manual

Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of the UNITECH MS836 1D Laser Handheld Barcode Scanner. Please read this manual thoroughly before using the device to ensure proper functionality and longevity.

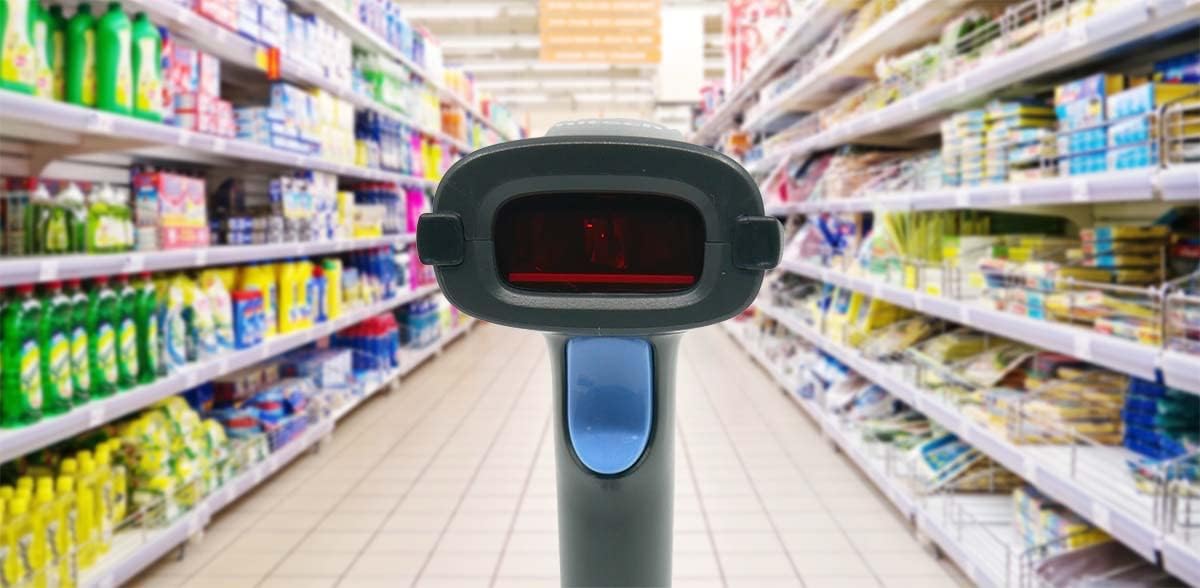

Figure 1: Front view of the UNITECH MS836 1D Laser Handheld Barcode Scanner.

Setup

Package Contents

Verify that all items are present in the package:

• UNITECH MS836 Barcode Scanner
• USB Cable
• Quick Start Guide (if applicable)

Connecting the Scanner

The MS836 scanner is designed for plug-and-play operation via its USB cable.

1. Locate the USB port on your computer or host device.
2. Insert the USB cable from the scanner into the USB port.
3. The operating system should automatically detect and install the necessary drivers. A confirmation sound or message may indicate successful installation.

Figure 2: UNITECH MS836 Barcode Scanner connected via USB cable.

Operating the Scanner

Scanning Modes

The MS836 supports multiple operating modes:

• Trigger Mode: Press the trigger button to activate the laser and scan a barcode.
• Presentation Mode: The scanner continuously emits the laser, allowing for hands-free scanning when a barcode is presented within its field of view.
• Auto-Sensing Mode: The scanner automatically activates the laser when it detects a barcode in its scanning area.

Basic Scanning Procedure

1. Ensure the scanner is connected to your host device and powered on.
2. Open an application where you wish to input scanned data (e.g., a text editor, POS software).
3. Point the scanner's laser beam at the barcode you wish to scan. Ensure the entire barcode is covered by the laser line.
4. Press the trigger button (if in Trigger Mode) or present the barcode (if in Presentation or Auto-Sensing Mode).
5. A successful scan is typically indicated by a beep and/or a green LED light. The scanned data will appear in your application.

Figure 3: The MS836 scanner actively scanning a barcode in a typical retail setting.

Scanning Performance

The MS836 is designed to read 1D barcodes with high accuracy. For optimal performance:

• Maintain an appropriate distance from the barcode (Depth of Field: 10mm-265mm for 13 mil EAN13).
• Ensure the barcode is flat and not creased or damaged.
• Avoid scanning in direct sunlight or extremely bright conditions that may interfere with the laser.

Maintenance

Cleaning the Scanner

To ensure consistent performance, keep the scanner's scanning window clean.

• Use a soft, lint-free cloth slightly dampened with water or a mild, non-abrasive cleaning solution.
• Gently wipe the scanning window.
• Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the scanner.
• Ensure the scanner is disconnected from power before cleaning.

Storage

When not in use, store the scanner in a cool, dry place, away from direct sunlight and extreme temperatures. The maximum storage temperature is 140 Degrees Fahrenheit (60 Degrees Celsius).

Figure 4: The MS836 scanner can be placed on an optional stand for convenient storage and presentation mode use.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please refer to the official Unitech website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Unitech

Model: MS836-SUCB00-SG
