Ufesa Softy Plus Electric Heated Blanket User Manual

1. Product Overview

The Ufesa Softy Plus Electric Heated Blanket provides warmth and comfort with its ultra-soft textile finish. Designed for ease of use and safety, it features multiple temperature settings and an automatic shut-off function. It can also provide relief from minor aches and pains through heat therapy.

• Dimensions: 180 x 140 cm
• Power: 120 W
• Temperature Levels: 3 (0-1-2-3 slider switch)
• Rapid Heating: Heats up in approximately 5 minutes
• Automatic Shut-off: After 3 hours of continuous use
• Material: Ultra-soft textile (Acrylic)
• Controller: Detachable for washing
• Voltage: 230 V AC

Image 1: The Ufesa Softy Plus Electric Heated Blanket, folded neatly on a sofa, showcasing its soft texture and the attached control unit.

2. Important Safety Instructions

Please read all safety warnings and instructions carefully before using the Ufesa Softy Plus Electric Heated Blanket. Failure to follow these instructions may result in electric shock, fire, or injury.

• Risk of Fire: This product contains electrical components. Use only after reading the instruction manual thoroughly.
• Do Not Operate Unattended: Never leave the product operating without supervision.
• Avoid Water and Moisture: Do not allow the product to come into contact with water or excessive moisture, especially the electrical components.
• Cool Down Before Storage: After prolonged operation, the product may become warm. Allow it to cool completely after use before folding or storing.
• Proper Placement: Ensure the blanket is laid flat and completely unfolded during use to prevent overheating. Do not fold, bunch, or crumple the blanket while it is powered on.
• Children and Persons with Reduced Capabilities: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Medical Conditions: Consult a doctor before use if you have a pacemaker, are pregnant, have diabetes, poor circulation, or any other medical condition that may be affected by heat. Do not use on infants, incapacitated persons, or persons insensitive to heat.
• Do Not Puncture: Do not insert pins or any sharp objects into the electric blanket.
• Power Supply: Only connect the blanket to a 230 V AC power supply as specified.

3. Setup

1. Unpack the Blanket: Carefully remove the electric heated blanket from its packaging.
2. Lay Flat: Ensure the electric blanket is laid flat and completely unfolded on the desired surface (e.g., bed, sofa). Avoid folding or bunching the blanket during use.
3. Connect Controller: Ensure the detachable control unit is securely connected to the blanket's input port. Push firmly until it clicks into place.
4. Plug In: Connect the power cord of the control unit to a standard 230 V AC power outlet.

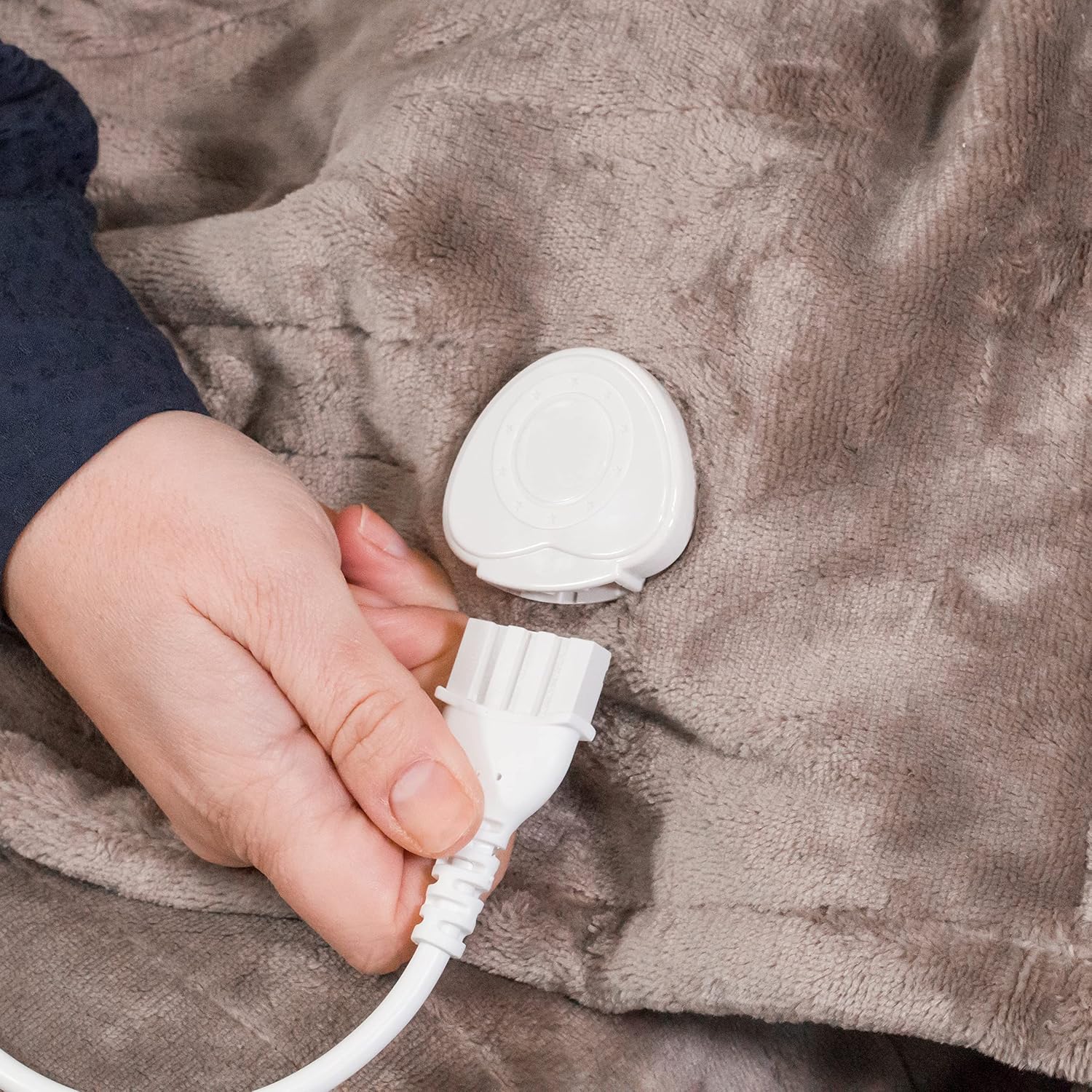

Image 2: Demonstrating the connection of the detachable controller to the electric blanket, highlighting the ease of assembly.

4. Operating Instructions

1. Power On: Once plugged in, slide the switch on the controller from '0' to position '1' to turn on the blanket. The indicator light on the controller will illuminate.
2. Select Temperature Level: Use the slider switch on the controller to select your desired temperature level. The available positions are 0 (Off), 1 (Low), 2 (Medium), and 3 (High). The indicator light will show the current setting.
3. Rapid Heating: The blanket features rapid heating, reaching your desired temperature in approximately 5 minutes.
4. Automatic Shut-off: For safety, the blanket will automatically shut off after 3 hours of continuous use. If you wish to continue using it, simply slide the switch to '0' and then back to your desired temperature setting.
5. Power Off: To turn off the blanket, slide the switch to position '0'. The indicator light will turn off. Unplug the blanket from the power outlet when not in use.

Image 3: A user enjoying the warmth of the Ufesa Softy Plus Electric Heated Blanket while relaxing on a sofa.

5. Maintenance and Cleaning

Proper maintenance ensures the longevity and safe operation of your electric heated blanket.

Cleaning Instructions:

1. Disconnect Power: Always unplug the blanket from the power outlet before cleaning.
2. Remove Controller: Detach the control unit from the blanket. The blanket is washable only after the controller is removed.
3. Washing: The blanket can be washed by hand or in a washing machine. If using a machine, set the temperature to a maximum of 30°C. Use a gentle cycle. Do not use bleach.
4. Drying: Do not tumble dry. Do not wring. Allow the blanket to air dry completely on a clothesline or flat surface, away from direct sunlight. Ensure no moisture remains in the electrical connections before reattaching the controller or storing.
5. Do Not Iron: Do not iron the electric blanket.
6. Do Not Dry Clean: Do not dry clean the blanket.

Image 4: The Ufesa Softy Plus Electric Heated Blanket being prepared for washing, demonstrating its machine-washable feature after detaching the controller.

Storage:

• Ensure the blanket is completely cool and dry before folding.
• Store in a cool, dry place, away from direct sunlight and moisture.
• Avoid placing heavy objects on the folded blanket, as this may damage the internal heating elements.

6. Troubleshooting

If you encounter any issues with your Ufesa Softy Plus Electric Heated Blanket, please refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Ufesa website. Keep your proof of purchase for any warranty claims.

If you experience any issues not covered in this manual, please contact Ufesa customer service for assistance. Contact details can typically be found on the Ufesa website or on the product packaging.
