1. Introduction
Thank you for choosing the DiCUNO E26 Hanging Lantern Extension Cord. This product is designed to provide a convenient lighting solution for various indoor applications, allowing you to easily add a light source where traditional fixtures may not be present. It features a standard E26 base socket, an inline on/off switch, and a 6.6-foot (2-meter) cord length. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.
2. Safety Information
Always follow basic safety precautions when using electrical products to reduce the risk of fire, electric shock, and personal injury.
- Ensure the power is off before installing or replacing a bulb.
- Do not exceed the maximum wattage of 100W for the bulb.
- This product is intended for indoor use only. Do not expose to moisture or wet conditions.
- Do not modify the cord or plug in any way.
- Keep out of reach of children.
- If the cord or socket is damaged, discontinue use immediately and replace the product.
3. Package Contents
Verify that all components are present in your package:
- 1 x DiCUNO E26 Hanging Lantern Extension Cord (6.6ft, Black)
- 2 x Ceiling Hooks
- 2 x Drywall Anchors
- 2 x Cord Hooks
4. Setup and Installation
Follow these steps to install your hanging lantern extension cord:
- Prepare the Location: Choose a suitable location for your light. Ensure the surface is capable of supporting the weight of the cord and any attached lampshade or bulb.
- Install Ceiling Hooks: If hanging from the ceiling, mark the desired spot. Drill a pilot hole, insert a drywall anchor if necessary, and then screw in the ceiling hook until secure. Repeat for additional hooks if you plan to route the cord across the ceiling.
- Install Cord Hooks: Use the smaller cord hooks to guide the cord along walls or other surfaces as desired. Drill pilot holes and secure the hooks.
- Attach Bulb: Screw an E26 base bulb (not included) into the socket. Ensure the bulb does not exceed 100W.
- Hang the Cord: Route the cord through the installed hooks. The cord hooks are designed to securely hold the cord in place.
- Plug In: Insert the 2-prong polarized plug into a standard electrical outlet.
5. Operating Instructions
Using your DiCUNO E26 Hanging Lantern Extension Cord is straightforward:
- Bulb Installation: Ensure the cord is unplugged. Carefully screw an E26 base bulb into the socket until it is snug. Do not overtighten.
- Power On/Off: Once the bulb is installed and the cord is plugged into an outlet, use the inline on/off toggle switch located on the cord to control the light.
6. Maintenance
To ensure the longevity and safe operation of your extension cord, follow these maintenance guidelines:
- Cleaning: Disconnect the cord from the power outlet before cleaning. Wipe the cord and socket with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
- Bulb Replacement: Always unplug the cord before replacing a bulb. Allow the old bulb to cool completely before removing it. Screw in the new E26 bulb gently.
- Inspection: Periodically inspect the cord, plug, and socket for any signs of damage, fraying, or discoloration. If any damage is observed, discontinue use.
7. Troubleshooting
If you encounter issues with your DiCUNO E26 Hanging Lantern Extension Cord, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the outlet, bulb is loose or faulty, inline switch is off. | Check if the outlet is working. Ensure the bulb is screwed in tightly. Flip the inline switch to the 'On' position. Replace the bulb if necessary. |
| Light flickers. | Loose bulb connection, incompatible bulb, faulty bulb. | Tighten the bulb. Ensure the bulb is compatible with E26 base and within 100W. Try a different bulb. |
| Cord or socket feels hot. | Bulb wattage too high, poor ventilation. | Immediately unplug the cord. Ensure the bulb wattage does not exceed 100W. Allow for adequate airflow around the bulb and socket. |

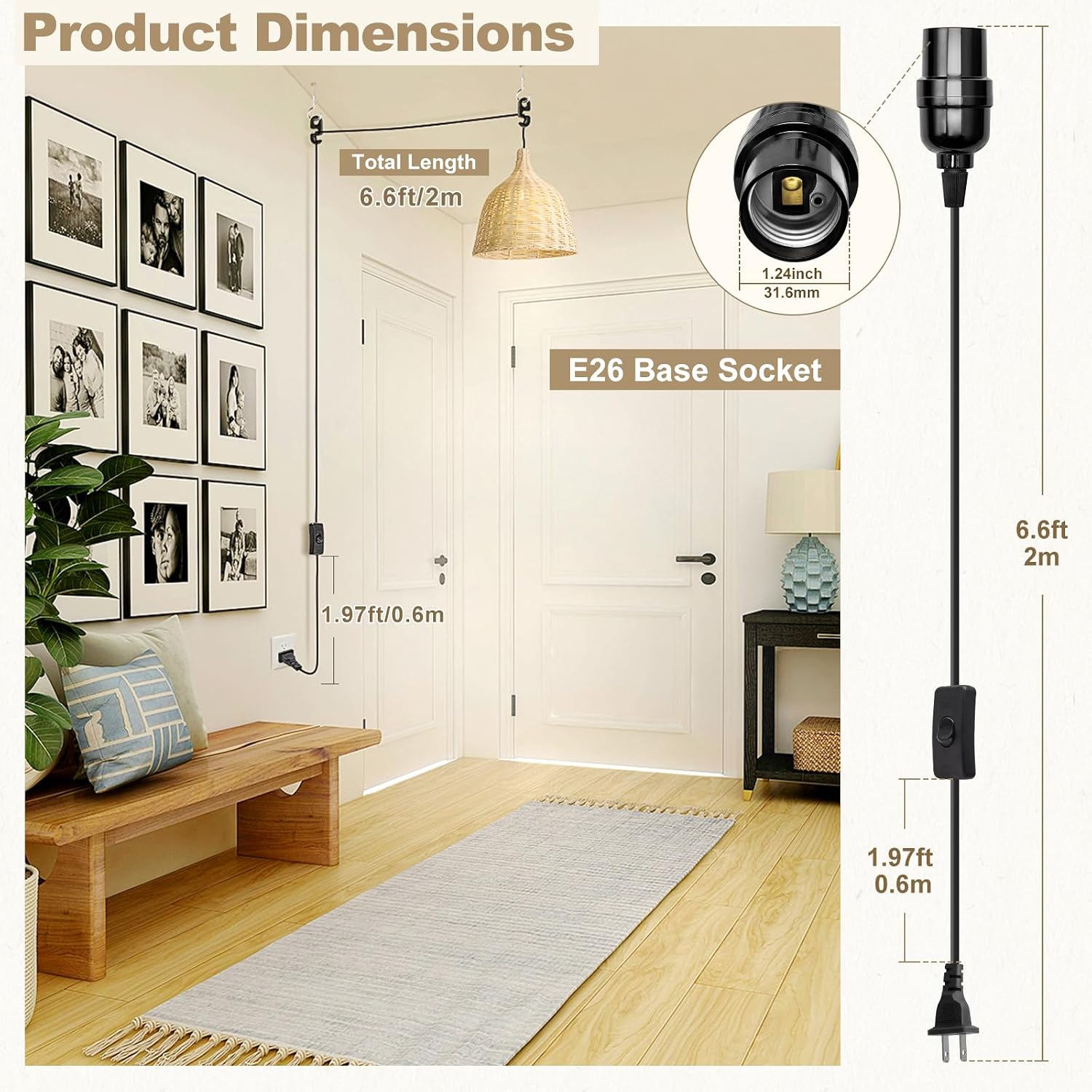

8. Specifications
Detailed specifications for the DiCUNO E26 Hanging Lantern Extension Cord:
| Feature | Detail |
|---|---|
| Brand | DiCUNO |
| Model Number | US-HL-E26-PLC-BLK-2M-1P |
| Socket Type | E26 Standard Base |
| Cord Length | 6.6 feet (2 meters) |
| Color | Black |
| Max Wattage | 100 watts |
| Voltage Range | 0-250V (Operating voltage 110-250V) |
| Material | Copper (internal wiring), Flame Retardant PBT (socket) |
| Plug Type | Polarized 2-prong |
| Switch Type | Inline On/Off Toggle Switch |
| Switch to Plug Distance | Approx. 60 cm (1.9 ft / 24 in) |
| Package Dimensions | 7.32 x 5.67 x 1.81 inches |
| Item Weight | 5.29 ounces |
9. Warranty and Support
DiCUNO offers the following warranty and support for this product:
- Warranty: 3-month refund and 1-year warranty from the date of purchase.
- Support: For any issues or inquiries regarding the product, please contact DiCUNO customer support. Refer to the product packaging or the official DiCUNO website for contact details.
