1. Safety Information

Please read all instructions carefully before installation and use. Retain this manual for future reference. Always ensure power is disconnected at the circuit breaker before attempting any installation or maintenance.

• Ensure the mounting structure can support the weight of the fan.
• All electrical connections must be made in accordance with local codes, ordinances, and the National Electrical Code.
• If you are unfamiliar with electrical wiring, consult a qualified electrician.
• Do not operate the fan with damaged wiring or if it has been dropped or damaged.
• Keep hands, hair, and clothing away from the fan blades during operation.
• This fan is designed for indoor use only.

2. Package Contents

Verify that all components are present before beginning installation:

• Ceiling Fan with Light Assembly (F093)
• Remote Control
• Mounting Bracket
• Hardware Pack (screws, wire nuts, wall anchors)
• Owner's Manual
• Gloves for installation

Image: All components included in the Fszdorj F093 Ceiling Fan package.

3. Setup and Installation

The Fszdorj F093 ceiling fan comes largely pre-assembled for simplified installation. Follow these steps to mount the fan securely.

1. Prepare for Installation: Ensure the power supply to the installation location is turned OFF at the circuit breaker.
2. Remove Mounting Bracket: Use the provided tool to loosen and remove the mounting bracket from the fan assembly. This bracket will be attached to your ceiling.
3. Mount the Bracket: Secure the mounting bracket to your ceiling junction box using the provided screws. Ensure it is firmly attached to a structural support.
4. Connect Wiring: Carefully connect the electrical wires from the ceiling to the fan's wiring. Match the black wire to the live wire (L), the white wire to the neutral wire (N), and the green/yellow wire to the ground wire. Use the provided wire nuts to secure connections.
5. Attach Fan Assembly: Lift the fan assembly and align it with the mounting bracket. Secure the fan to the bracket using the screws previously removed. Ensure all connections are tight and secure.
6. Final Assembly: Re-attach any decorative covers or components if they were removed during the initial unboxing.

Image: The fan's dimensions (19.68 inches diameter, 5.71 inches height) and its easy-to-clean design.

4. Operating Instructions

The Fszdorj F093 Ceiling Fan offers versatile control options via remote and a dedicated mobile app.

Remote Control Functions:

• Power On/Off: Turn the fan and light on or off.
• Fan Speed: Adjust between 6 wind speeds for optimal comfort.
• Light Brightness: Stepless dimming from 0% to 100%.
• Color Temperature: Change light color from warm (3000K) to neutral (4500K) to white (6000K).
• Night Light: Activate a separate 4-watt night light function.
• Timer: Set auto-off timers for 1, 2, 4, or 8 hours.
• Reverse Function: Switch between summer (downward airflow) and winter (upward airflow) modes for year-round comfort.
• Memory Function: The fan remembers your last light and fan settings.

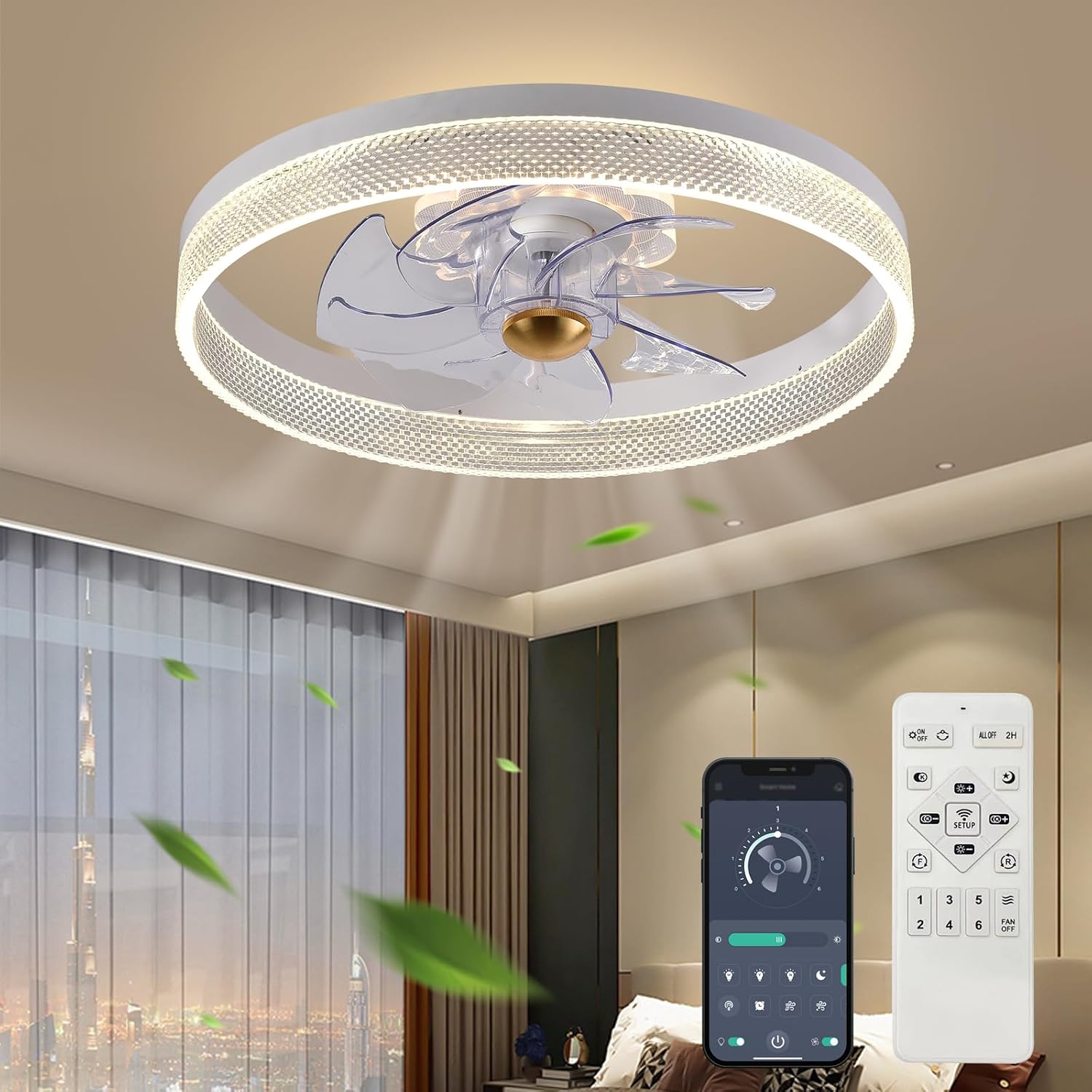

Image: The Fszdorj F093 Ceiling Fan showcasing its remote and app control capabilities.

Image: Visual representation of the dimmable light feature (0%-100%) and adjustable color temperatures (3000K Warm, 4500K Neutral, 6000K Bright).

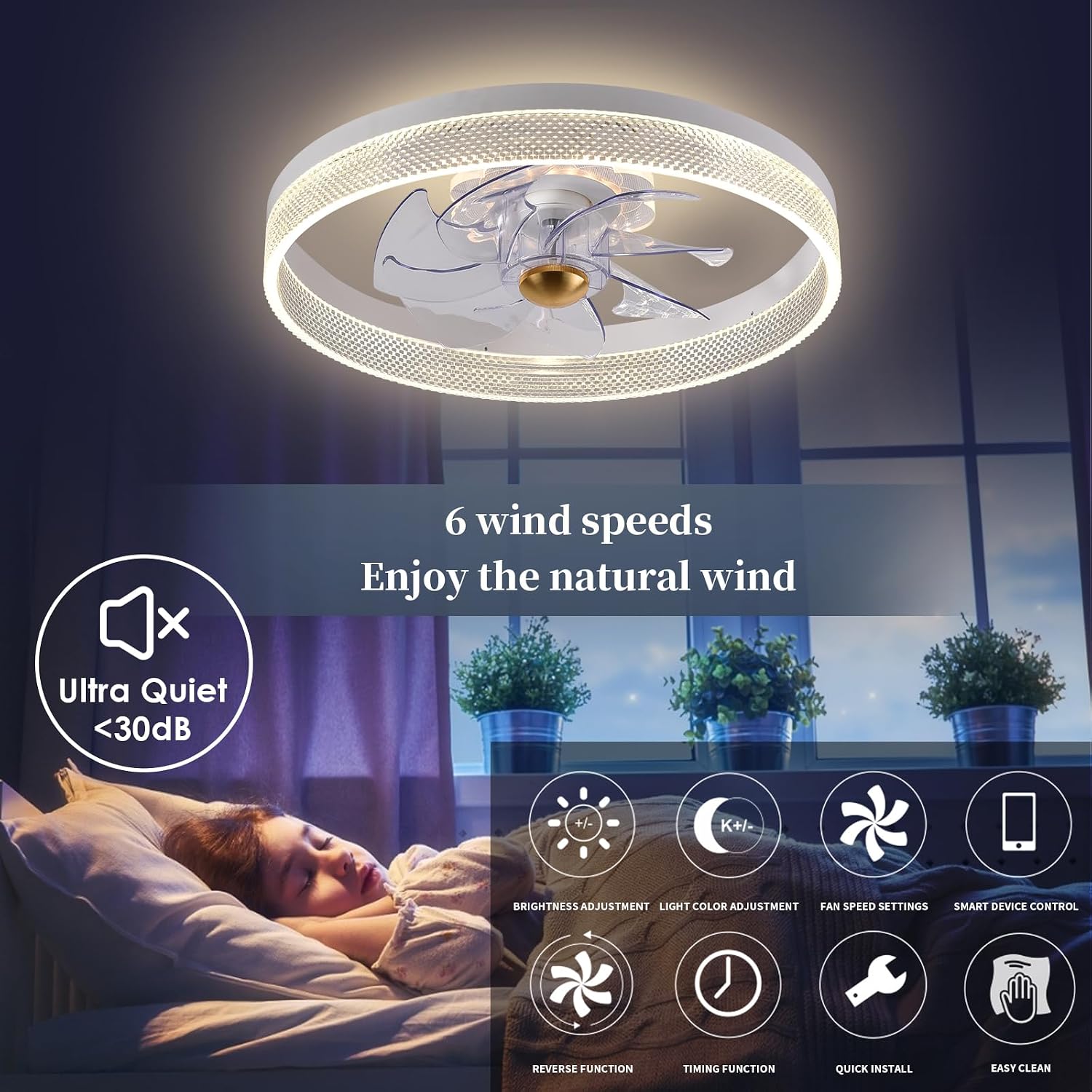

Image: Diagram illustrating the reversible motor function for winter (upward airflow) and summer (downward airflow) modes.

Mobile App Control:

For enhanced control, download the user-friendly app. Scan the QR code provided in the manual or on the product packaging to install the app. The app allows for comprehensive control over fan speed, light brightness, and color temperature, mirroring the remote's functionality.

Image: Detailed diagram of the remote control buttons and a smartphone screen showing the app interface. The QR code for app installation is visible.

App download link: http://www.jasonghost.com/smartdevicecontrol/index-en.html

Image: Visual explanation of Winter Mode (keeps warm & circulating airflow) and Summer Mode (cool down & transferring airflow).

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your Fszdorj ceiling fan.

• Cleaning: The enclosed design allows for easy cleaning without disassembly. Simply wipe the fan and light surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Blade Care: The ABS invisible blades are designed for durability. Periodically check for dust buildup and gently wipe clean.
• Motor: The DC motor is designed for quiet and efficient operation and requires no lubrication.

6. Troubleshooting

If you encounter issues with your Fszdorj ceiling fan, refer to the following common problems and solutions:

• Fan Not Operating: Check if the power supply is on at the circuit breaker and wall switch. Ensure all wire connections are secure.
• Light Not Working: Verify power supply. If using the app/remote, ensure batteries are functional and the device is paired correctly.
• Remote/App Not Responding: Replace remote batteries. Ensure the fan is within range and there are no obstructions. Re-pair the remote/app if necessary.
• Excessive Noise/Wobbling: Ensure all mounting screws are tightened. Check that the fan is securely attached to the ceiling bracket.
• Interference with other devices: Some users report potential interference with Roku remotes. Adjust placement of devices if possible.

For further assistance, please contact our professional online after-sales team available 24/7.

7. Specifications

Image: Illustration of the 100% DC Copper Motor, highlighting its quiet and powerful operation.

Image: Close-up views of the transparent acrylic lampshade, quality lumen light strips, uniform glow effect, and iron frame components.

8. Warranty and Support

Fszdorj is committed to providing quality products and ensuring customer satisfaction.

• 2-Year Promise: Your Fszdorj ceiling fan is covered by a 2-year promise.
• Customer Support: Our professional online after-sales team is available 24/7 to assist you with any questions or concerns. Please contact us via Amazon message for support.
