1. Introduction
The GMKtec Mini PC NucBox7 is a compact and powerful desktop computer designed for various applications, including office work, home entertainment, and business use. Pre-installed with Windows 11 Pro, this mini PC offers robust performance with its Intel Pentium Silver N6005 processor, ample memory, and fast storage. Its small form factor and versatile connectivity options make it an ideal solution for users seeking efficiency and flexibility.
Figure 1: Front view of the GMKtec Mini PC NucBox7, showcasing its compact design and illuminated power button.
2. Key Features
- Compact Design: Extremely small footprint, making it suitable for limited desk space or VESA mounting.
- Powerful Processor: Equipped with an Intel Pentium Silver N6005 processor, offering efficient performance for daily tasks.
- Ample Memory & Storage: Features 16GB DDR4 RAM and a 512GB PCIe SSD, with expandability up to 2TB via M.2 2242 SSD (PCIe/SATA).
- 4K Triple Display Support: Connect up to three 4K monitors simultaneously via three HDMI ports for enhanced productivity.
- High-Speed Connectivity: Includes Dual 1000M RJ45 Gigabit LAN ports, WiFi 6 (802.11ax) for fast wireless internet, and Bluetooth 5.2 for peripheral connections.
- Pre-installed Operating System: Comes with Windows 11 Pro, ready for immediate use.
- Efficient Cooling System: Designed with a large fan and powerful heat sink to maintain optimal performance and prevent overheating.
- Multi-Color LED Lights: Customizable LED lighting adds a personalized touch to the device.
Figure 2: Visual representation of the Mini PC's core features, including CPU, storage, display, and network capabilities.
3. Setup Guide
- Unboxing: Carefully remove the Mini PC and all accessories from the packaging. Ensure all components listed in the packing list are present.
- Connecting Peripherals:
- Connect your monitor(s) to the HDMI ports on the Mini PC. This model supports up to three 4K displays.
- Plug in your USB keyboard and mouse into the available USB ports.
- For wired network access, connect an Ethernet cable to one of the Dual LAN ports.
- Powering On: Connect the power adapter to the Mini PC's DC-in port and then plug it into a power outlet. Press the power button located on the front of the device. The LED light will illuminate.
- Initial Windows Setup: Follow the on-screen instructions to complete the Windows 11 Pro setup. This typically involves selecting your region, language, connecting to a network (if not wired), and creating a user account.

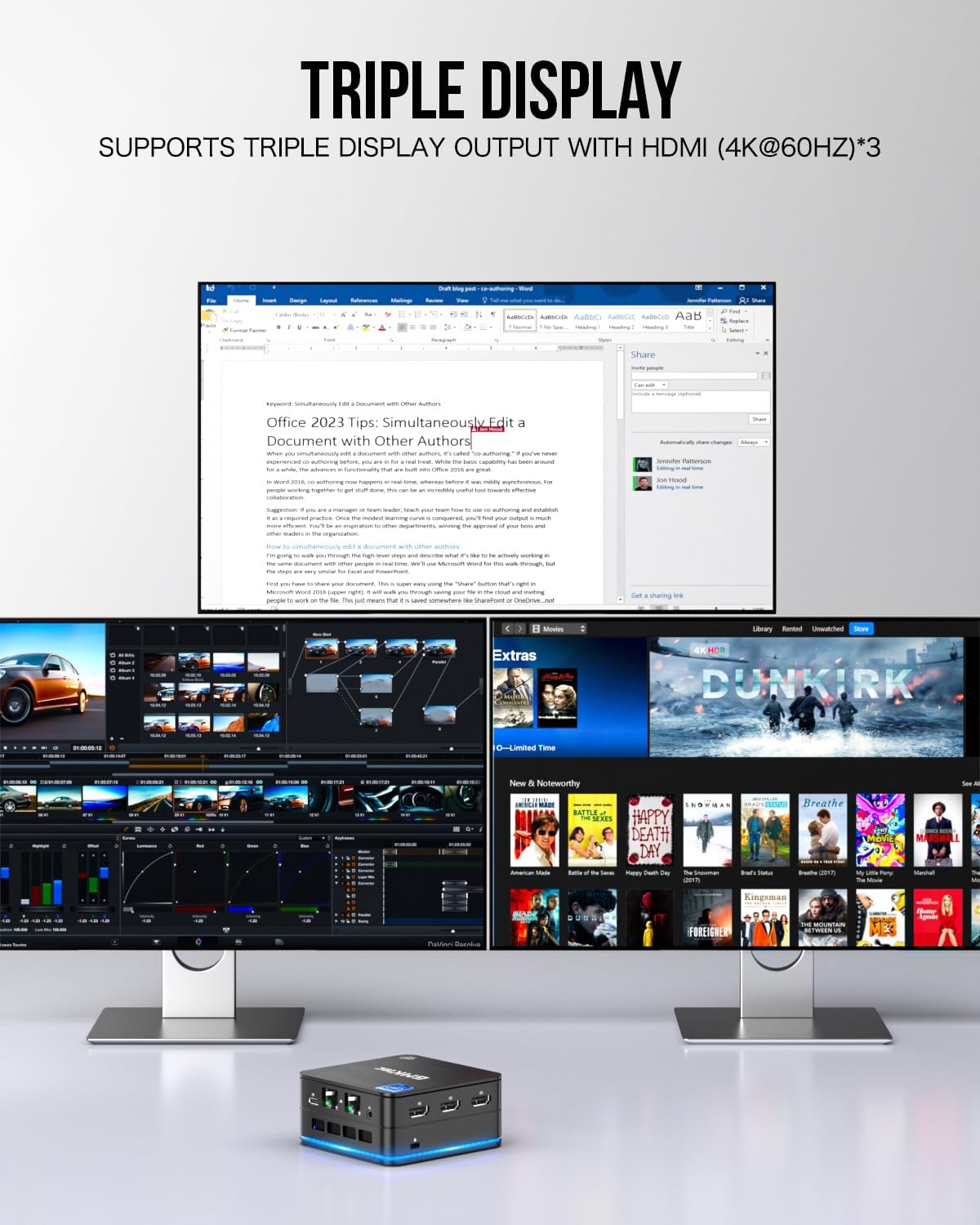

Figure 3: Illustration of the Mini PC supporting a triple display setup, highlighting its multi-monitor capabilities.
4. Operating Instructions
The GMKtec Mini PC is designed for ease of use. Once Windows 11 Pro is set up, you can begin using your computer for various tasks.
- General Usage: The Mini PC is optimized for light office work, business meetings, home theater setups, digital advertising boards, online education, and point-of-sale systems.
- Triple Display Configuration: To utilize multiple displays, ensure your monitors are connected to the HDMI ports. Windows will automatically detect them. You can configure display settings (extend, duplicate, etc.) by right-clicking on the desktop and selecting 'Display settings'.
- Network Connectivity:
- Wired: Simply connect an Ethernet cable to one of the two Gigabit LAN ports.
- Wireless: To connect to Wi-Fi, click the network icon in the taskbar, select your desired network, enter the password, and click 'Connect'. The Mini PC supports WiFi 6 for faster and more stable connections.
- Storage Expansion: The Mini PC includes an M.2 2242 SSD slot that supports up to 2TB (PCIe/SATA) for additional storage. Refer to the detailed hardware guide for installation instructions.
Figure 4: The compact size of the Mini PC compared to a smartphone, along with examples of its diverse applications.
Video 1: An official overview of the GMKtec Mini PC, demonstrating its features and performance capabilities, including various benchmarks and gaming tests.
5. Maintenance
- Software Updates: Regularly check for and install Windows updates to ensure system stability and security. Keep your drivers updated for optimal performance.
- Physical Cleaning: Use a soft, dry cloth to clean the exterior of the Mini PC. For vents, use compressed air to remove dust buildup, which helps maintain the efficient cooling system.
- Heat Management: Ensure the Mini PC is placed in a well-ventilated area and that its vents are not obstructed. The efficient cooling system is crucial for sustained performance.
6. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Mini PC does not power on. | Power adapter not connected properly; power outlet issue. | Check power connections. Try a different power outlet. |
| No display on monitor. | Monitor not connected; incorrect input source; faulty cable. | Ensure HDMI cables are securely connected. Select correct input source on monitor. Try a different cable. |
| No internet connection (Wi-Fi). | Incorrect Wi-Fi password; router issue; Wi-Fi driver issue. | Verify Wi-Fi password. Restart router. Update Wi-Fi drivers. |
| Slow performance. | Too many background applications; low storage space; overheating. | Close unnecessary applications. Free up disk space. Ensure proper ventilation. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | GMKtec |
| Item Model Number | KB7S |
| Hardware Platform | PC |
| Operating System | Windows 11 Pro |
| Processor | Intel Pentium Silver N6005 (3.3 GHz) |
| Number of Processors | 4 |
| RAM | 16 GB GDDR4 |
| Hard Drive | 512 GB PCIE x 4 SSD |
| Max Screen Resolution | 3840 x 2160 pixels (4K) |
| Graphics Chipset Brand | Intel (UHD Graphics) |
| Wireless Type | 802.11ax (WiFi 6), Bluetooth 5.2 |
| Item Weight | 1.46 pounds |
| Product Dimensions | 3.42 x 3.42 x 1.55 inches |
| Color | Black |
8. Warranty and Support
GMKtec provides a standard manufacturer's warranty for the NucBox7 Mini PC. For detailed warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official GMKtec website. For technical support, troubleshooting assistance beyond this manual, or service requests, please contact GMKtec customer support through their official channels.
