1. Introduction
This manual provides essential information for the safe and efficient operation of your Blitzhome BH-DW02 Countertop Dishwasher. Please read it thoroughly before installation and use, and retain it for future reference.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:
- Ensure the dishwasher is properly grounded.
- Do not operate the dishwasher if it is damaged or malfunctioning.
- Keep children away from the dishwasher, especially when it is in operation.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Do not touch the heating element during or immediately after use.
- Avoid opening the door during a wash cycle to prevent hot water spray.
- Unplug the appliance before cleaning or performing maintenance.
3. What's in the Box
Verify that all components are present upon unpacking:
- Blitzhome BH-DW02 Dishwasher
- Inlet Hose
- User Manual
4. Product Features
The Blitzhome BH-DW02 Countertop Dishwasher offers a range of features designed for efficient dish cleaning:
Image: Blitzhome Countertop Dishwasher highlighting its key features: 6 washing modes, dual 360° spiral spray, 167°F high temperature & drying function, and baby care mode with extra bottle holder.

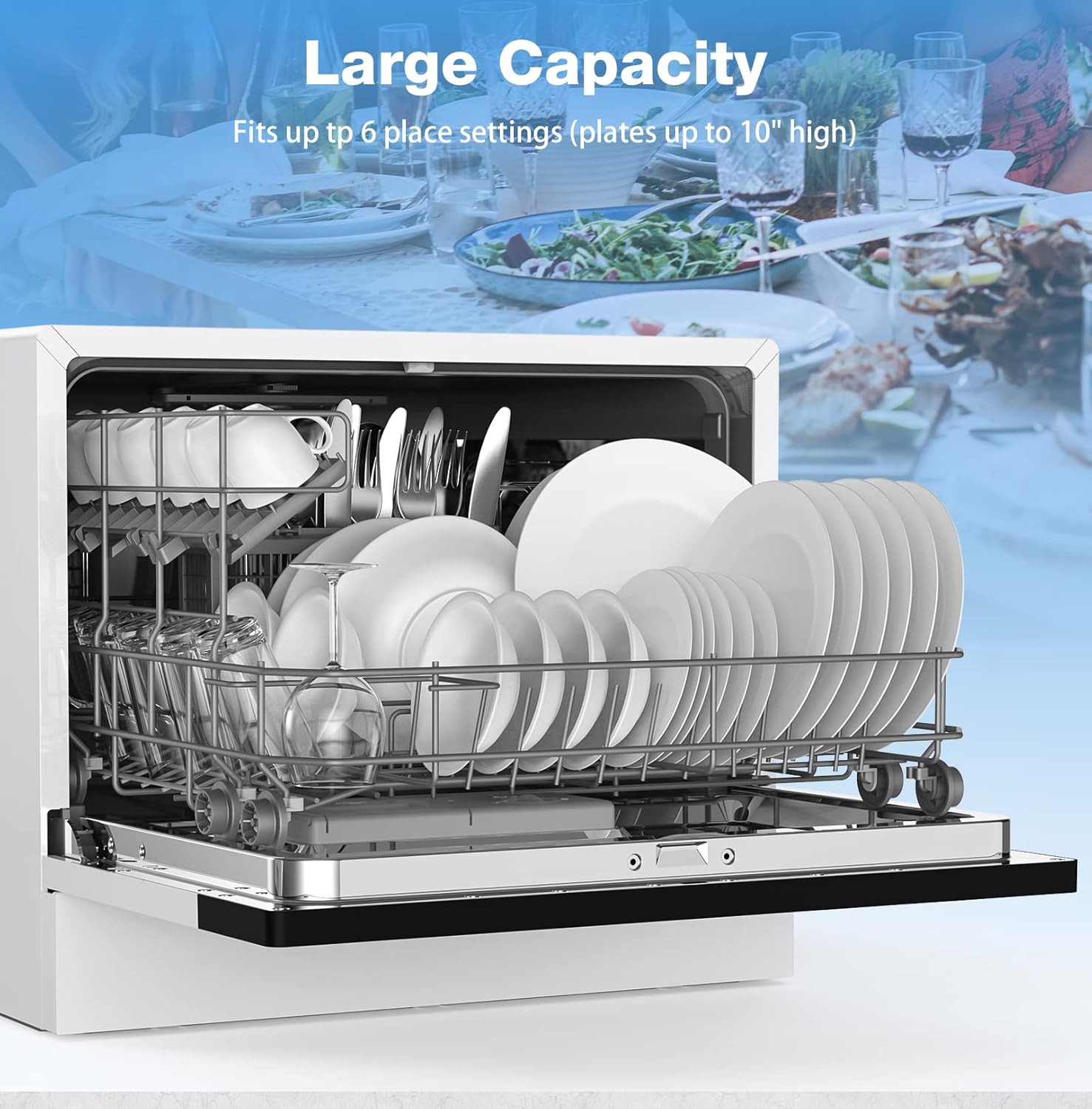

Image: The dishwasher interior loaded with dishes, demonstrating its large capacity for up to 6 place settings, accommodating plates up to 10 inches high.
- 6 Place Setting Capacity: Compact design (L22'' x W20'' x H18'') suitable for apartments, RVs, and dorms, fitting up to 72 pieces of tableware and plates up to 10 inches in diameter.
- 6 Washing Cycles: Includes ECO, NORMAL, RAPID, INTENSIVE, GLASS, and BABY CARE programs, plus an AIR REFRESH extra drying mode.
- 167℉ High Temperature & Drying Function: Water heated to 167℉ for effective cleaning and sanitization, with a fast drying function and 72-hour preservation to prevent odors.
- Baby Care Mode & Bottle Holder: Features a dedicated Baby Care Mode with 167°F rinsing and an included bottle holder for sanitizing baby products.
- Dual 360° Spiral Spray: Upper and lower spray arms provide 360-degree cleaning coverage with high-pressure washing to thoroughly remove food residues.
- 3-Stage Filtration System: Filters food residues during washing for improved cleaning performance.
- Water Saving: Automatic dishwashing uses approximately 7.5 liters of water, significantly less than manual washing.
Image: The interior of the dishwasher with water spraying from both upper and lower arms, illustrating the 360-degree cleaning coverage.
Image: A close-up of the baby bottle holder accessory placed inside the dishwasher, designed for secure washing of baby items.
5. Installation
The Blitzhome BH-DW02 offers flexible installation options:
Image: Visual representation of the dishwasher installed in two ways: freestanding next to a sink and built into kitchen cabinetry, demonstrating its flexible placement.
- Countertop Placement: The dishwasher can be placed directly on a countertop.
- Built-in Option: It can also be fitted into a cupboard for a more integrated look.
- Water Connection: The dishwasher can be connected to a faucet directly (a suitable adapter may be needed) or plumbed in like a full-size dishwasher using the provided accessories.
6. Operation
6.1 Loading Dishes
Proper loading ensures optimal cleaning. Place larger items in the lower rack and smaller items, cups, and cutlery in the upper sections or cutlery basket. Ensure spray arms are not obstructed.
Image: A detailed diagram illustrating the arrangement of 6 place settings, including plates, cups, and cutlery, within the dishwasher racks for efficient cleaning.
6.2 Adding Detergent and Rinse Aid
Add standard dishwasher powder or a detergent pod to the dispenser. Fill the rinse aid dispenser as needed for spot-free drying.
Video: This video demonstrates the process of loading dishes, adding dishwasher detergent and rinse aid, and selecting a wash program using the LED control panel. It also shows the 360° cyclone spray arms in action and the hot air drying function.
6.3 Selecting a Wash Program
Use the LED control panel to select one of the six available wash programs (ECO, NORMAL, RAPID, INTENSIVE, GLASS, BABY CARE) or the AIR REFRESH drying mode. Refer to the control panel image for button functions.
Image: A close-up of the dishwasher's control panel, displaying icons for 6 washing programs (ECO, Normal, Rapid, Intensive, Glass, Baby Care) and additional functions like 72H Storage and Air Dry.
6.4 Starting the Cycle
Close the dishwasher door firmly. Press the Start/Pause button to begin the selected wash cycle.
7. Maintenance and Cleaning
Regular maintenance ensures optimal performance and longevity of your dishwasher.
- Cleaning the Filters: Regularly check and clean the 3-stage filtration system to remove any trapped food particles.
- Cleaning the Spray Arms: Ensure the spray arm nozzles are clear of blockages.
- Wiping the Interior: Periodically wipe down the interior with a damp cloth to prevent residue buildup.
- Exterior Cleaning: Clean the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
Image: A close-up view of the dishwasher's 3-stage filtration system, located at the bottom of the wash tub, which collects food debris.
8. Troubleshooting
If you encounter issues with your dishwasher, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power cord not plugged in; door not closed properly; circuit breaker tripped. | Check power connection; ensure door is latched; reset circuit breaker. |
| Dishes are not clean | Improper loading; clogged spray arms; insufficient detergent; incorrect program. | Reload dishes correctly; clean spray arm nozzles; add more detergent; select appropriate program. |
| Water not draining | Clogged filter; kinked drain hose. | Clean the filter system; straighten the drain hose. |
| Excessive noise | Dishes rattling; foreign object in pump. | Rearrange dishes; inspect and remove any foreign objects. |
9. Specifications
Key technical specifications for the Blitzhome BH-DW02 Countertop Dishwasher:
- Model: BH-DW02
- Brand: BLITZHOME
- Product Dimensions: 21.65"D x 19.69"W x 17.72"H
- Capacity: 6 Place Settings
- Voltage: 120 Volts
- Water Consumption: 7.5 Liters per cycle
- Option Cycles: 6 (ECO, NORMAL, RAPID, INTENSIVE, GLASS, BABY CARE)
- Noise Level: 55 Decibels
- Material: Plastic
- Controls Type: Touch
- Special Features: Compact, Portable, 167°F High Temp, Air-Dry Function
10. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or contact BLITZHOME customer service directly. Keep your purchase receipt as proof of purchase.
