Haden Cotswold 4-Slice Toaster (Model 75100) Instruction Manual

1. General Information

This instruction manual provides essential information for the safe and efficient operation of your Haden Cotswold 4-Slice Toaster, Model 75100. Please read it thoroughly before first use and retain it for future reference.

Key Features:

• 4 Extra-Wide Slots: Accommodates various bread types, including thick bagels and artisanal slices.
• 6 Variable Browning Control: Allows precise adjustment for desired toast shade.
• Special Functions: Includes Cancel, Defrost, and Reheat settings for versatile toasting.
• Cool-Touch Exterior: Designed for safe handling during operation.
• Removable Crumb Trays: Facilitates easy cleaning and maintenance.
• Durable Construction: High-quality stainless steel housing with chrome accents ensures longevity.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the toaster.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or toaster in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
• A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not attempt to dislodge food when toaster is plugged in.
• Do not operate unattended.

3. Product Overview

Familiarize yourself with the components of your Haden Cotswold 4-Slice Toaster.

Figure 3.1: Front view of the Haden Cotswold 4-Slice Toaster.

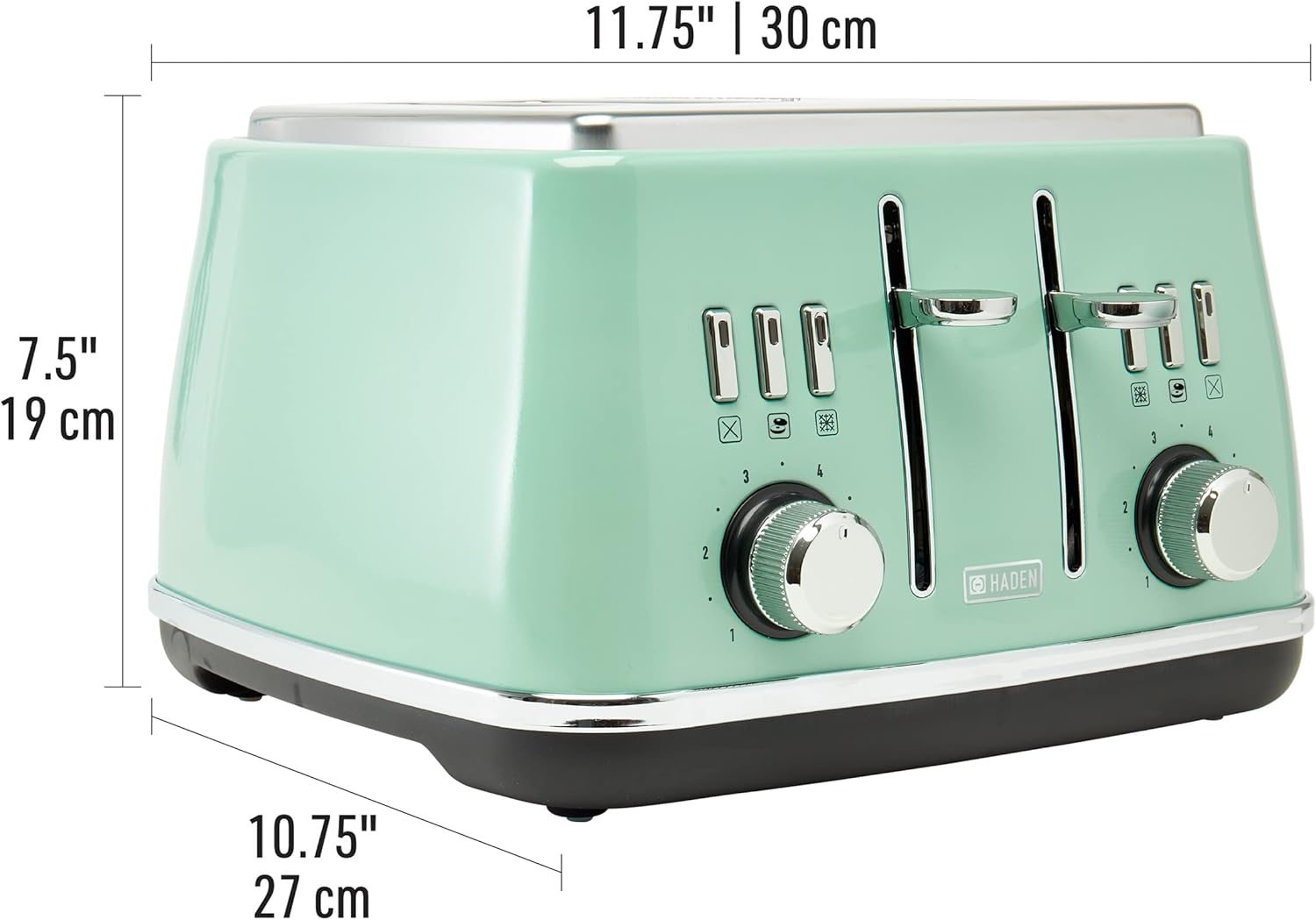

Figure 3.2: Toaster dimensions for placement reference.

Controls and Indicators:

• Browning Control Dial (1-6): Adjusts the desired level of toast browning.
• Toast Levers: Initiates the toasting cycle and raises/lowers bread.
• Cancel Button: Stops the toasting cycle immediately.
• Defrost Button: Adds extra time to toast frozen items.
• Bagel Button: Toasts the cut side of bagels while warming the outer side.
• Removable Crumb Trays: Located at the bottom for easy cleaning.

Figure 3.3: Browning Control Dial.

Figure 3.4: Toast Lever and Function Buttons.

4. Setup

1. Unpacking: Carefully remove the toaster from its packaging. Remove all packing materials, including any protective films or stickers.
2. Placement: Place the toaster on a stable, heat-resistant, and non-flammable surface, away from curtains, walls, or other flammable materials. Ensure adequate ventilation around the toaster.
3. First Use (Conditioning): Before toasting food for the first time, operate the toaster without bread on the highest browning setting (6) for a few minutes. This will burn off any manufacturing residues and eliminate odors. A slight odor or smoke is normal during this initial use. Ensure the area is well-ventilated.
4. Power Connection: Plug the power cord into a standard 120V AC electrical outlet.

5. Operating Instructions

Follow these steps to operate your toaster:

1. Insert Bread: Place up to four slices of bread, bagels, or other items into the extra-wide toasting slots. Ensure items are centered and do not touch the heating elements.
2. Select Browning Level: Turn the browning control dial to your desired setting (1 for lightest, 6 for darkest). Note that the toaster has dual controls, allowing independent browning settings for each pair of slots.
3. Lower Toast Lever: Press the toast lever down until it locks into place. The toasting cycle will begin, and the indicator light will illuminate.
4. Use Special Functions (Optional):
   • Defrost: If toasting frozen items, press the "Defrost" button after lowering the lever. The defrost indicator will light up.
   • Bagel: For bagels, press the "Bagel" button after lowering the lever. This function toasts the cut side of bagels while warming the outer side. The bagel indicator will light up.
   • Reheat: To reheat previously toasted items without further browning, press the "Reheat" button after lowering the lever. The reheat indicator will light up.
5. Cancel Toasting: To stop the toasting cycle at any time, press the "Cancel" button. The toast will automatically pop up.
6. Retrieve Toast: Once the toasting cycle is complete, the toast will automatically pop up. The high-lift lever allows for easy retrieval of smaller items.

6. Maintenance & Cleaning

Regular cleaning ensures optimal performance and extends the life of your toaster.

1. Unplug and Cool: Always unplug the toaster from the power outlet and allow it to cool completely before cleaning.
2. Clean Crumb Trays: Pull out the removable crumb trays located at the bottom of the toaster. Discard crumbs and wipe the trays with a damp cloth. Ensure they are completely dry before reinserting.
3. Clean Exterior: Wipe the exterior of the toaster with a soft, damp cloth. Do not use abrasive cleaners or metal scouring pads, as these can scratch the surface.
4. Internal Cleaning: Never insert any objects into the toasting slots to clean them. If food becomes lodged, unplug the toaster and carefully invert it to shake out the debris.

Figure 6.1: Removable crumb trays for easy cleaning.

7. Troubleshooting

If you encounter issues with your toaster, refer to the following common problems and solutions:

8. Specifications

9. Warranty & Support

For warranty information or product support, please refer to the warranty card included with your purchase or visit the official HADEN website. You may also contact HADEN customer service directly for assistance.

Online Support: Visit the HADEN Store on Amazon
