1. Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your EMKE Shower Rail Set. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The EMKE Shower Rail Set includes a 70 cm shower rail, a single-function hand shower, a 1.5-meter shower hose, and a soap dish. It features a chrome finish and is designed for bathroom use.
Image 1.1: EMKE Shower Rail Set, Chrome finish, showing the shower rail, hand shower, and soap dish.
2. Components List
Ensure all components are present before beginning installation. If any parts are missing or damaged, please contact EMKE customer service.
- Shower Rail (70 cm)
- Hand Shower (single-function)
- Shower Hose (1.5 m, stainless steel with copper core)
- Adjustable Shower Holder
- Soap Dish (white, clear acrylic)
- Mounting Kit (screws, wall plugs, gaskets)
- Instruction Manual
3. Setup and Installation
Tools Required: Drill, screwdriver, measuring tape, pencil, level.
- Mark Drilling Positions: Hold the shower rail against the wall at the desired height. Use a pencil to mark the positions for the mounting brackets. Ensure the marks are vertically aligned using a level.
- Drill Holes: Drill holes at the marked positions. Insert the wall plugs into the drilled holes.
- Attach Mounting Brackets: Secure the mounting brackets to the wall using the provided screws.
- Install Shower Rail: Slide the shower rail onto the secured mounting brackets. Tighten any set screws to fix the rail in place.
- Attach Shower Holder and Soap Dish: Slide the adjustable shower holder and the soap dish onto the shower rail. Position them as desired.
- Connect Shower Hose: Connect one end of the 1.5m shower hose to your existing shower mixer/faucet and the other end to the hand shower. Ensure gaskets are properly seated to prevent leaks.
- Place Hand Shower: Insert the hand shower into the adjustable holder.

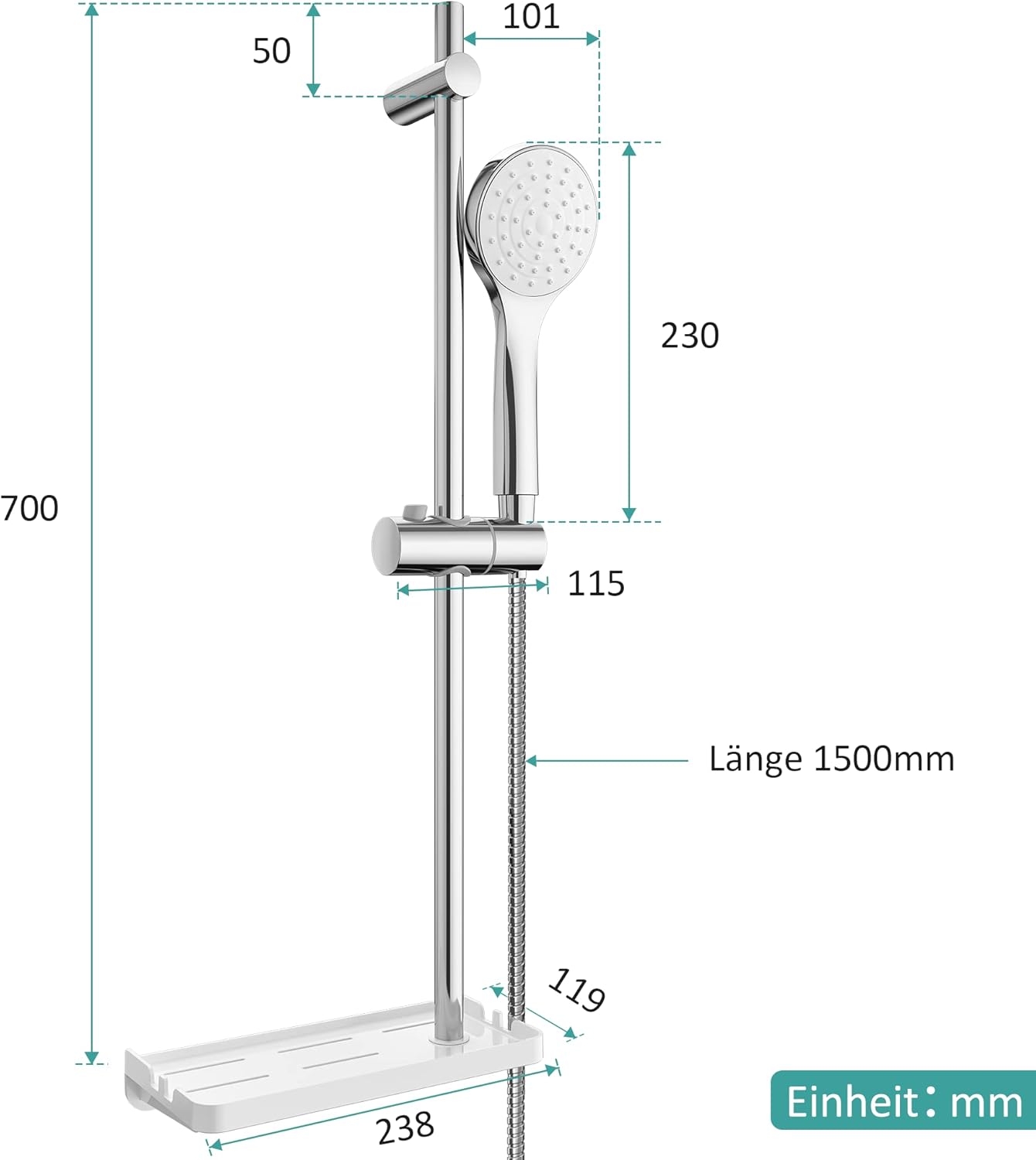

Image 3.1: Installation diagram with dimensions (Unit: mm). The total height of the rail is 700mm. The hand shower is 230mm long. The shower hose is 1500mm long.
4. Operating Instructions
The EMKE Shower Rail Set is designed for straightforward operation.
- Adjusting Hand Shower Height: The shower holder can be easily moved up or down the shower rail to adjust the height of the hand shower.
- Adjusting Hand Shower Angle: The hand shower holder allows for angle adjustment, enabling you to direct the water flow as desired. The hand shower can rotate 360 degrees.
- Using the Soap Dish: The integrated soap dish provides a convenient storage surface for soap and other small bathroom accessories. It features drainage holes to prevent water from pooling.
Image 4.1: The shower holder can be adjusted vertically along the 70cm rail.
Image 4.2: The hand shower's angle can be adjusted by rotating it within its holder.
Image 4.3: The soap dish is made of clear acrylic and includes drainage features.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your EMKE Shower Rail Set.
- Cleaning the Chrome Finish: Use a soft cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals, abrasive sponges, or cleaners containing acid or bleach, as these can damage the chrome finish.
- Cleaning the Hand Shower Nozzles: The hand shower features soft silicone nozzles. To remove limescale buildup, gently rub the nozzles with your finger or a soft brush.
- Cleaning the Soap Dish: The clear acrylic soap dish can be cleaned with warm soapy water and a soft cloth.
- Checking Connections: Periodically check all hose connections for tightness to prevent leaks. Replace gaskets if signs of wear are present.
Image 5.1: Soft silicone nozzles on the hand shower for easy cleaning and limescale removal.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from hose connections. | Loose connection or worn gasket. | Tighten connections. Check and replace gaskets if necessary. |
| Reduced water flow from hand shower. | Limescale buildup in nozzles or hose. | Clean hand shower nozzles by gently rubbing them. Flush the hose. |
| Shower holder slides down the rail. | Holder not tightened sufficiently. | Ensure the locking mechanism on the shower holder is securely tightened. |
7. Specifications
- Brand: EMKE
- Model Number: SB02Z0CP
- Color: Chrome
- Shower Rail Height: 70 cm
- Shower Hose Length: 1.5 m
- Main Material (Rail): Stainless Steel
- Hand Shower Material: ABS with Chrome Finish
- Soap Dish Material: Clear Acrylic
- UPC: 729808445256
- Country of Origin: China
- Certifications: KTW (for shower hose and hand shower)
8. Warranty and Support
For any questions, technical assistance, or warranty claims, please contact EMKE customer service through the retailer where the product was purchased or visit the official EMKE website for support information.
Please retain your proof of purchase for warranty purposes.
