1. Introduction
Thank you for choosing the Rowenta Silence Force Effitech Bagged Vacuum Cleaner. This appliance is designed to provide exceptional cleaning performance with minimal noise, ensuring a comfortable cleaning experience. Its Effitech motor offers low energy consumption, while the high-efficiency filtration system captures fine dust particles. Please read this manual carefully before using the appliance and keep it for future reference.
Image 1.1: Complete view of the Rowenta Silence Force Effitech vacuum cleaner with its main components.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.
- Read all instructions before using the vacuum cleaner.
- Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not use without dust bag and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Store your appliance indoors in a cool, dry area.
For detailed safety information, always refer to the official safety documentation provided with your product.
3. Package Contents
Upon unpacking your Rowenta Silence Force Effitech vacuum cleaner, please ensure all the following components are present:
- Main Vacuum Unit (RO7451EA)
- Flexible Hose
- Telescopic Tube
- POWER AIR Suction Head (2-position)
- XXL Flexible Crevice Tool
- Flat Upholstery Nozzle
- Hygiene Plus Dust Bag (pre-installed or included)
Other compatible accessories (e.g., Parquet Delta, Maxi Turbobrush, Mini Turbobrush, Large flat upholstery nozzle, Multifunction articulated arm) may be purchased separately.
Image 3.1: The vacuum cleaner and its standard accessories.
4. Setup and Assembly
Follow these steps to assemble your vacuum cleaner before first use:
- Attach the Hose: Insert the flexible hose into the air inlet opening on the main vacuum unit until it clicks securely into place. To detach, press the release button and pull.
- Connect the Telescopic Tube: Attach the telescopic tube to the handle of the flexible hose. Adjust the length of the telescopic tube by pressing the adjustment button and sliding it to your desired height.
- Install the Suction Head: Connect the POWER AIR suction head to the end of the telescopic tube. Ensure it is firmly attached.
- Insert Dust Bag (if not pre-installed): Open the dust bag compartment. Insert a new Hygiene Plus dust bag, ensuring it is correctly positioned and sealed. Close the compartment securely.
- Power Connection: Extend the power cord from the main unit and plug it into a suitable electrical outlet (220 Volts).
5. Operating Instructions
5.1 Powering On and Off
To turn the vacuum cleaner on, press the power button (usually marked with a circle and a vertical line). Press it again to turn the appliance off.
5.2 Adjusting Suction Power
The vacuum cleaner features controls on the main unit to adjust the suction power. Select the appropriate power level for the surface you are cleaning. Lower settings are suitable for delicate surfaces, while higher settings are for deep cleaning carpets or heavily soiled areas.

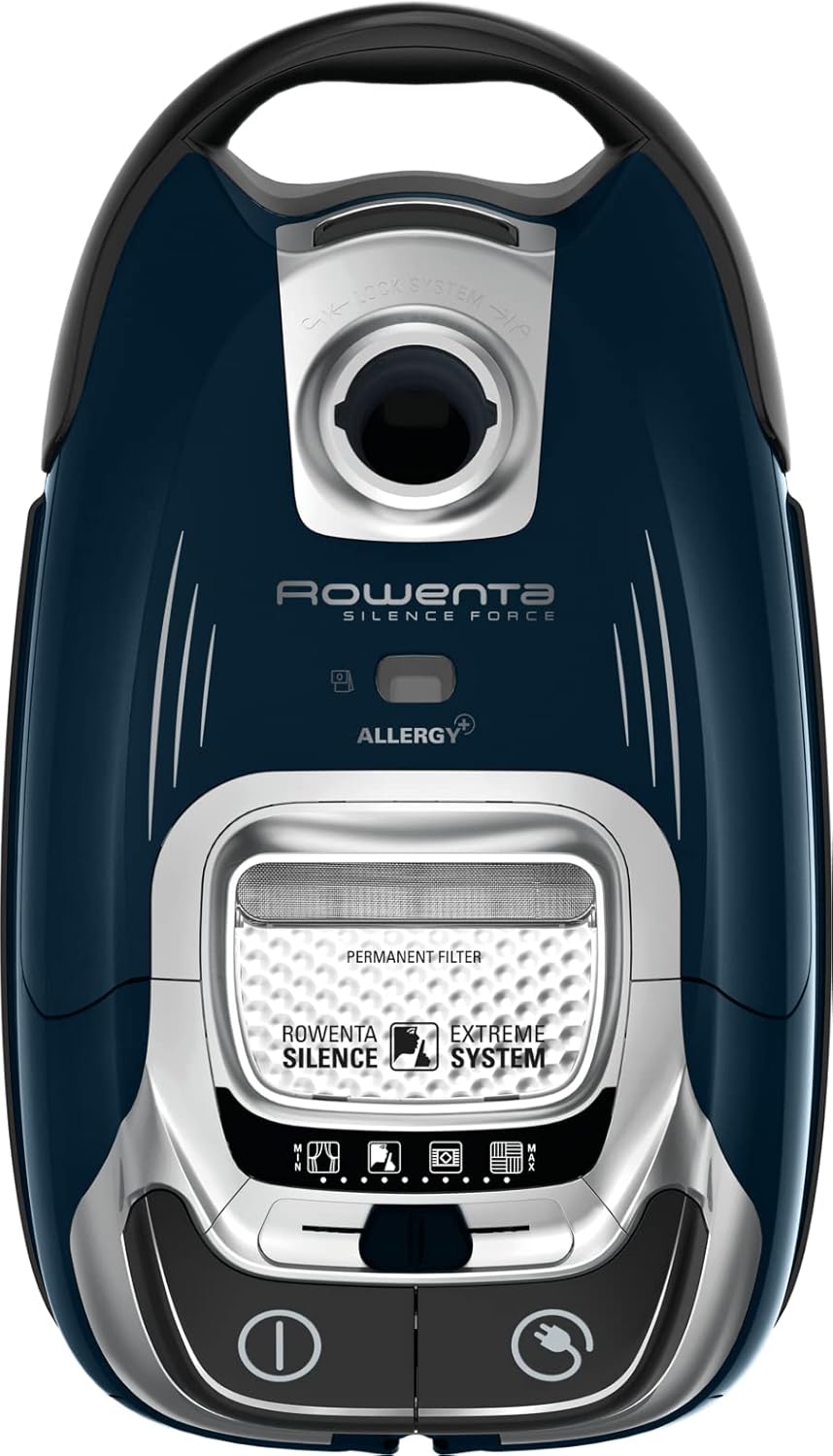

Image 5.1: Main unit controls for power and suction settings.
5.3 Using the POWER AIR Suction Head
The innovative POWER AIR suction head has two positions for optimal cleaning on different floor types:
- Hard Floors: Use the position designed for hard floors to ensure efficient dust and debris pickup without scratching.
- Carpets and Rugs: Switch to the carpet position for deep cleaning, allowing the brush to agitate fibers and remove embedded dirt.
5.4 Utilizing Accessories
- XXL Flexible Crevice Tool: Ideal for reaching narrow spaces, corners, and between furniture cushions.
- Flat Upholstery Nozzle: Designed for gentle cleaning of upholstered furniture, curtains, and delicate fabrics.
5.5 Extended Reach and Quiet Operation
The vacuum cleaner features a 12-meter action radius, allowing you to clean large areas without frequently changing power outlets. Its advanced design ensures extremely quiet operation at only 57 dB(A), comparable to a normal conversation level.
Image 5.2: The vacuum cleaner operates at a low noise level of 57 dB(A).

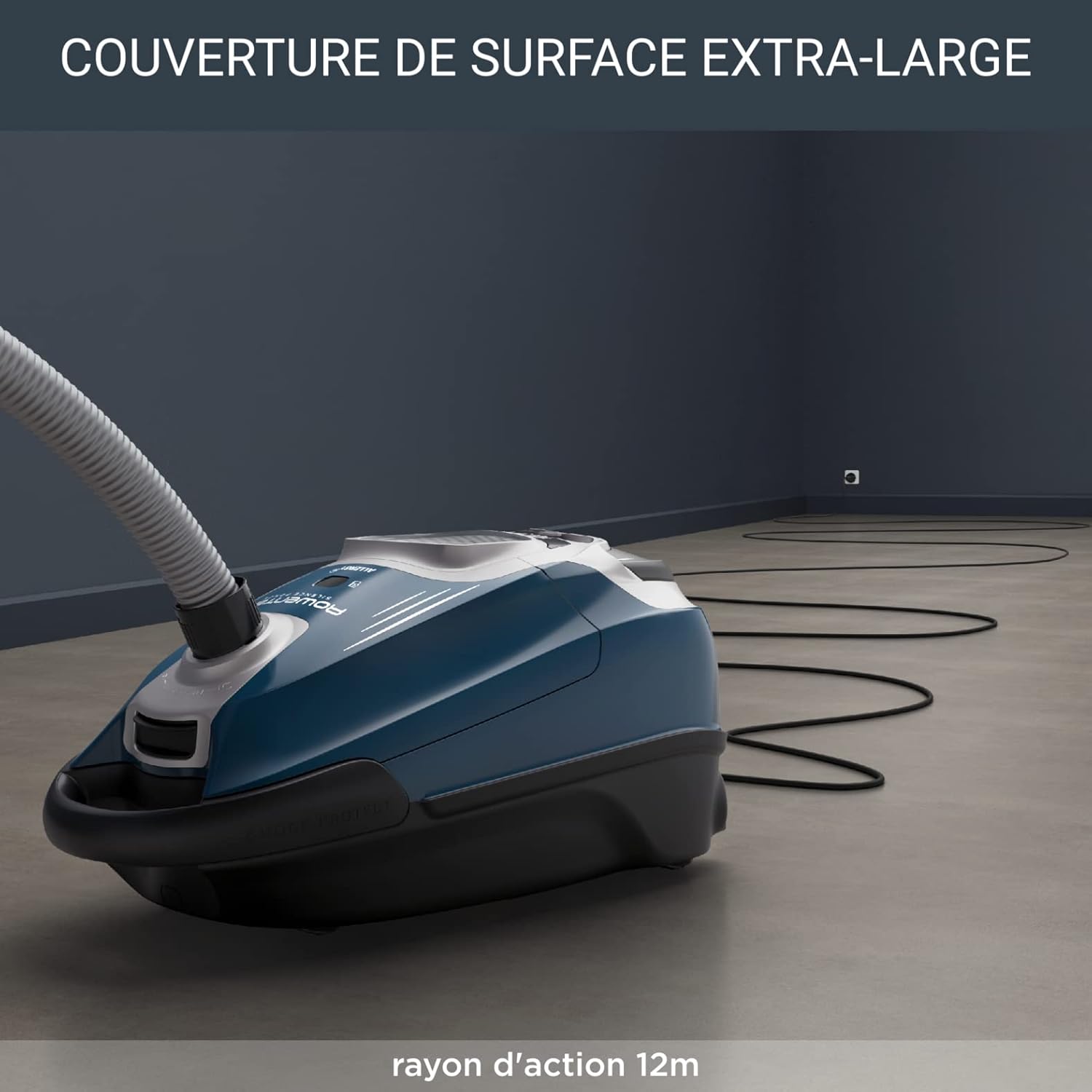

Image 5.3: The 12-meter action radius provides extensive coverage.
6. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
6.1 Dust Bag Replacement
The vacuum cleaner uses Hygiene Plus dust bags with an XXL capacity of 4.5 liters, reducing the frequency of replacements. Replace the dust bag when the dust bag full indicator illuminates or when suction power noticeably decreases.
- Unplug the vacuum cleaner from the power outlet.
- Open the dust bag compartment.
- Carefully remove the full dust bag. The Hygiene Plus bag features an automatic closing flap to prevent dust escape.
- Insert a new Hygiene Plus dust bag, ensuring it is correctly seated.
- Close the dust bag compartment securely.
Image 6.1: The vacuum cleaner features an XXL 4.5L dust bag capacity.
Image 6.2: Replacing the Hygiene Plus dust bag.
6.2 Filter Maintenance
The Silence Force Effitech features a high-efficiency filtration system, including a HEPA filter, which captures 99.98% of dust particles down to 0.3 µm. Regularly check and clean or replace filters as recommended in the full product manual to maintain optimal filtration and suction.
Image 6.3: High-efficiency filtration system with Hygiene+ bag and HEPA filter.
6.3 Cleaning the Appliance
- Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Periodically check the suction head for tangled hair or debris and remove them to ensure efficient operation.
7. Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | Not plugged in; no power at outlet; power button not pressed. | Check power cord connection; check circuit breaker; press power button firmly. |
| Low suction power. | Full dust bag; clogged hose/tube/nozzle; dirty filters. | Replace dust bag; clear any blockages; clean or replace filters. |
| Unusual noise during operation. | Blockage in hose/nozzle; foreign object in brush head; motor issue. | Check and clear blockages; remove foreign objects; if noise persists, contact customer support. |
| Dust escaping from the vacuum. | Dust bag not installed correctly; filters not properly seated or damaged. | Ensure dust bag is correctly installed; check and re-seat or replace filters. |
If the problem persists after attempting these solutions, please contact Rowenta customer support.
8. Product Specifications

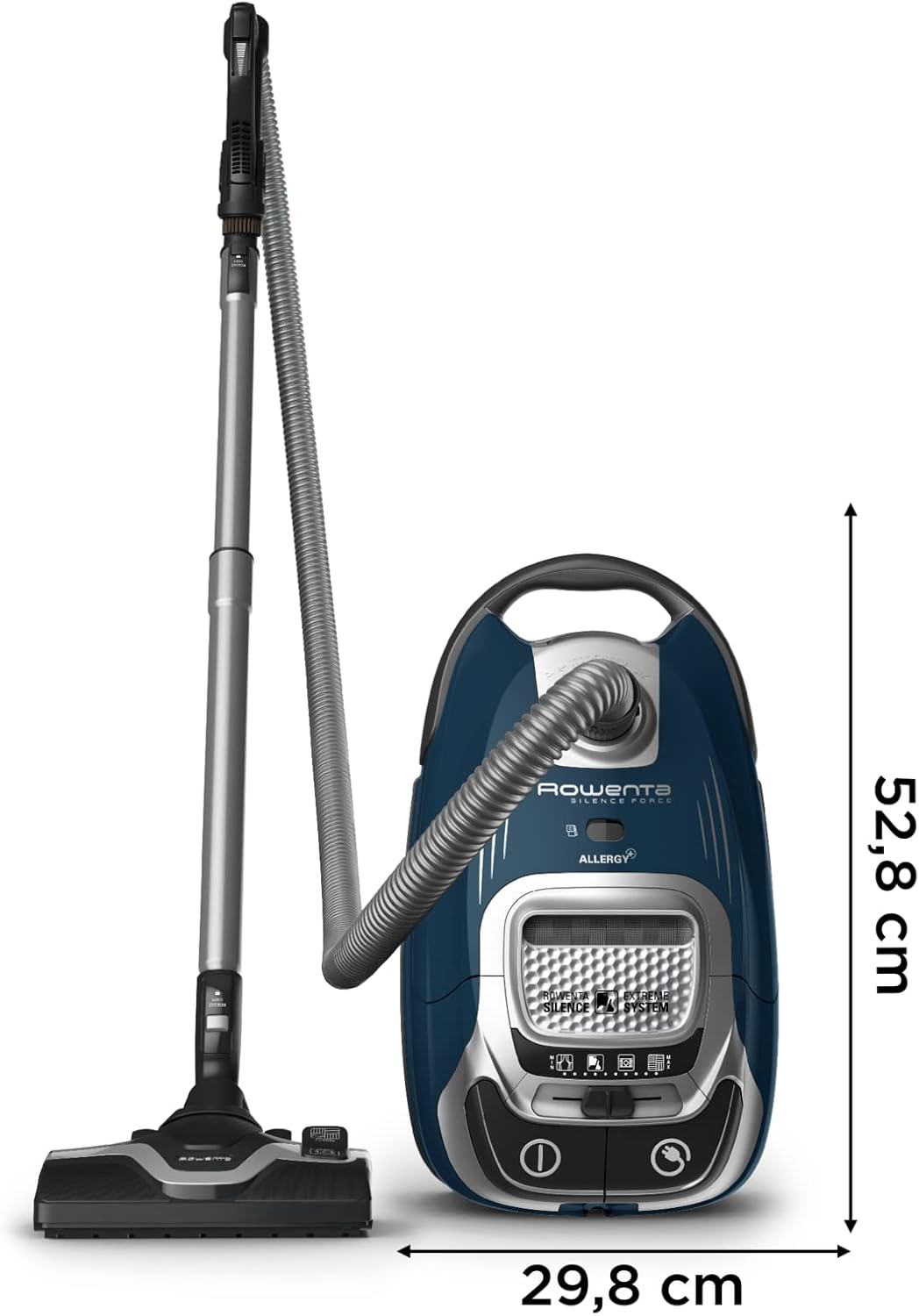

Image 8.1: Product dimensions of the vacuum cleaner.
- Brand: Rowenta
- Model Number: RO7451EA
- Color: Blue
- Product Dimensions (L x W x H): 52.8 x 29.8 x 26.5 cm
- Capacity: 4.5 Liters
- Power: 400 Watts
- Voltage: 220 Volts
- Noise Level: 57 Decibels
- Features: Bagged
- Item Weight: 5.7 Kilograms
- Filter Type: HEPA Filter
- Surface Recommendation: All types of floors
- Power Source: Corded Electric
- Cordless: No
- Country of Origin: France
9. Warranty and Support
9.1 Repairability Commitment
Rowenta is committed to providing repairability for its products for 15 years at a fair price. This commitment is supported by a network of 6200 repairers worldwide, contributing to environmental protection and waste reduction.
9.2 Customer Support
For any questions, technical assistance, or to locate a service center, please refer to the contact information provided in your product's official warranty card or visit the official Rowenta website.
