Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Orient Electric Maverick 6L Storage Water Heater. Please read these instructions carefully before using the appliance and retain them for future reference.
Safety Instructions
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Ensure the water heater is installed by a qualified technician.
- Do not operate the water heater if the power cord or plug is damaged.
- Ensure proper grounding to prevent electric shock.
- Do not block the pressure release valve.
- Disconnect power before performing any maintenance or repairs.
- This appliance is designed for indoor installation only.
Product Overview
The Orient Electric Maverick 6L Storage Water Heater is designed for efficient water heating. Key features include:
- High efficiency Nano-Polymer Coated tank for enhanced durability.
- 27% thicker Magnesium Anode rod and nickel-coated heavy copper heating element for corrosion resistance and extended life.
- Suitable for high-rise buildings with pressure compatibility up to 8 bar.
- Equipped with a 5-Level Safety Shield, including a Multifunction Valve (MFV).

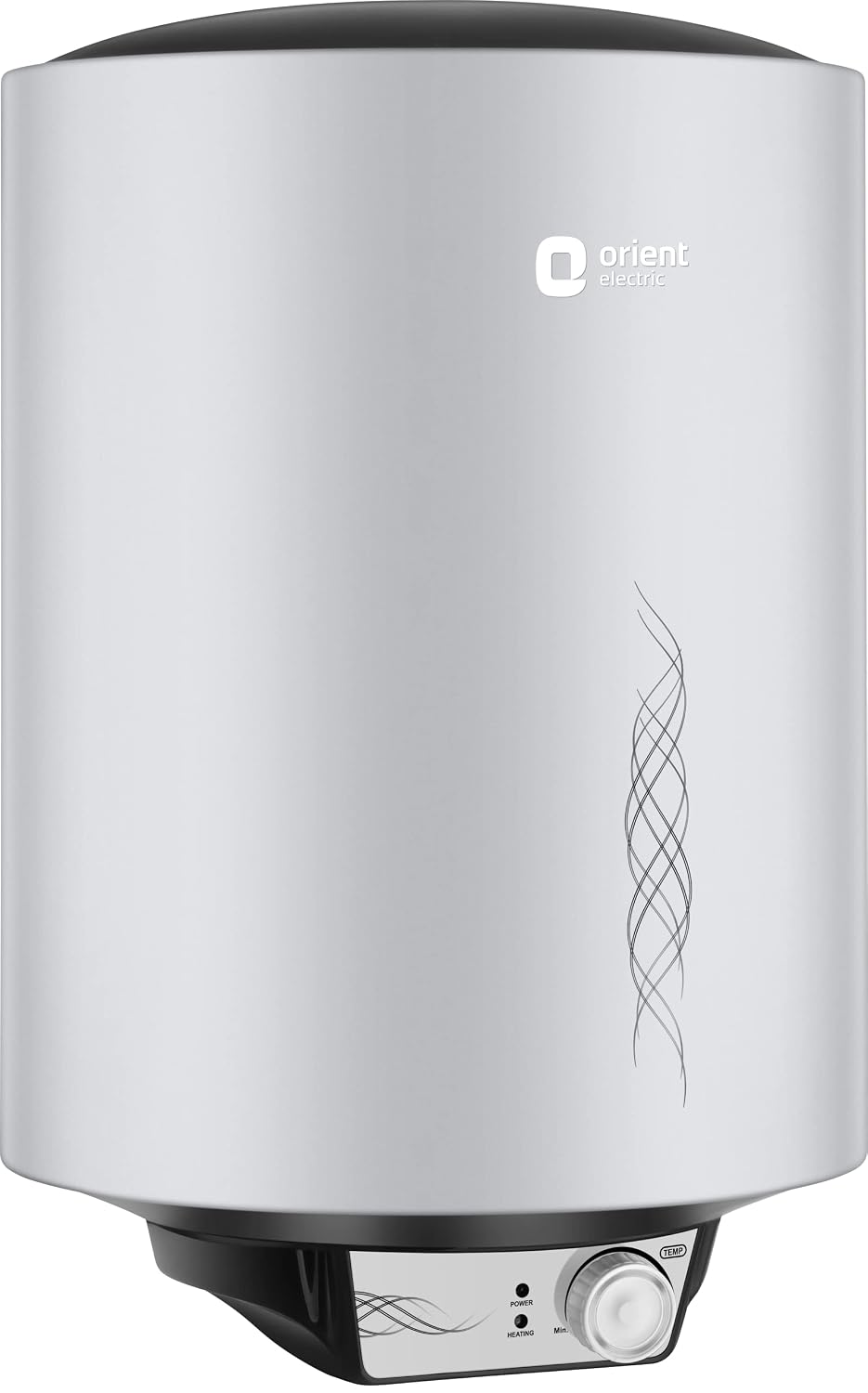

Figure 1: Front view of the Orient Electric Maverick 6L Storage Water Heater, showcasing its sleek design and control panel at the bottom.
Included Components:
- 1 unit Geyser
- 1 unit Multifunction Valve (MFV)
- 1 unit User Manual
Setup and Installation
Installation should only be performed by a qualified professional. Ensure the installation site meets all requirements for water and electrical connections.
- Site Selection: Choose a wall-mounted location that is structurally sound and close to water and electrical supplies. The appliance is designed for indoor installation.
- Mounting: Securely mount the water heater to the wall using appropriate fasteners. Ensure it is level.
- Water Connections: Connect the cold water inlet (blue marking) and hot water outlet (red marking) pipes. Install the Multifunction Valve (MFV) on the cold water inlet line as per local regulations.
- Electrical Connection: Connect the water heater to a properly grounded electrical outlet. Ensure the voltage matches the appliance's requirements (230 Volts).
- Filling the Tank: Before switching on, open a hot water tap in your home to allow air to escape and the tank to fill completely with water. Close the tap once water flows steadily.
Figure 2: Bottom view of the water heater showing the cold water inlet (blue) and hot water outlet (red) connections, and the control panel.
Operating Instructions
- Power On: Ensure the tank is full of water. Plug in the power cord or switch on the dedicated electrical supply. The power indicator light will illuminate.
- Temperature Adjustment: Use the temperature control knob on the front panel to set your desired water temperature. Turning the knob clockwise increases the temperature.
- Heating Indicator: The heating indicator light will turn on when the water heater is actively heating water. It will turn off once the set temperature is reached.
- Power Off: To turn off the water heater, switch off the electrical supply.
Figure 3: Close-up of the control panel, showing the temperature adjustment knob and indicator lights for power and heating status.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your water heater.
- Annual Inspection: It is recommended to have the water heater inspected by a qualified technician annually.
- Draining the Tank: If the water heater will not be used for an extended period or during freezing temperatures, drain the tank to prevent damage. Disconnect power, close the cold water inlet valve, open a hot water tap, and open the drain valve at the bottom of the heater.
- Cleaning: Clean the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Pressure Release Valve: Periodically check the pressure release valve to ensure it is not blocked and functions correctly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water | No power supply; thermostat setting too low; heating element failure. | Check power connection and circuit breaker; adjust thermostat; contact service for element replacement. |
| Water not hot enough | Thermostat set too low; excessive hot water usage; sediment buildup. | Increase thermostat setting; allow time for reheating; consider professional descaling. |
| Water leakage | Loose connections; faulty pressure release valve; tank corrosion. | Tighten connections; inspect/replace MFV; contact service for tank inspection. |
| Unusual noise | Sediment buildup in tank. | Professional descaling recommended. |
For issues not listed or if solutions do not resolve the problem, contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Orient Electric |
| Model Number | SWBA06VMGM2 |
| Capacity | 6 Liters |
| Power Source | Corded Electric |
| Voltage | 230 Volts |
| Maximum Pressure | 8 Bars |
| Mount Type | Wall |
| Material Type | Metal |
| Item Weight | 5.18 Kilograms |
| Special Features | Energy Efficient, Overheat Protection, Pressure Release Valve, Rustproof |
Warranty Information
Your Orient Electric Maverick 6L Storage Water Heater comes with the following warranty:
- Tank: 5 years
- Heating Element: 2 years
- Product (overall): 2 years
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions. For detailed terms and conditions, refer to the warranty card included with your product.
Customer Support
For technical assistance, service requests, or warranty claims, please contact Orient Electric customer support.
Manufacturer: RG Industries
Address: Plot No. 340, Phase 4, Sector 57, Kundli Industrial Estate, Sonipat 131028, India
For the most current contact information, please visit the official Orient Electric website or refer to the product packaging.
