ARREGUI Forma Evolution 151050 Wall-Mounted Safe User Manual

1. Introduction

This user manual provides comprehensive instructions for the safe and effective use of your ARREGUI Forma Evolution 151050 wall-mounted safe. Please read this manual thoroughly before installation and operation to ensure proper functionality and security. Keep this manual for future reference.

ARREGUI Forma Evolution 151050 wall-mounted safe with electronic keypad and keyhole

Image 1: Front view of the ARREGUI Forma Evolution 151050 wall-mounted safe, showing the electronic keypad and key entry point.

2. Product Features

The ARREGUI Forma Evolution 151050 safe is designed for high security and convenient access, featuring robust construction and advanced locking mechanisms.

2.1 Physical Characteristics

Construction Material: Manufactured from steel, laser-cut, and finished in white lacquer.
Front Protection: Features a 6 mm thick front door with an additional 3 mm anti-drill plate, totaling 9 mm of protection. The body has a 2 mm thickness.
Locking Bolts: Equipped with 7 nickel-plated steel bolts, 22 mm in diameter. These bolts are anti-saw (rotating to prevent cutting) and anti-lever (recess into an extra protection plate when closed).
Adjustable Depth: The safe's depth is adjustable to accommodate various wall thicknesses, offering 5 possible positions between 200 mm and 300 mm (200/225/250/275/300 mm).
Internal LED Light: A low-consumption LED light activates automatically when the safe is opened and deactivates when closed.

2.2 Opening and Closing System

Dual Security: Requires both the correct electronic code and the physical key to open.
Electronic Lock: Features a digital keypad with an 8-digit display.
Codes: Supports two types of codes: a master code and a user code, each 3 to 8 digits long (100 million possible combinations).
Temporary Lockout: The system temporarily locks after 5 incorrect code entries.
Display Features: The digital display shows helpful messages. A 'secret screen' function allows you to hide the entered code.
Sound Control: Keypad sound can be adjusted (4 intensity levels) or deactivated.
Power Supply: Operates on 4 AA 1.5V alkaline batteries (not included). The display indicates low battery status.

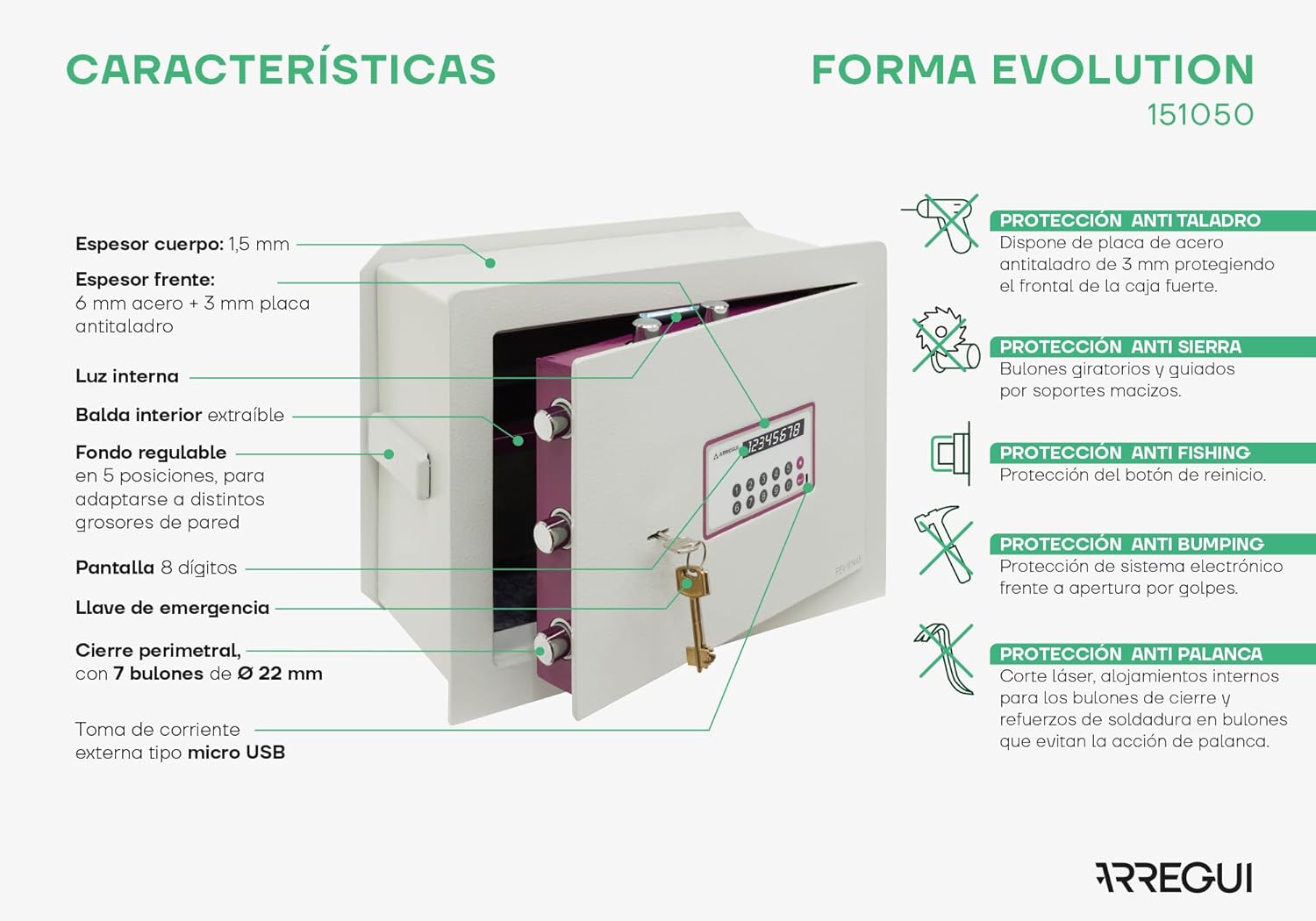

Diagram illustrating the features of the ARREGUI Forma Evolution 151050 safe, including body thickness, front thickness, internal light, adjustable depth, 8-digit display, emergency key, perimeter lock, and external micro USB power input. Also shows anti-drill, anti-saw, anti-fishing, anti-bumping, and anti-lever protections.

Image 2: Detailed diagram highlighting the key features and security mechanisms of the safe.

3. Setup and Installation

The ARREGUI Forma Evolution 151050 is a wall-mounted safe that requires construction work for proper installation into a wall. Professional installation is recommended.

3.1 Wall Preparation

Ensure the chosen wall location is suitable for supporting the safe's weight and dimensions.
Prepare an opening in the wall that accommodates the safe's external dimensions and allows for the adjustable depth mechanism.

3.2 Adjusting Safe Depth

Before embedding, adjust the safe's depth to match your wall thickness. The safe offers 5 depth positions (200mm, 225mm, 250mm, 275mm, 300mm).
Secure the safe firmly within the wall opening using appropriate construction methods to ensure it is flush and stable.

Diagram showing the dimensions of the ARREGUI Forma Evolution 151050 safe, including external height (32 cm), width (42 cm), and adjustable depth (20-30 cm). It also illustrates the internal dimensions and capacity, and lists included components like the shelf, manual, external micro USB charger, mat, 2 user keys, and 1 emergency key.

Image 3: Dimensions and included components for the safe.

4. Operating Instructions

This section details how to operate your ARREGUI Forma Evolution 151050 safe, including setting codes and daily use.

4.1 Battery Installation

Locate the battery compartment, typically inside the safe door.
Insert 4 new AA 1.5V alkaline batteries, ensuring correct polarity.
Close the battery compartment. The safe's display should activate.

4.2 Setting Your Personal Code

Upon first use, or after a factory reset, you will need to set your personal code. Refer to the specific instructions in the included manual for the exact procedure, which typically involves pressing a program button, entering your desired 3-8 digit code, and confirming it.

4.3 Opening the Safe

Enter your 3-8 digit personal code on the electronic keypad. The display will confirm the entry.
Insert the user key into the keyhole and turn it to the open position.
Pull the safe door open. The internal LED light will illuminate.

4.4 Closing the Safe

Close the safe door firmly.
Turn the user key to the locked position and remove it. The electronic lock will engage automatically.

Diagram showing two modes of opening: normal opening with personal code and user key, and emergency opening with emergency key or external charger. Also shows information about technical assistance and key duplication.

Image 4: Illustration of normal and emergency opening procedures.

5. Emergency Opening

In situations such as forgotten codes, depleted batteries, or keypad malfunction, the safe can be opened using emergency methods.

5.1 Using the Emergency Key

Locate the emergency keyhole, usually concealed.
Insert the emergency key and turn it to unlock the safe. This bypasses the electronic lock.
Once opened, you can replace batteries or reset the code as needed.

5.2 Using the External Power Supply

If batteries are depleted and you cannot open the safe, connect the provided external power supply (with microUSB connector) to the designated port on the safe's keypad.
This will temporarily power the electronic system, allowing you to enter your code and open the safe.
Once opened, replace the internal batteries immediately.

6. Maintenance

Regular maintenance ensures the longevity and reliable operation of your safe.

Battery Replacement: Replace batteries annually or when the low battery indicator appears on the display. Use only high-quality alkaline batteries.
Cleaning: Clean the exterior of the safe with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or electronic components.
Key Storage: Store emergency keys and spare user keys in a secure location away from the safe.

7. Troubleshooting

If you encounter issues with your safe, refer to the following common problems and solutions:

Safe Does Not Open with Code:
- Ensure batteries are not depleted. Use the external power supply if necessary.
- Verify you are entering the correct code.
- Check if the safe is in temporary lockout mode (after 5 incorrect attempts). Wait for the lockout period to expire.
Key Does Not Turn:
- Ensure the correct code has been entered and accepted by the electronic system. The key will only operate after a valid code.
- Check for any obstructions in the keyhole.
Display Not Working:
- Replace the batteries.
- If new batteries do not resolve the issue, use the external power supply.

For persistent issues not covered here, please contact ARREGUI customer support.

8. Specifications

Detailed technical specifications for the ARREGUI Forma Evolution 151050 safe:

Feature	Specification
Model Number	151050
External Dimensions (H x W x D)	32 cm x 42 cm x 20-30 cm (adjustable)
Internal Dimensions (H x W x D)	28 cm x 38 cm x 14.5-24.5 cm (adjustable)
Capacity	15 to 26 Liters (depending on depth)
Weight	23 kg
Door Thickness (Front)	6 mm steel + 3 mm anti-drill plate
Body Thickness	2 mm
Locking Bolts	7 nickel-plated steel bolts, 22 mm diameter
Lock Type	Electronic keypad with key (double security)
Code Length	3 to 8 digits
Power Source	4 x AA 1.5V alkaline batteries (not included)
Mounting Type	Wall-mounted (requires construction)
Included Components	Safe, user manual, 2 user keys, 1 emergency key, external microUSB power supply

9. Warranty and Support

Your ARREGUI Forma Evolution 151050 safe comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

9.1 Included Items

The product package contains:

ARREGUI Forma Evolution 151050 Safe
User Manual (this document)
2 User Keys
1 Emergency Key
External Power Supply with MicroUSB Connector

9.2 Technical Assistance and Key Duplication

ARREGUI offers technical assistance. For support or to request duplicate keys, please contact ARREGUI customer service. You will need the unique serial number engraved on your safe to request key duplication.
