iPower 19 Inch Bud Trimmer Leaf Bowl Machine User Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your iPower 19 Inch Bud Trimmer Leaf Bowl Machine. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

The iPower 19 Inch Bud Trimmer is designed to streamline the process of trimming excess leaves and twigs from plant material. It features a manual crank system, interchangeable stainless steel blades for both wet and dry trimming, and a transparent dome for visibility during operation.

Important Safety Instructions

• Always ensure the unit is stable on a flat, secure surface before operation.
• Keep hands and loose clothing away from moving parts, especially the blades, during operation.
• Exercise extreme caution when handling or changing blades. Blades are sharp and can cause injury.
• Do not allow children or unauthorized personnel to operate or tamper with the trimmer.
• Wear appropriate personal protective equipment, such as gloves, when handling plant material and cleaning the unit.
• Clean the unit thoroughly after each use to prevent residue buildup and maintain hygiene.
• Store the trimmer in a dry, secure location, out of reach of children.

Package Contents

Verify that all items listed below are present in your package:

• 1 x iPower 19 Inch Leaf Trimmer Bowl Machine
• 1 x Stainless Steel Straight Blade (for wet trimming)
• 1 x Stainless Steel Serrated Blade (for dry trimming)
• 1 x Silicone Anti-slip Pad
• 1 x Hand Pruning Shear
• 1 x 6.5 Inch Pruning Shear for Gardening Potting

Image: The iPower 19 Inch Bud Trimmer Leaf Bowl Machine shown with its main components and included accessories: the bowl trimmer, two types of blades, and two pruning shears.

Setup Instructions

1. Unpack Components: Carefully remove all parts from the packaging.
2. Place Anti-slip Pad: Position the silicone anti-slip pad on a stable, flat surface where you intend to operate the trimmer.
3. Assemble Bowl: Place the stainless steel bowl onto the anti-slip pad.
4. Install Grate: Insert the metal grate into the bowl, ensuring it sits securely at the bottom.
5. Attach Blades: Select the appropriate blade for your trimming needs (straight blade for wet trimming, serrated blade for dry trimming). Carefully align the blade onto the central shaft and secure it. Refer to the image below for blade installation.


   Image: A detailed view of the interchangeable straight-edge and serrated stainless steel blades, highlighting their design for different trimming applications (wet vs. dry).

6. Secure Top Cover: Place the transparent dome cover over the bowl, aligning the central shaft with the handle mechanism. Ensure the silicone ring creates a tight seal between the cover and the bowl.


   Image: An exploded diagram illustrating the various components of the iPower Bud Trimmer, including the labor-saving handle, transparent cover, food-grade silicone curtain, silicone ring, stainless steel bowl, and non-slip silicone pad.

7. Attach Handle: Secure the ergonomic handle to the top of the central shaft. Ensure it is firmly attached for smooth rotation.

Operating Instructions

1. Prepare Plant Material: Gently place your plant material onto the grate inside the bowl. Do not overfill the bowl; ensure there is enough space for the material to move freely.
2. Close and Secure Cover: Ensure the transparent dome cover is properly seated and sealed.
3. Begin Trimming: Grasp the ergonomic handle and begin rotating it in a circular motion. The internal silicone fingers will gently move the plant material across the blades, trimming excess leaves.

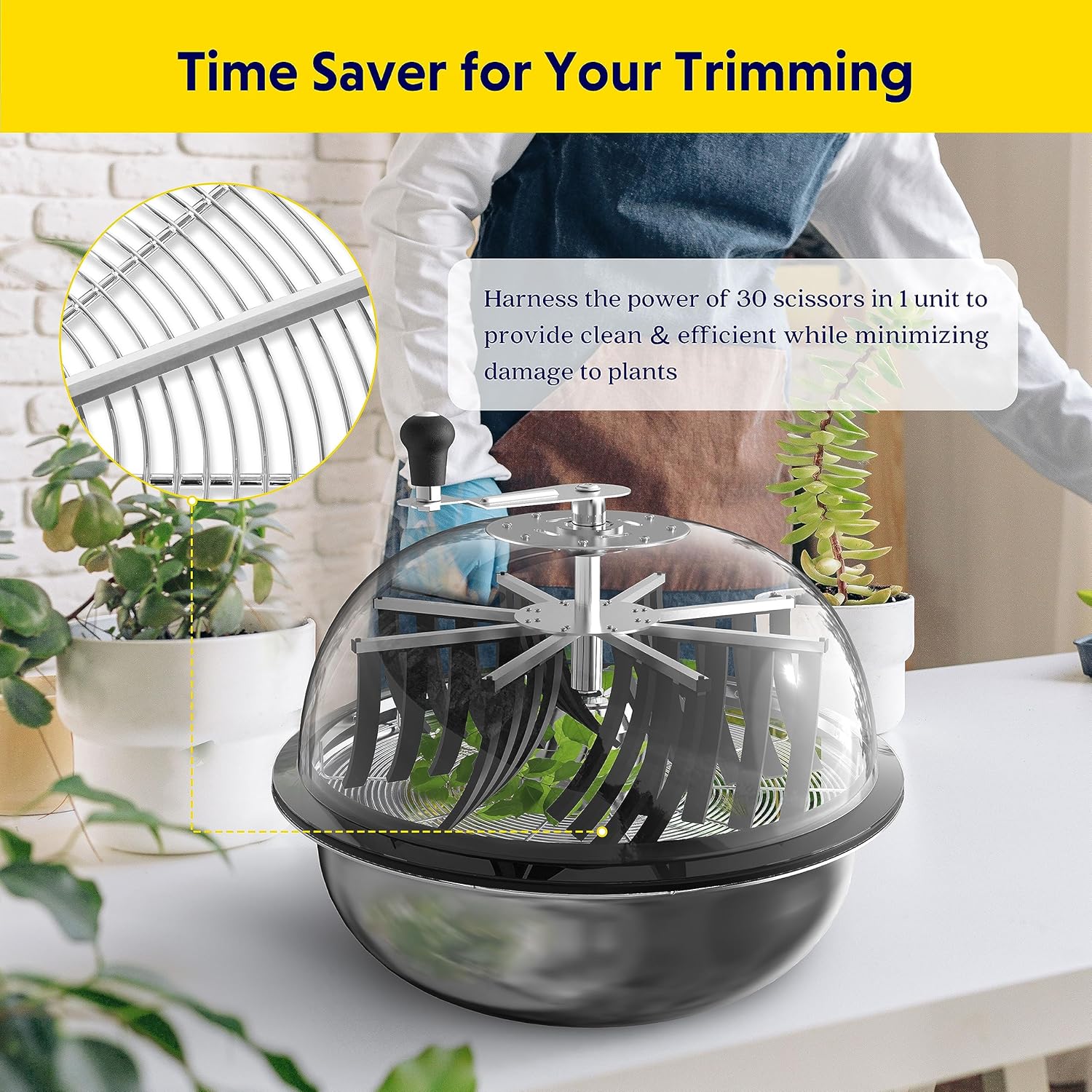

   Image: The iPower Bud Trimmer in operation, demonstrating how the unit efficiently trims plant material by harnessing the power of multiple blades in one unit.

4. Monitor Progress: Utilize the transparent dome to observe the trimming process. Continue rotating the handle until the desired level of trimming is achieved.


   Image: A detailed view of the ergonomic handle and the 360-degree rotating cycle, illustrating the smooth operation of the trimmer.

5. Retrieve Material: Once trimming is complete, stop rotating the handle, remove the top cover, and carefully retrieve the trimmed plant material from the bowl. The trimmed leaves will collect in the bottom section of the bowl.

Using Included Pruning Shears

The included hand pruning shears and 6.5-inch pruning shears are useful for pre-trimming larger branches or for fine detail work after the main trimming process. They feature ergonomic designs for comfortable use and high-quality springs for efficient cutting.

Image: A close-up of the ergonomic pruning shears, highlighting their comfort grip handles and high-quality spring design for reduced hand strain during use.

Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your iPower Bud Trimmer and ensure consistent performance.

1. Disassembly: After each use, disassemble the trimmer by removing the handle, transparent cover, and blades.
2. Blade Cleaning: Carefully clean the stainless steel blades. Warm soapy water and a soft brush are recommended. For stubborn residue, isopropyl alcohol can be used. Ensure blades are completely dry before reassembly or storage.
3. Bowl and Grate Cleaning: Wash the stainless steel bowl and metal grate with warm soapy water. Rinse thoroughly and dry completely.
4. Silicone Components: The silicone curtain and ring can be washed with warm soapy water. Their non-stick surface minimizes residue adhesion.
5. Reassembly: Reassemble the unit only when all components are dry.
6. Storage: Store the clean and dry trimmer in a safe, dry place.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact information provided with your purchase or visit the official iPower website. Keep your purchase receipt as proof of purchase for any warranty claims.

iPower Official Website: iPower Store on Amazon
