Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Yaheetech Full Bed Frame. Designed with a high headboard and footboard featuring petal accents, this metal platform bed offers both aesthetic appeal and practical functionality, including ample under-bed storage and robust support without the need for a box spring. Please read all instructions carefully before beginning assembly.
Safety Information
- Exercise caution around sharp edges during assembly and handling.
- Do not exceed the maximum weight capacity of 450 lbs.
- Always follow assembly instructions precisely to ensure the bed's stability and structural integrity.
- Keep the under-bed storage area clear of excessive clutter to prevent potential tip-over hazards.
- Ensure all connections are securely tightened to prevent wobbling or squeaking.
Components and Parts List
Before assembly, verify that all components and hardware are present. All necessary hardware and handy tools are included in the package.
- Headboard
- Footboard
- Side Rails
- Center Rails
- Metal Slats (12 built-in)
- Support Legs (6)
- Assembly Hardware (bolts, nuts, washers)
- Assembly Tools (Allen wrench)
Figure 1: Key components and features of the bed frame, including the high headboard, durable metal tubes, ample under-bed storage (14.4 inches clearance), and protective rubber caps on the feet.
Setup and Assembly
Assembly is designed to be straightforward and can typically be completed in under an hour with two people. It is recommended to assemble the bed frame in the room where it will be used to avoid moving it after assembly.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify and separate the headboard, footboard, side rails, and support legs. Numbered parts are provided for easy identification.
- Attach the side rails to the headboard and footboard using the provided hardware. Ensure all bolts are finger-tight initially.
- Connect the center rails and install the 12 built-in metal slats. The slats are designed to easily pop into place.
- Secure all connections, including those fastened with L-shaped plates, using the Allen wrench. Ensure all bolts are fully tightened for maximum stability and to prevent squeaking.
- Place your mattress directly onto the metal slats. A box spring is not required.

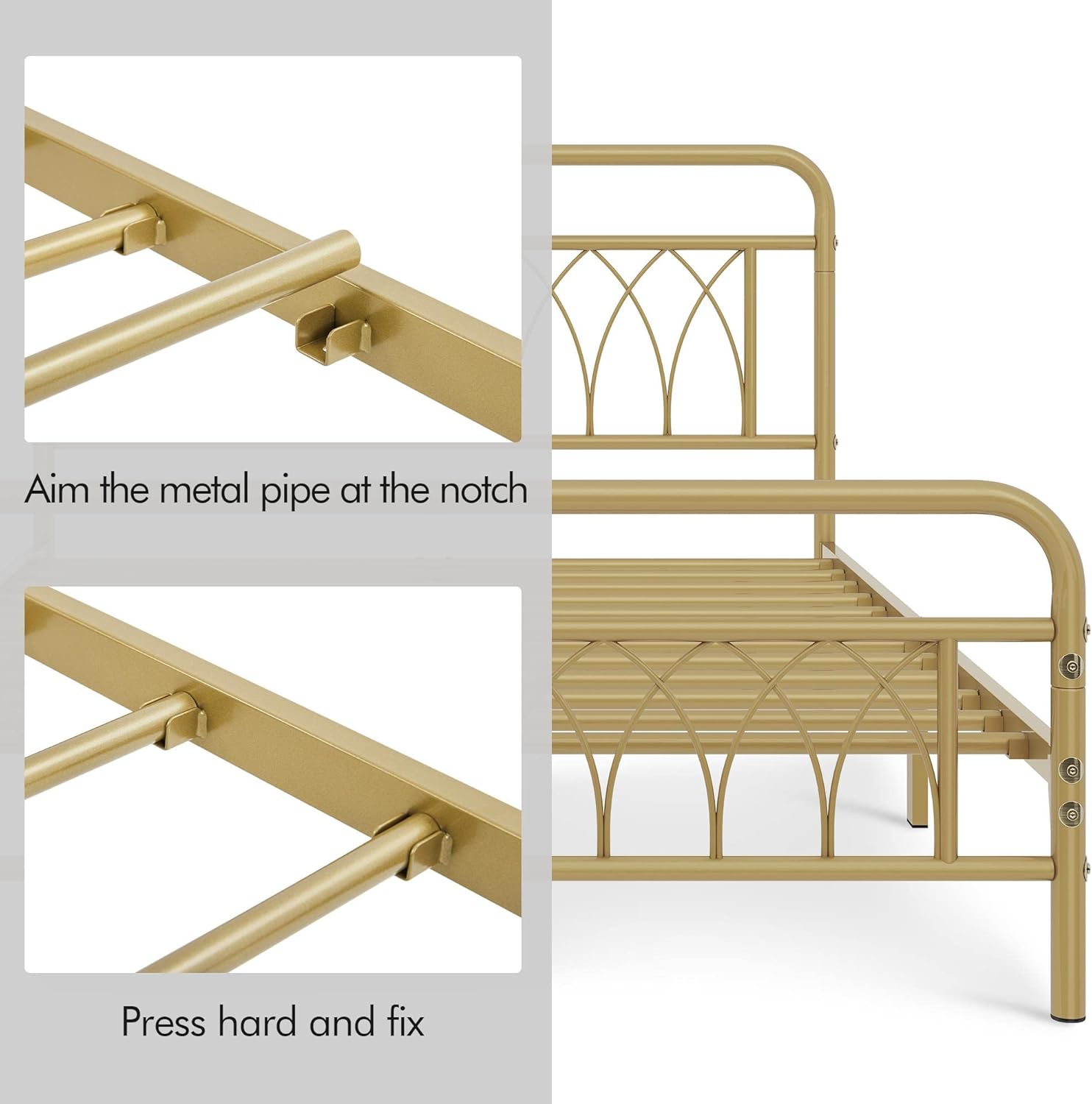

Figure 2: Visual guide for connecting metal components during assembly, demonstrating the "aim at notch" and "press hard and fix" steps.
Figure 3: Detail of the L-shaped plates used to secure connections, ensuring enhanced stability and durability of the bed frame.
Video 1: Official assembly video demonstrating the setup process for the Yaheetech Metal Bed Frame (Queen/Full size). This video provides a direct and clear demonstration of the steps outlined in the manual.
Operating Instructions
This platform bed is designed for direct mattress placement, eliminating the need for a box spring. The integrated metal slats provide robust support and prevent mattress slippage.
- Place your mattress directly on the metal slats.
- The high headboard provides a comfortable backrest for reading or lounging.
- Utilize the 14.4-inch under-bed clearance for storage solutions, such as storage bins or boxes.
Figure 4: Illustration showing how the built-in slats securely hold the mattress in place, preventing unwanted movement.
Figure 5: Comparison demonstrating the effectiveness of built-in slats in preventing mattress sliding, ensuring a stable sleeping surface.
Maintenance
- Regularly check all bolts and connections to ensure they remain tight. Re-tighten as needed to maintain stability and prevent squeaking.
- Clean the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Inspect the rubber caps on the support legs periodically to ensure they are intact and continue to protect your flooring.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is squeaking. | Loose bolts or connections. | Tighten all bolts and connections securely. |
| Mattress is sliding. | Improper mattress placement or insufficient friction. | Ensure mattress is centered on the built-in slats. The slats are designed to prevent sliding. |
| Bed feels unstable. | Incomplete or incorrect assembly. | Review assembly instructions and ensure all parts are correctly installed and tightened. Verify all support legs are making firm contact with the floor. |
Specifications
| Feature | Detail |
|---|---|
| Size | Full |
| Product Dimensions | 78"L x 56"W x 41"H |
| Max. Weight Capacity | 450 lbs |
| Under Bed Storage Clearance | 14.4 inches (13 inches ground to item distance) |
| Color | Antique Gold |
| Material | Powder Coated Steel |
| Box Spring Required | No |
| Assembly Required | Yes |
| Model Number | YT-00117038-V01 |
Figure 6: Comprehensive dimensions of the bed frame, including overall length (78"), width (56"), height (41"), and ground clearance (13").
Warranty and Support
For any questions, concerns, or support needs regarding your Yaheetech Full Bed Frame, please refer to the customer support information provided at the point of purchase. Yaheetech is committed to providing quality products and customer satisfaction.
For additional assistance, you may visit the official Yaheetech Store on Amazon.
