Introduction
Thank you for purchasing the OUKANING Crystal Pendant Light set. These modern and elegant pendant lights are designed to enhance the ambiance of your kitchen island, dining room, bedroom, or hallway. This manual provides essential information for safe installation, operation, and maintenance of your new lighting fixtures. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
- WARNING: To avoid electric shock, ensure the power supply is turned off at the circuit breaker or fuse box before installation, maintenance, or bulb replacement.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Do not exceed the maximum wattage specified for the bulb socket.
- Handle crystal components with care to prevent breakage.
- Ensure the fixture is securely mounted to a structural part of the ceiling.
- Do not connect the fixture to an ungrounded electrical system.
Package Contents
Verify that all components are present and undamaged before beginning installation.
- 3 x Crystal Pendant Light Fixtures (including canopy, adjustable cord, crystal shade, and crystal balls)
- 1 x Set of Mounting Hardware (screws, wire nuts, mounting bracket)
Note: E26 bulbs are not included and must be purchased separately.
Specifications
| Brand | OUKANING |
| Model Number | 2805/2806 |
| Material | Metal and Crystal |
| Color | Clear Crystal, Chrome Finish |
| Fixture Dimensions | 7.48 inches (Diameter) x 9.25 inches (Height) |
| Adjustable Cord Length | Up to 70.87 inches |
| Voltage | AC 110-120V |
| Socket Type | E26 Candelabra Lamp Base |
| Max Wattage | 60 Watts per bulb |
| Compatible Bulb Types | LED, CFL, Incandescent, Halogen, Color Changing |
The fixture features premium crystal bars and crystal balls, designed to emit soft light and create a romantic atmosphere.
Figure 1: Product Dimensions and Adjustable Cord
Setup and Installation
Professional installation by a qualified electrician is recommended for safety and proper functionality.
- Turn Off Power: Before starting, ensure the power to the installation area is completely turned off at the main circuit breaker or fuse box.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Prepare Mounting Bracket: Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure it is securely fastened.
- Adjust Cord Length: The pendant light features an adjustable cord up to 70.87 inches. Determine your desired hanging height. To shorten the cord, push the cord into the ceiling canopy until the desired length is achieved. The excess cord will be stored inside the canopy.
- Wire Connections: Connect the fixture's wires to the corresponding house wires using the provided wire nuts.
- Connect the black wire (live) from the fixture to the black wire (live) from the ceiling.
- Connect the white wire (neutral) from the fixture to the white wire (neutral) from the ceiling.
- Connect the ground wire (bare copper or green) from the fixture to the ground wire from the ceiling.
- Mount Canopy: Carefully push the canopy up to the ceiling, aligning the holes in the canopy with the screws on the mounting bracket. Secure the canopy in place with the decorative nuts.
- Install Bulb: Screw an E26 base bulb (not included, max 60W) into the socket.
- Restore Power: Once installation is complete and all connections are secure, turn the power back on at the circuit breaker.
Figure 2: Ceiling Mounting Options and Cord Adjustment
Operating Instructions
The OUKANING Crystal Pendant Light operates via a standard wall switch (not included). Simply toggle the wall switch to turn the light fixture on or off.
- Bulb Compatibility: This fixture is compatible with E26 base bulbs, including LED, CFL, incandescent, halogen, and color-changing bulbs, up to a maximum of 60 watts.
- Light Quality: The high-quality crystal components are designed to diffuse light, creating a soft and pleasant illumination while protecting your eyes.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your pendant lights.
- Cleaning: Turn off the power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the metal and crystal surfaces. Avoid using abrasive cleaners, solvents, or polishes, as these can damage the finish and crystal.
- Bulb Replacement: Ensure the power is off and the bulb has cooled before attempting to replace it. Unscrew the old bulb and screw in a new E26 bulb (max 60W).
- Crystal Inspection: Periodically check the crystal components for any looseness or damage.

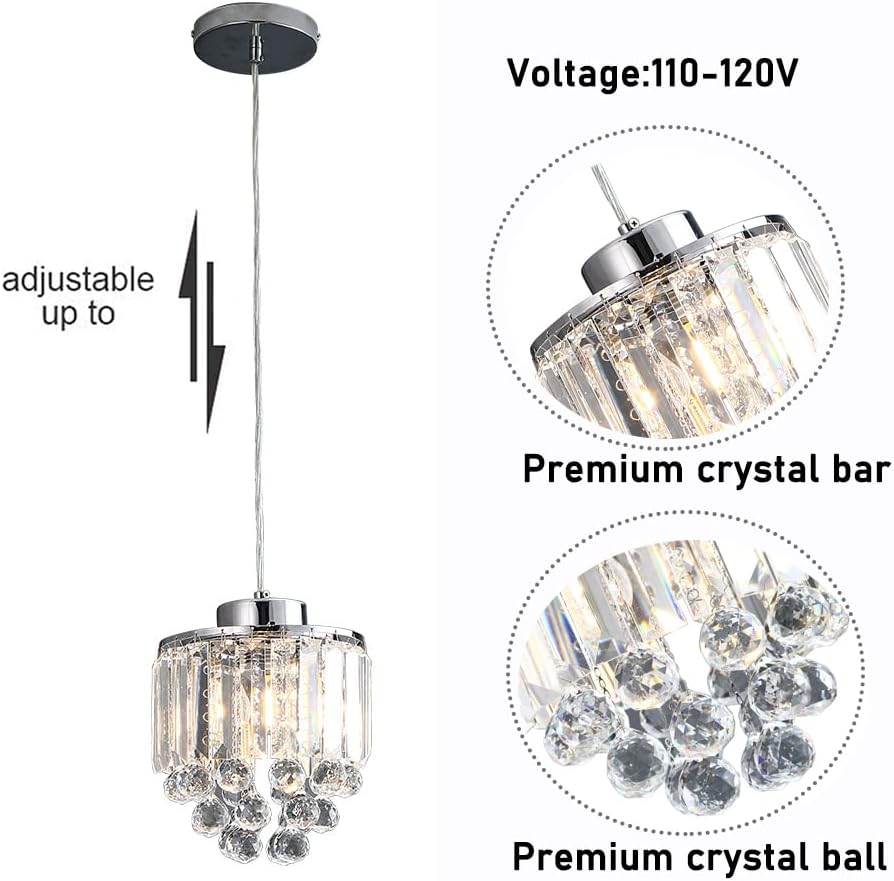

Figure 3: Premium Crystal Bar and Ball Details
Troubleshooting
If you encounter issues with your pendant light, refer to the following common problems and solutions:
| Problem | Possible Cause / Solution |
|---|---|
| Light does not turn on |
|
| Light flickers |
|
| Fixture is loose |
|
Warranty and Support
OUKANING stands behind the quality of its products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical support, missing parts, or warranty inquiries, please contact the seller or visit the official OUKANING store on Amazon: OUKANING Store.
