Ibergrif M22143B Professional Kitchen Faucet

Introduction

Welcome to the Ibergrif M22143B Professional Kitchen Faucet manual. This guide provides essential information for the safe installation, operation, and maintenance of your new kitchen faucet. Please read these instructions thoroughly before installation and keep them for future reference to ensure optimal performance and longevity of your product.

Image: Ibergrif M22143B Professional Kitchen Faucet in a kitchen setting.

Safety Information

• Always turn off the main water supply before beginning any installation, repair, or maintenance work.
• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Ensure all connections are secure and watertight to prevent leaks.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Avoid using abrasive cleaners, harsh chemicals, or scouring pads on the faucet's finish, as these can cause damage.

Package Contents

Please verify that all components are present before beginning installation:

• Ibergrif M22143B Kitchen Faucet (1)
• Mounting hardware (washers, nuts)
• Hot and cold water supply lines (G3/8" standard)
• Installation manual

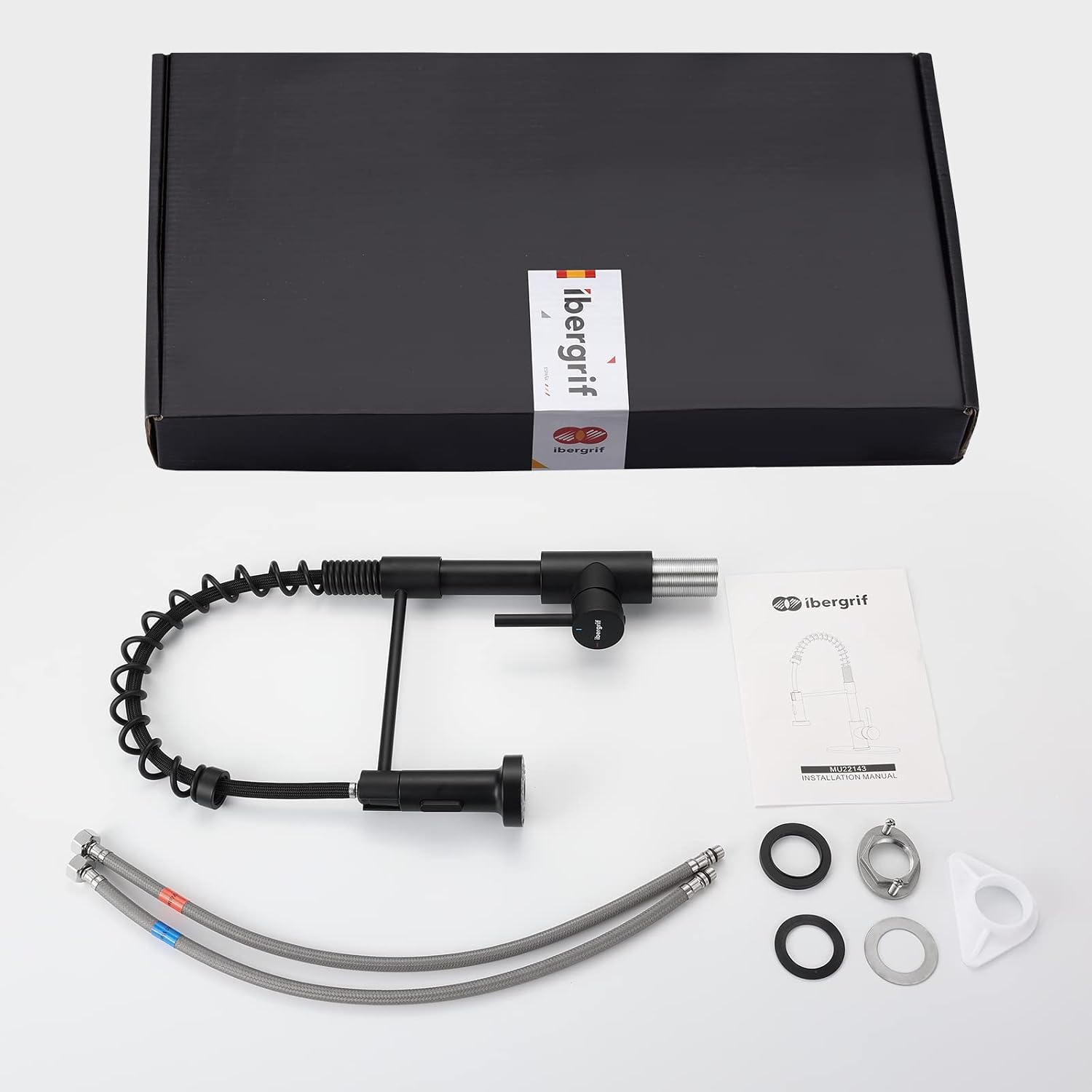

Image: All components included in the Ibergrif M22143B package.

Image: Exploded diagram of faucet components.

Specifications

Image: Faucet dimensions.

Setup and Installation

Follow these steps for proper installation of your Ibergrif M22143B kitchen faucet:

Pre-Installation Checklist:

• Ensure all package contents are present and undamaged.
• Verify that your sink or countertop has a single hole suitable for deck mounting.
• Turn off the main water supply to your kitchen.

Mounting the Faucet:

1. Insert the faucet base into the mounting hole on your sink or countertop.
2. From underneath the sink, slide the rubber washer, metal washer, and then the mounting nut onto the threaded shank of the faucet.
3. Tighten the mounting nut firmly by hand, then use a wrench to secure it, ensuring the faucet is stable and properly aligned. Do not overtighten.

Connecting Water Supply Lines:

1. Connect the hot and cold water supply lines to the corresponding water outlets (typically marked red for hot and blue for cold). The provided lines are G3/8" standard.
2. Important Note for UK Installations: Some regions, particularly the UK, may require specific adapters (e.g., EU-UK adapters or 15-12mm isolating valves) for compatibility with local plumbing standards. These are not included. Consult a local plumbing professional if necessary to ensure correct fittings.
3. Ensure all connections are watertight. Use thread sealant tape (PTFE tape) on threaded connections if recommended by your plumber.

Testing:

1. Slowly turn on the main water supply.
2. Check all connections for any signs of leaks. If leaks occur, tighten the connections as needed.
3. Operate the faucet handle to ensure proper hot and cold water flow and to flush out any debris from the lines.

Operating Instructions

Water Flow and Temperature Control:

The single lever handle allows for precise control of both water temperature and flow volume:

• Move the handle to the left for hot water.
• Move the handle to the right for cold water.
• Lift the handle to increase flow volume.
• Lower the handle to decrease flow volume.

Cold Start Feature (Kelogic):

This faucet incorporates a cold start system for energy efficiency. When the lever is in the central position, only cold water flows, preventing the unnecessary activation of your water heater. Hot water is only engaged when the handle is moved to the left.

Image: Cold Start (Kelogic) feature.

Dual-Function Pull-Out Sprayhead:

The retractable sprayhead offers versatility for various kitchen tasks:

• Stream Mode: Provides a steady, aerated flow for filling pots and general washing.
• Spray Mode: Delivers a powerful spray for rinsing dishes and cleaning the sink.

Press the button located on the sprayhead to easily switch between stream and spray modes.

Image: Dual-function sprayhead with stream and spray modes.

Image: Hand operating the pull-out sprayhead.

360° Swivel Spout:

The faucet spout is designed to swivel a full 360 degrees, providing maximum flexibility and reach for all your kitchen needs, from filling large pots to cleaning multiple sink basins.

Image: Faucet with 360-degree swivel capability.

Maintenance

Cleaning:

• Clean the faucet regularly with a soft, damp cloth and mild soap.
• Immediately wipe away any water spots to prevent mineral buildup.
• Do not use abrasive cleaners, scouring pads, ammonia-based products, or harsh chemicals, as these can damage the matte black finish and void your warranty.
• The sprayhead features easy-clean rubber nozzles. Simply wipe them with your finger or a soft cloth to remove any mineral deposits and maintain optimal spray performance.

Leak Prevention:

• Periodically check all connections, especially under the sink, for tightness to prevent potential leaks.

Cartridge Care:

The ceramic valve cartridge is designed for long-lasting, drip-free performance. If you experience persistent drips or issues with water flow control, the cartridge may need inspection or replacement. It is recommended to consult a qualified professional for cartridge maintenance.

Troubleshooting

If you encounter any issues with your Ibergrif M22143B faucet, refer to the following common problems and solutions:

Warranty

Warranty information for the Ibergrif M22143B Professional Kitchen Faucet is not explicitly detailed in the provided product specifications. For comprehensive warranty terms and conditions, please refer to the manufacturer's official website or contact Ibergrif customer support directly.

Support

For further assistance, product information, or to explore other Ibergrif products, please visit the official Ibergrif store:

Visit Ibergrif Store
