Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif Kitchen Faucet with Extendable Spray Head. Designed for modern kitchens, this faucet combines functionality with elegant design, offering features like a 360° swivel, two spray modes, and water-saving technology.
The Ibergrif faucet is crafted from high-quality SUS304 stainless steel, ensuring durability and resistance to corrosion. Its innovative Cold Start system helps conserve energy and water, making it an environmentally conscious choice for your home.
Key Features
- Water and Energy Saving: Features an innovative Cold Start system that activates cold water in the central position, reducing energy consumption by 15% and water usage by 30% compared to traditional faucets.
- Modern High-Arc Design: Professional high-arc design with an exposed spring, providing ample space for large kitchen sinks and adding an industrial loft aesthetic.
- 360° Swivel Spray Head: The pull-down spray head pivots 360° for comprehensive cleaning coverage. It offers two distinct modes: Jet Turbo for intensive cleaning and Soft Rain for gentle rinsing. Optimized flow rate of 5.5 L/min for water efficiency.
- Express Installation: Designed for quick, tool-free installation, compatible with 99% of sinks (1.5-4 cm thickness).
- Certified Reliability: Constructed from lead-free SUS304 stainless steel and equipped with a ceramic cartridge tested for 1 million cycles, ensuring long-term reliability and compliance with EU standards.
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ibergrif Griferias S.L |
| Product Dimensions (L x W x H) | 47 x 20.5 x 5.5 cm |
| Weight | 1.7 Kilograms |
| Model Reference | M22143A |
| Color | Silver |
| Finish | Brushed |
| Material | Stainless Steel |
| Installation Method | Single Hole / Deck Mounted |
| Number of Pieces | 3 |
| Flow Rate | 1.5 Gallons per minute (5.5 L/min) |
| Hose Length | 70 Centimeters |
| Number of Handles | 1 |
| Spout Height | 18 Centimeters |
| Spout Reach | 25 Centimeters |
| Special Features | Lead-Free |
| Included Components | Installation Hardware |
Installation Guide
Before beginning installation, ensure you have all necessary components and tools. It is recommended to turn off the main water supply before starting.
Package Contents
The package includes the main faucet body, hot and cold water supply hoses (G3/8"), mounting hardware (gaskets, nuts, weight), and an installation manual. Please verify all parts are present before proceeding.
This diagram illustrates the complete set of components included with your Ibergrif kitchen faucet, ensuring you have everything required for a successful installation. Refer to this image to identify each part before assembly.
Step-by-Step Installation
- Prepare the Sink: Ensure the mounting hole on your sink or countertop is clean and free of debris. The faucet is compatible with holes between 1.5 cm and 4 cm in thickness.
- Mount the Faucet: Insert the main faucet body into the mounting hole. From underneath the sink, slide the rubber gasket, then the metal washer, and finally tighten the mounting nut to secure the faucet.
- Connect Water Supply Lines: Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body. Connect the other ends of the hoses to your hot and cold water supply valves. Ensure connections are tight to prevent leaks.
- Install the Spray Head Hose: Connect the pull-down spray head hose to the designated connection point on the faucet.
- Attach the Weight: Install the counterweight onto the pull-down hose beneath the sink. This weight helps the spray head retract smoothly.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are present, tighten the connections as needed.
Operating Instructions
Your Ibergrif kitchen faucet is designed for ease of use and efficiency.
Water Flow and Temperature Control
The single lever handle controls both water flow and temperature. In the central position, the faucet activates cold water (Cold Start feature), saving energy. Move the handle to the left for hot water and to the right for cold water. Adjust the handle's upward movement to increase water flow.
Spray Head Operation

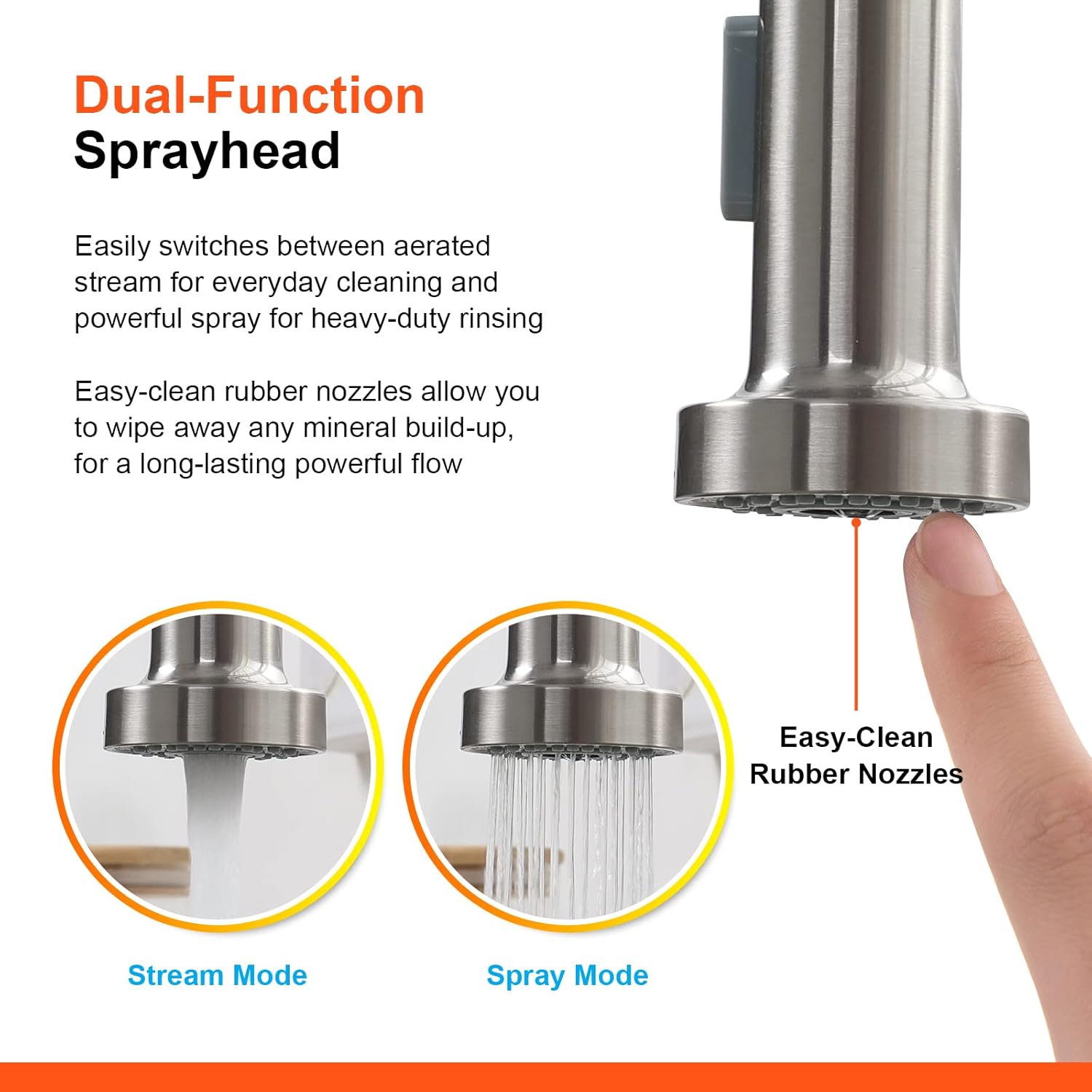

The pull-down spray head offers two distinct spray modes:
- Stream Mode: Provides a steady, aerated flow for everyday tasks like filling pots.
- Spray Mode: Delivers a powerful spray for heavy-duty rinsing and cleaning.

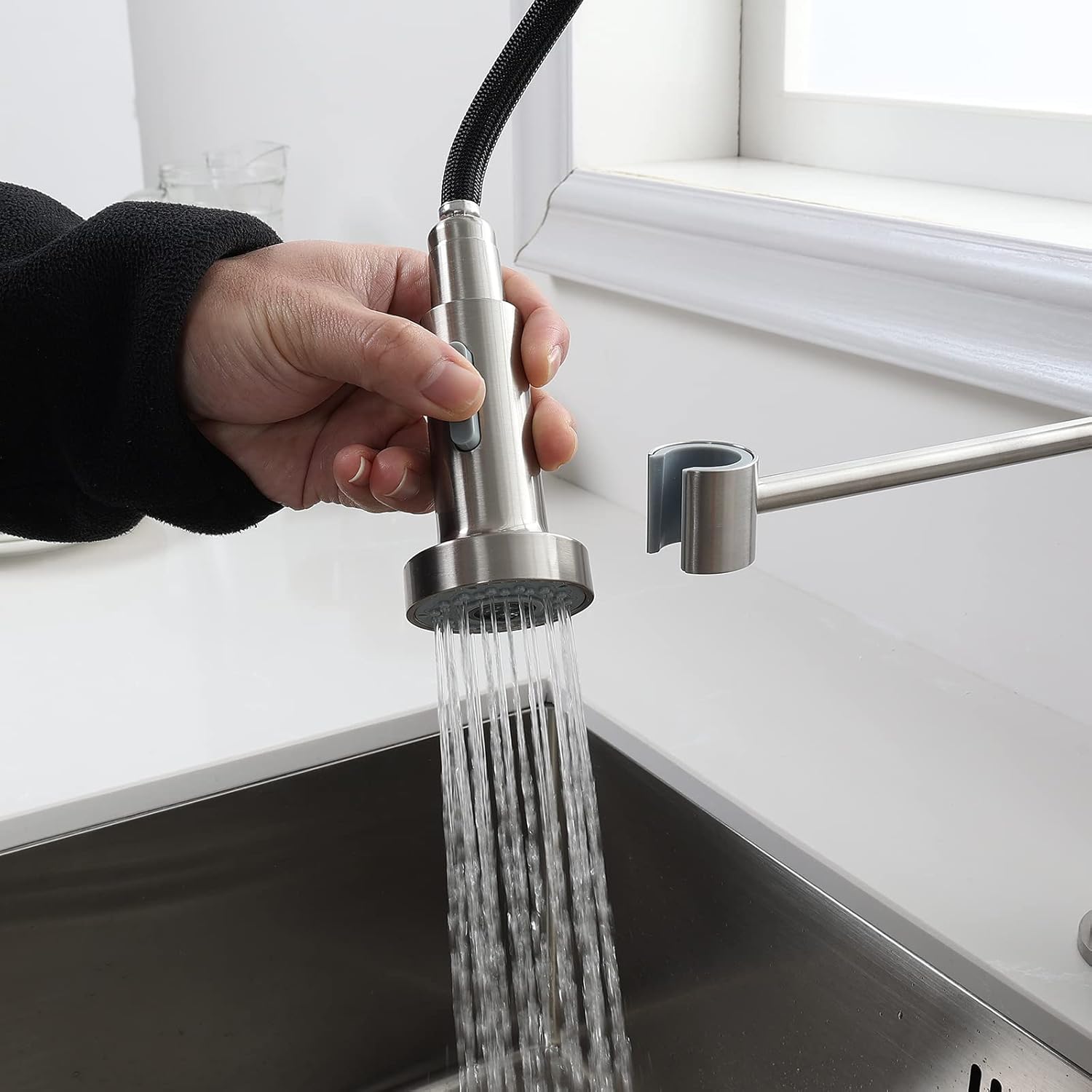

The spray head can be easily pulled down and extended to reach all corners of your sink, providing maximum flexibility for various kitchen tasks. After use, the counterweight ensures the spray head retracts smoothly back into place.
360° Swivel Functionality
The faucet spout and pot filler rotate independently through a full 360 degrees, allowing you to position the faucet precisely as needed for any kitchen task, from filling large pots to cleaning the sink.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Ibergrif kitchen faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Nozzle Maintenance: The spray head features easy-clean rubber nozzles. Periodically rub these nozzles with your finger to dislodge any mineral deposits or limescale build-up, ensuring a consistent spray pattern.
- Hose Inspection: Periodically inspect the pull-down hose and supply lines for any signs of wear, kinks, or leaks. Address any issues promptly.
- Cartridge Care: The ceramic cartridge is designed for long-term durability (1 million cycles). If you notice persistent drips or difficulty controlling water flow/temperature, the cartridge may need inspection or replacement by a qualified plumber.
Troubleshooting
If you encounter any issues with your Ibergrif kitchen faucet, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or mineral build-up in nozzles. Partially closed shut-off valves. | Unscrew the aerator from the spray head and clean any debris. Rub the rubber nozzles to clear mineral deposits. Ensure hot and cold water supply valves are fully open. |
| Leaking from Spout | Worn-out ceramic cartridge. | Contact customer support or a qualified plumber for cartridge inspection and potential replacement. |
| Leaking from Base | Loose mounting nut or improper sealing. | Ensure the mounting nut underneath the sink is securely tightened. Check that gaskets are properly seated. |
| Spray Head Does Not Retract Fully | Improperly positioned counterweight or obstruction. | Adjust the position of the counterweight on the pull-down hose. Ensure there are no obstructions preventing the hose from moving freely. |
| No Hot/Cold Water | Supply valve closed or issue with water heater. | Check that the hot/cold water supply valves under the sink are fully open. Verify your water heater is functioning correctly. |
Warranty and Support
Ibergrif products are manufactured to high-quality standards and are backed by a commitment to customer satisfaction. For specific warranty details, please refer to the warranty card included with your product or visit the official Ibergrif website.
For technical assistance, replacement parts, or any other inquiries, please contact Ibergrif customer support through their official channels. You can find more information and contact details on the Ibergrif Brand Store on Amazon.
