Garland CRUMMER 820 QG-V22 Gasoline Wood Chipper Instruction Manual

1. Safety Instructions

Always prioritize safety when operating the Garland CRUMMER 820 QG-V22 wood chipper. Failure to follow these instructions can result in serious injury or property damage.

• Read the Manual: Thoroughly read and understand this entire instruction manual before assembly, operation, or maintenance.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses or goggles, hearing protection, heavy-duty gloves, and sturdy footwear. Avoid loose clothing that could get caught in moving parts.
• Work Area: Operate the chipper on a firm, level surface. Keep the work area clear of bystanders, children, and pets. Maintain a safe distance from the discharge opening.
• Fuel Safety: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the chipper or fuel. Store gasoline in approved containers.
• Material Preparation: Only feed organic material into the chipper. Remove any metal, rocks, plastic, or other foreign objects from branches.
• Emergency Stop: Familiarize yourself with the location and operation of the engine stop switch.
• Maintenance Safety: Disconnect the spark plug wire before performing any maintenance or clearing clogs to prevent accidental starting.

2. Product Overview

2.1 Product Description

The Garland CRUMMER 820 QG-V22 is a robust gasoline-powered wood chipper designed for efficient shredding of garden waste. It features a powerful 4-stroke, 208 cc engine delivering 5.2 HP, utilizing a blade disc system to process branches up to 7 cm (approximately 2.75 inches) in diameter. This machine is ideal for reducing brush, branches, and other organic debris into mulch for composting or disposal.

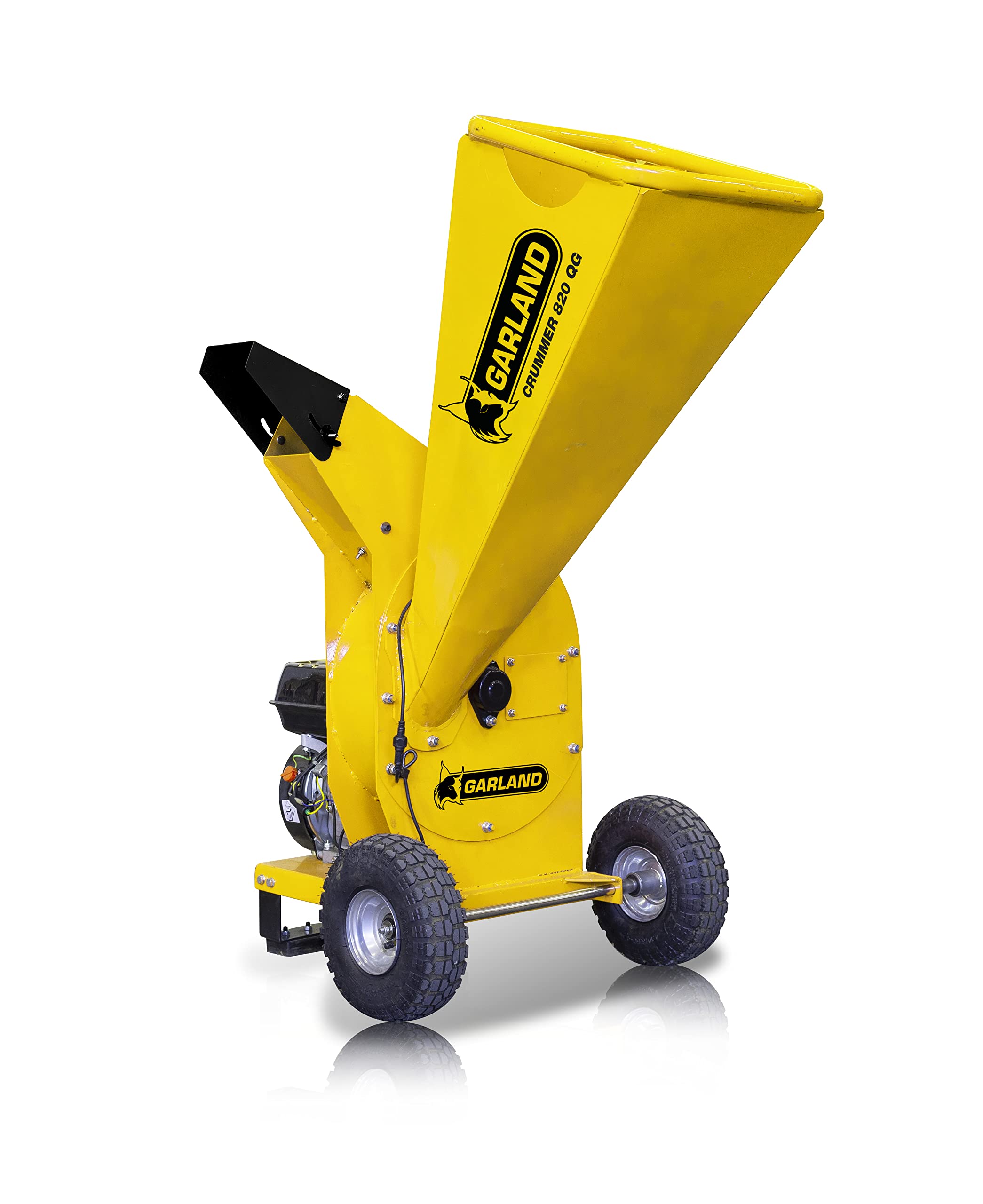

Image 1: Garland CRUMMER 820 QG-V22 gasoline wood chipper in operation, with a person feeding branches into the hopper. The chipper is yellow with black accents and has two wheels for mobility.

2.2 Components Included

The package includes the Garland CRUMMER 820 QG-V22 Wood Chipper unit. Key components of the chipper include:

• Main Chipper Unit with Engine
• Feeding Hopper
• Discharge Chute
• Blade Disc Shredding System
• Wheels for Portability

Image 2: Detailed view of the Garland CRUMMER 820 QG-V22 wood chipper, highlighting its engine and shredding mechanism. The yellow body and black engine components are clearly visible.

3. Setup

3.1 Unpacking

Carefully remove all components from the packaging. Inspect for any shipping damage. Retain packaging materials for future storage or transport.

3.2 Assembly

The Garland CRUMMER 820 QG-V22 may require minor assembly, typically involving attaching the wheels, feeding hopper, and discharge chute. Refer to the assembly diagrams in the separate assembly guide for detailed instructions. Ensure all fasteners are securely tightened before operation.

3.3 Fuel and Oil Filling

This chipper is powered by a 4-stroke gasoline engine. Before first use, and periodically thereafter, ensure proper fuel and oil levels.

• Engine Oil: Fill the engine crankcase with the recommended 4-stroke engine oil (refer to the engine manual for specific type and capacity). Do not overfill.
• Gasoline: Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or mixed fuels. Ensure the fuel cap is securely fastened.

3.4 Pre-Operation Checks

Before each use, perform the following checks:

• Check engine oil level.
• Check fuel level.
• Inspect blades for sharpness and damage.
• Ensure all guards and covers are in place and securely fastened.
• Verify that the work area is clear of obstructions and bystanders.

4. Operating Instructions

4.1 Starting the Engine

1. Ensure the chipper is on a level surface.
2. Turn the fuel valve to the 'ON' position.
3. Set the choke lever to the 'CHOKE' position (for cold starts).
4. Move the throttle lever to the 'FAST' position.
5. Pull the starter rope firmly until the engine starts.
6. Once the engine starts, gradually move the choke lever to the 'RUN' position.
7. Allow the engine to warm up for a few minutes before beginning operation.

4.2 Feeding Material

• Always wear appropriate PPE.
• Feed branches and other organic material into the hopper one at a time.
• Do not force material into the chipper. Allow the blades to pull the material through.
• Do not exceed the maximum branch diameter of 7 cm.
• Keep hands and feet clear of the hopper opening and discharge chute. Use a push stick if necessary to feed shorter pieces.
• Avoid feeding wet or excessively leafy material, as this can cause clogging.

4.3 Stopping the Engine

1. Move the throttle lever to the 'SLOW' or 'IDLE' position.
2. Allow the engine to idle for a minute to cool down.
3. Turn the engine stop switch to the 'OFF' position.
4. Turn the fuel valve to the 'OFF' position for storage.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your wood chipper. Always disconnect the spark plug wire before performing any maintenance.

5.1 Engine Maintenance

• Oil Change: Change engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first.
• Air Filter: Clean or replace the air filter regularly, especially when operating in dusty conditions.
• Spark Plug: Inspect and clean the spark plug annually. Replace if worn or fouled.
• Fuel Filter: Inspect and replace the fuel filter as needed.

5.2 Blade Maintenance

• Inspection: Regularly inspect the shredding blades for sharpness, nicks, or damage. Dull blades reduce efficiency and can strain the engine.
• Sharpening/Replacement: Sharpen or replace blades as necessary. Always replace blades in sets to maintain balance. Refer to the service manual for detailed instructions on blade removal and installation.

5.3 Cleaning and Storage

• Cleaning: After each use, clean the chipper, especially the hopper and discharge chute, to prevent material buildup. Ensure all debris is removed from around the engine and moving parts.
• Storage: Store the chipper in a clean, dry, and well-ventilated area. If storing for an extended period, drain the fuel tank or use a fuel stabilizer to prevent fuel degradation.

6. Troubleshooting

This section addresses common issues you might encounter with your Garland CRUMMER 820 QG-V22 wood chipper.

7. Specifications

• Model: Garland CRUMMER 820 QG-V22
• Manufacturer Model Number: 60G-0026
• Engine Type: 4-stroke Gasoline Engine
• Engine Displacement: 208 cc
• Engine Power: 5.2 CV (HP)
• Shredding Mechanism: Blade Disc System
• Maximum Branch Diameter: 7 cm (approximately 2.75 inches)
• Product Dimensions (L x W x H): 50 x 50 x 28 cm
• Components Included: Wood Chipper Unit
• Country of Origin: Spain

8. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact your authorized Garland dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region and are typically provided with the product at the time of purchase.

Manufacturer: Productos Mcland. S.L.
