Tietoc Cordless Mini Chainsaw User Manual

Introduction

The Tietoc Cordless Mini Chainsaw is a lightweight and powerful tool designed for efficient wood cutting, garden pruning, and shrub trimming. Its compact size and battery-powered operation make it ideal for various tasks around the home, garden, farm, or orchard. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your mini chainsaw.

This mini chainsaw is designed to be user-friendly, especially for individuals who may find larger chainsaws intimidating. It weighs only 3.6 lbs, making it easy to handle and reducing arm/hand fatigue during extended use.

Figure 1: Tietoc Cordless Mini Chainsaw and included accessories.

Package Contents

Your Tietoc Cordless Mini Chainsaw package includes the following items, all securely packed in a portable ABS box:

• Mini Chainsaw ×1
• Rechargeable Li-on Battery ×2
• Chain ×2 (1 has been mounted on the chainsaw)
• Guide Plate ×2 (1 has been mounted on the chainsaw)
• Quick Charger ×1
• Safety Gloves ×1 pair
• Screwdriver ×1
• Guide plate sheath ×1

Figure 2: Complete package contents.

Setup

Battery Installation

Align the battery with the groove on the top of the chainsaw handle and insert it firmly until it clicks into place. To remove, press the release button on the battery and pull it out.

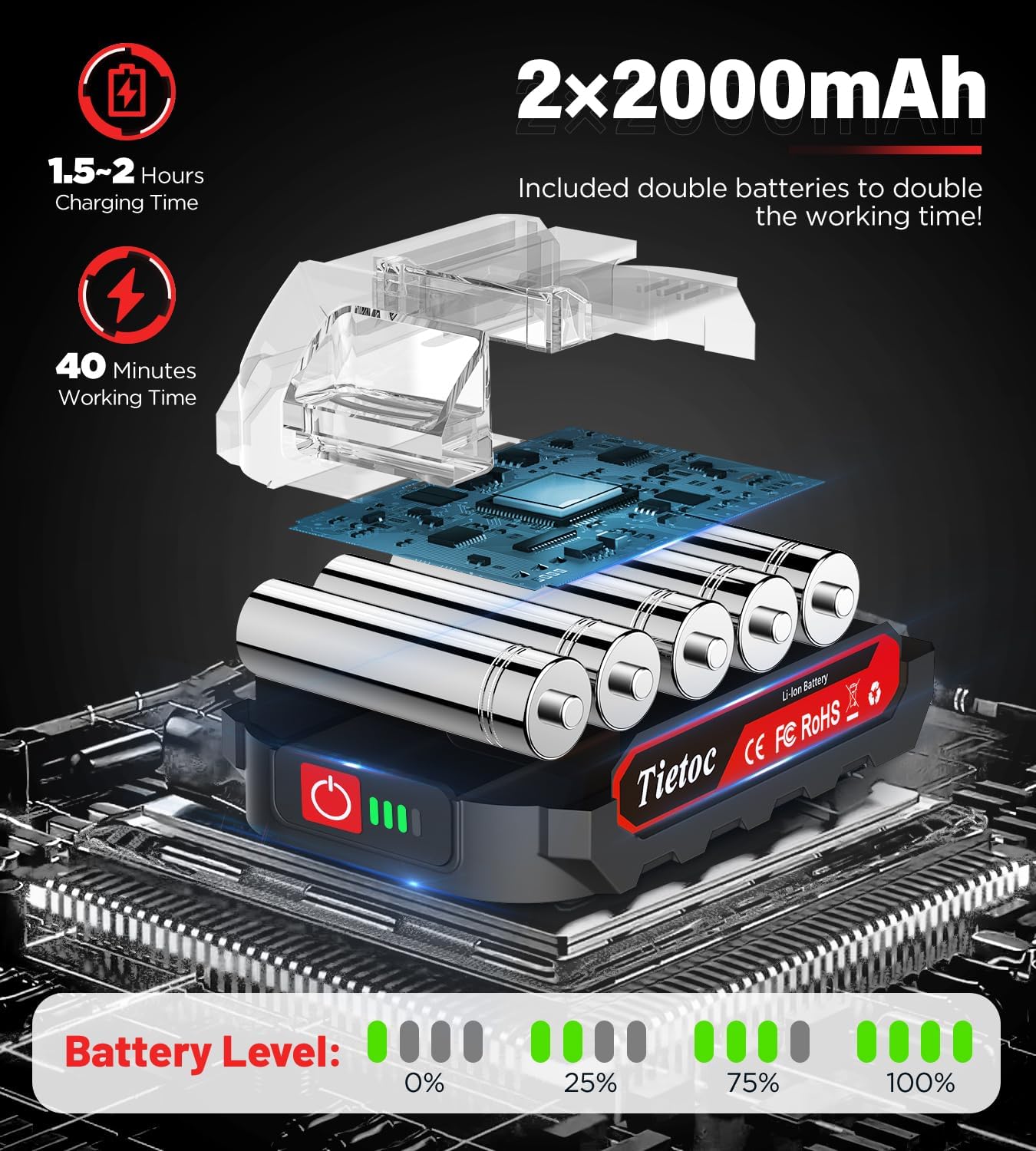

Figure 3: Battery with charge indicator.

Chain and Guide Plate Installation/Adjustment

The chainsaw comes with one chain and guide plate pre-mounted. If you need to replace or adjust them, follow these steps:

1. Rotate the side cover knob (1/4 turn) counter-clockwise to remove the side cover.
2. Carefully place the chain around the guide plate, ensuring the teeth are oriented correctly for cutting.
3. Position the chain and guide plate onto the chainsaw.
4. Tighten the top screw using the provided screwdriver until the chain tension is 1-3mm.
5. Tighten the side cover knob clockwise to secure the cover.

Figure 4: Chain and guide plate assembly steps.

Automatic Oiling System

This mini chainsaw is equipped with an automatic chain lubrication system. Proper lubrication is crucial for smooth cutting and to reduce wear and tear on the chain and guide plate.

1. Open the black cover of the oil tank.
2. Pour 10-20ml of lubricating oil (general motor oil is suitable) into the fuel tank. Do not exceed 30ml.
3. Close the black lid tightly to prevent leakage.
4. Before starting the chainsaw, press the transparent button 3-4 times to circulate oil to the chain.

It is recommended to lubricate the chain every 20 times of cutting wood to ensure a smooth cut and prolong the life of the chain.

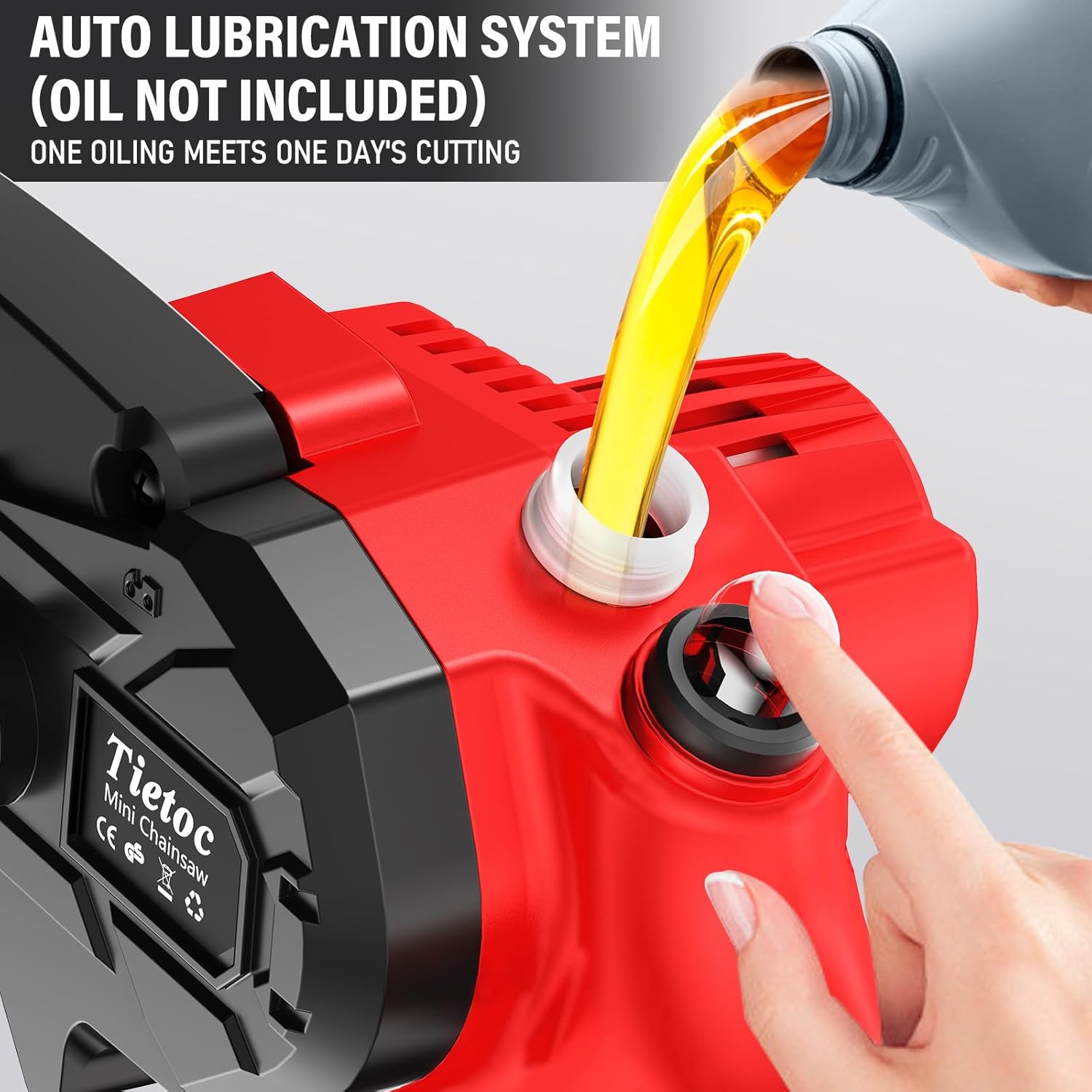

Figure 5: Filling the automatic oiler system.

Operating Instructions

Safety Features

Your safety is paramount. The Tietoc Mini Chainsaw incorporates several safety features:

• Security Lock: Prevents accidental activation. The security lock and start button must be pressed simultaneously for the chainsaw to start.
• Safety Baffles: Designed to prevent wood debris from splashing towards the user.
• Anti-slip Texture Handle: Provides a secure grip for better control.
• Included Safety Gear: Always wear the provided anti-cut gloves and goggles to protect your hands and eyes from sawdust and potential hazards.

Starting and Cutting

Once the battery is installed and the chain is lubricated, you can begin cutting. Remember to always wear your safety gear.

1. Hold the chainsaw firmly with one hand on the anti-slip handle.
2. Press the security lock button with your thumb.
3. While holding the security lock, press the start button to activate the chainsaw.
4. Position the chainsaw blade against the branch or wood you intend to cut. The 880-watt high-power motor and manganese steel chain allow for smooth cutting of 6-inch branches with ease.
5. Apply steady, gentle pressure. Do not force the saw through the wood. Let the chain do the work.

Figure 6: Cutting a 6-inch log with the mini chainsaw.

Video 1: Demonstration of the Tietoc Mini Chainsaw in action, showcasing its cordless operation and cutting power on various wood pieces.

Video 2: A quick overview of the Tietoc Cordless Mini Chainsaw, highlighting its compact size and ease of use for women and general users.

Maintenance

Post-use Storage Instructions

Proper storage ensures the longevity and optimal performance of your chainsaw:

1. Ensure the Chainsaw is Cleaned and Dried thoroughly after each use.
2. Store the Chainsaw Upright to prevent lubricant leakage.
3. Drain Excess Lubricant from the tank if storing for an extended period.
4. Make sure the oil cap is tightly closed to prevent leakage during storage.

Troubleshooting

Warnings About Common Mistakes

To avoid common issues and ensure safe operation:

• Avoid storing the chainsaw on its side or upside down. This can lead to lubricant leakage, as gravity can cause the oil to flow out of the reservoir.
• Do not leave the oil cap loosely closed. This can lead to leakage during storage, especially if the chainsaw is moved or bumped.
• Don’t neglect to check the chainsaw for oil leaks, cracks, or damage after each use. Storing a damaged tool can lead to leaks during storage.

If you encounter any problems with the product, please refer to the warranty and support section for assistance.

Specifications

Warranty and Support

Tietoc stands behind the quality of its mini chainsaws. Your product comes with a 365-day warranty.

If you experience any problems with your Tietoc Cordless Mini Chainsaw, please contact Tietoc Direct. We are committed to resolving any issues within 24 hours.
