1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your IMEX ART BDAR025 Monocommand Shower Bar System. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product. The ART series combines modern design with quality materials, offering a versatile and attractive shower solution.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure and watertight to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive tools or harsh chemical cleaners on the product surface, as this may damage the finish.
- Keep small parts out of reach of children.
3. Package Contents
Verify that all components are present before starting the installation:
- Extendable Shower Bar (Stainless Steel 304)
- Square Shower Head (20 cm x 20 cm, extra-flat, anti-limescale)
- Hand Shower Holder (height-adjustable)
- Square Hand Shower
- Monocommand Faucet (Brass, with 3.5 cm Sedal cartridge)
- Integrated Square Diverter (Chromed Brass)
- Reinforced Shower Hose (1.5 m length)
- Mounting hardware (screws, wall plugs, gaskets)
4. Setup and Installation
The IMEX ART BDAR025 shower system is designed for wall mounting. Follow these general steps for installation:
- Prepare the Installation Area: Ensure the wall surface is clean, stable, and capable of supporting the shower system. Turn off the main water supply.
- Mark Drilling Points: Refer to the technical drawing for precise measurements. Mark the positions for the faucet and shower bar mounting brackets on the wall. The shower bar is extendable between 95 cm and 130 cm, allowing for height adjustment.
- Drill Holes: Use an appropriate drill bit for your wall type and drill the marked holes. Insert wall plugs.
- Install the Faucet: Connect the hot and cold water lines to the faucet. Ensure all connections are sealed with appropriate gaskets and tightened securely. Mount the faucet to the wall using the provided screws.
- Assemble the Shower Bar: Attach the extendable shower bar to the faucet and secure it to the upper wall bracket. Adjust the height of the bar as desired.
- Install Shower Head and Hand Shower: Attach the square shower head to the top of the shower bar. Connect the reinforced hose to the hand shower and the faucet's outlet. Place the hand shower in its adjustable holder on the bar.
- Test for Leaks: Slowly turn on the main water supply and check all connections for any leaks. Tighten any leaking connections immediately.

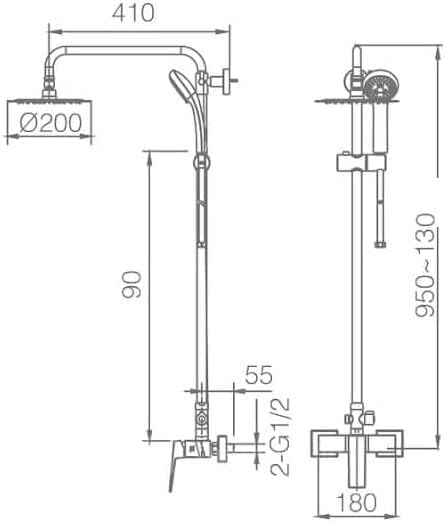

Figure 1: Technical drawing with dimensions for installation. Note the extendable bar height (95-130 cm) and shower head size (20x20 cm).
Figure 2: The IMEX ART BDAR025 shower system fully installed in a bathroom setting.
5. Operating Instructions
Your IMEX ART BDAR025 shower system features a monocommand faucet and an integrated diverter for ease of use.
- Water Flow and Temperature Control: The single lever on the faucet controls both water flow and temperature. Lift the lever to increase flow. Move the lever left for hot water and right for cold water.
- Diverter Function: The square diverter integrated into the faucet allows you to switch between the main shower head and the hand shower. Rotate or pull the diverter knob to select your desired water outlet.
- Adjustable Hand Shower Holder: The hand shower holder can be adjusted vertically along the shower bar to suit individual preferences.
- Water Pressure: The water outlet pressure is adjustable, allowing you to control the force of the water flow. The average water flow is 12 liters per minute.
Figure 3: Close-up of the monocommand faucet, showing the single lever for temperature and flow control.
Figure 4: Detailed view of the faucet, highlighting the integrated diverter and the reinforced hose connection.
6. Maintenance and Cleaning
Proper cleaning and maintenance will ensure the longevity and appearance of your IMEX ART BDAR025 shower system. Avoid harsh chemicals and abrasive materials.
- Daily Cleaning: For general surface cleaning, use a soft cotton cloth. Dampen the cloth if necessary. Gently wipe the surfaces to remove most dirt without damaging the material. Do not use abrasive sponges or brushes.
- Limescale Removal: Limescale deposits typically accumulate in corners and joints. Use a mild, citric acid-based cleaner. Do not spray the concentrated cleaner directly onto the faucet; instead, apply it to a cloth first.
- Aerator Cleaning: The aerator (at the shower head or hand shower) can be easily removed for cleaning. Immerse it in warm water with a small amount of cleaner for about ten minutes to dissolve deposits.
- Rinsing: After cleaning, thoroughly rinse the faucet and shower components with clean water.
- Finishing Touch: Repeat the first step (wiping with a soft cloth) to completely remove any cleaning product residues and restore a brilliant finish to the surface.
Important Note: We recommend using mild, citric acid-based cleaning products. Stronger chemical concentrates can irritate skin and eyes, cause allergies, and may damage the faucet's material over time.
7. Troubleshooting
If you encounter issues with your shower system, consider the following common solutions:
- Low Water Pressure: Check if the main water supply is fully open. Inspect the shower head and hand shower nozzles for limescale buildup and clean them as described in the Maintenance section. Ensure the hose is not kinked.
- Leaks: If you notice leaks, first ensure all connections are tightly secured. Check gaskets for wear and replace if necessary. If the leak is from the faucet body, the internal cartridge might need inspection by a professional.
- Temperature Fluctuations: Ensure both hot and cold water supplies are functioning correctly. If the issue persists, the faucet's thermostatic cartridge may require professional attention.
- Diverter Malfunction: If water is not switching correctly between outlets, check for any obstructions in the diverter mechanism or limescale buildup.
For persistent problems, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | IMEX (MICE COLLECTION) |
| Model Number | BDAR025 (Imex Art Series) |
| Color | Chrome |
| Material | Stainless Steel (bar), Brass (faucet), Polished Finish |
| Number of Handles | 1 (Monocommand) |
| Mounting Type | Wall Mount |
| Shower Head Size | 20 x 20 cm (Square) |
| Shower Bar Extension | 95 cm to 130 cm |
| Hose Length | 1.5 m |
| Faucet Cartridge | Sedal 3.5 cm |
| Average Water Flow | 12 liters per minute |
Figure 5: The IMEX ART BDAR025 shower system in operation, showcasing the main shower head.
9. Warranty Information
This IMEX product is covered by a manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. Specific warranty terms and duration may vary by region. For detailed warranty information, please refer to the documentation provided with your purchase or contact customer support.
10. Support
If you have any questions, require technical assistance, or need to report an issue with your IMEX ART BDAR025 shower system, please contact our customer support team. Contact details can typically be found on our official website or on your purchase documentation.
We are committed to providing high-quality products and support to ensure your satisfaction.
