Aumotop 24V 7500mAh Cordless Portable Pressure Washer User Manual

1. Introduction

Thank you for choosing the Aumotop 24V 7500mAh Cordless Portable Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before first use and retain it for future reference.

This cordless pressure washer is designed for various cleaning tasks, including washing cars, watering plants, cleaning floors, and other household applications, offering portability and convenience.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this product.

• Read all instructions: Familiarize yourself with the controls and proper use of the pressure washer.
• Wear appropriate safety gear: Always wear eye protection and suitable clothing to protect against spray and debris.
• Keep children and pets away: Do not allow children or untrained individuals to operate the pressure washer.
• Avoid direct spray on people or animals: The high-pressure spray can cause serious injury.
• Electrical safety: Ensure the charger and battery are kept dry. Do not operate the pressure washer with damaged electrical components.
• Battery care: Use only the specified charger for the battery. Do not expose the battery to extreme temperatures or disassemble it.
• Water source: Use clean water. Do not use corrosive or flammable liquids.
• Secure connections: Ensure all hoses and nozzles are securely connected before operation to prevent leaks or disconnections under pressure.

3. Package Contents

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer support.

• 1 x Car High Pressure Water Sprayer (Main Unit)
• 1 x Filter
• 2 x 7500mAh Battery
• 1 x Foam Pot
• 1 x Water Pipe (5 meters)
• 1 x 0° Water Outlet Nozzle
• 1 x 40° Water Outlet Nozzle
• 1 x English User Manual
• 1 x Extension Rod
• 1 x Plug Charger

Figure 3.1: Illustration of all components included in the package. This includes the main sprayer unit, two batteries, charger, water pipe, filter, foam pot, extension rod, and two nozzles (0° and 40°).

4. Setup

Follow these steps to assemble your cordless pressure washer before use.

1. Connect the Inlet Pipe: Pull down the outer ring of the connector on the pressure washer. Insert the inlet pipe into the connector. Release the outer ring to secure the pipe.
2. Install the Extension Rod: Attach the extension rod to the front of the main sprayer unit by twisting it securely.
3. Attach the Nozzle: Select either the 0° (direct stream) or 40° (fan-shaped) nozzle. Insert the chosen nozzle onto the end of the extension rod and ensure it clicks into place or is securely threaded.
4. Insert the Battery: Align the 24V battery with the battery slot at the base of the pressure washer handle. Push firmly until it clicks into place. Ensure the battery is fully charged before use.
5. Prepare Water Source: Place the filter end of the water pipe into a bucket or suitable water container. The pressure washer features self-priming for convenience.

Figure 4.1: Visual guide for the assembly process, showing connection of the inlet pipe, extension rod, nozzle, and battery installation.

5. Operating Instructions

5.1 Powering On and Off

The pressure washer features an intelligent induction variable frequency motor. The motor automatically starts when the trigger is pressed and stops when the trigger is released, conserving battery life and preventing continuous operation.

5.2 Nozzle Selection and Water Flow Adjustment

Your pressure washer comes with two interchangeable nozzles to suit different cleaning needs:

• 0° Water Outlet Nozzle (Red): Provides a direct, high-pressure stream for flushing stubborn dirt and concentrated cleaning.
• 40° Water Outlet Nozzle (White): Creates a fan-shaped spray, ideal for broader cleaning areas and faster washing.

To change the water type, simply replace the nozzle on the extension rod. The water flow can be adjusted gradually from small to large by selecting the appropriate nozzle and controlling the distance from the cleaning surface.

Figure 5.1: Demonstrates the two available spray patterns: a direct shot for flushing dirt and a fan shape for faster washing.

Figure 5.2: Illustrates the application of the high-pressure nozzle for descaling, the fan nozzle for general cleaning, and the foam pot for foam jet decontamination.

5.3 Using the Foam Pot

For tasks requiring soap or detergent, attach the foam pot to the pressure washer. Fill the foam pot with appropriate cleaning solution. The foam pot will mix the solution with the water stream, creating a rich foam for effective cleaning and decontamination.

5.4 Applications

This versatile pressure washer is suitable for a variety of cleaning and watering tasks:

• Car Washing: Effectively remove dirt and grime from vehicles.
• Garden Watering: Gently water flowers and plants using a suitable spray pattern.
• Floor Washing: Clean patios, driveways, and other hard surfaces.
• Facility Washing: Suitable for cleaning various outdoor facilities.
• Air Conditioner Cleaning: Carefully clean outdoor air conditioning units.
• Bike/Motorcycle Washing: Efficiently clean bicycles and motorcycles.

Figure 5.3: Examples of the multi-purpose use of the pressure washer for car washing, watering flowers, floor cleaning, and facility washing.

Figure 5.4: Demonstrates cleaning a courtyard and washing an air conditioner unit using the pressure washer.

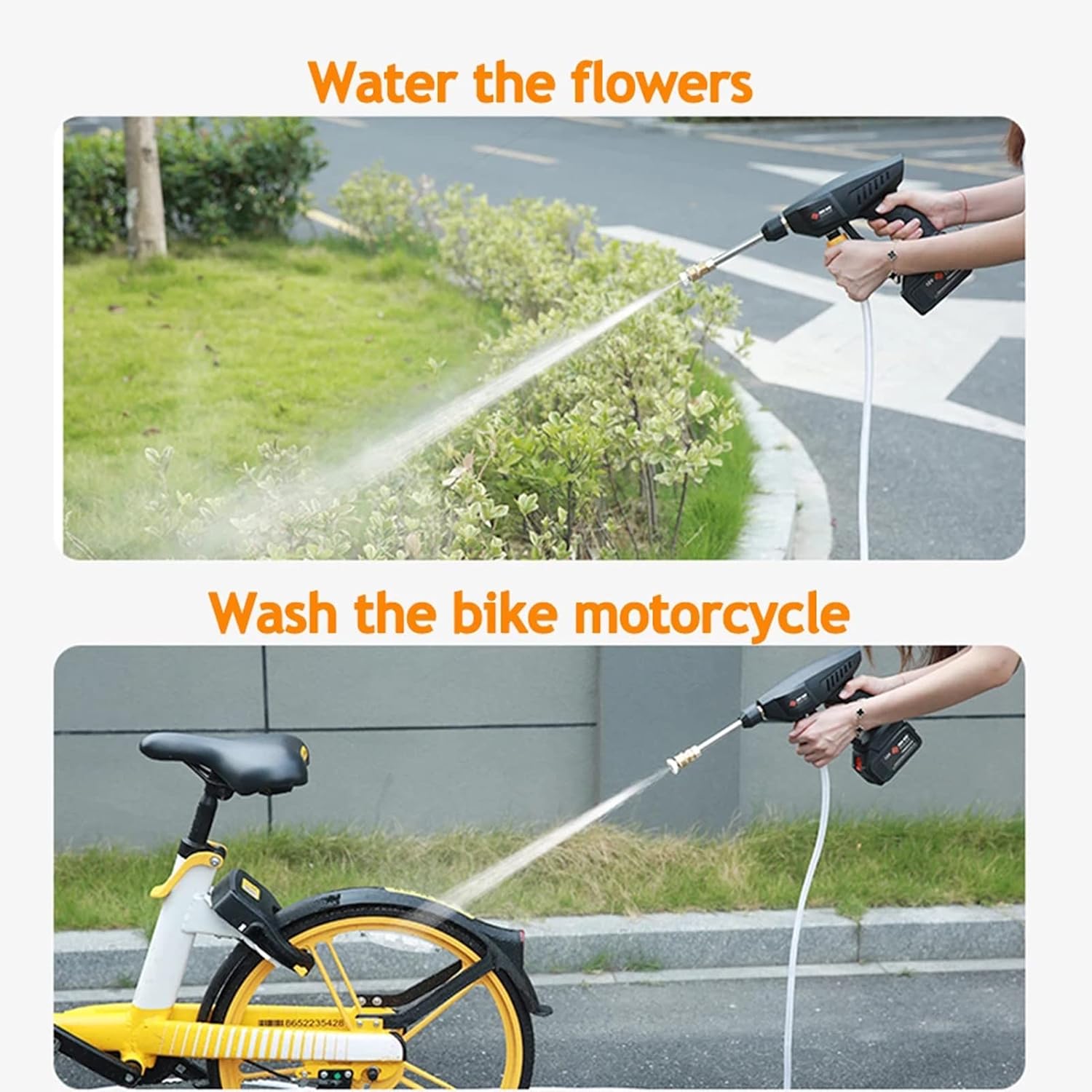

Figure 5.5: Shows the pressure washer being used for watering flowers and cleaning a bicycle.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pressure washer.

• After Each Use: Flush the system with clean water to remove any detergent residue or impurities.
• Clean the Filter: Regularly inspect and clean the built-in stainless steel fine filter to ensure efficient water intake and prevent clogging.
• Water Pipe Care: The included 5-meter water pipe is designed for durability, featuring a water-passing inner layer, encrypted fiber, and wear-resistant, anti-aging protection. Store it properly to prevent kinks or damage.
• Battery Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to approximately 50% capacity.
• General Cleaning: Wipe down the exterior of the pressure washer with a damp cloth. Do not use harsh chemicals.

Figure 6.1: Illustrates the robust construction of the water pipe, highlighting its water-passing inner layer, encrypted fiber, and wear-resistant outer protection, designed for durability and resistance to environmental factors.

7. Troubleshooting

If you encounter issues with your pressure washer, refer to the following common problems and solutions:

• No Water Pressure:
  • Ensure the water pipe is fully submerged in the water source.
  • Check if the water filter is clean and not clogged.
  • Verify all connections are tight and there are no leaks.
  • Ensure the battery is fully charged.
• Motor Not Starting:
  • Check if the battery is properly inserted and charged.
  • Ensure the trigger is fully pressed.
• Water Leaking:
  • Tighten all hose and nozzle connections.
  • Inspect O-rings and seals for damage and replace if necessary.
• Reduced Spray Performance:
  • Clean the nozzle to remove any blockages.
  • Ensure the water filter is clean.

If problems persist after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided with your purchase or contact the retailer. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Aumotop customer service through their official channels or the retailer from whom the product was purchased.
