FAIR RC FMS 1/18 RC Car Steering Hub & Spindle Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your FAIR RC FMS 1/18 RC Car Steering Hub & Spindle. Designed for precision and durability, this component is a direct replacement and upgrade part for various FMS 1:18 scale RC models. Please read these instructions carefully to ensure proper use and longevity of your product.

2. Product Overview

The Steering Hub & Spindle is a critical component in the steering assembly of your 1:18 scale FMS RC car. It connects the wheel to the suspension and steering linkages, allowing for precise control and smooth rotation of the wheels. This part is manufactured from high-quality materials to ensure strong structure and durability, providing enhanced performance and protection for your RC model.

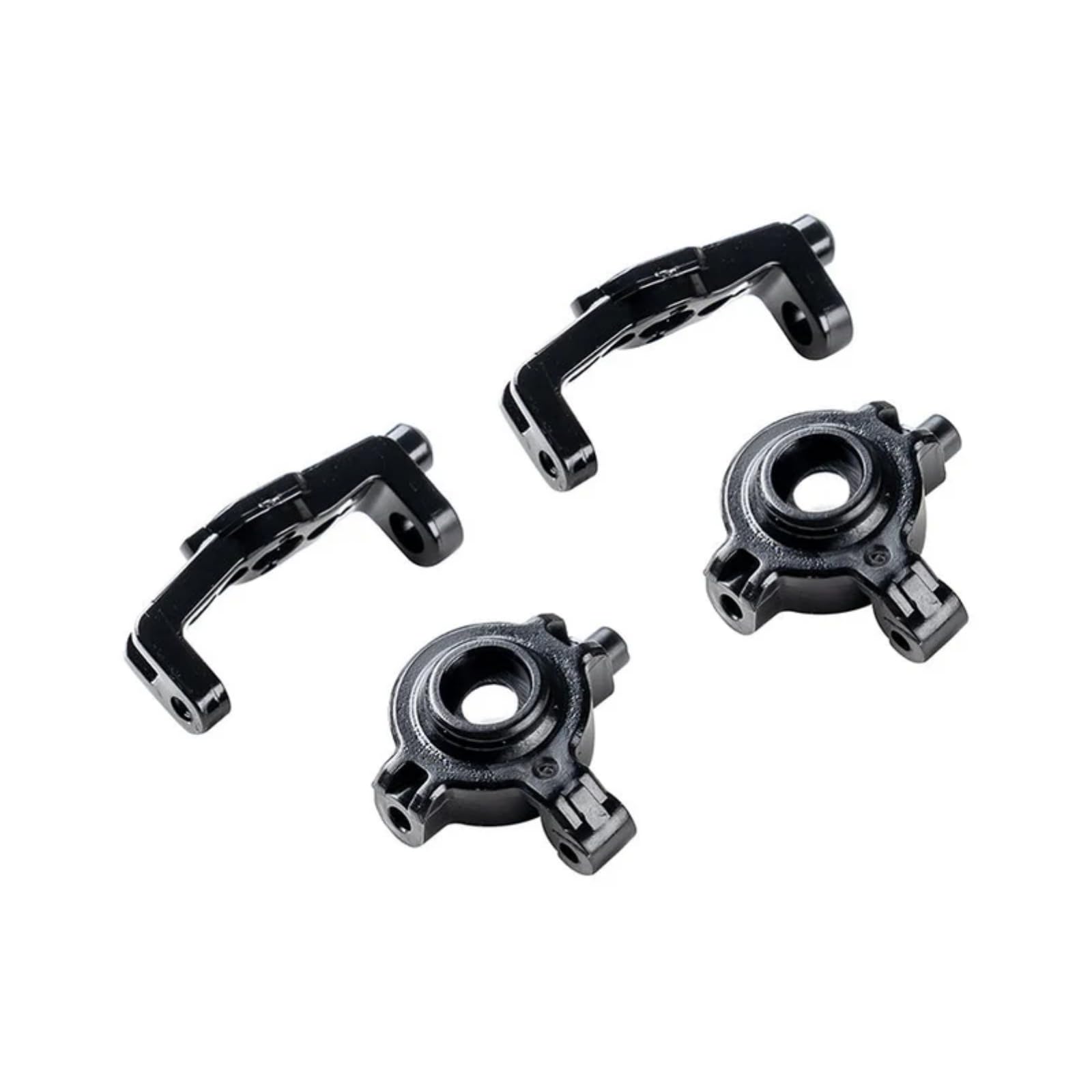

Image 1: FMS 1/18 RC Car Steering Hub & Spindle. This image shows the individual components of the steering hub and spindle assembly.

3. Compatibility

This Steering Hub & Spindle is compatible with the following FMS 1:18 scale RC car models:

• 1:18 TOYOTA Land Cruiser 80
• 1:18 FIRE HORSE
• 1:18 FJ CRUISER
• 1:18 CHEVROLET K10
• 1:18 MOGRICH
• 1:18 CHEYENNE
• 1:18 MAGNUM
• 1:18 TOYOTA HILUX
• 1:18 CHEVROLET APACHE

4. Setup and Installation

The Steering Hub & Spindle is designed for easy installation and serves as a direct upgrade or replacement part. Precision machining ensures a perfect fit and long-lasting performance.

1. Preparation: Ensure your RC vehicle is powered off and the battery is disconnected. Gather necessary tools, which typically include small screwdrivers and possibly pliers.
2. Removal of Old Part: Carefully remove the wheel from the axle. Disassemble the existing steering hub and spindle assembly, noting the order and orientation of all components (bearings, washers, pins, etc.). Refer to your specific RC car's manual for detailed disassembly instructions if needed.
3. Installation of New Part:
   • Place the new Steering Hub & Spindle onto the axle, ensuring all bearings and spacers are correctly positioned.
   • Connect the steering linkage to the new spindle.
   • Secure all fasteners firmly but do not overtighten to avoid damaging the plastic or metal components.
   • Reattach the wheel, ensuring it spins freely without binding.
4. Verification: After installation, manually check the steering mechanism for smooth movement and proper alignment. Ensure all parts are securely fastened before operating the vehicle.

Image 2: Diagram illustrating various parts of an FMS 1:18 LC80 RC car, showing the general location of steering components.

5. Operating Considerations

Once installed, the Steering Hub & Spindle functions as an integral part of your RC car's steering and suspension system. Proper installation ensures optimal performance, allowing for precise control and responsive handling. No specific operational steps are required for this component itself beyond its correct installation and integration into the vehicle's system.

6. Maintenance

To ensure the longevity and optimal performance of your Steering Hub & Spindle, regular maintenance is recommended:

• Inspection: Periodically inspect the hub and spindle for any signs of wear, cracks, or damage, especially after heavy use or impacts.
• Cleaning: Keep the area around the hub and spindle clean from dirt, dust, and debris, which can impede movement or cause premature wear. Use a soft brush or compressed air.
• Lubrication: Apply a small amount of appropriate RC-safe lubricant to moving parts, such as bearings and pivot points, to ensure smooth operation.
• Fastener Check: Regularly check that all screws and fasteners securing the hub and spindle are tight. Loose fasteners can lead to play in the steering or component failure.
• Replacement: If significant wear or damage is observed, replace the component promptly to maintain vehicle performance and prevent further damage to other parts.

7. Troubleshooting

If you experience issues related to the steering or wheel assembly after installing the Steering Hub & Spindle, consider the following:

• Excessive Play in Wheel:
  • Check if the wheel nut is securely tightened.
  • Inspect bearings for wear or damage; replace if necessary.
  • Ensure all pins and spacers are correctly installed.
• Stiff Steering/Binding:
  • Verify that no wires or other components are interfering with the steering linkage.
  • Check for overtightened screws on the hub or spindle.
  • Ensure bearings are clean and properly lubricated.
  • Inspect for any bent or damaged components that might be causing friction.
• Wheel Wobble:
  • Ensure the wheel is properly seated on the hub.
  • Check for bent axles or damaged wheels.
  • Inspect the hub and spindle for any deformities.

If problems persist, consult your specific RC car's service manual or contact FAIR RC customer support.

8. Specifications

9. Customer Support

FAIR RC is committed to providing excellent service and continuously innovating. We value every customer. If you have any questions, concerns, or require assistance with your Steering Hub & Spindle, please do not hesitate to contact our friendly FMS team. We are dedicated to resolving any issues you may encounter.

For support, please visit the FAIR RC Store on Amazon or refer to the contact information provided with your product packaging.
