Metabo HPT 18V 4.0Ah Lithium Ion Battery (BSL1840M) Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Metabo HPT 18V 4.0Ah Lithium Ion Battery, model BSL1840M. Please read these instructions thoroughly before first use and retain them for future reference. This battery is designed to provide long-lasting power for all Metabo HPT 18V slide-type cordless tools.

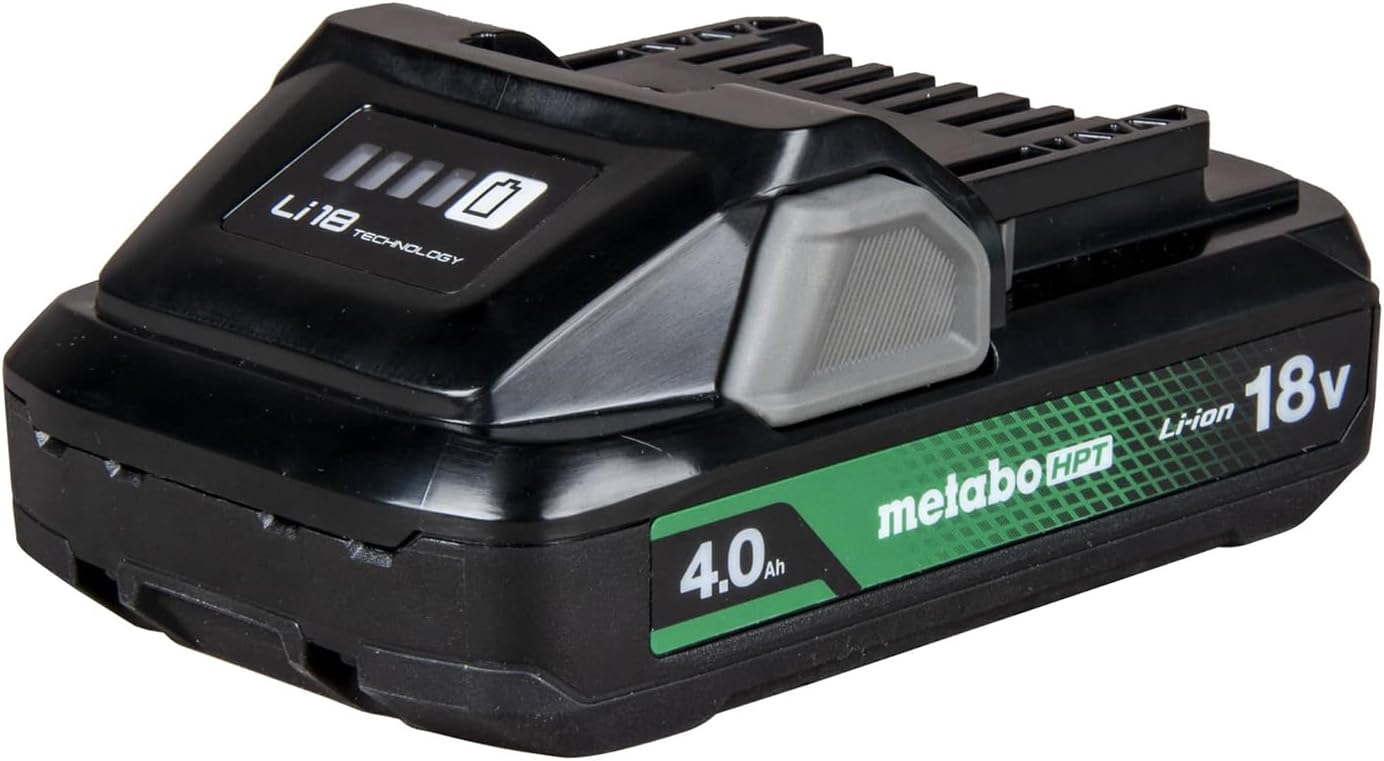

The Metabo HPT 18V 4.0Ah Lithium Ion Battery, model BSL1840M, featuring a sleek black design with green accents and a visible fuel indicator.

Key Features:

• Long-Lasting Power: Offers extended run-time, providing 30% longer use compared to the BSL1830 3.0Ah battery.
• Lightweight and Portable: Weighs only 1.3 lbs, 50% lighter than most NiCd batteries, reducing user fatigue.
• User-Friendly Design: Features a battery indicator to show remaining power level and a slide-type design for easy installation and removal.
• Durable and Protected: Equipped with a multiplex protection circuit to prevent overload, overcharge, and over-discharge. Resin coating offers additional protection.

This image illustrates the key benefits of the Metabo HPT 18V 4.0Ah battery, emphasizing its light weight of 1.3 lbs, 30% longer runtime compared to previous models, and the convenient battery charge indicator.

2. Safety Information

Always observe basic safety precautions when using battery packs to reduce the risk of fire, electric shock, and personal injury.

General Battery Safety:

• Do not disassemble, open, or shred battery packs.
• Do not expose battery packs to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
• Do not remove a battery pack from its original packaging until required for use.
• Do not subject battery packs to mechanical shock.
• In the event of battery leakage, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Keep battery packs clean and dry.
• Recharge only with the charger specified by Metabo HPT.
• The multiplex protection circuit prevents overload, overcharge, and over-discharge, but proper handling is still crucial.

Proposition 65 Warning:

This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

3. Product Overview

The Metabo HPT BSL1840M battery is engineered for performance and durability, featuring a robust design and advanced technology.

An annotated diagram of the Metabo HPT 18V 4.0Ah battery, detailing its key components and technological advantages.

Components:

• Battery Charge Indicator: LED lights display the remaining power level.
• Slide Type Technology: Ensures easy and secure attachment and removal from compatible tools and chargers.
• Lithium Ion Cells: Provides consistent power output and long cycle life.
• Multiplex Protection Circuit: Integrated system to prevent damage from over-charging, over-discharging, and overloading.
• Resin Coating: Offers enhanced protection against environmental elements.

4. Setup and Charging

Before initial use, fully charge the battery pack. Use only Metabo HPT approved chargers for this battery model.

Charging Procedure:

1. Connect the Metabo HPT charger to a standard power outlet.
2. Slide the BSL1840M battery pack onto the charger until it clicks into place.
3. The charger's indicator light will show the charging status. Refer to your charger's manual for specific light patterns.
4. Once fully charged, remove the battery from the charger.

Using the Fuel Indicator:

Press the button on the battery pack to activate the LED fuel indicator. The number of illuminated LEDs corresponds to the remaining charge level:

• 4 LEDs: 75-100% charge
• 3 LEDs: 50-75% charge
• 2 LEDs: 25-50% charge
• 1 LED: 0-25% charge (recharge soon)

A close-up view of the battery's fuel indicator, displaying the current charge level through illuminated LED segments.

5. Operation

The BSL1840M battery is designed for seamless integration with your Metabo HPT 18V cordless power tools.

Attaching to a Tool:

1. Align the battery pack with the battery port on your Metabo HPT 18V tool.
2. Slide the battery firmly into the tool until it clicks securely into place. Ensure it is fully seated to prevent accidental detachment during operation.

Detaching from a Tool:

1. Locate the battery release button(s) on the tool or battery.
2. Press and hold the release button(s) while sliding the battery pack out of the tool.

The Metabo HPT 18V 4.0Ah battery is shown in action, powering a tool during a task, highlighting its suitability for various applications with 18V Metabo HPT power tools.

6. Maintenance and Storage

Proper maintenance and storage will extend the life and performance of your battery pack.

Cleaning:

• Keep the battery terminals clean. Use a clean, dry cloth to wipe away any dust or debris.
• Do not use water or chemical cleaning agents.

Storage:

• Store the battery pack in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid storing the battery in temperatures below -4°F (-20°C) or above 122°F (50°C).
• For long-term storage, it is recommended to store the battery at approximately 50% charge.
• Do not store the battery pack with metal objects that could short-circuit the terminals.

Battery Life Extension:

• Avoid completely draining the battery before recharging.
• Allow the battery to cool down before charging if it has been heavily used.
• Charge the battery regularly, even if not in frequent use, to maintain cell health.

7. Troubleshooting

If you encounter issues with your Metabo HPT BSL1840M battery, refer to the following common troubleshooting steps.

Battery Not Charging:

• Check Power Connection: Ensure the charger is securely plugged into a working power outlet.
• Inspect Battery Connection: Make sure the battery is fully seated on the charger. Remove and re-insert it.
• Charger Status: Observe the charger's indicator lights. If they show an error code, consult your charger's manual.
• Temperature: If the battery is too hot or too cold, the charger may delay charging until the battery reaches an optimal temperature range.

Battery Not Holding Charge / Short Runtime:

• Battery Age: Lithium-ion batteries naturally degrade over time and with charge cycles.
• Storage Conditions: Ensure the battery is stored in recommended temperature ranges (see Maintenance section). Extreme temperatures can reduce battery life.
• Tool Demand: High-demand tools or continuous heavy use will deplete the battery faster.

Battery Not Powering Tool:

• Check Charge Level: Use the fuel indicator to confirm the battery has sufficient charge.
• Battery Connection: Ensure the battery is properly and securely attached to the tool.
• Tool Malfunction: Test the tool with a different, fully charged battery if available, to rule out a tool issue.

If these steps do not resolve the issue, or if you suspect a defect, please contact Metabo HPT customer support or refer to the warranty information.

This image highlights the multiplex protection circuit integrated into the Metabo HPT 18V 4.0Ah battery, which safeguards against overload, overcharge, and over-discharge.

8. Specifications

9. Warranty and Support

Your Metabo HPT 18V 4.0Ah Lithium Ion Battery (BSL1840M) is covered by a 2-year warranty. This warranty covers defects in material or workmanship under normal use.

For Warranty Claims or Technical Support:

Please retain your proof of purchase. For detailed warranty terms, service, or technical assistance, visit the official Metabo HPT website or contact their customer support directly. Contact information can typically be found on the product packaging or the brand's official website.
